The downhole camera that sees the whole bore, not just straight ahead. Designed for wells, boreholes, shafts, reservoirs, and tanks, the STRAHL HD combines a downward-facing wide-angle camera with a 360° rotating side-view camera, delivering detailed coverage of both the bore path and sidewalls down to 300 m (984 ft). Its rugged 45 mm IP68 stainless-steel camera head and 13″ HD display make deep vertical inspections clear, efficient, and easy to document.
The STRAHL HD Well Inspection Camera is a compact well camera for quick and efficient inspection of reservoirs, shafts, vertical pipes, water wells, and tank inspections. This compact and battery-operated tool boasts a dual camera head of just 45mm (1.77") in diameter, allowing operators to acquire comprehensive, detailed images from a top-down perspective in a single pass. Pipe diameters from 2" to 40" can be easily inspected and documented with this compact and portable water well camera.
Key Features:
Visit our online catalog for detailed information about this system.
2-3 week lead time for stock on pre-order.
Explore STRAHL HD
Water Wells & Boreholes
Inspect well casing, joints, obstructions, pumping-system surroundings and the overall condition of the bore from the top down.
Casing & Sidewall Assessment
Rotate the side-view camera continuously through 360° to document corrosion, buildup, bacterial growth and foreign objects along the wall.
Shafts, Reservoirs & Tanks
Inspect other vertical structures where flexible top-down deployment is more practical than pushing a semi-rigid camera cable.

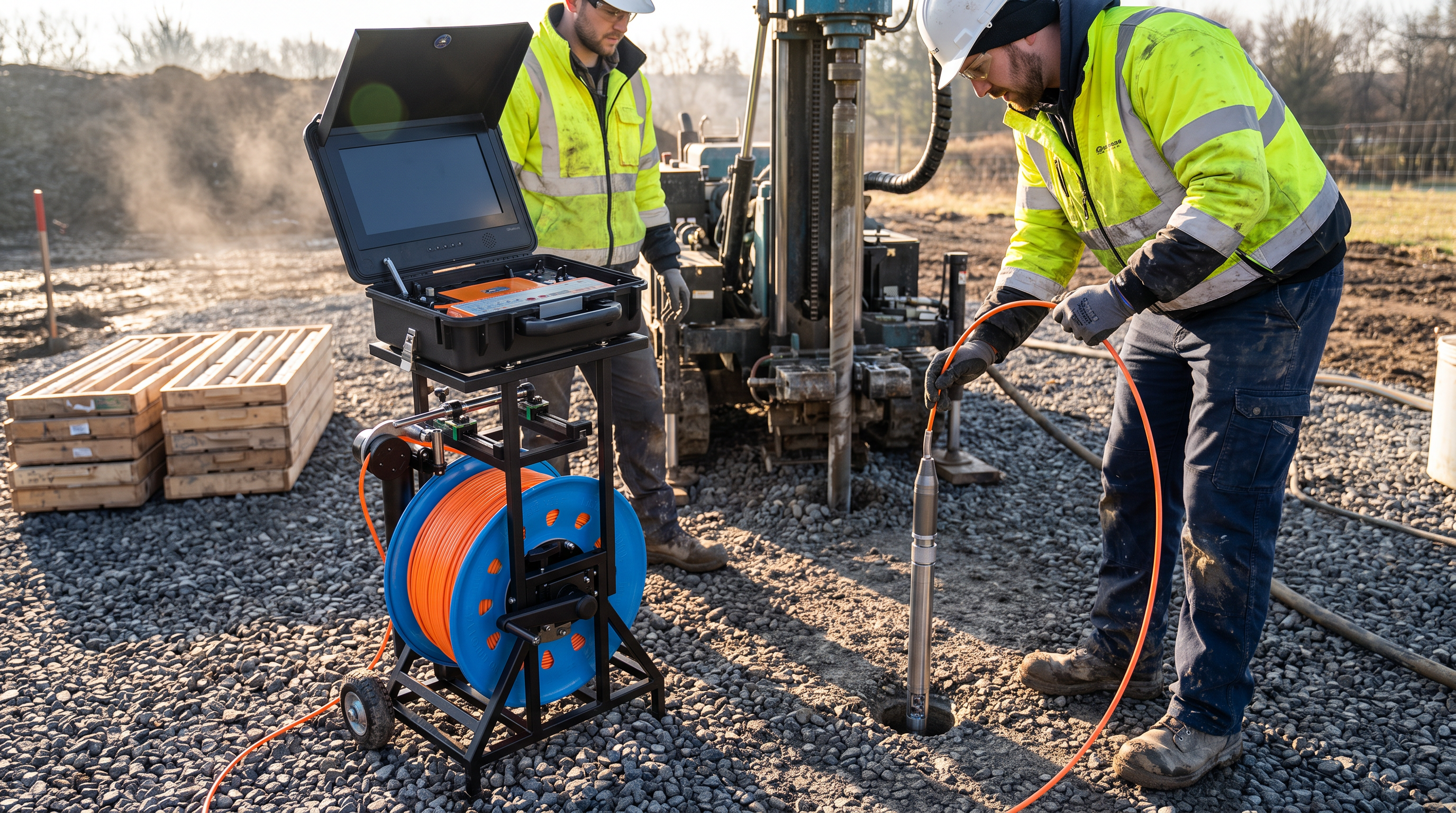

Groundwater & Stratigraphy
Use recorded footage together with the depth counter to help document stratigraphy and groundwater inflow zones.
Key data presented for fast procurement review.
Need a formal quote or additional information?
Submit your requirements and application. Our team will confirm the configuration, answer your questions, and provide the necessary documentation.
Request a quoteup to 984' (300m)
Ø45 mm × 422 mm (1.77″ × 16.6″)
Ø8.0 mm
Downward + Side-view 360° endless rotation
6/view adjustable high-power LEDs
Camera & cable: IP68, 30 bar freshwater
Manual or Motorized
5000 mA rechargeable Li-ion battery pack
13″ IPS LCD, 1280 × 720
Built-in microphone
MPEG/ JPEG; 720p, 1.3 MP; audio to SD card; footage counter; text overlay; on-site playback
Dual-view Cameras and Depth Counter turns a vertical camera drop into a documented inspection.
Up to 984' (300m)
Up to 984' (300m)
45mm dual-view camera
45mm dual-view camera

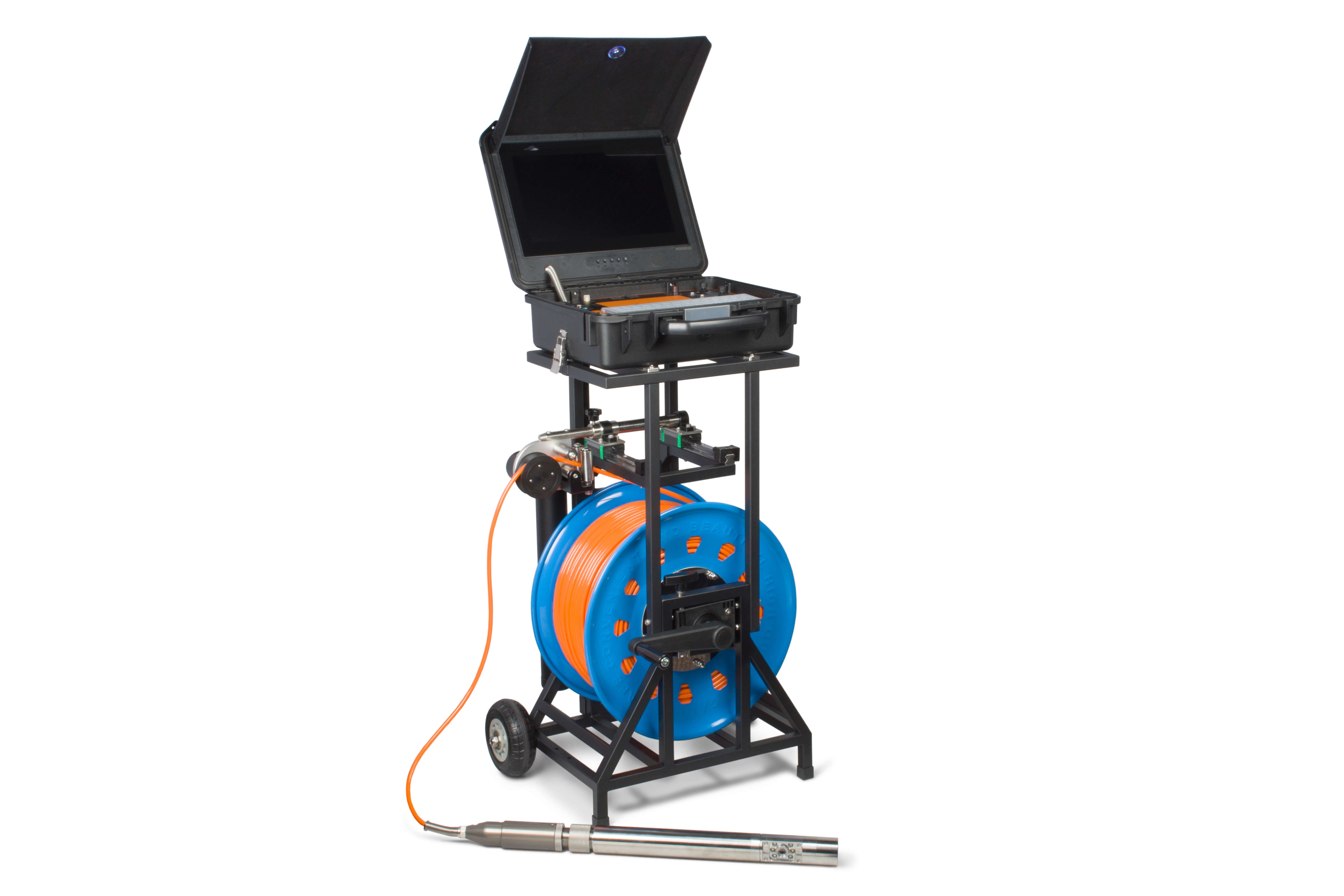

Hand-operated
Powered winch
Standard well and borehole inspections where manual deployment is practical
Frequent inspections, deeper deployments, and easier cable retrieval
Still not sure? Speak with a specialist who works with pipe cameras every day. Call 1.877.613.2210
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
It depends on where you are and if the product is in stock or a preorder. Products in stock will take 3-7 business days to arrive. Overseas or pre order deliveries can take anywhere from 14-28 days.
You can rent short-term, and if you like the system, 50% of the rental fee can be applied towards the purchase cost.
Yes! We offer rental units ranging from light handles and fiberscopes to push cameras and pipe crawlers. Please get in touch with us for more information.
Yes, we offer product financing through our third-party company called Kwipped Approve. To get a product financed start the application on the product page or get in touch with us. Currently available only for USA.

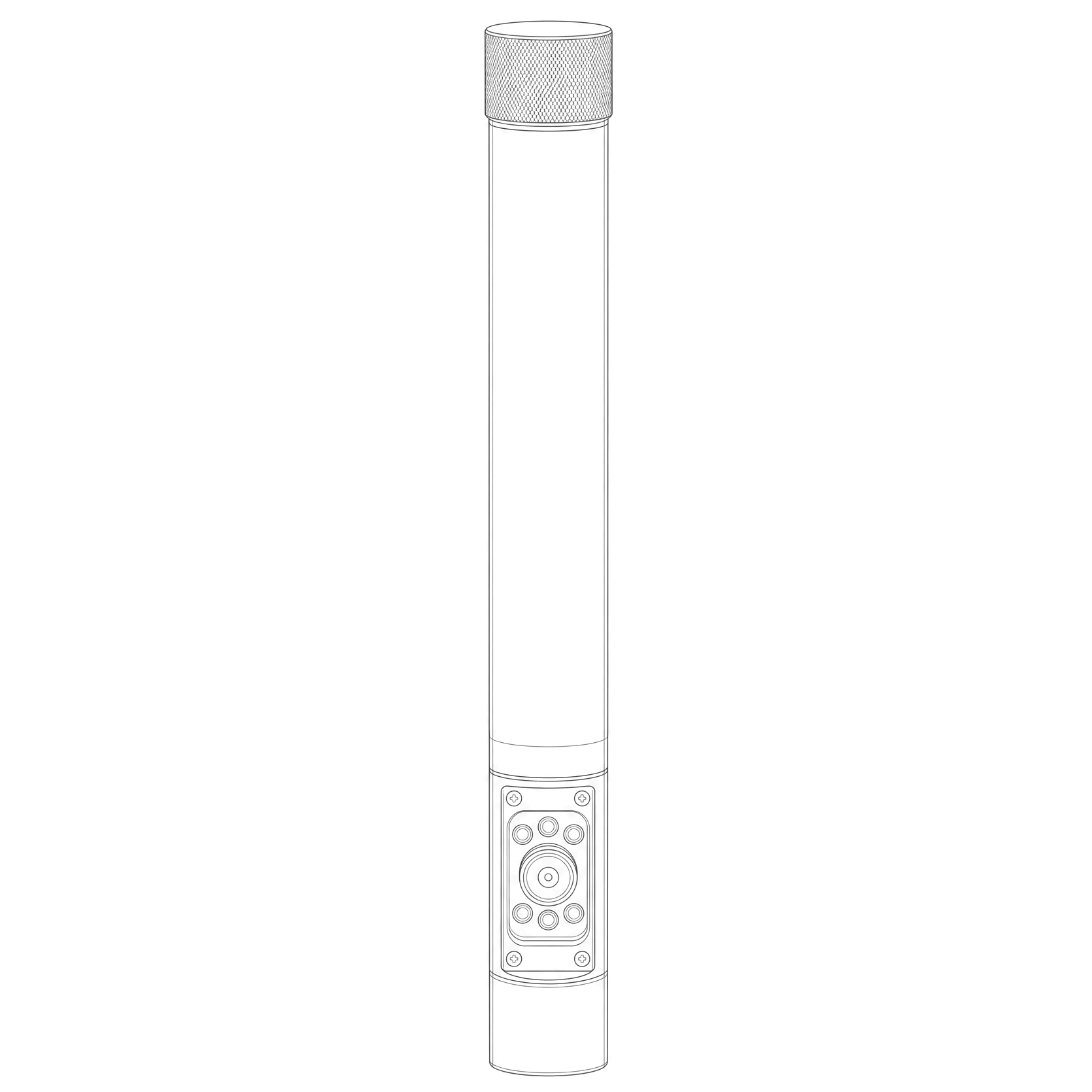

Dual-View Camera Head
Be able to view the side-wall as well as verticaly down.
Drop Cable
Reinforced Flexible Cable, Ø 8.0mm

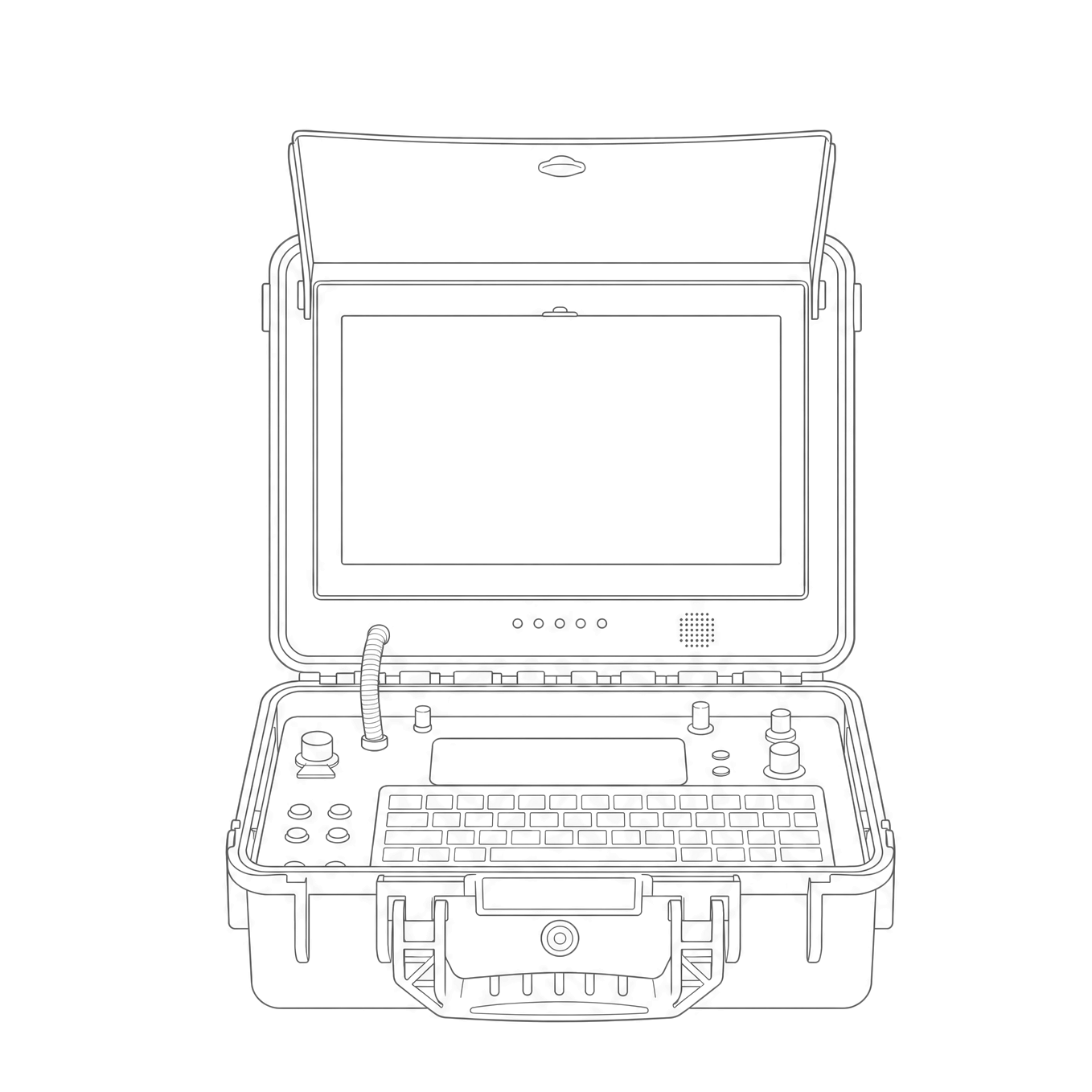

13" Monitor
Battery powered control box with Large Screen
Cable Reel
200m/300m Lengths
Manual or Motorized options
