Portable solution for inspecting 2 inch to 8 inch pipes and delivering high-quality image for accurate decisions.

MiniFlex HD Drain Inspection Camera offers a compact and effective solution for inspecting drain lines, sewer pipes, and other ductwork that requires a examination for finding blockage, confirming the damage or record the work done in the pipe.

Key Benefits

• Always Have a Upright Image with a Self Leveling Camera
• Easy Carry and Storage with the Portable and Compact Design
• No Back Stress with the Camera weighing only 11kg
• Record and Show Your Customers Footage to Confirm Your Work

The MiniFlex HD Drain Camera System comes as a ready to use system right out of box - no batteries to connect, no wires to attach. One unit in a compact and portable design for quick and effective inspections.

MiniFlex HD offers a 1.4 inch self-leveling camera head that keeps the image on the display always upright which gives you a more accurate and easy to understand insight during inspections. Integrated into the camera head and protected from damage is a slope measurement sensor that displays the inclination of the camera head on the monitor. For pinpointing the camera head, a 512Hz sonde beacon is fused into the camera and is helpful for locating the exact place of damages or blockages in the pipe to know where to start digging or tearing the floor.

Hidden inside the unit is the 35m(114ft) cable which makes it possible to push out the camera head in straight runs as well as pass bends and elbows. Integrated into the system is a meter counter that conveniently counts the amount of unspooled cable for valuable information about the pipe length or distance of the blockage down the pipe. The push cable is connected to the camera head with a unique rubber neck instead of the regular spring type connection and acts as a connector between the camera and the monitor.

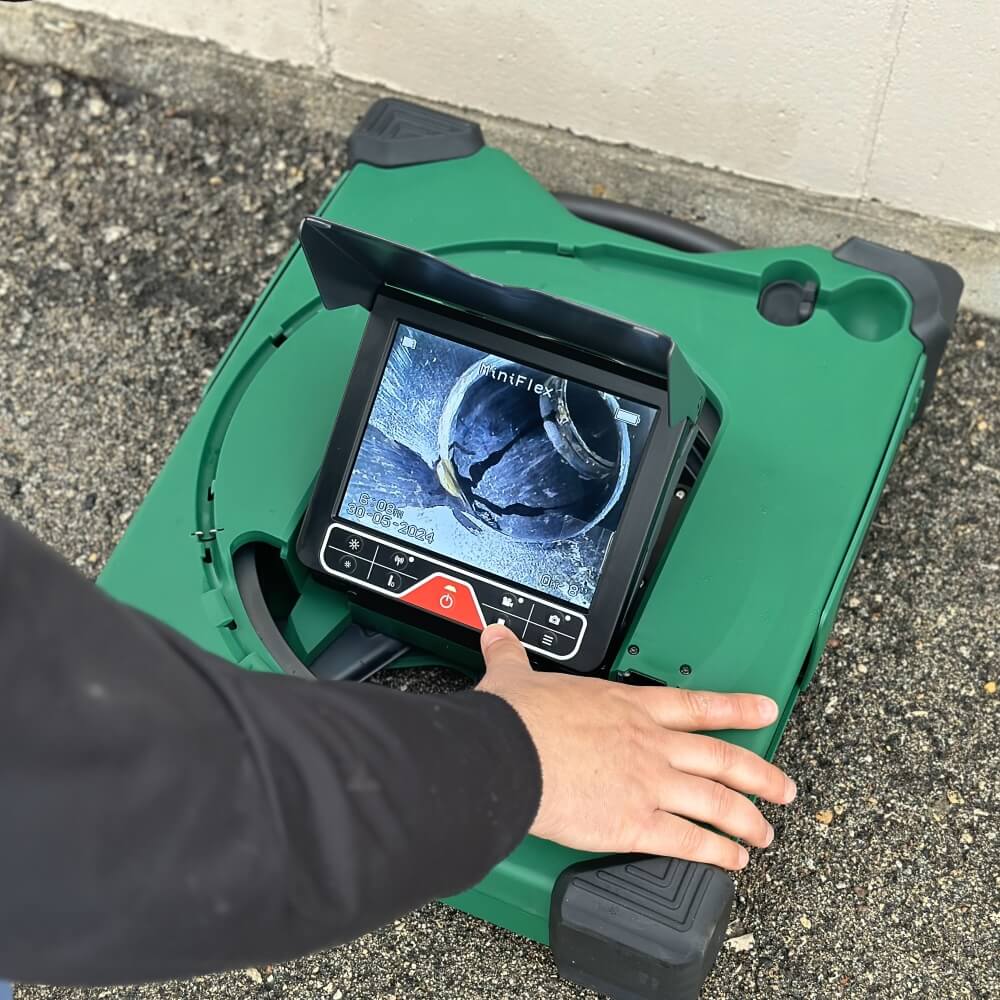

The 8 inch monitor display combines several functions into one and allows real-time viewing of the inspection, recording of video/picture/audio, and overlaying a text over the screen which is helpful for marking the recordings to know where it was done.

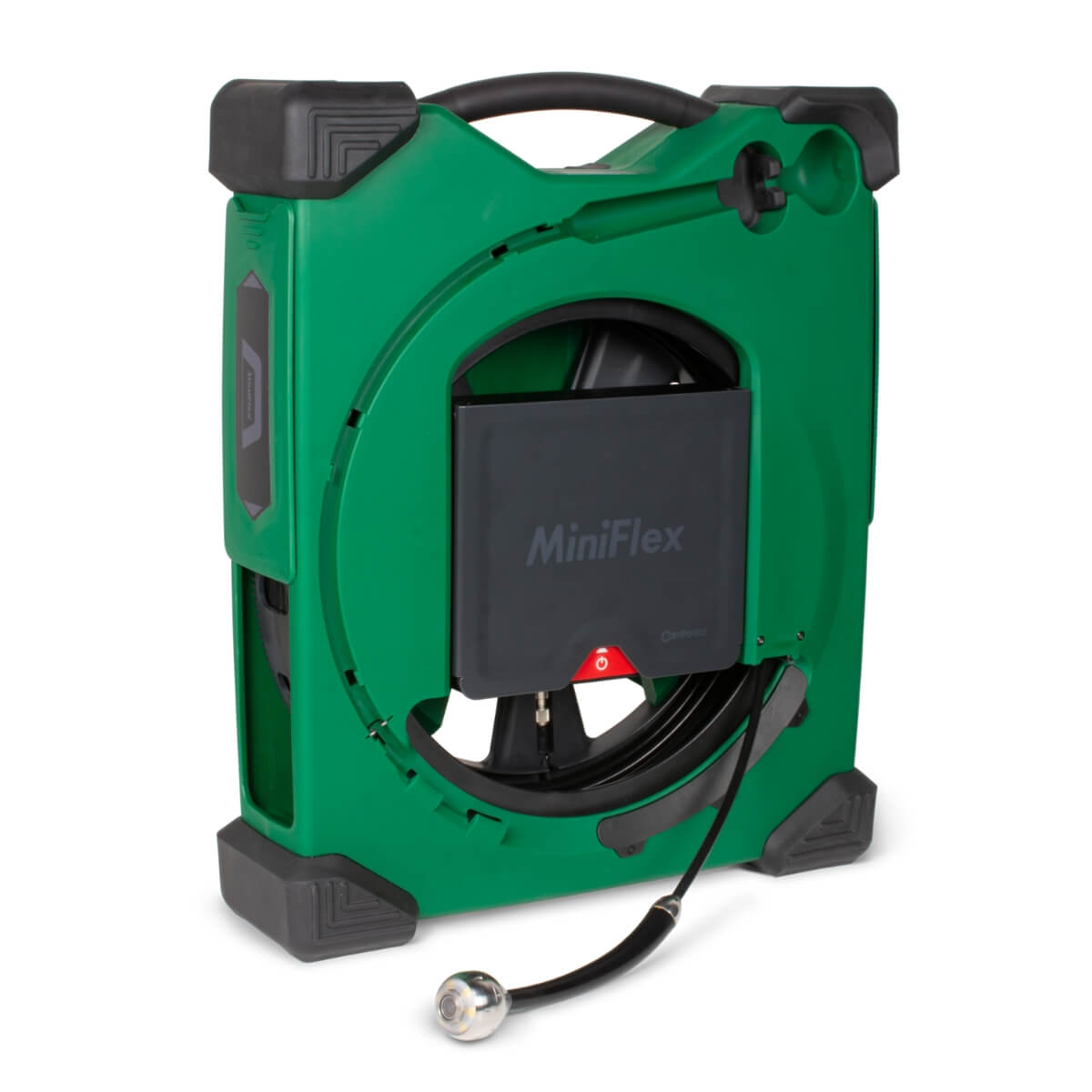

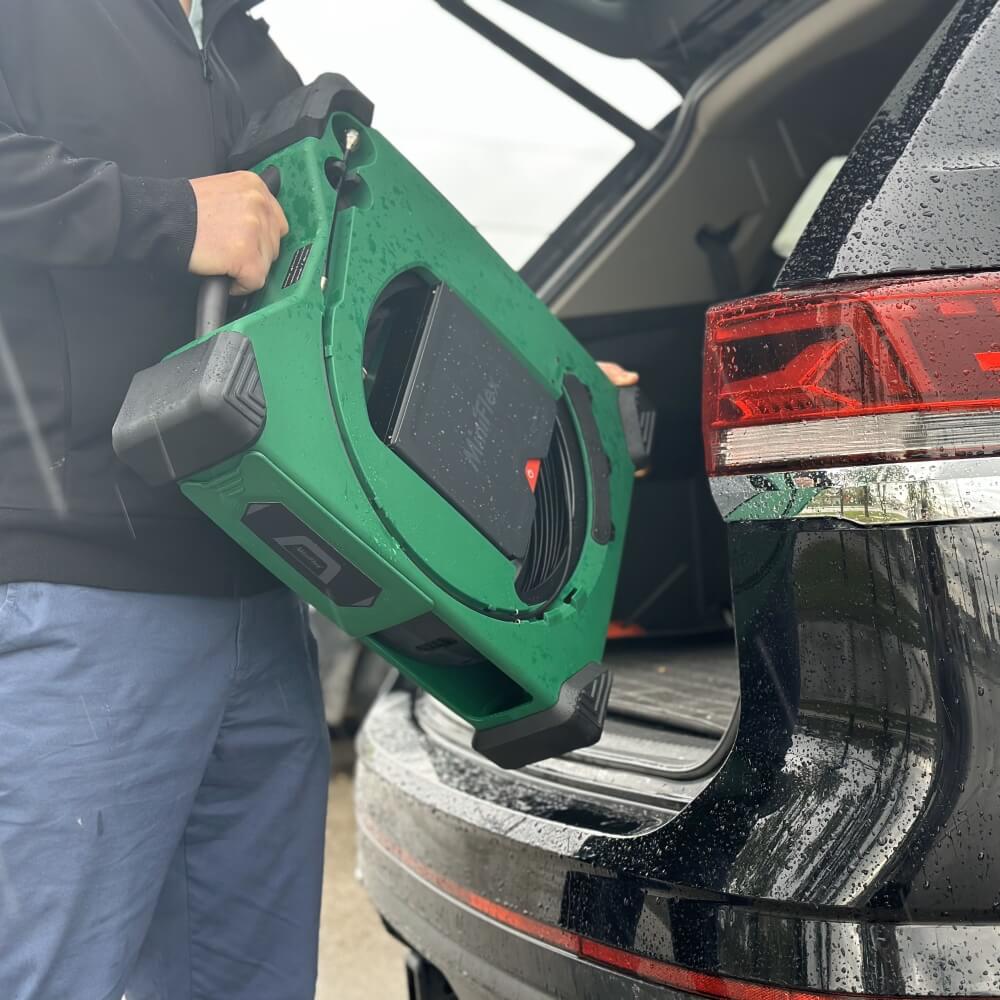

All the components of the drain camera unit are housed in a protective case design that is compact and portable and weighs only 11kgs. The case offers a handle for easy carry and four rubber protection pads on the corners. If needed the camera can be used laying or slightly elevated with a metal prop.

Specifications

• Camera Heads: Self-Leveling 36mm(1.41")
• Length: 35M(114ft)
• Built-in 512Hz Sonde
• Waterproof up to 3 bars (100 ft.)
• 8.0" Touchscreen Display
• Screen Resolution: 1024x768
• Recording Resolution: 720x576
• Recording: Photo/Video/Audio
• Onscreen Meter Counter
• Slope Measurement: Yes
• Text Generation
• Weight: 11kg

Fiberscope.net is an official reseller and service center for the Camtronics MiniFlex Drain Inspection Cameras.

For more information about this inspection system, check our online catalog's product page.
