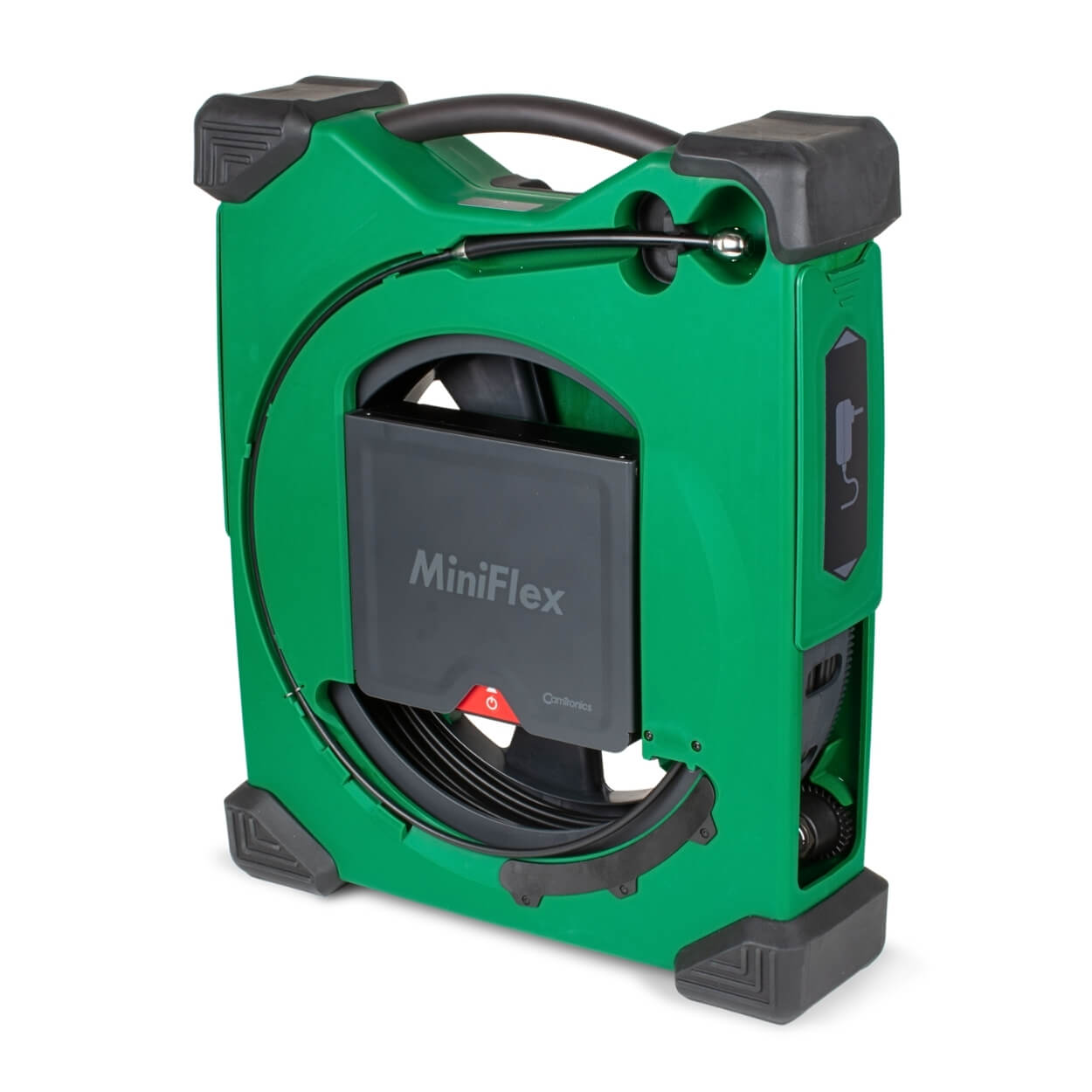

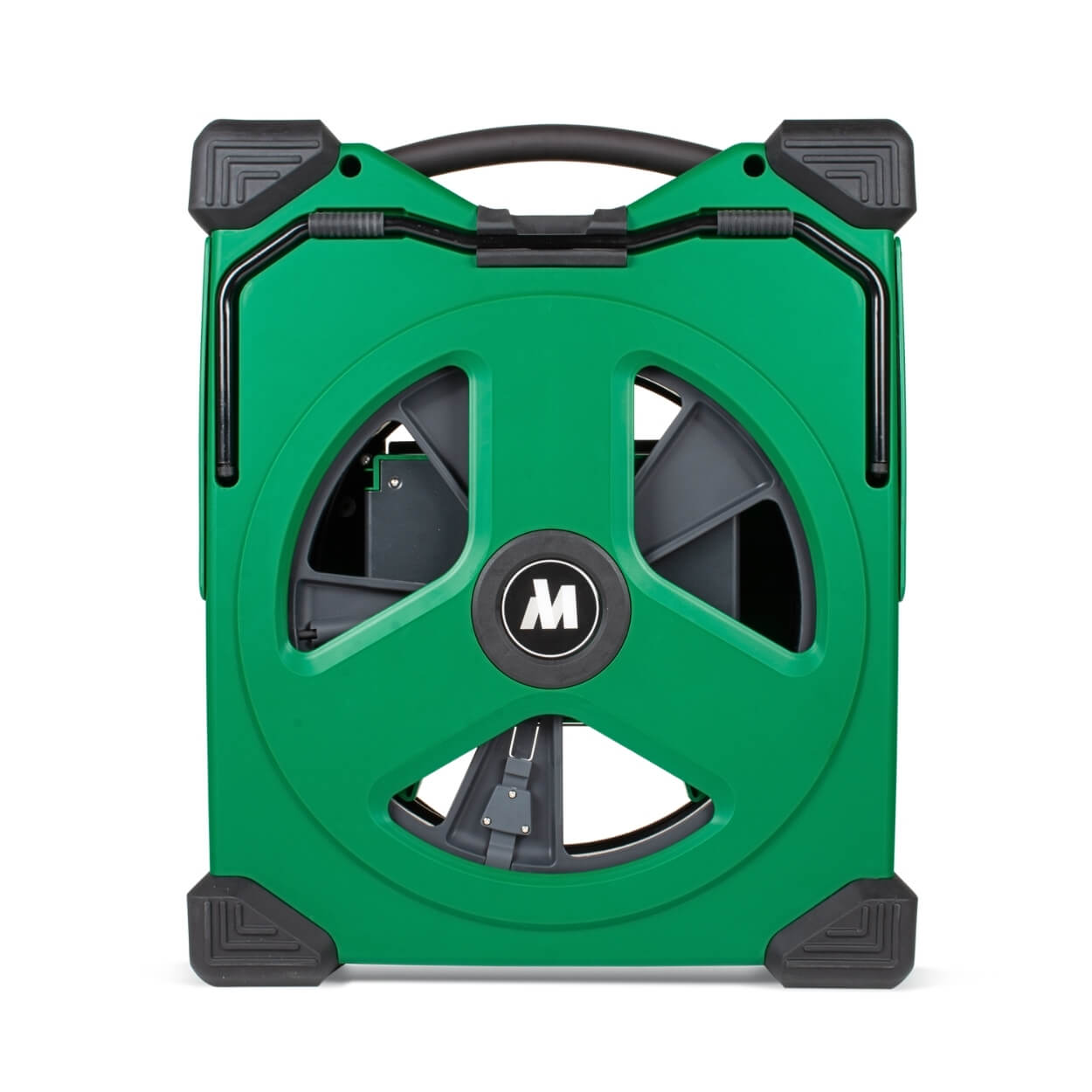

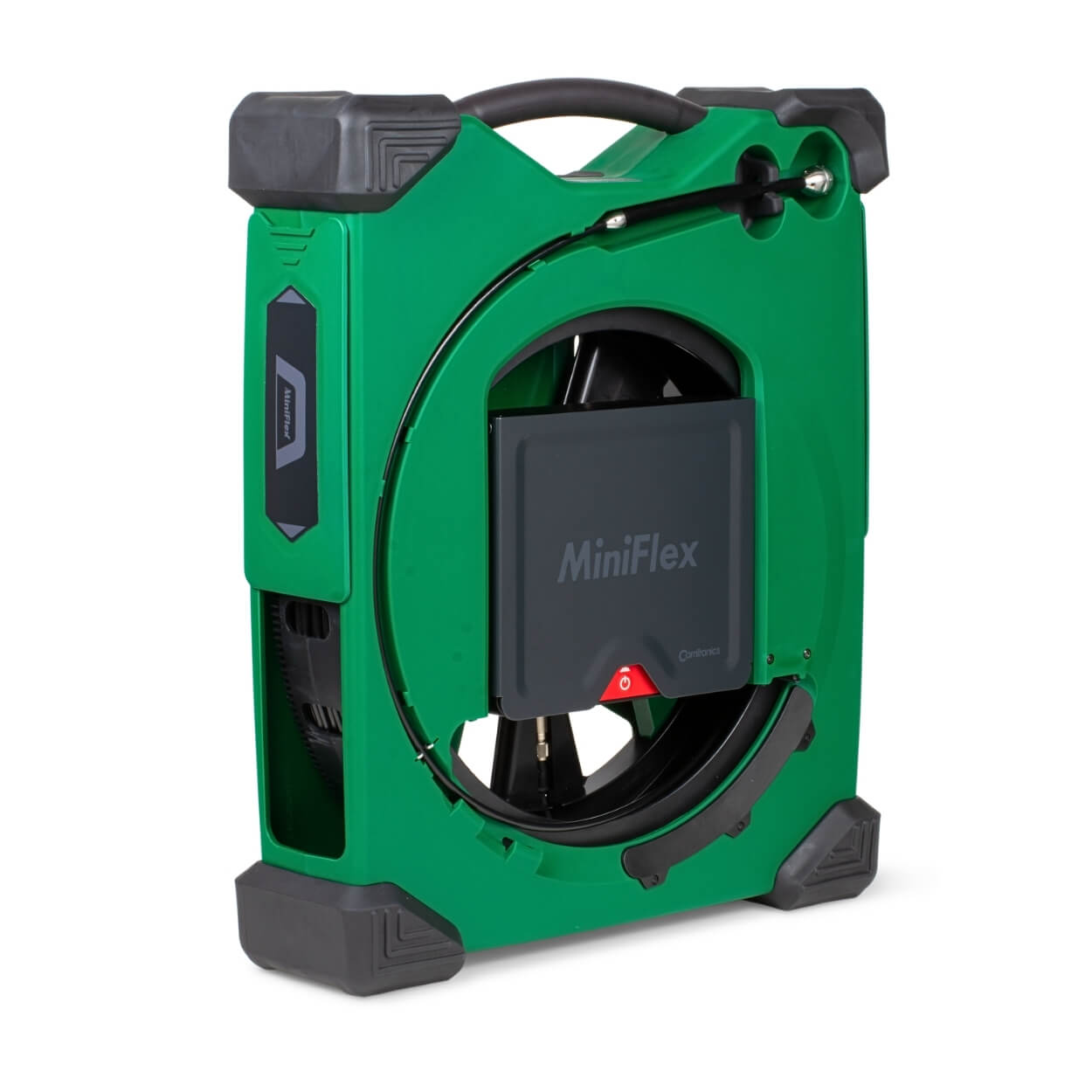

The drain camera that gets where others turn back. It easily navigates pipes from 1¼″ (32 mm) in diameter, passing P-traps, toilet bends, and multiple consecutive 90° elbows, thanks to its patented Flexi-Tube neck geometry, which overcomes the limitations of standard drain cameras.
The innovative MiniFlex 19 plumbing inspection camera features extreme portability and maneuverability.
The MiniFlex all-in-one plumber's camera is the best and only device you will ever need for inspections of small-diameter pipes.
The special patented Flexi-Tube neck behind the camera head makes these units extremely flexible and capable of navigating multiple 90-degree bends in 1.5" pipes and P-trap in 1.25" (32mm) PVC pipes.*
MiniFlex Plumbing Camera from Camtronics can be used to inspect kitchen and bathroom drains, pools, spas, hot tubs, showers, sprinkler lines, and narrow-diameter industrial machinery that other units cannot navigate.

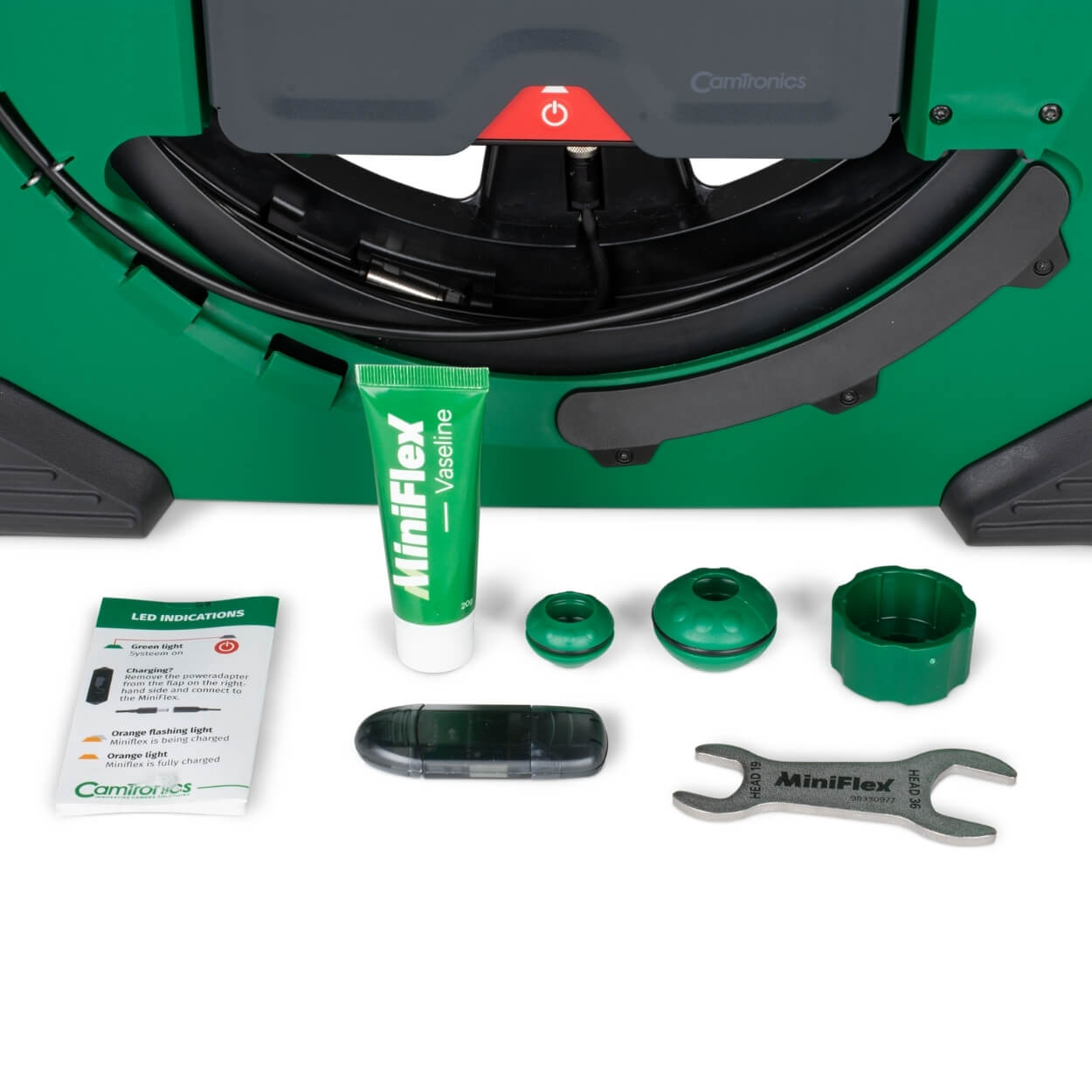

This plumbing inspection camera is sold as a complete, all-in-one set, with everything you need included and ready to go. The push cables combine flexibility and rigidness with balance and come in lengths of 20m(65.6ft), and 40m(131ft).
The stainless steel camera heads are tightly sealed to 3 bar (100ft) and feature LED lights for illuminating the inspection area. A 512Hz sonde beacon is integrated into the camera heads for precise detection with a sonde locator.

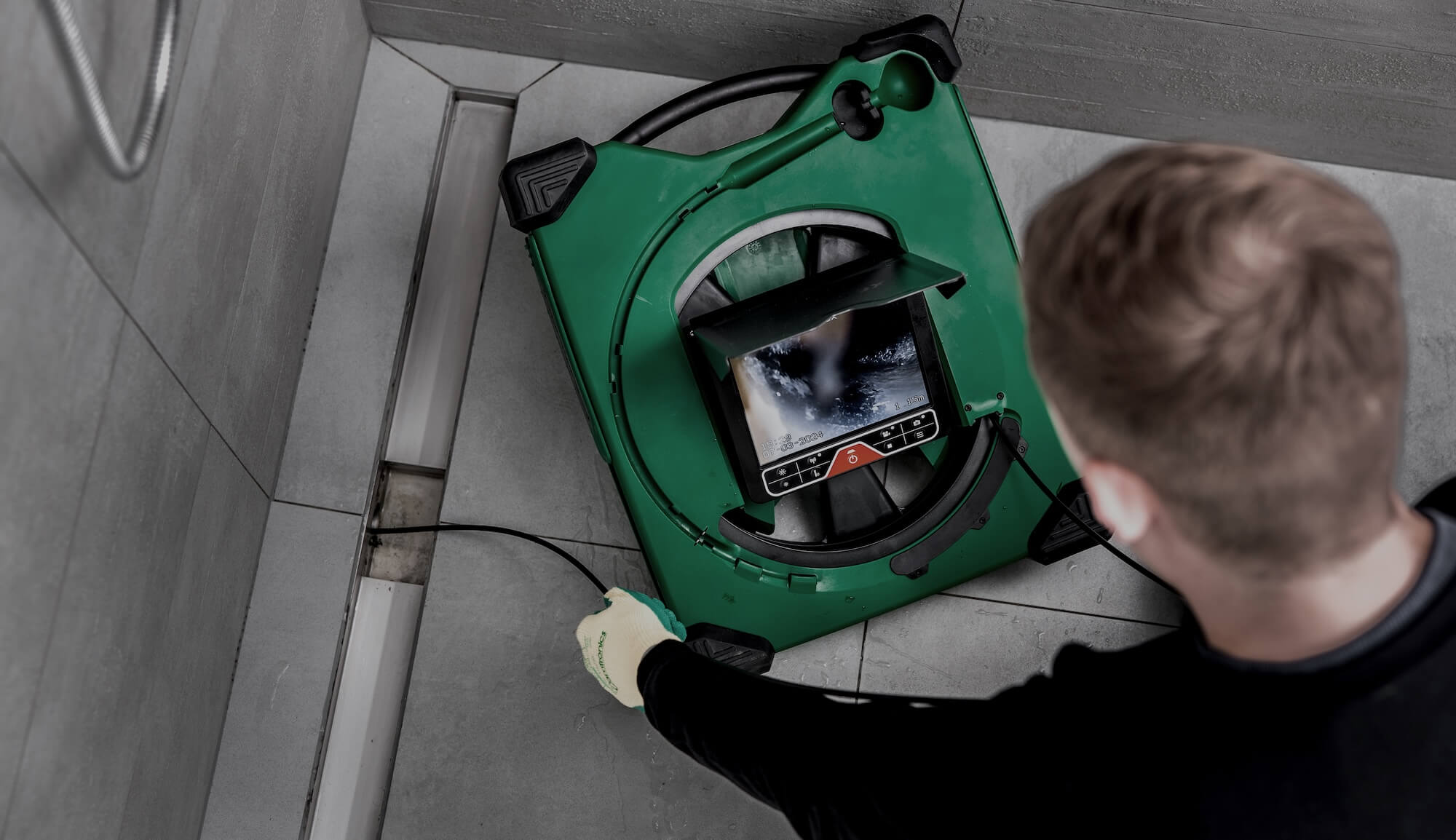

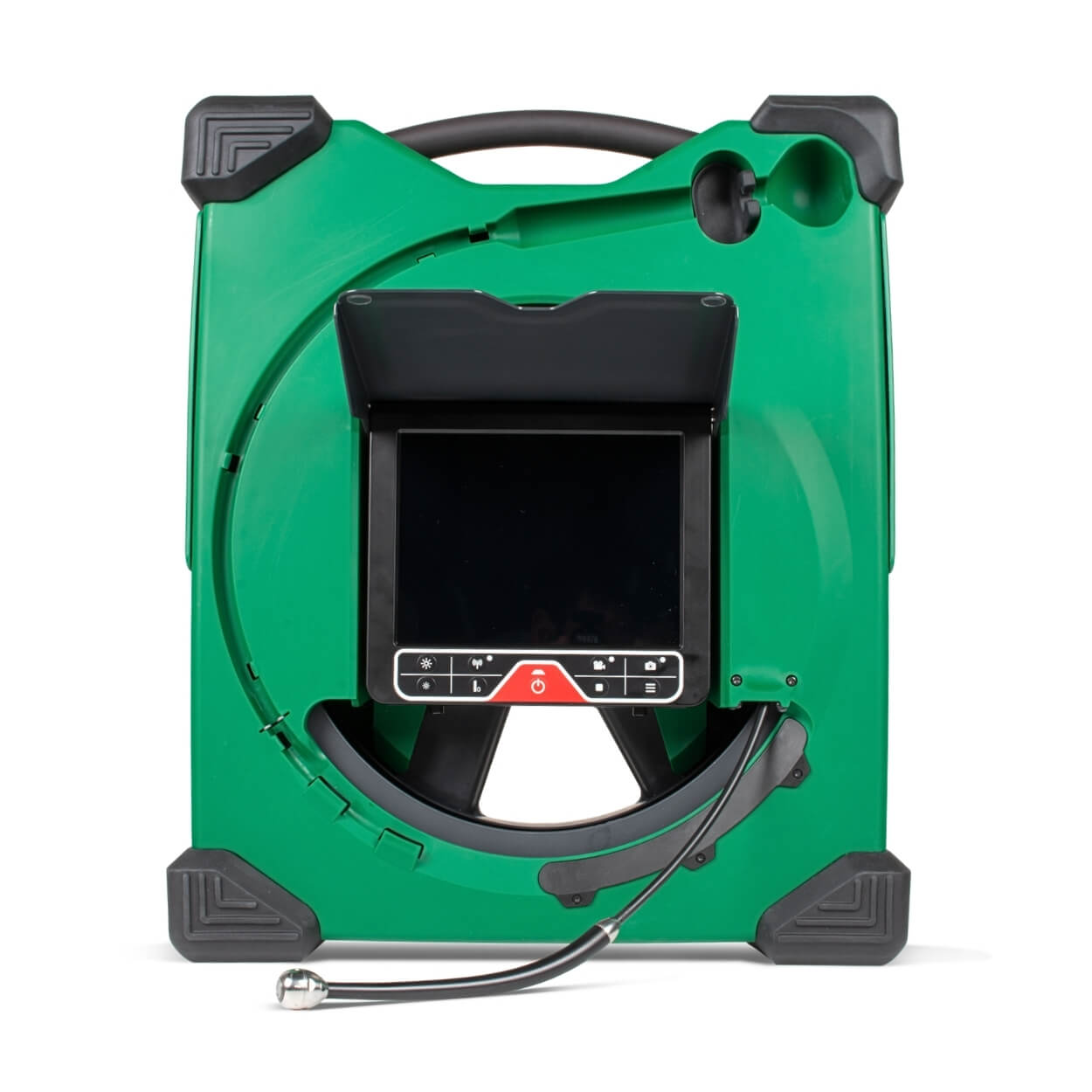

The live image is displayed on a color 8" touchscreen monitor housed inside a metal case, with a sun shield for daylight inspections. Live video and images are recorded onto an SD memory card. A quick-playback function allows on-site footage to be replayed.
Additionally, this set features an on-screen text generator, an electronic footage counter, a rechargeable battery that provides up to 7 hours of portable use, and a protection skid.
Specifications
For more information about this inspection system, check our online catalog's product page.
*Maneuverability is condition-dependent
Explore MiniFlex
Residential plumbing
Kitchen and bathroom drains, showers, toilets, branch lines, and traps.

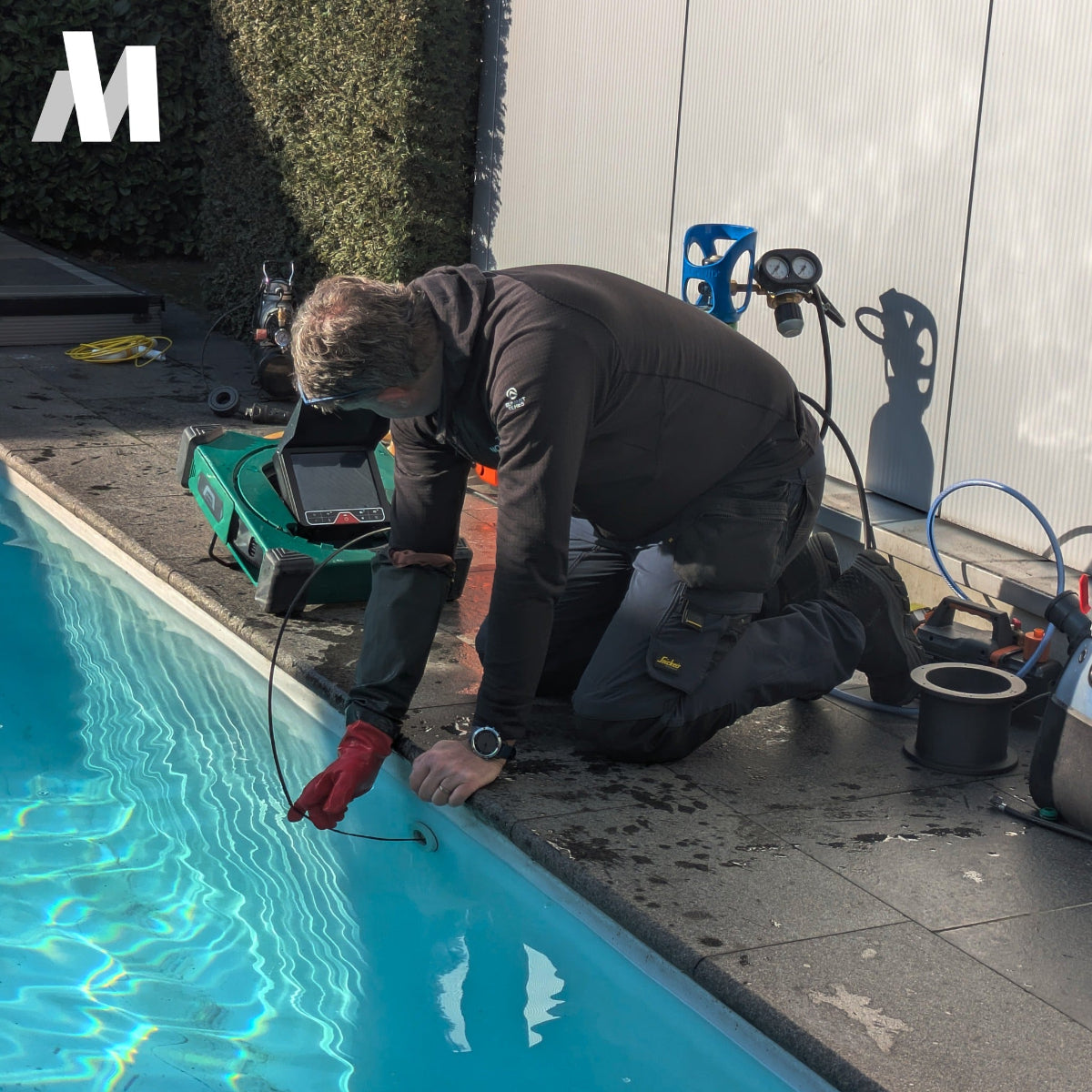

Pools & spas
Skimmer lines, returns, jets, hot tubs, and tight PVC elbows.
HVAC & venting
Condensate drains, flues, direct-vent systems and compact ductwork.
Industrial service
Small process lines, machinery, conduits, and hard-to-access assemblies.
Key data presented for fast procurement review.
Need a formal quote or additional information?
Submit your requirements and application. Our team will confirm the configuration, answer your questions, and provide the necessary documentation.
Request a quote1¼″–4″ (32–100 mm); strongest under 3″
Multiple 90° bends in 1½″ pipe; P-trap in 1¼″ PVC*
Ø 0.76″ (19.5 mm), stainless steel, sapphire window
Straight-view, 105° FOV, fixed focus, color CMOS
12 adjustable high-power LEDs
Built-in 512 Hz transmitter
Ø 5.5 mm combi cable · 65.6 ft (20 m) or 131 ft (40 m)
Camera & cable: IP68, 3 bar (100 ft) · unit: IP65
8″ touchscreen, 1024×768, sun shield, metal case

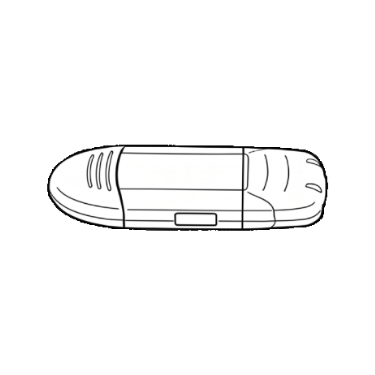

Photo / video (720×576) / audio to SD card; footage counter; text overlay; on-site playback

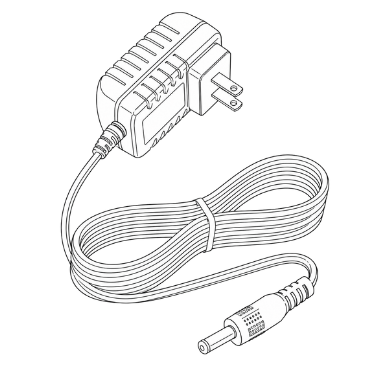

Li-ion battery, up to 7 h portable · 110 V AC
14 °F to 113 °F (−10 °C to 45 °C)
16.77 × 20.20 × 5.00 inches (426 × 513 × 127 mm) · 21.6 lb ( 9.8 kg)
*Maneuverability is condition-dependent. Specifications verified against the manufacturer
The camera you reach for when the route is the problem.
1.25" to 3"
2" to 6"
Up to 131ft
Up to 114ft
Pool, spa and drain pipe inspections, leak detection, pipework with many tight bends
Sewer and drain inspections, weeping tiles, foundation drains
Ø 19.5 mm, Straight-view
Ø 36 mm, Self-leveling
720x570 Pixels
720x570 Pixels
8" touchscreen monitor
8" touchscreen monitor
Passes 1.25" PVC P-trap or multiple 90-degrees in 1.5" pipe
Pipe inclination measurement, thicker push cable
9.8kgs (21.6lbs)
11kgs (24.2lbs)
Yes
Yes
MiniFlex 19 — frequently asked questions
Still not sure? Speak with a specialist who works with pipe cameras every day. Call 1.877.613.2210
In most cases, yes — that is its signature job. A commercial builder used the MiniFlex to inspect piping below 400 installed toilets after two RIDGID cameras and two borescopes failed to make the bends. However, certain toilet models have specific geometries that prevent any camera from passing through.
Yes. The patented Flexi-Tube neck lets the head articulate through the trap geometry in 1¼″ (32 mm) PVC or through multiple 90° bends in 1½″ pipe. Pipe condition affects this — heavy scale, non-PVC material, or collapsed sections can limit camera access, so we state it plainly: maneuverability is condition-dependent.
A 512 Hz sonde is built into the camera head. It works with any standard 512 Hz receiver, including most RIDGID SeekTech models, Schonstedt, and Snaptrack we stock. That lets you mark the head's position behind walls, under slabs, or in the yard before you cut.
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
It depends on where you are and if the product is in stock or a preorder. Products in stock will take 3-7 business days to arrive. Overseas or pre order deliveries can take anywhere from 14-28 days.
You can rent short-term, and if you like the system, 50% of the rental fee can be applied towards the purchase cost.
Yes! We offer rental units ranging from light handles and fiberscopes to push cameras and pipe crawlers. Please get in touch with us for more information.
Yes, we offer product financing through our third-party company called Kwipped Approve. To get a product financed start the application on the product page or get in touch with us. Currently available only for USA.
512 Hz Built-in Sonde
Pinpoint the exact location of the problem inside the pipe.
Flexible Rubber Neck
Unique camera neck design that allows it to pass tightest bends and elbows.
Compact and Portable Design
Miniflex weighs only 9.8kgs (21lbs) and is fully battery operated and easy to carry around
Combi Cable
Miniflex uses a special cable that offers it to work in tight bends and in straight runs
Touch Screen
8" touchscreen display with excellent image quality and text generation keyboard
