Best Wi-Fi Inspection Cameras in 2026

A plumber at a basement cleanout wants to show a client a blocked lateral on a phone, while a property inspector needs a pole camera whose monitor can be viewed away from the pole. Calling both tools “Wi-Fi cameras” hides the main decision: where the wireless link begins and where the inspection file is saved. The wrong system can run out of cable, stop at a bend or leave the crew with a live view and no usable report.

For a 100 ft (30 m) residential drain run, Wi-Fi Drain Camera HATHORN Micron pairs a 1-inch head with a 16 lb (7.2 kg) reel. For a 200 ft (61 m) 2–6-inch lateral, Wi-Fi Plumbing Camera HATHORN Mini has a 1.23 in (31 mm) self-levelling head. Pole Inspection Camera CYCLOPS HD instead sends its view to a 5-inch monitor over Wi-Fi. Fiberscope sells the products discussed and services them in-house.

Choose the wireless link before the camera head

Three Hathorn reels send video from the reel to an Apple or Android device; CYCLOPS HD links a pole camera to its monitor, and CYCLOPS TZ links its manhole camera to a tablet. The submerged or buried head connects through a cable or pole assembly. Its depth inside a pipe does not set the phone's Wi-Fi range.

Start with the job, then check four things: the narrowest pipe or access opening, working length from the cleanout or manhole, viewing device, and destination for captured evidence. For a 1.5-inch branch with bends, head outside diameter (OD) and the tightest elbow matter more than a longer reel. For an elevated roofline, the pole's reach, illumination and screen placement matter more than pipe diameter. The portable-camera guide for plumbers covers carry weight and one-person setup in more depth.

Job	Camera and link	Reach and viewing	Boundary that decides the choice
Residential drain or pool line	HATHORN Micron, reel to phone/tablet	100 ft (30 m) cable; 16 lb (7.2 kg) reel	1-inch head; 1.5–4-inch pipe
Long residential lateral	HATHORN Mini, reel to phone/tablet	200 ft (61 m) cable; 33 lb (15 kg) reel	1.23 in (31 mm) head; 2–6-inch pipe
Larger sewer or storm drain	HATHORN Mid, reel to phone/tablet	200 ft (61 m) cable; 42 lb (19 kg) reel	1.23 or 1.43 in (31 or 36 mm) head; larger access
Roofline, tank or attic	CYCLOPS HD, pole to supplied monitor	16 ft (4.9 m) fiberglass pole; 5-inch screen	10× optical zoom and motorized camera movement
Straight mainline from a manhole	CYCLOPS TZ, camera module to supplied tablet	25 ft (7.6 m) pole; 10.1-inch tablet	4–80-inch mainlines; 30× optical zoom

Prices checked September 26, in USD. The five are complete systems with documented wireless viewing, but a drain reel and a pole camera answer different access problems. Select the job class first; compare the systems within that class.

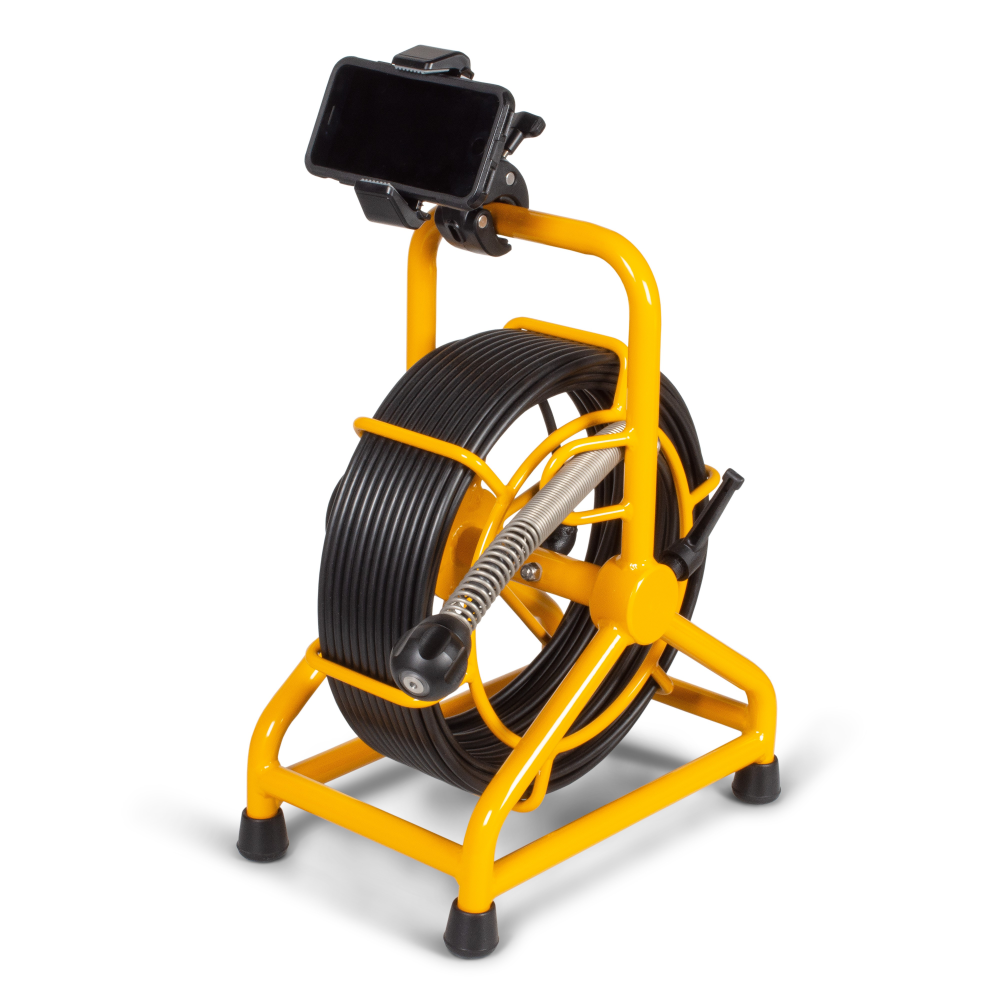

Wi-Fi Drain Camera HATHORN Micron: 100 ft residential calls

The Wi-Fi Drain Camera HATHORN Micron costs from $4,300 and has 100 ft (30 m) of 0.25 in (6 mm) push rod, a 1-inch straight-view head and a 16 lb (7.2 kg) reel. It inspects 1.5–4-inch drains. Hathorn's Micron specifications put its minimum 90° elbow at 1.5 inches. A technician can carry the reel from the truck to a basement cleanout, open the free app and save photos or video to the connected device.

The reel makes its own Wi-Fi signal and runs on an 18 V Milwaukee-compatible battery; the battery and viewing device travel separately. A 512 Hz sonde, a signal transmitter in the head, helps locate the head from above ground when paired with a separate 512 Hz receiver. The head is IP68 and pressure-sealed to 60 psi (4.1 bar). The monitor phone stays above ground. For a 150 ft (46 m) sewer lateral, this 100 ft (30 m) cable is the stopping point: choose a longer reel.

Wi-Fi Plumbing Camera HATHORN Mini: 200 ft laterals

The Wi-Fi Plumbing Camera HATHORN Mini costs from $7,300 and gives a 200 ft (61 m) push cable, 1.23 in (31 mm) self-levelling head and 2–6-inch pipe fit. The reel weighs 33 lb (15 kg), so its extra reach comes with a larger carry than the Micron. Hathorn's Mini Wi-Fi reel specification puts the minimum 90° elbow for the 1.23-inch self-levelling configuration at 2 inches.

The Wi-Fi module and 18 V battery mount sit at the reel. Bring the battery and an Apple or Android device; the free app handles live view, photos, video, audio and playback. The head carries a 512 Hz sonde and is IP68 to 60 psi (4.1 bar). This is the residential lateral pick when a cleanout-to-defect route is longer than Micron's 100 ft (30 m) cable. A tight 1.5-inch branch calls for a smaller-head system.

Watch Fiberscope demonstrate the HATHORN Wi-Fi reel and mobile-app connection. The demonstration covers the Hathorn family; the reel shown is a larger configuration, so use each model's own dimensions above to size a job.

Wi-Fi Sewer Camera HATHORN Mid: larger pipe access

The Wi-Fi Sewer Camera HATHORN Mid costs from $7,900 with 200 ft (61 m) of push cable and a choice of 1.23 or 1.43 in (31 or 36 mm) self-levelling heads. Its 42 lb (19 kg) wheeled reel is aimed at larger sewer and storm-drain access, rather than a 1.5-inch fixture branch. The reel's Wi-Fi module sends the live picture to the Hathorn app on an Apple or Android device, where the crew can record photos, video and audio.

The head carries a 512 Hz sonde and is IP68 to 60 psi (4.1 bar). Use the footage counter to note distance pushed from a manhole or cleanout; locating the buried head still requires a compatible receiver. The product page also describes a 12-inch pipe as a difficult push-camera job: the cable can wander side to side, limiting reach and useful viewing even with a centering skid. For that diameter, a powered crawler is the better class of tool.

Pole Inspection Camera CYCLOPS HD: Wi-Fi to its monitor

Pole Inspection Camera CYCLOPS HD costs from $16,255 and connects its camera to the supplied 5-inch touchscreen over Wi-Fi. The basic set uses a 16 ft (4.9 m) fiberglass pole and a 10× optical-zoom head with motorized movement. The camera head is submersible to 30 ft (9.1 m); the pole's submersible rating is 10 ft (3.0 m). Those ratings apply to the named parts, not the monitor.

For a property inspector viewing a high gutter from the ground, or an industrial crew viewing inside a tank from an access hatch, moving the head and using optical zoom give a different view from a push reel. The monitor captures photo and video. Two interchangeable rechargeable batteries come with the system; the page gives around 6 hours with illumination and around 8 hours without it. This system uses its own monitor, not a general phone app. At a roofline, use a non-conductive pole and maintain safe clearance from overhead power lines. OSHA's electrical-work rule gives at least 10 ft (3.0 m) clearance for unqualified workers at 50 kV or below, with more distance for higher voltage.

Mainline Inspection Zoom Camera CYCLOPS TZ: tablet at the manhole

Mainline Inspection Zoom Camera CYCLOPS TZ costs from $13,200 and sends its view from the camera's Wi-Fi module to the supplied 10.1-inch tablet. Its 25 ft (7.6 m) fiberglass pole lowers the head into a manhole. The camera is designed to look down straight mainlines or culverts from 4 to 80 inches in diameter, with 30× optical zoom, 12× digital zoom and manual focus. It can inspect a straight section as far as 196 ft (60 m) from the access position; this is an optical viewing distance, not a push-cable length.

The tablet controls upward and downward head movement, lighting, zoom and photo or video capture. The motorized camera head is IP68; its battery mounts on the camera assembly, and the set includes three batteries. Choose it for a first look down a large storm drain or straight sewer mainline without deploying a crawler. It stays at the manhole; it cannot travel down the line, turn a bend or inspect a lateral launch from within the pipe.

Other options

The RIDGID SeeSnake Compact C40 DSL with CS6x Versa is a stronger fit for a shop already running RIDGID reels and monitors. The 131 ft (40 m) C40 DSL system serves 1.5–6-inch lines, while its included CS6x Versa has a daylight-viewable 5.7-inch screen and supports phone viewing through HQx Live. RIDGID's US monitor specification confirms the Wi-Fi reporting connection. The HATHORN Micron is lighter as a reel at 16 lb (7.2 kg) and uses your phone as the screen; RIDGID wins where the crew wants a built-in monitor and already uses its reporting system. RIDGID specifications checked September 26.

For a 1.25-inch PVC P-trap, choose a smaller-head bend-specific camera over all three Hathorn configurations here. The need is bend passage, rather than wireless viewing.

What you'll also need

A camera sonde at 512 Hz transmits a locating signal; a separate receiver tuned to 512 Hz is needed to find the head above ground. SnapTrack Sewer Camera Sonde Locator is a receiver supporting 512/640 Hz, with optional 815 Hz and 33 kHz modes. It is an accessory, not another Wi-Fi camera. Rebar and nearby metal can distort the field, so a depth reading under interference deserves a second check.

For the Hathorn reels, pack an 18 V battery and the phone or tablet that will receive the picture. Save a short test recording in the app before pushing the camera. For the CYCLOPS systems, carry the supplied monitor or tablet and check the saved photo or video before closing the access. That simple handoff makes the difference between showing a live picture and delivering evidence a client can actually review.

FAQ

About the author

Vladimir Khubiryants, Founder & President, Fiberscope (MEDIT Inc.). Vladimir Khubiryants founded Fiberscope to give professionals access to reliable video inspection equipment without enterprise pricing. For over 20 years he has sourced and tested borescopes, sewer cameras and fiberscopes in Fiberscope's in-house test and repair facility, helping plumbers, pipeline engineers, aviation and military teams choose the right tool for the job.

Send a Fiberscope specialist your pipe ID or target height, access point, run length or viewing distance, bends, receiver frequency if locating is needed, and the recording format your report uses. Use the contact page or call 1-877-613-2210 to match the camera and viewing device to the job.
