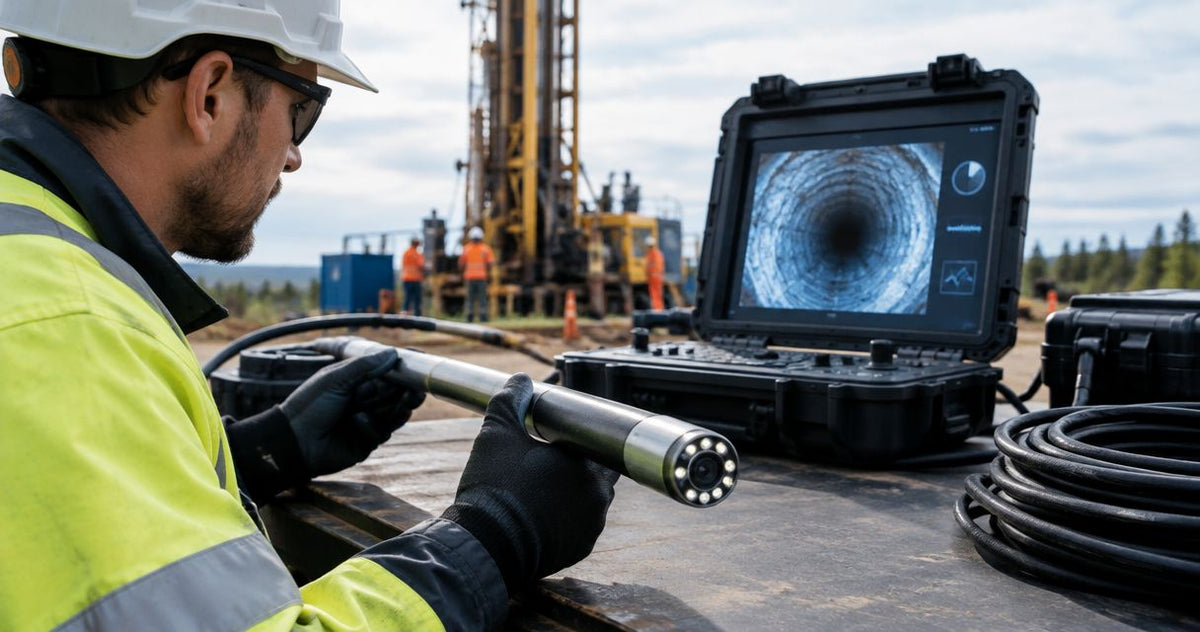

Best downhole cameras in 2026

A downhole camera earns its place the first time it shows you a casing joint, a screen or a dropped pump instead of leaving you to guess from the drilling log. The catch is that downhole tools split into three jobs: looking straight down a shaft, looking sideways at the casing wall, and tracking a line with a sonde. A camera built for one of them is a poor fit for the others. This guide sorts the Fiberscope.net downhole lineup by job so you can match the head to the hole.

The short answer: the Well Inspection Camera STRAHL HD, from $9,480, is the default for water wells, shafts and tanks. Choose the Motorized Downhole Well Camera STRAHL HD when you need powered rotation of the side view, and the STRAHL PT Downhole Camera when you need pan-and-tilt with a 512 Hz sonde in the head. Fiberscope.net sells these cameras and services them in-house.

What makes a good downhole camera

A downhole camera is chosen on five measurable criteria: pressure rating, view direction, recording, locating and the hole it must fit. These are the criteria used to order the picks below.

• Pressure and water rating. The rated part matters. The STRAHL HD Well camera is IP68 to 30 bar (435 psi). Name the rated part and its condition before you trust a depth.
• View direction. A rotating side view reads casing walls, screens and perforations. A straight-down view reads the bottom and anything dropped.
• Pan and tilt. Pan-and-tilt heads change the view direction in a larger cavity, which helps in cross-connected or branched bores.
• Recording. Evidence for a client or a driller needs saved video. The STRAHL HD Well records to USB.
• Locating. A sonde in the head sends a signal to a separate receiver at surface. Locating needs both parts.
• Access. Casing diameter, restrictions and pump or cable clearance decide whether the head goes down at all.

Downhole cameras at a glance

Camera	Suits	Standout	Limit
STRAHL HD Well Inspection Camera	Water wells, shafts, vertical pipes, tanks	Rotating side view, IP68 to 30 bar (435 psi), USB recording	No sonde in the head
Motorized Downhole Well Camera STRAHL HD	Casing and screen surveys that need powered rotation	Motorized rotating side view, rated 30 bar	Costs more than the base unit
STRAHL PT Downhole Camera	Cavities and pipes where you need pan-and-tilt and tracing	512 Hz sonde in head, IP68	Needs a separate receiver to locate

Prices checked September 2026. Ask a specialist for current pricing on the motorized and pan-and-tilt models.

Well Inspection Camera STRAHL HD: best downhole camera for water wells

The STRAHL HD is a compact well camera for reservoirs, shafts, vertical pipes, water wells and tank inspection. It starts at $9,480.

The head rotates for a side view, so one trip down reads the casing wall rather than only the bottom. The camera is IP68 rated to 30 bar (435 psi), which sets the working ceiling for water depth. It saves video to USB, so you can hand a client the footage. Keyboard control is wireless, but live video does not run over Wi-Fi to a phone or tablet.

It suits well drillers and pump contractors who inspect casing damage, screen encrustation and water entry points. It has no sonde, so it cannot be traced from surface. If you need to locate the head, step up to the STRAHL PT.

Verdict: Buy for most water wells. For method on depth logging, see how to log well casing depth with a downhole camera.

Motorized Downhole Well Camera STRAHL HD: best for powered side-view rotation

This is the STRAHL HD with motorized control of the rotating side view. It carries a 30 bar rating. On a long survey, powered rotation lets one operator sweep the full casing circumference at a steady pace instead of cranking by hand.

Choose it for contractors who log many wells a month, or for jobs where consistent footage of every screen slot matters. For a single homeowner well a few times a year, the standard STRAHL HD does the same visual work for less money.

Verdict: Buy if you survey casings regularly. Skip it if you inspect a handful of wells a year.

STRAHL PT Downhole Camera: best downhole camera with a sonde

The STRAHL PT adds pan-and-tilt to the head and carries a 512 Hz sonde, a small transmitter that a receiver on the surface can pick up. The head is rated IP68.

It fits jobs where you must know where the head is, such as tracing a line or finding a break from above. Locating takes three parts: the sonde head, a separate compatible receiver, and a clear signal path. Rebar, metal and heavy interference distort the field, so treat depth readings near them as approximate. A SnapTrack receiver reads 512 and 640 Hz.

It costs more to run than a plain well camera and is more tool than a simple casing check needs.

Verdict: Buy for locating work. Skip for plain water well casings.

What you'll also need

• A receiver for any sonde work. Pair the STRAHL PT with a 512 Hz-capable locator.
• A USB drive for recording on the STRAHL HD Well.
• A clear plan for pump and cable clearance before the head goes down.

See the well camera guide for casing and screen inspection for how each head reads perforations.

Common mistakes

• Buying on depth alone. The 30 bar rating applies to the rated camera, not to the whole system. Read the rated part and its condition.
• Expecting exact locating depth. Metal and rebar distort a sonde signal.
• Ignoring casing restrictions. A head that clears the nominal casing can still jam on a pump, a drop pipe or a crushed joint.
• Choosing a pan-and-tilt head for a plain casing job. A rotating side view reads the wall faster.

For how depth and deployment affect setup, read borehole cameras: depth and deployment.

Other options

For an open tank, a manhole or a shaft you can reach from the top, the Dual View Pole Camera COBRA is the cheaper tool. It deploys on a telescopic pole for manholes, attics, gutters and tanks. It does not go down a cased well, so stay with a STRAHL model for that.

FAQ

Get the right head for your well

Send us your well diameter and restrictions, depth, water conditions, pump and cable clearance, and whether you want a manual or motorized reel. A Fiberscope.net specialist will match the right camera to the job. Call 1-877-613-2210, Monday to Friday, 8:00 to 18:00 CST.
