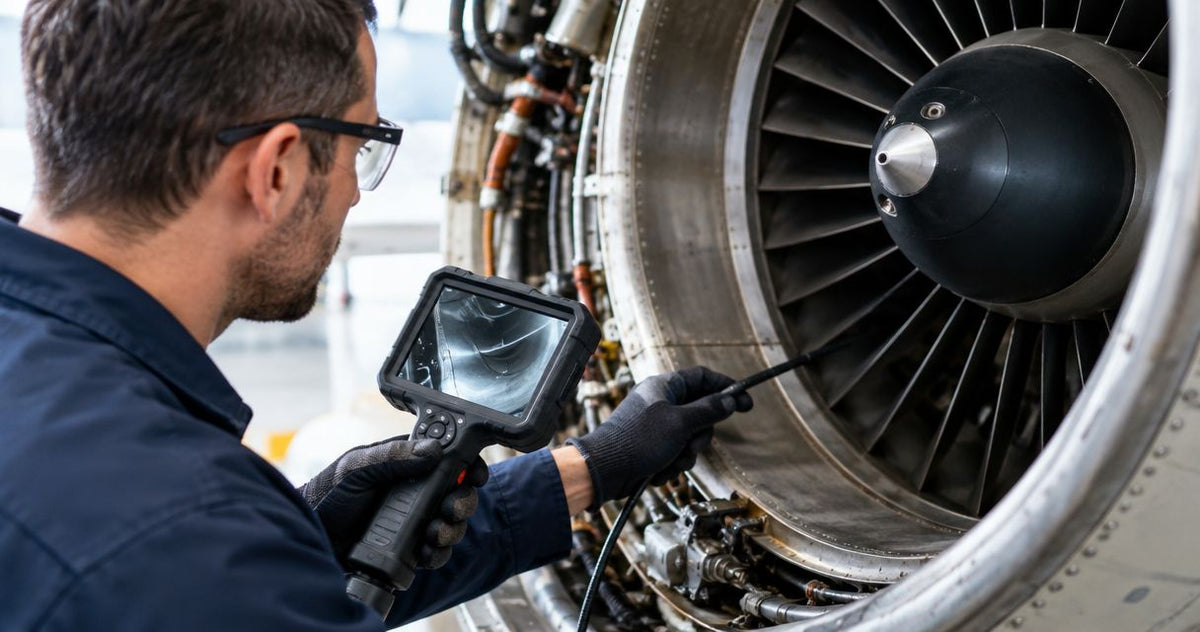

How to check a turbine compressor for FOD with a borescope

A compressor FOD check starts with the engine maintenance procedure: make the engine safe, enter through the designated inspection port, examine the required blade surfaces, and record each indication against a repeatable location. Foreign object damage can include impact marks, bent edges and missing material. The difficult part is getting a controlled view of every required surface without introducing another loose object.

Choose the borescope by access opening, insertion route, working length and viewing direction. Record 3 location identifiers with each finding: inspection port, compressor stage and blade position using the engine’s indexing convention. Fiberscope.net sells professional inspection equipment and services it in-house. For the broader engine inspection sequence, see how to inspect an aircraft engine with a borescope.

How do you check a turbine compressor for FOD with a borescope?

Inspect the compressor through its designated access points, follow the maintenance manual’s coverage sequence, and compare documented indications with the applicable damage limits. Keep visual examination, damage measurement and maintenance disposition as separate tasks.

Use this sequence to organize the work:

1. Establish the inspection scope and applicable maintenance instructions.
2. Isolate the engine and prepare the inspection area.
3. Match the probe and viewing arrangement to the access route.
4. Establish blade indexing and a coverage record.
5. Inspect the required surfaces with controlled lighting and position.
6. Record findings and complete the prescribed follow-up.

For aircraft engines, the current engine maintenance manual and applicable instructions govern access, rotor movement, acceptance limits and restoration. For industrial turbines, use the equipment manufacturer’s procedure and the site’s isolation requirements. The engine model determines the details.

Establish the inspection scope before opening a port

Define which compressor stages and surfaces the inspection must cover before inserting the probe. A suspected ingestion event and a scheduled condition inspection can require different examination scopes.

Record the engine identification, reason for inspection and applicable task reference. Gather the event information available to the maintenance team, including the suspected object, operating circumstances and previous findings relevant to the task.

Translate the task into a coverage sheet. Identify the access ports, stages, rotor blades, stationary vanes and casing areas that the procedure requires you to examine.

Set up the record so that you can mark each required area as examined, restricted or requiring follow-up. This makes incomplete access visible while the engine remains available for inspection. It also gives the reviewing technician a clear account of where the camera actually reached.

Match the borescope to the port and viewing route

Select probe outside diameter, working length and viewing direction together. Outside diameter controls entry clearance; working length controls reach; articulation controls where the tip can look after entry.

Measure the narrowest permitted access opening and account for the installed tip or optical adapter. The opening at the casing is only part of the route: guides, turns and internal obstructions also affect access. The probe-diameter selection guide explains this first sizing decision.

Use the following decision table when defining the required views. These are complementary examination views rather than competing products.

Examination view	Use it for	Strength	Practical limit
Orientation view	Identifying the stage and surrounding geometry	Preserves context for the finding	Fine edge detail requires a closer view
Edge view	Examining leading or trailing edges	Shows the edge profile and local discontinuities	Other blade surfaces require another viewing position
Surface view	Examining the pressure or suction surface	Shows the accessible blade face	Glare and viewing angle affect interpretation
Repeat view	Revisiting a recorded indication	Supports comparison from a recognizable position	Repeatability depends on location records and camera placement

The pressure surface and suction surface are the blade’s opposing aerodynamic faces. Use the terminology and orientation convention in the engine documentation.

Fiberscope.net suits inspection teams that need a video borescope matched to access, reach and viewing direction. Choose working length from the actual insertion route; the industrial working-length guide covers that separate decision.

Make the engine safe and control loose items

Complete the prescribed shutdown, isolation and cooling steps before opening the inspection access. Use the engine procedure’s temperature conditions and the borescope’s operating limits together.

For an aircraft engine, follow the maintenance instructions for preventing unintended starting and controlling associated systems. For an industrial turbine, apply the site’s energy-isolation procedure and account for equipment that can drive or move the rotor.

Prepare a clean staging area for removed plugs, seals and tools. Track what comes off the engine and protect open access points according to the task instructions. A port left exposed during unrelated work creates another opportunity for contamination.

Check the probe, tip and any permitted removable adapter before insertion. Inspect for damage or loose parts, clean the optics using the scope manufacturer’s method, and test the image and controls outside the engine. Account for the same items again after withdrawal.

Establish indexing and coverage before inspecting detail

Use 3 identifiers consistently: inspection port, compressor stage and blade position. Apply the engine manufacturer’s indexing convention so another qualified technician can return to the same location.

First establish a recognizable orientation view. Identify the relevant stage and the surfaces accessible from that port, then follow the prescribed sequence rather than moving between visually interesting areas.

Mark progress as each required blade or sector is examined. A continuous video can support the record, but a coverage sheet makes the inspection sequence easier to review. Record restricted views at the time they occur.

Perform rotor positioning only through the approved method. Follow the task’s instructions for withdrawing or positioning the probe before movement, and keep communication clear between the person controlling movement and the person handling the scope.

Treat blade indexing as part of the examination, not an administrative step afterward. Without a repeatable location, a clear image becomes harder to investigate or compare during the next inspection.

Control the view before judging an indication

Use an orientation view followed by a detail view for each suspect area. Adjust the camera position and illumination until you can distinguish the blade edge or surface from reflected light.

Advance the probe under continuous visual control. Use deliberate movements and stop when the route becomes unclear or resistance changes. Re-establish the view before proceeding through the permitted path.

Inspect the surfaces required by the task, including the specified blade edges, faces and surrounding components. Pause at each indication long enough to obtain a stable image. Record a wider view before moving closer so the detail retains its location context.

Change the viewing angle when a bright reflection obscures a suspected mark. Adjust illumination as well: excessive brightness can wash out edges, while insufficient light hides surface detail. Clean the tip outside the engine when contamination affects the image.

A repeatable feature seen from more than one position gives the reviewer better evidence than a single frame dominated by glare. Keep the original image files alongside any annotated copies.

Recognize impact damage and document what you see

Describe the visible condition before assigning a cause. FOD-related findings can include localized dents, edge deformation, tears and missing material, but the maintenance assessment must consider location, geometry and the applicable inspection criteria.

Use precise descriptions tied to the blade feature:

• Identify the leading edge, trailing edge, tip or blade face involved.
• Describe the visible shape, such as a dent, displaced edge or material loss.
• Record whether the indication continues beyond the accessible view.
• Note adjacent surfaces that require examination under the maintenance task.

If an object remains visible, record its position and follow the approved recovery procedure. Keep recovery planning separate from the camera examination so that probe handling stays controlled.

For a suspected crack, use the manufacturer’s required follow-up inspection method. Record the visible indication and route it for assessment under the applicable maintenance instructions. A visual description should distinguish observation from interpretation: an edge discontinuity is an observation; its cause and acceptability require further assessment.

Build an inspection record another technician can repeat

Attach the same 3 location identifiers to the overview image, detail images and inspection notes. Consistent naming connects the finding to the coverage record and makes later comparison practical.

For each finding, retain:

• Engine identification and inspection task reference.
• Inspection port, compressor stage and blade position.
• An orientation image showing surrounding geometry.
• Detail images showing the relevant surface or edge.
• The visible condition and any viewing restriction.
• Required follow-up and the responsible maintenance disposition.

Record the date and the personnel information required by the maintenance system. Keep the capture files at their original quality and preserve the relationship between footage and still images.

When annotations help, place them on copies. Arrows, circles and labels should identify the finding without covering the edge or surface the reviewer needs to examine. Use the same blade-orientation convention throughout the report.

Separate visual screening from damage measurement

Measure damage using the equipment and method required by the engine’s maintenance instructions. An ordinary video image alone does not establish defect dimensions or remaining blade thickness.

Where the task requires measurement, select the specified measurement-capable equipment and follow its positioning and validation procedure. Image magnification on a monitor is a display choice, not a physical scale.

Compare the resulting findings with the limits for the exact component and location. Acceptance criteria can depend on the affected region and type of damage, so record those details before submitting the finding for disposition.

Complete the maintenance process through authorized personnel. The borescope provides visual evidence; the applicable instructions and authorized assessment determine the next action, including further inspection, repair or replacement.

Troubleshoot restricted views without losing coverage

When a required surface remains inaccessible, record the restriction and resolve access through the approved inspection method. Keep the coverage sheet open until the required examination is complete or the restriction has received its prescribed disposition.

Problem	Check first	Controlled next step
Bright spot hides an edge	Lighting and viewing angle	Reduce illumination or reposition within the permitted route
Image stays blurred	Tip cleanliness and working distance	Withdraw for cleaning or adjust the viewing position
Required face stays hidden	Port, viewing direction and articulation	Use the approved alternative view or access point
Probe encounters resistance	Route and tip position	Stop advancement and recover the view
Blade identity becomes uncertain	Indexing and coverage record	Return to a known reference using the approved sequence

Use the industrial videoscope selection guide when access repeatedly demands a different viewing arrangement. Solve the specific restriction: more reach addresses distance, while a different viewing direction addresses a hidden surface.

Complete withdrawal and restore the inspection access

Inspect the withdrawn probe and account for every removable item used during the examination. Reconcile tools and removed hardware before closing the access.

Follow the maintenance task for inspecting, replacing and installing plugs, seals and associated hardware. Apply its installation requirements and complete the required maintenance records. Keep unresolved findings visible in the work package until they receive a disposition.

A useful final check is to open a finding from the report and trace it back to the coverage sheet. The port, stage and blade position should lead directly to its overview, detail and follow-up record.
