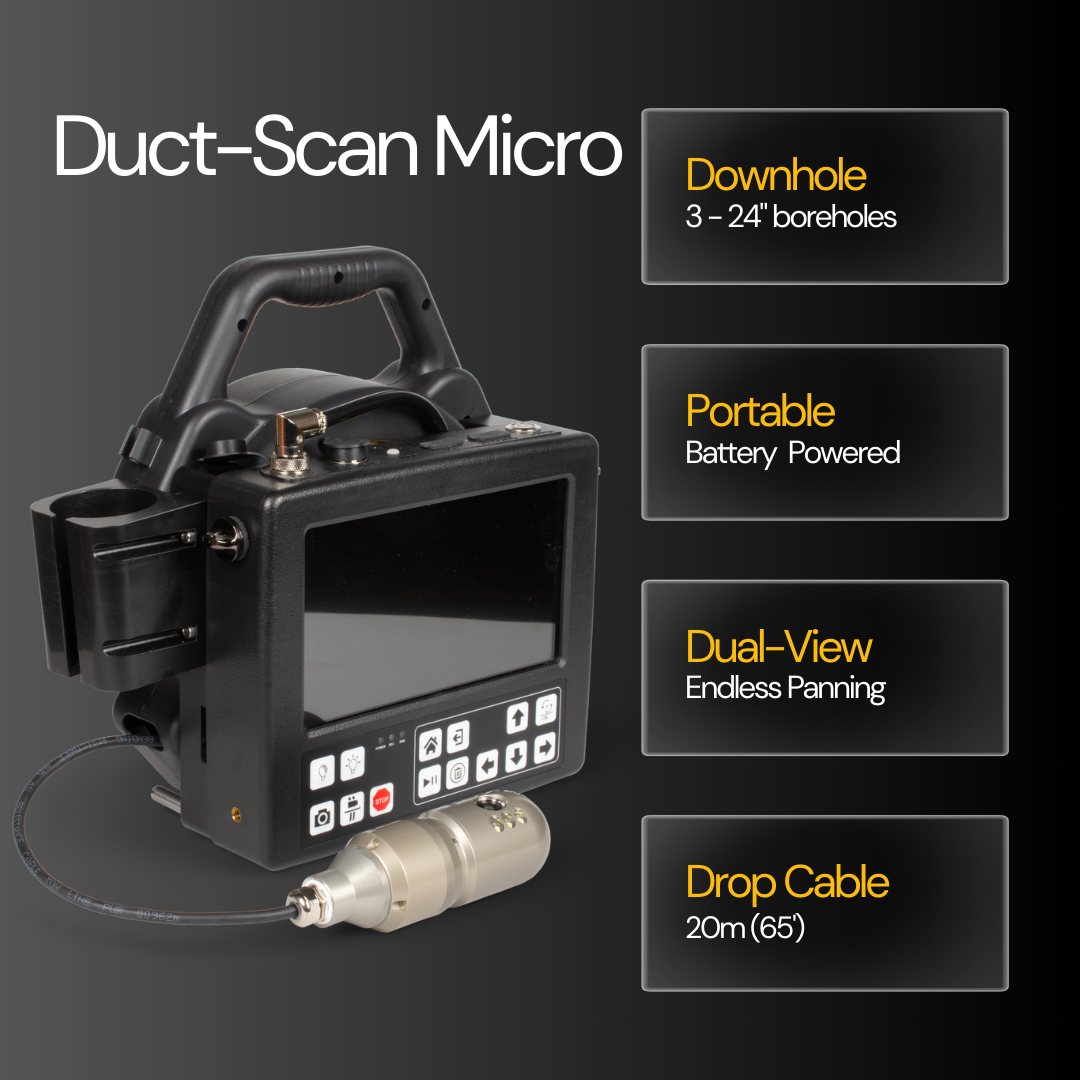

Duct Inspection Camera DUCT-SCAN MICRO
The DUCT-SCAN MICRO is a professional duct inspection device with a remotely rotatable HD camera head attached to a dropdown cable to examine air channels, chimneys, and flues thoroughly.
The whole system is fully portable and easy to carry around and operate.

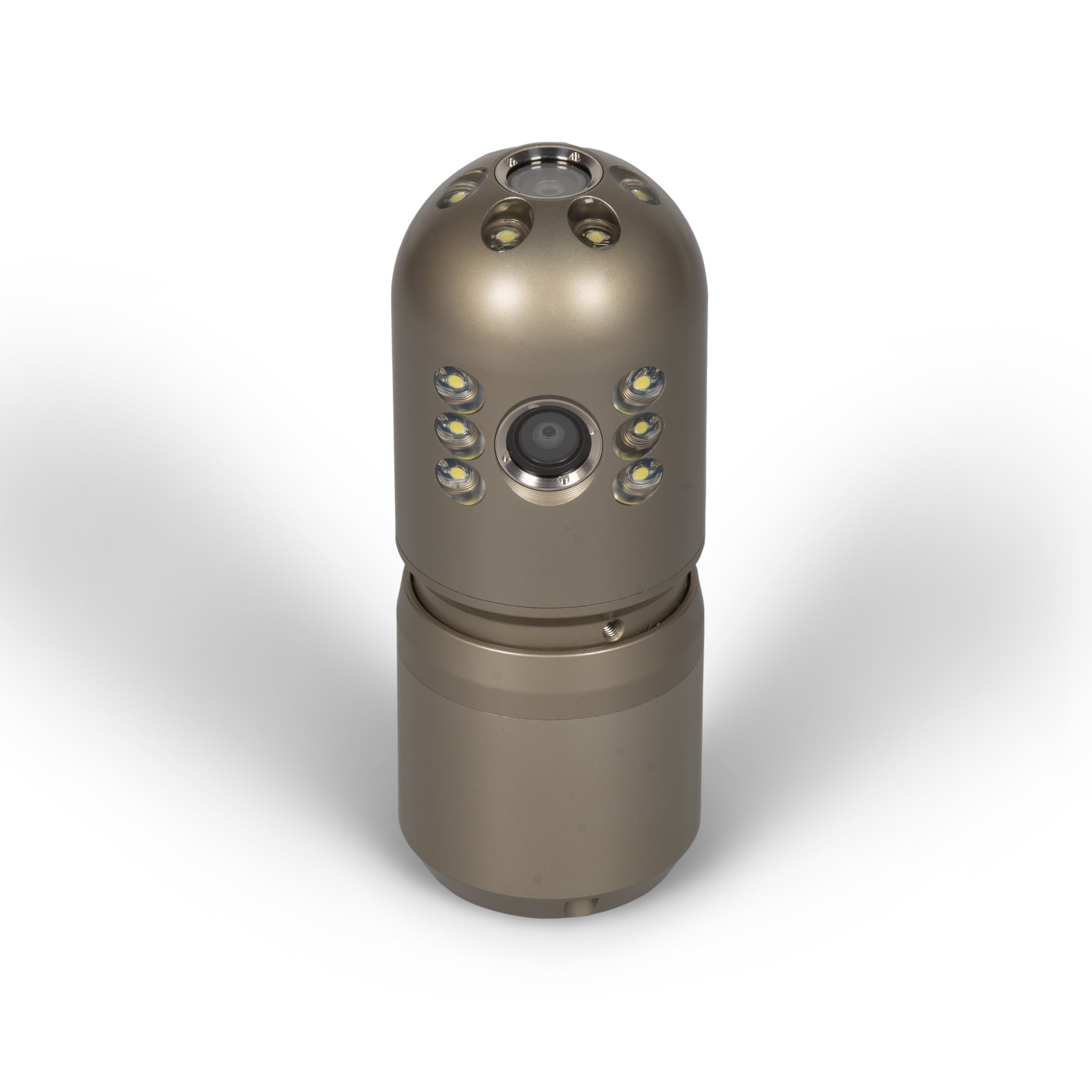

The DUCT-SCAN MICRO can be supplied with either dual-view, or pan-and-tilt camera heads. The Dual View head has built-in front and rotatable side cameras. This camera design allows you to spin the camera head in a full 360-degrees circle enabling you to survey the entire surface of the inspection area fully.

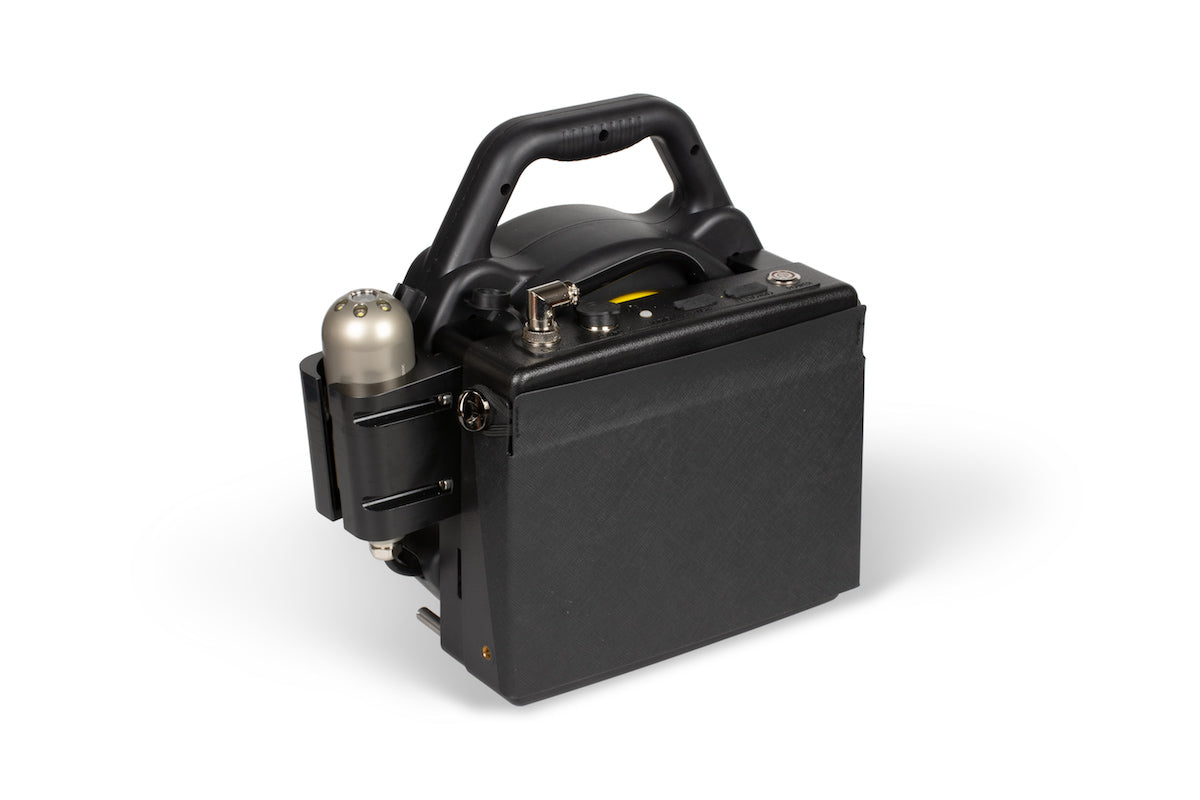

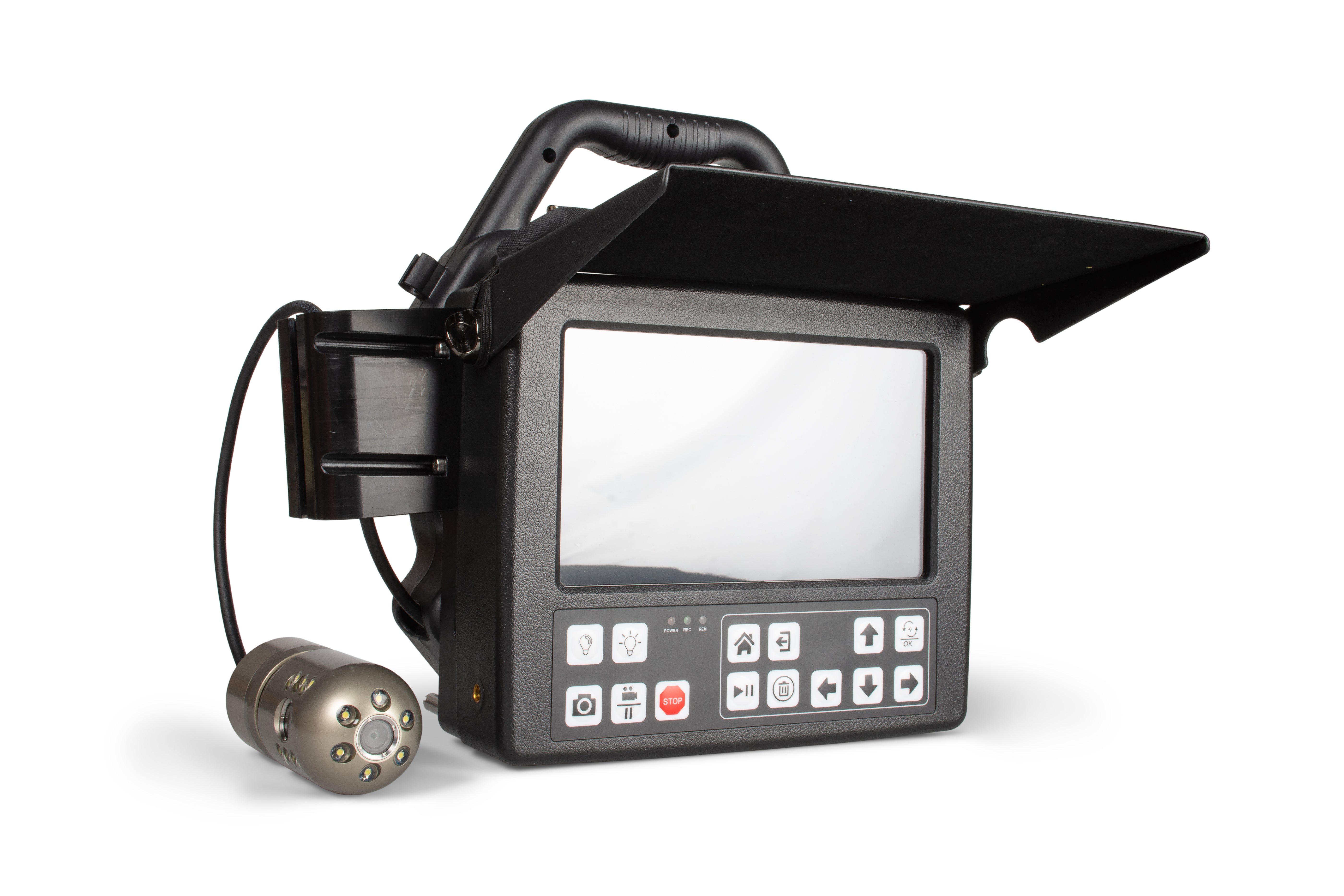

The control box is weatherproof and has a protective sunshield over an 8.0" color HD IPS LSD monitor. Pre-installed options include video and image capture directly to a USB memory stick, a microphone, and a rechargeable battery for portable use. Switching between the camera signals is controlled via a simple dial, and the image can also be switched during live video recording.

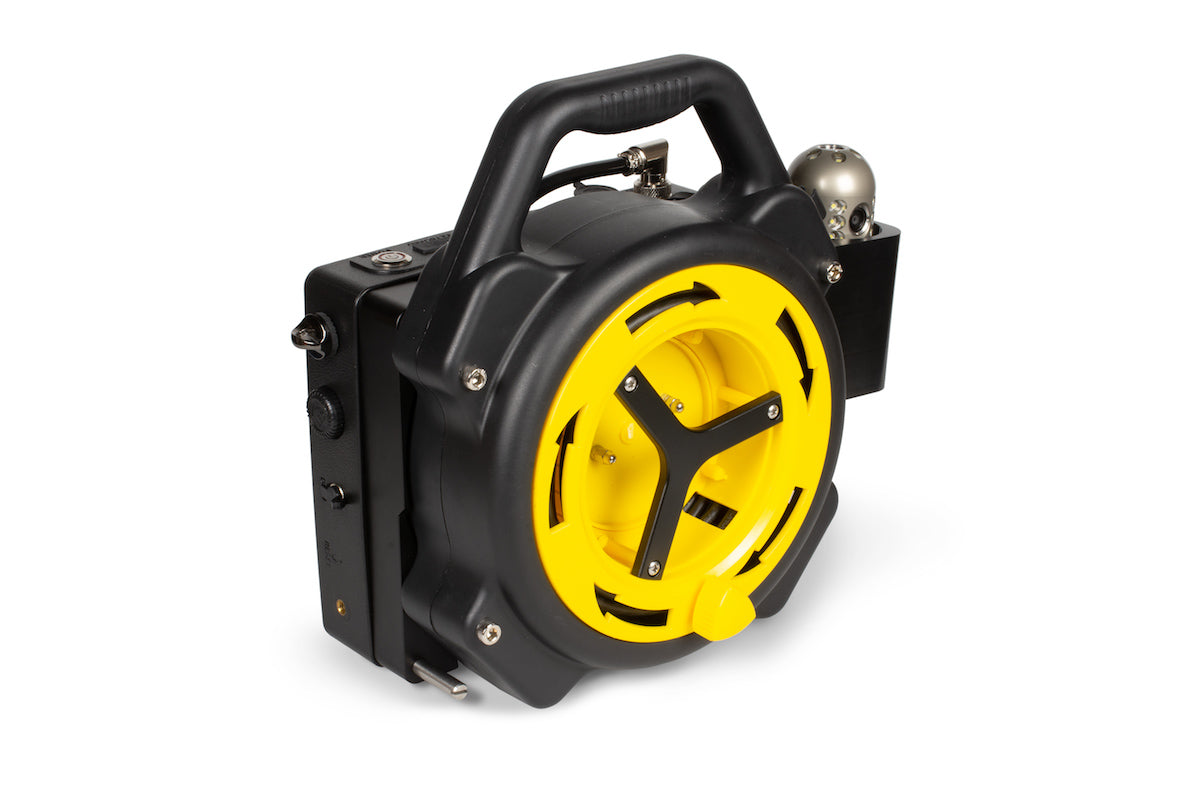

The system comes with a 65 feet (20 meters) flexible dropdown cable that is stored inside the unit's body.
DUCT-SCAN Micro duct camera has been designed to be robust and easy to use, featuring the latest imaging technology to make inspections effortless and thorough, and they come with a 1-year manufacturer's warranty.
Specifications
- Size of the screen: 8'' HD IPS LCD
- Display Resolution: 1280x720, 16:9
- Image / Video capture
- USB memory stick to capture files
- Rechargeable Li-ion battery pack
- Built-in Straight View and Side View Cameras
- Super Bright LED Illumination
- 360° Endless Panning
To learn more visit our catalog page or call 1-877-613-2210
Which Well Camera is Right for Me?
From 2" - 40"
From 2" - 40"
200m (656ft)
500m (1,640ft)
Up to 200m (656ft)
Up to 500m (1,640ft)
Battery powered unit for thorough inspections of bores and ducts
Stand alone unit for deep bore and well inspections
Dual-view camera HD
Dual-view camera HD
1280x720 pixels
1280x720 pixles
13" monitor
13" monitor
Which Well Camera is Right for Me?
From 2" - 30"
From 2" - 30"
110m (360ft)
20m (65ft)
Dry bores
IP68
Battery powered unit for thorough inspections of bores and ducts
Portable unit for quick visual inspections of hard to reach areas and bores
Pan and Tilt camera HD
Dual-view camera HD
1280x720 pixels
1280x720 pixles
8" monitor
8" monitor
