The mainline camera that looks at the pipe wall, not just down the line. Its pan-and-tilt head turns to inspect joints, connections and damage in sewers, storm lines and ducts. Choose the Large reel for long mainline pushes or the MID for tighter routes, and swap heads in seconds.
The ANACONDA Sewer Camera is one of the most affordable Pan-and-Tilt pipe inspection systems on the market today. It can be equipped with either self-levelling or pan-and-tilt camera head. These camera heads are waterproof and well-suited for inspecting sewers, drains, ducts, manholes, culverts, wells, and tanks. This is going to give you high-definition image quality at a reasonable price.
The Pan-and-Tilt head will pan side to side at least 80-degrees in each direction, to better view the side walls or around corners, and you can also spin the camera head in a full 360-degree circle enabling you to fully survey the entire surface of the inspection area. The color sensor is protected by a durable, scratch-proof, sapphire lens and aluminum and stainless steel construction.
Strong LEDs provide great illumination for large diameters with consistent light dispersion over the entire surface, and there is a built-in 512Hz sonde to locate the camera head underground. The camera heads are also interchangeable, which is great for areas that may require spare parts or backup units due to damage or contamination.

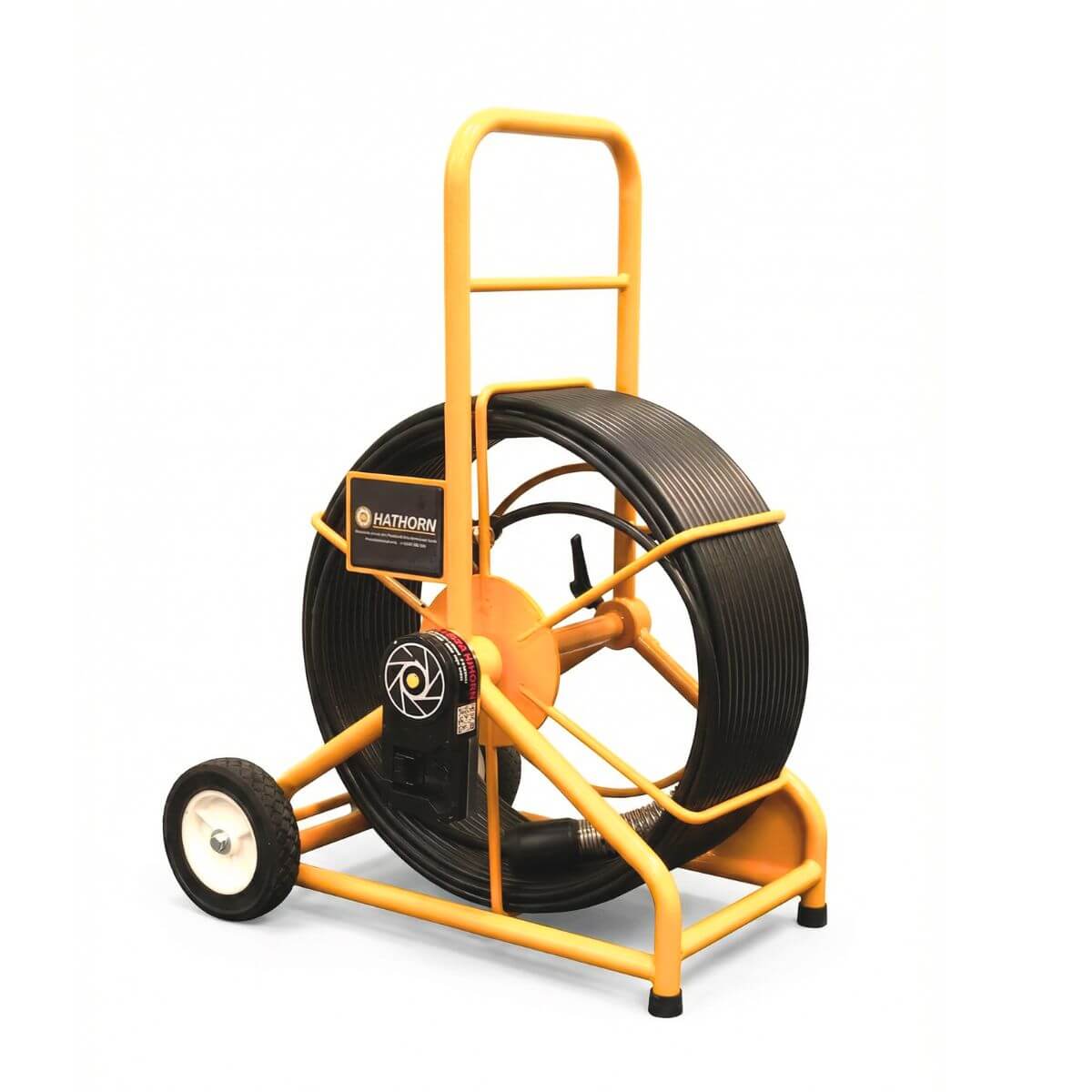

The system can be ordered with fiberglass push cable coiled onto a standalone reel, with a built-in digital footage counter, controls, and a locking mechanism.
The control box is weatherproof and has a protective sun shield over a 13" HD monitor. Pre-installed features include video and image capture directly to a USB memory stick, a WiFi keyboard to add text to files, a microphone, and a rechargeable battery for portable use.

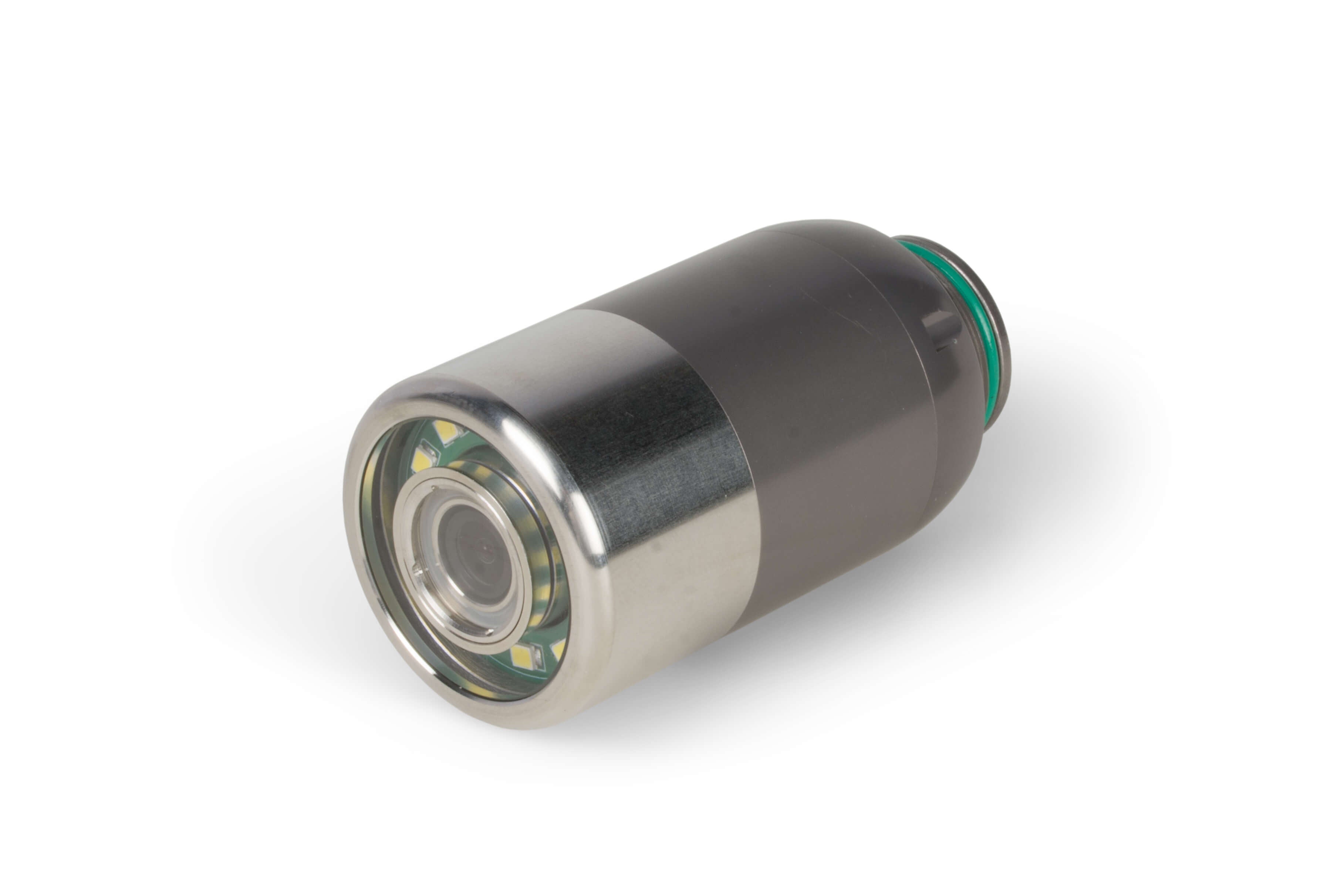

Self-Levelling Camera Head:
Pan and Tilt Camera Head:
For more information about the system, go to the product page at our online catalog.
Explore ANACONDA
Sewer mains & laterals
Pan across joints, service connections and damaged sections instead of guessing from a straight-ahead view.
Storm lines & culverts
Long, straight municipal runs where the large reel's stiffer rod carries the push.
Ducts & conduits
Ventilation shafts, duct runs and utility conduits, recorded with an on-screen footage counter.
Manholes & tanks
Look into chambers, junctions and tanks from access points too tight to enter.
Key data presented for fast procurement review.
Need a formal quote or additional information?
Submit your requirements and application. Our team will confirm the configuration, answer your questions, and provide the necessary documentation.
Request a quote2″– 20″ (50–500 mm) PT head from 3″
394' (120 m) Large reel · 197' (60 m) MID reel
Ø 11 mm (Large reel) · Ø 7 mm (MID reel)
Ø 2″(50mm) × 6″(154mm) pan 360°, tilt 160°
Ø 1.57″(40 mm) × 3″(77 mm) straight view,
1/3″ CMOS HD, 1.3 MP · 1024×768 · AHD
6 adjustable white LEDs per head
Built-in 512 Hz in both heads
Heads and push rod: IP68
13″ HD IPS LCD, 1280×720, with sun shade
Photo and video to USB stick (up to 256 GB) · Wi-Fi keyboard text overlay · microphone · on-screen footage counter
Built into the reel, feet/meter switch
Rechargeable Li-ion, up to 8 h · also runs on AC or a generator
41 °F to 122 °F (5 °C to 50 °C)
Mechanical brake · large reel 70 × 28 × 84 cm
Pan-and-tilt and self-levelling heads fit both reels and swap in seconds
Look down the line, then turn the camera to the wall.
2″ to 20″
2″ to 20″
Up to 394 ft (120 m)
Up to 197 ft (60 m)
Long mainline, storm and culvert runs
Laterals, building sewers and ducts with bends
Pan-and-tilt or self-levelling
Pan-and-tilt or self-levelling
1024×768
1024×768
13″ HD monitor
13″ HD monitor
Ø 11 mm rod, rigid for long pushes
Ø 7 mm rod, flexible through bends
Yes
Yes
ANACONDA — frequently asked questions
Still not sure? Speak with a specialist who works with pipe cameras every day. Call 1.877.613.2210
The reel. The ANACONDA carries 394 ft (120 m) of Ø 11 mm fiberglass rod, stiff enough for long mainline pushes. The MID carries 197 ft (60 m) of Ø 7 mm rod that bends more easily through laterals and fittings. The monitor and both camera heads are the same.
The 50 mm pan-and-tilt head rotates 360° and tilts 160° to look at joints, connections and damage on the pipe wall; it fits pipes from 3″. The 40 mm self-levelling head keeps the picture upright looking straight ahead, fits from 2″ and handles bends better. Both carry a 512 Hz sonde and fit either reel.
Yes. A 512 Hz sonde is built into both heads and works with standard 512 Hz receivers, including the SnapTrack and Schonstedt locators we stock. Mark the head's position from the surface before you dig.
Not always. Current systems use an aviation connector; older 5-pin and 6-pin systems are not cross-compatible with it. Send us a photo of your connector or your serial number before ordering heads or cables.
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
It depends on where you are and if the product is in stock or a preorder. Products in stock will take 3-7 business days to arrive. Overseas or pre order deliveries can take anywhere from 14-28 days.
You can rent short-term, and if you like the system, 50% of the rental fee can be applied towards the purchase cost.
Yes! We offer rental units ranging from light handles and fiberscopes to push cameras and pipe crawlers. Please get in touch with us for more information.
Yes, we offer product financing through our third-party company called Kwipped Approve. To get a product financed start the application on the product page or get in touch with us. Currently available only for USA.
13″ HD Monitor
Weatherproof control box with sun shade, USB recording and Wi-Fi keyboard.
Pan-and-Tilt Head
Rotates 360° and tilts 160° to inspect joints and pipe walls.
Fiberglass Push Rod
Ø 11 mm × 394 ft or Ø 7 mm × 197 ft, on a reel with brake and footage counter.
