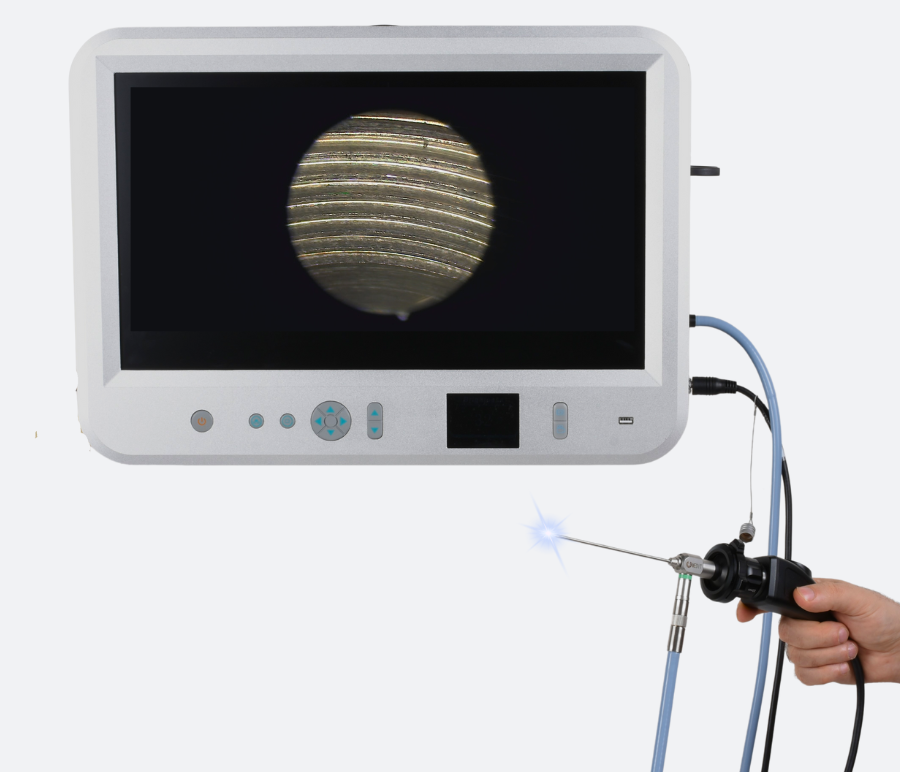

The LOOK-SEE Camera System is an advanced and practical borescope camera system designed for various inspection procedures. It is an incredibly useful tool for engineers and technicians, especially those working in quality control stations. The system is particularly effective for visual inspections with borescopes and fiberscopes.

The system operates using high-resolution image sensors that convert images from optical borescopes and fiberscopes into digital signals. These signals are then displayed on a 22-inch LCD monitor, providing technicians and mechanics with crystal-clear and detailed visual feedback.

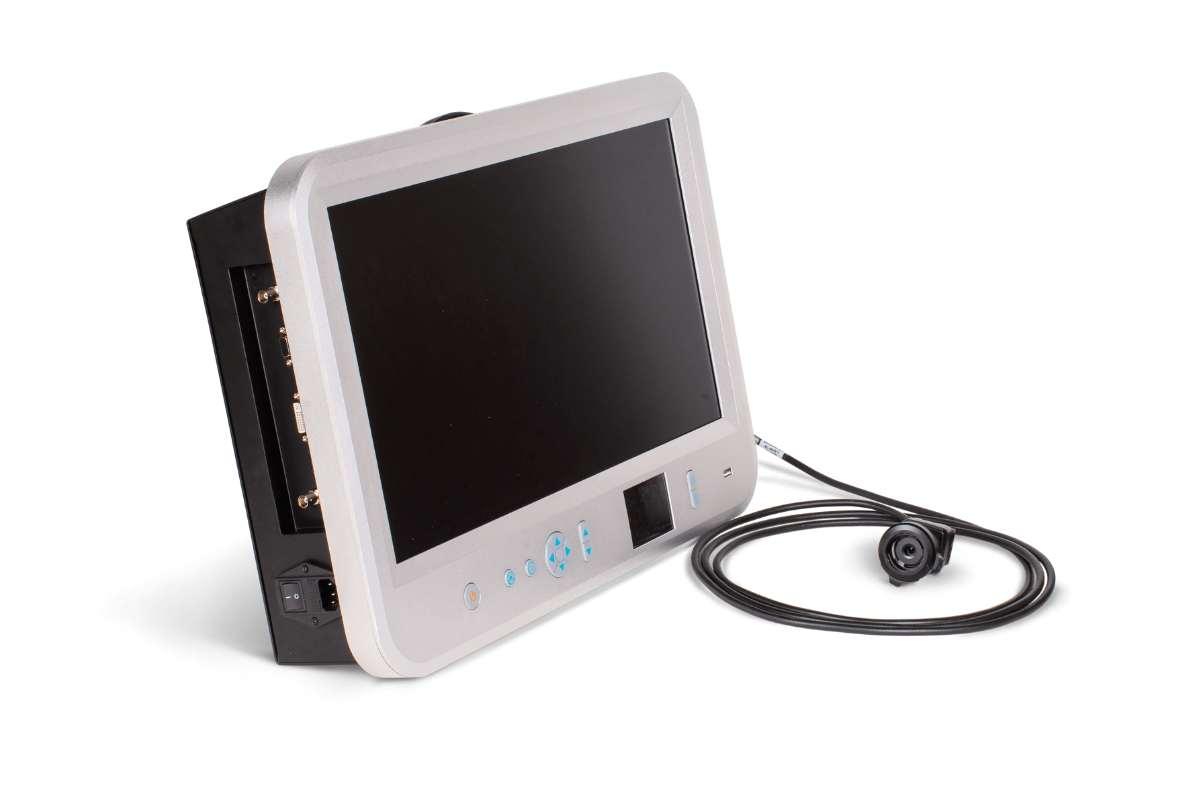

The system is portable and is made up of a control unit, a camera head, a connector cable, and a power cable. The camera head features a high-quality CMOS 1/2" image sensor and four buttons for remote control. The monitor and camera head can both be mounted on the wall, ensuring they are easily accessible and ready to use within seconds.

The system features an integrated LED light source output with a WOLF connection that illuminates the inspections are with a flexible light cable (not included). The illumination is easily adjustable with the monitor buttons. The Look-See Borescope Camera System allows the operator to inspect tiny areas with precision.

Key features:

1. 22-inch LCD monitor with a resolution of 1000 TV lines.
2. Video storage resolution of 1980x1080.
3. Built-in LED light source adjustable from 5K to 8K.
4. Enhanced white balance with auto, manual, and preset options.
5. Freeze and capture features for detailed examination.
6. Storage via USB disc, with HDMI output for additional connectivity.

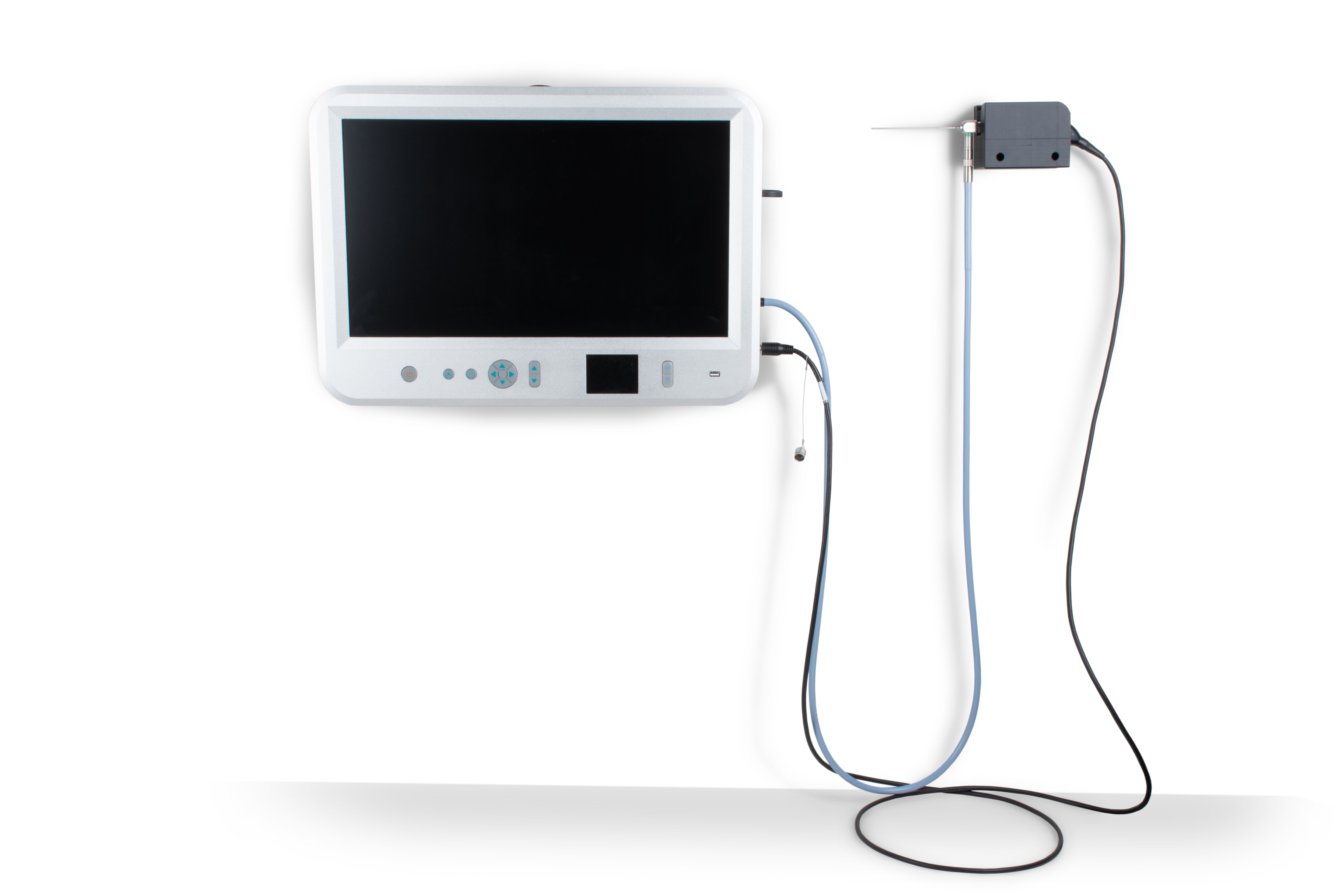

7. Wall-mountable camera head and monitor for quick and easy access.
8. Camera head with CMOS 1/2" sensor and four-button remote control.

Specifications:

Endoscopic Camera Head:

• Sensor type: Advanced CMOS, 1/2"
• Effective pixels: 1920x1080
• Resolution: 1000 TV Lines
• Shutter: Auto
• S/N: >54dB
• Min. sensitivity: 20Lux
• Coupler Focal Length(mm): 22mm (Standard); other options are available
• White balance: Auto/Manual/Preset
• Mount: C/CS Focal
• Control: Four buttons (Image/Video/White balance)

Monitor:

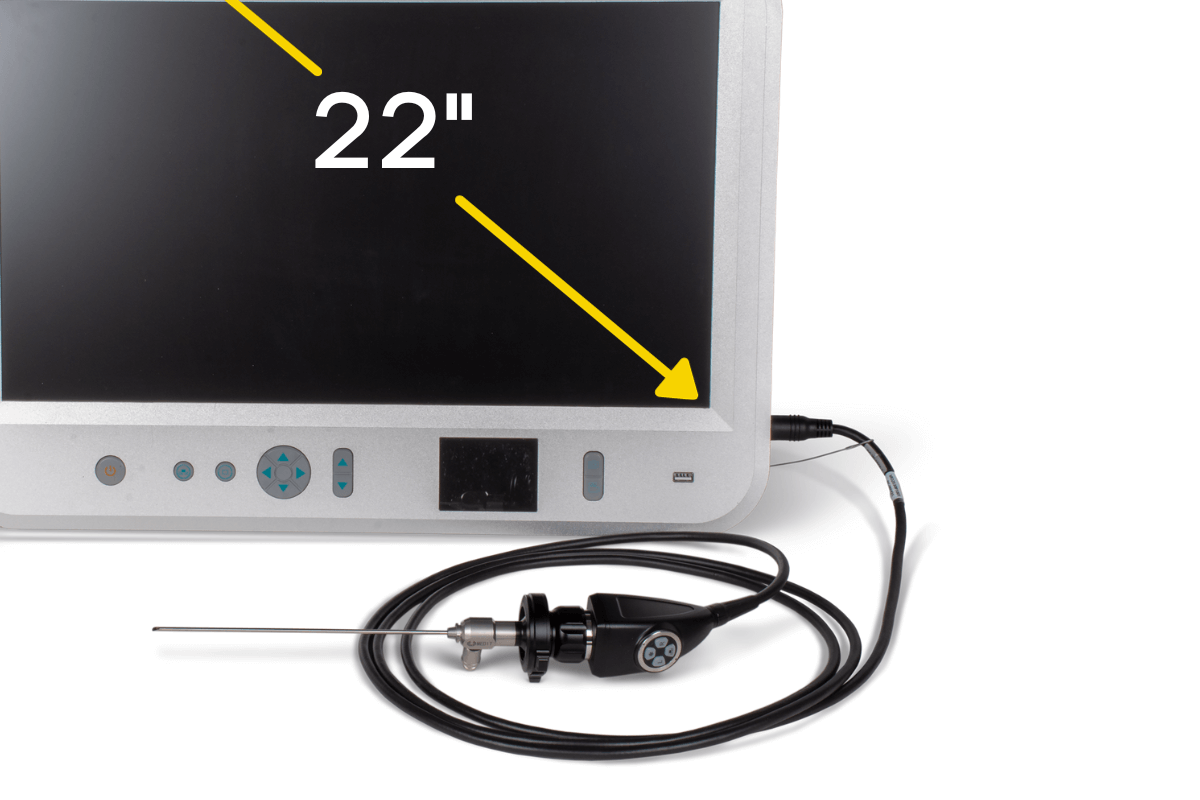

• 22" Color LCD Display
• Ratio: 16:9
• HDMI out: Yes
• USB stick storage: Yes
• Integrated Light Source: WOLF Connection
• LED light source color temperature: 5,000-8,000K var.
• Video storage format: H.264 1980x1080
• Image/Video Capture: Yes
• USB Memory Storage
• Playback: No
