Borescope Light Source MS-LED
Description
MS-LED Borescope Light Source is a lightweight, small, mobile light source with long-lasting, highly efficient LED output. This compact light source utilizes a mercury-free LED Light that lasts more than 50,000 hours, much more than halogen and metal-halide lamps.
Manufactured in the USA, it incorporates a patented technology for focusing the LED light directly into the fiber optic cable, dramatically boosting the efficiency and light output. MS-LED Light Source for fiberscopes and borescopes delivers a spectral output above 430nm (deep blue and UV) and below 700nm (NIR), making it perfect for visual industrial inspections.
An electronic knob adjusts the intensity of the LED output, which is ideal for different inspection situations that require less illumination.
The compact and portable light source MS-LED is a quality and dependable solution for industrial and NDT inspections that utilize rigid borescopes, micro fiberscopes, flexible borescopes, and fiber optic endoscopes. Pair it with our flexible Fiber Optic Light Cable to make the most of this light source.

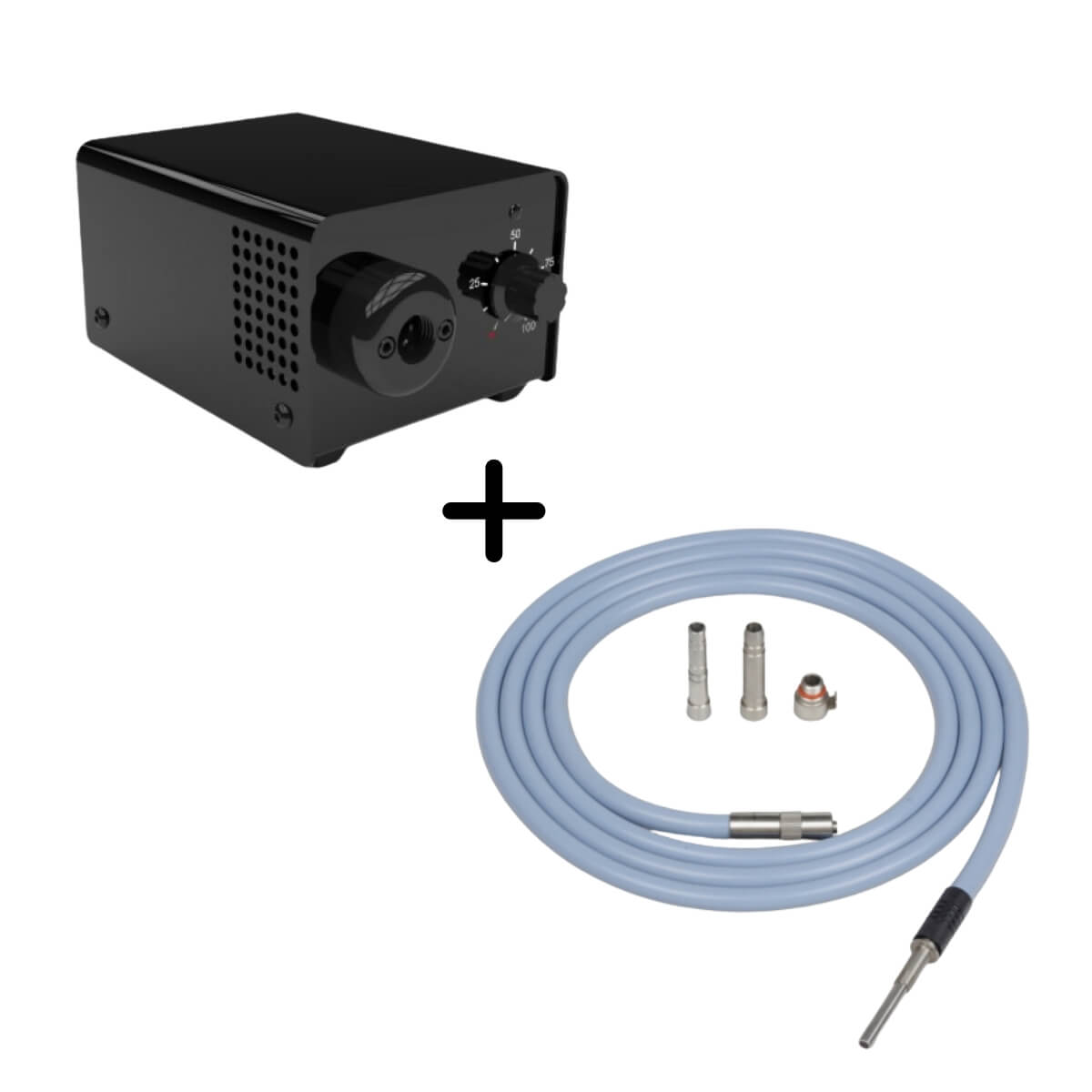

* to use the MS-LED Light Source you would need a Fiber Optic Cable that connects the light source to the borescope and directs the light into the borescope.
Specifications:
- 50,000+ Hrs LED bulb life
- Output: 1,350 Lumen
- Color Temp: 6,500
- CRI 72
- No UV/IR Radiation

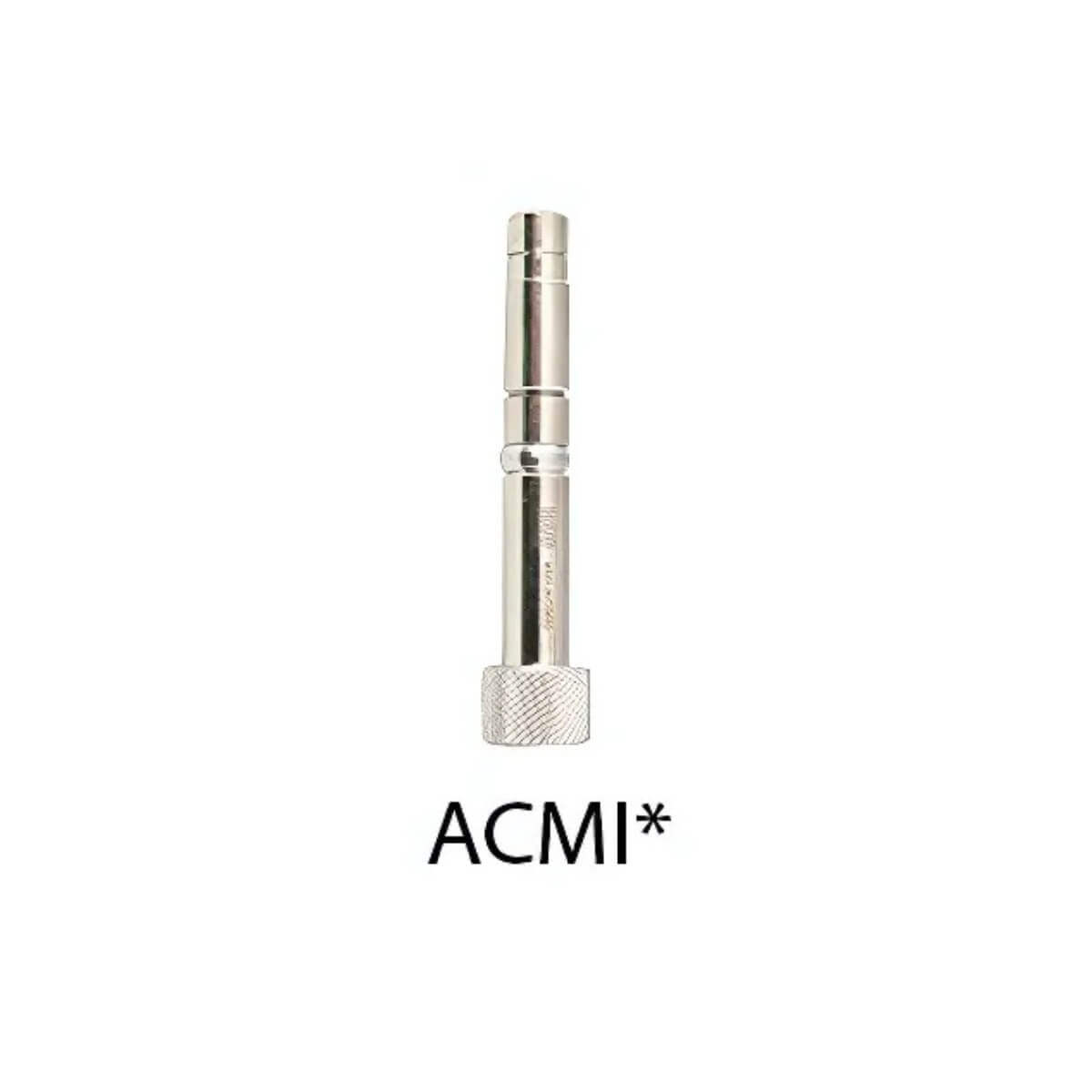

- ACMI receptacle
- Compact: L 5" x H 2.7" x W 3.5"
- Electronically Adjustable Illumination
- Operation temp: 0 ~ 40˚C
- UL/EN/CSA 61010 / IEC 61347 / IEC 62471 / CE
- Power: AC
- MADE IN USA
Which Camera Accessory is Right for Me?
Use in pair with a computer for viewing the inspection
Use in pair with a mobile device for viewing the inspection
Self-contained unit with display, light source and camera head
Displays the image on a display via USB 3.0 connection
Displays the image on a display via Wifi connection
Displays the image on the display via cord connection
For 32 mm round eyepieces
For 32 mm round eyepieces
For 32 mm round eyepieces
Full HD
800 Horizontal TVL
Full HD
High quality image, compact unit, connects directly to the computer
High quality image, portable battery-powered configuration
High quality image, self-contained unit with light source and display monitor
Use with borescopes, endoscopes, and fiberscopes from 0.37mm diameter
Use with borescopes, endoscopes, fiberscopes from 1mm diameter
ACMI, STORZ, WOLF
ACMI
Adjustable
Adjustable
AC power
Battery powered
Connects via a flexible fiber optic cable
Direct screw-one connection
