Spare Insertion Push Cables for Drain Camera VIPER

Viper Drain Camera Reels come in different lengths and configurations and are all compatible with the Viper Universal Camera Base. Connected by a connection cable to the base, they are either a handheld mini reel or a bigger standalone reel. They are manufactured using a PVC-coated fiberglass push cable spooled on a steel frame with all the needed accessories, such as a meter counter and a reel brake.

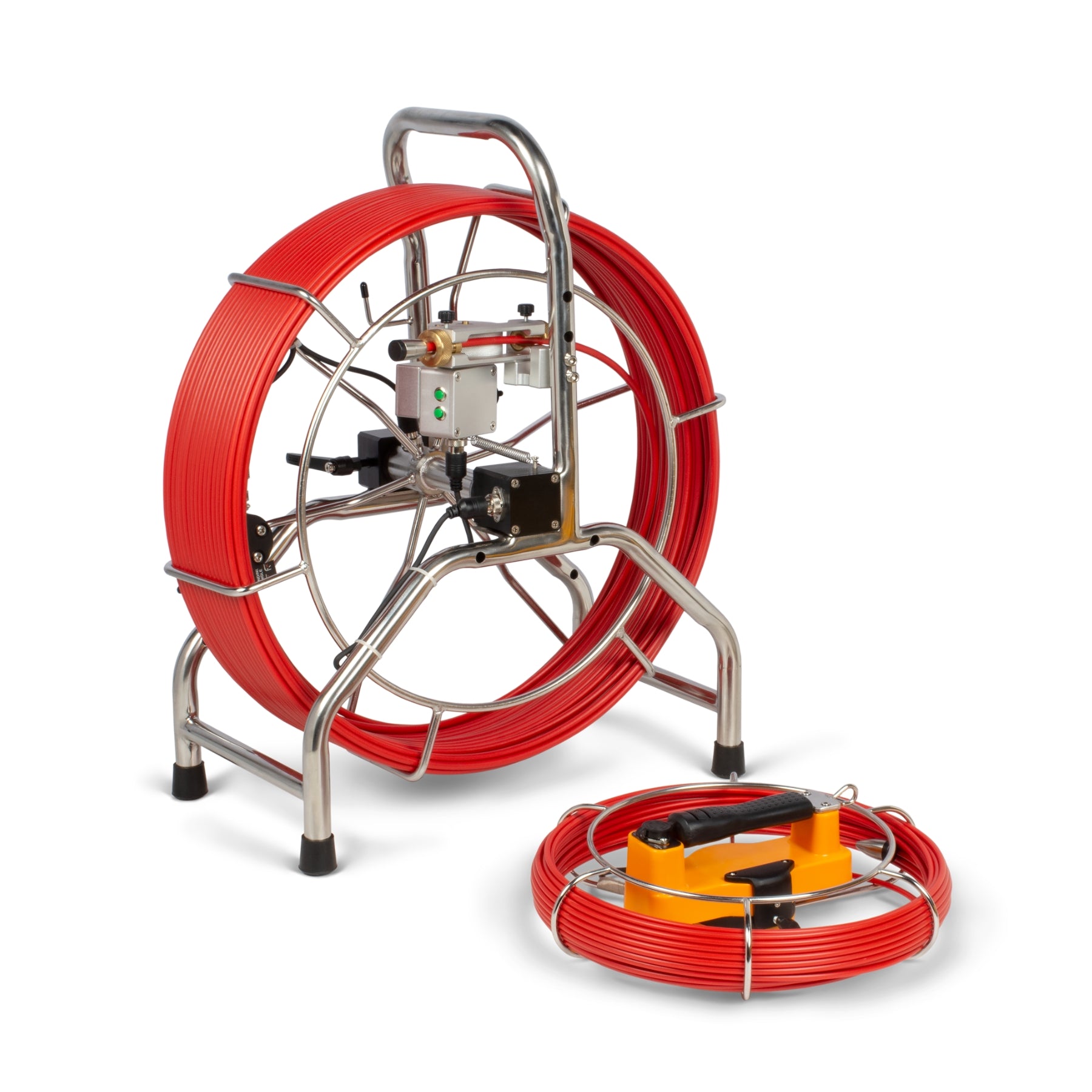

Three reel sizes are available:

Micro Cam Reel (working length - 20m, 30m, 50m)

Handheld Mini Reel (working length - 20m, 30m, 40m)

Mid Reel (working length - 40m, 60m).

All Viper camera heads are compatible with the reels, with the exception of the Micro Cam reel, which has a fixed camera head. Viper Sewer Camera Reels are an affordable and quick solution for inspecting pipes, drains, culverts, sewers, and manholes.

Reel Specifications:

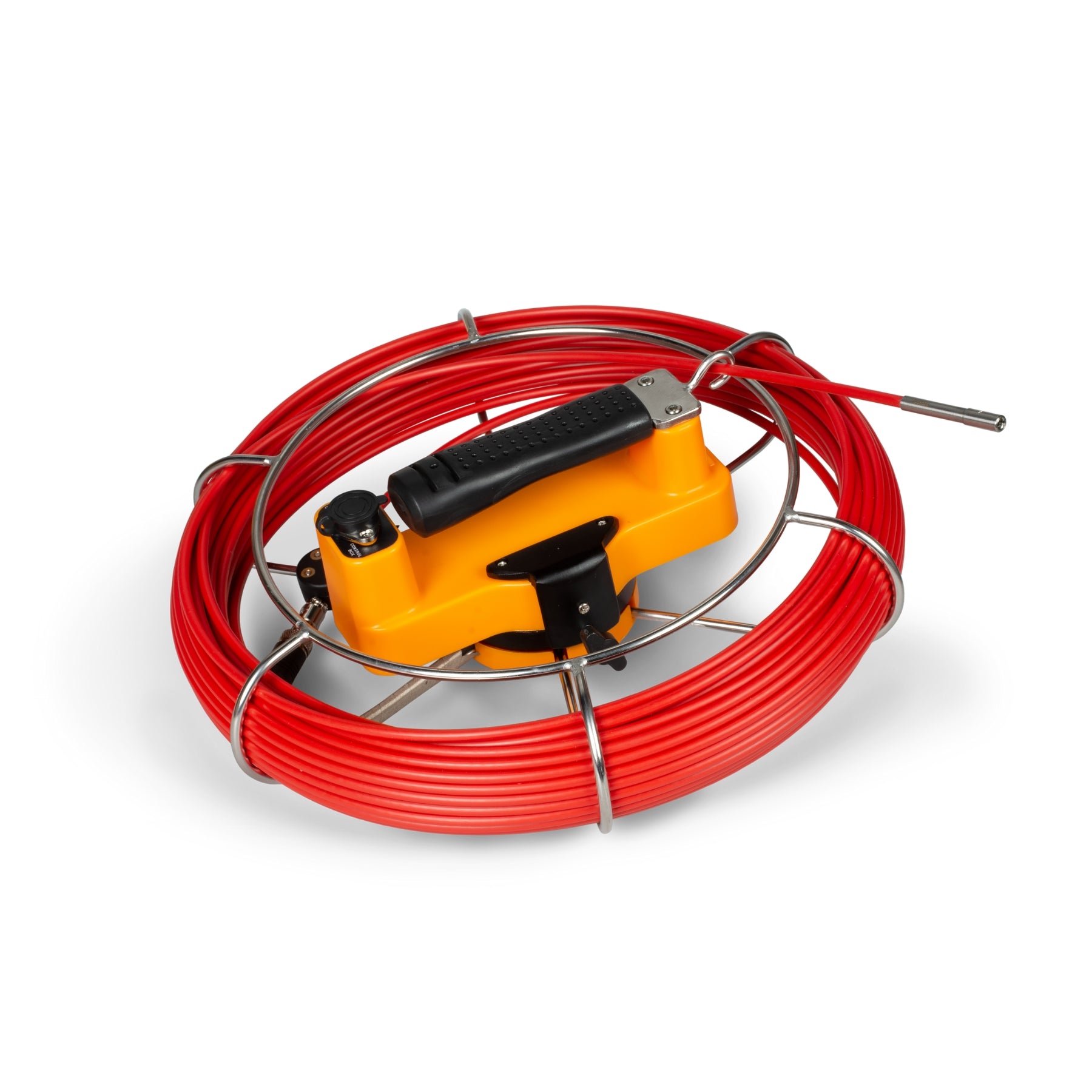

Micro Cam Reel

• Working length up to 164.0 ft(50M)
• Built-in 0.27" (7mm) camera with LEDs
• No sonde, No spring section
• Fiberglass push cable, Ø 5.5mm
• Waterproof, IP68

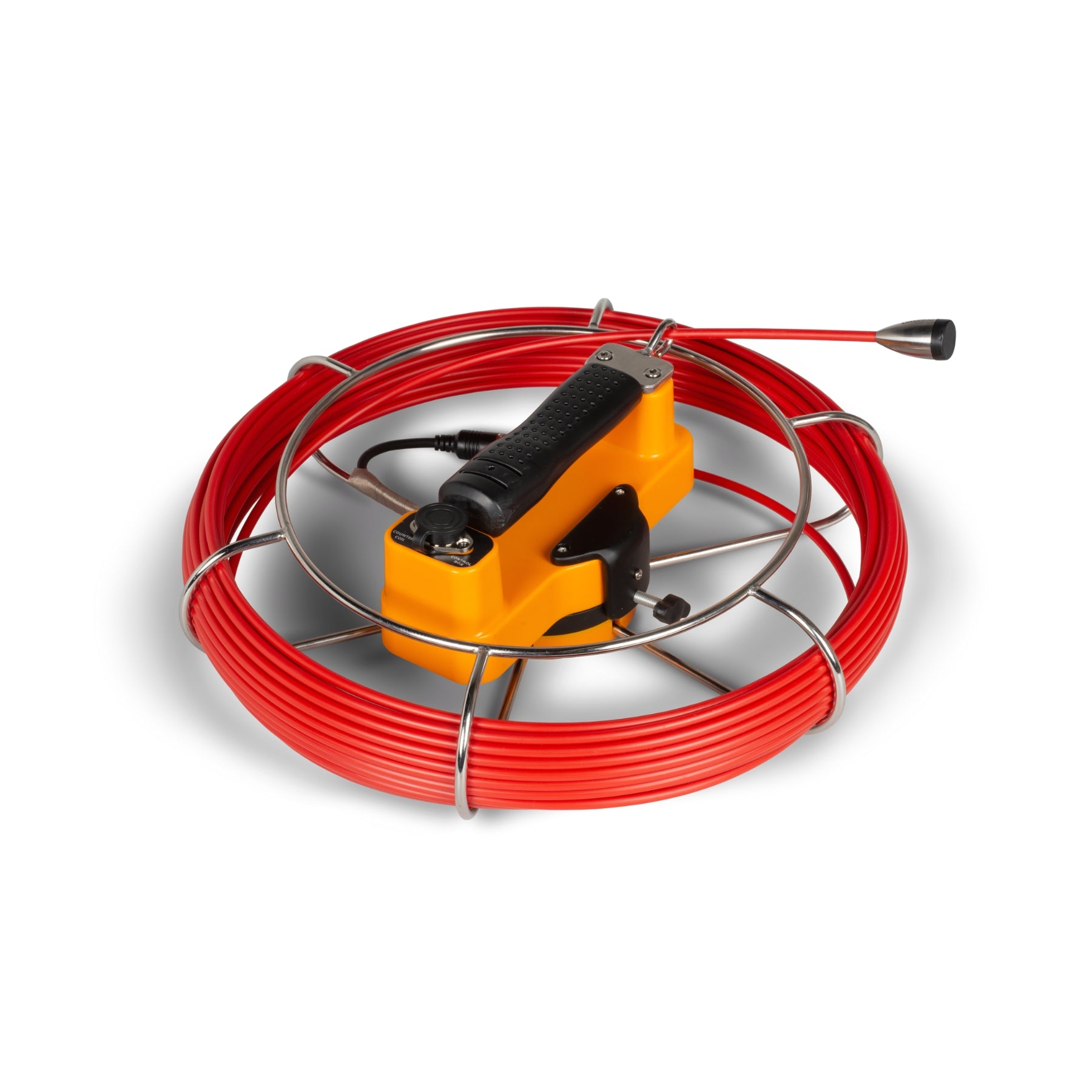

Handheld Mini Reel

• Working length up to 131.2 ft(40M)
• Compatible with all VIPER's camera heads
• Fiberglass push cable, Ø 5.5mm
• Optional built-in footage counter
• Waterproof IP67

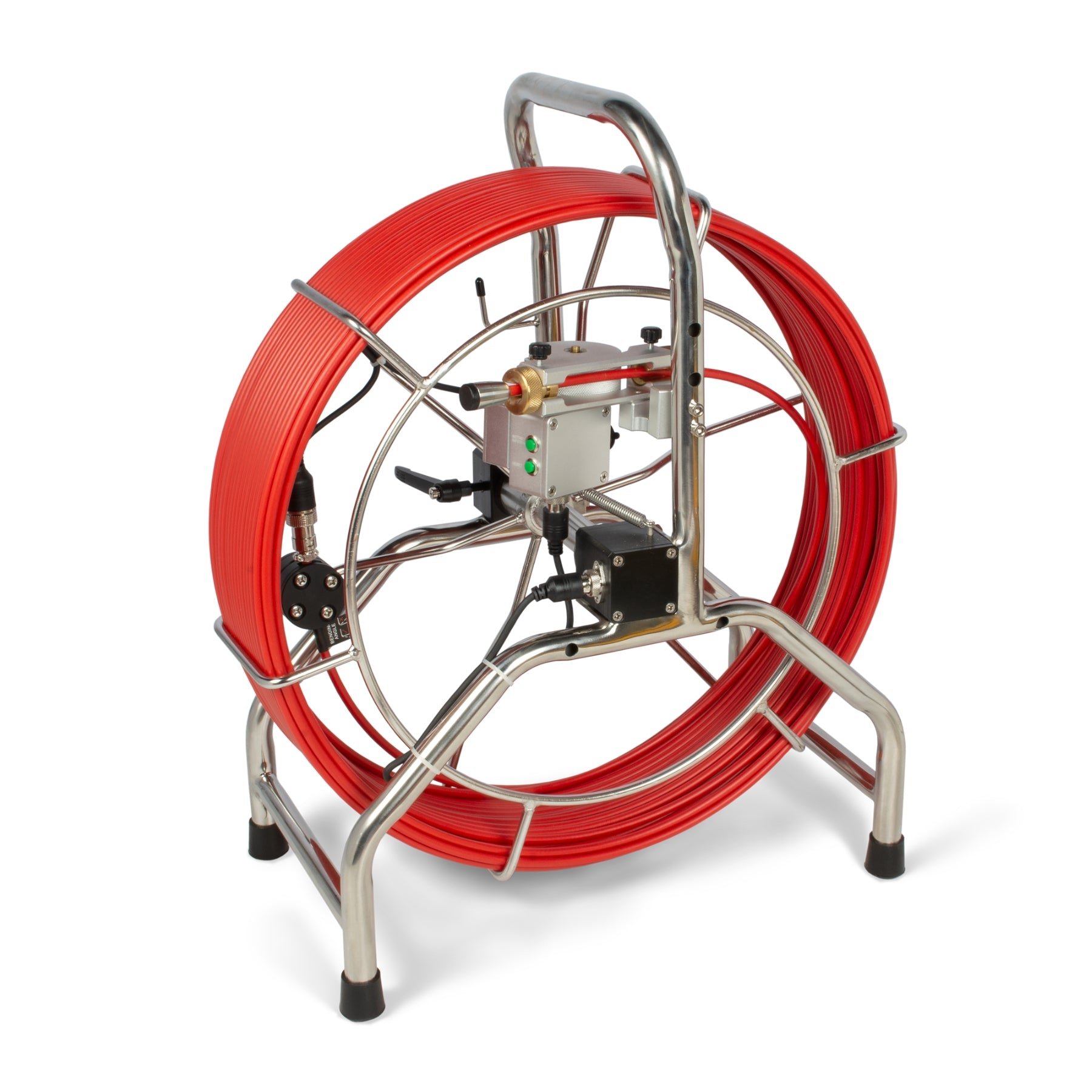

Mid Reel

• Working length up to 196.8 ft(60M)
• Compatible with all VIPER's camera heads
• Built-in footage counter
• Fiberglass push cable, Ø 6.5mm
• Waterproof, IP68
