Schonstedt 512Hz Sonde Locator
Description
XT512 is one of the world's most portable 512hz pipe camera sonde locators with pinpoint precision and depth measurement.
Its unique design combines the capabilities of 512hz sonde detection and passive location mode of 50Hz/60Hz into one portable and compact unit.

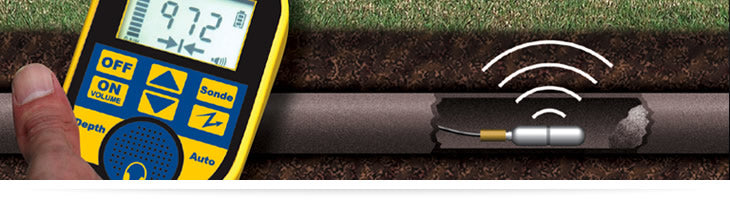

The sewer camera sonde locator XT512 permits easy and accurate pinpointing of the 512hz sonde beacon inserted into a non-metallic pipe either as a separate beacon or as a part of a camera head (ex. the Miniflex Plumbing Camera, VIPER, HATHORN, or ANACONDA sewer cameras).
Manufactured in the USA, the XT512 sonde locator is equipped with a technology that allows not only to pinpoint the sonde but also to measure the depth distance, which is very helpful in planning and mapping. To read the depth reading, press "depth" when the sonde locator is directly above the sonde; the typical depth range it can show is anywhere between 5 to 8 feet (1.5 - 2.5 m), depending on the strength of the signal emitted by the sonde in the pipe.

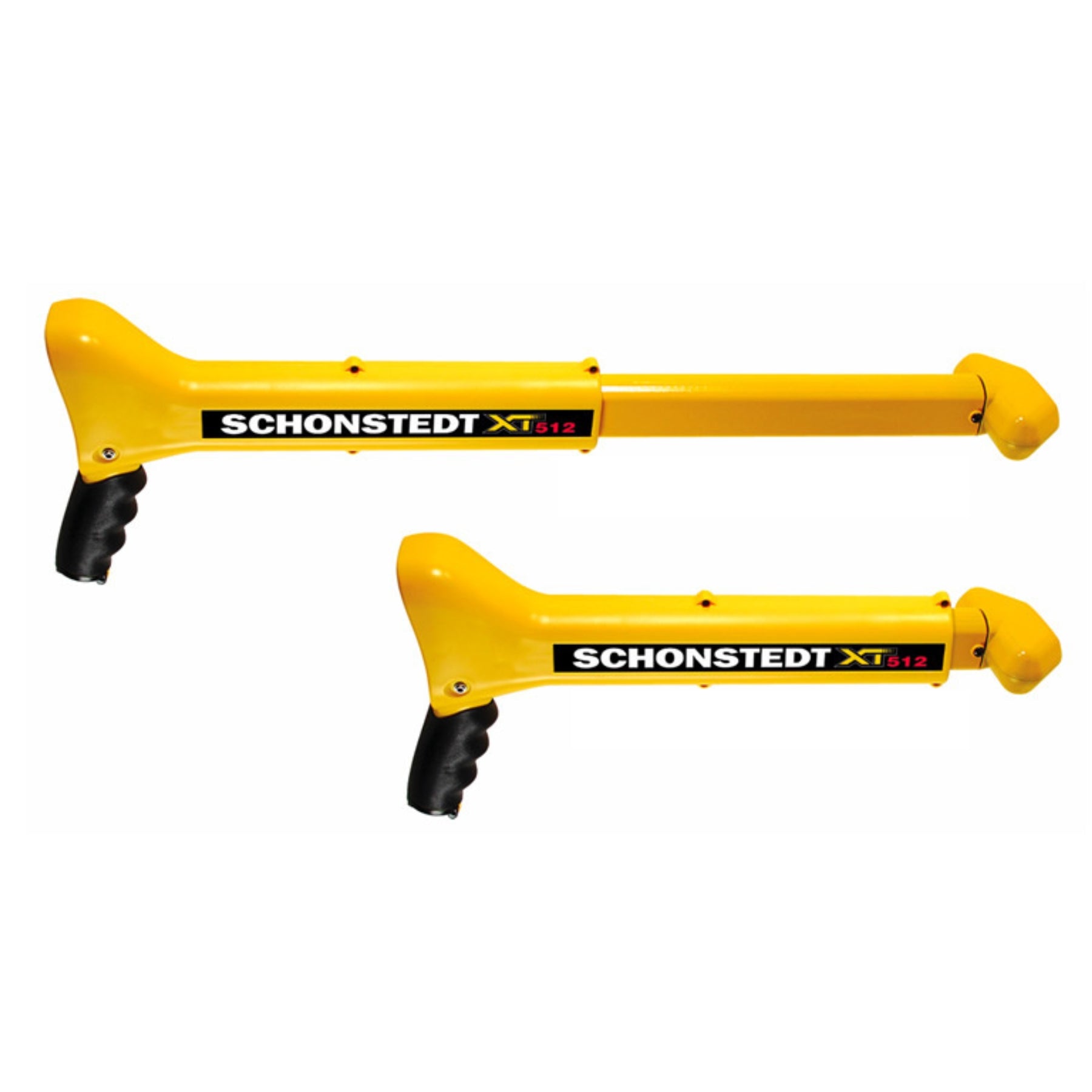

Designed to be ergonomic for ease of carrying and usage, the body of XT512 can be extended or retracted as needed. With all these features combined into one optimized standard unit, the XT512 Sonde Beacon Locator is integral for locating blockages and obstructions in non-metallic pipes. The 512Hz Sonde Locator from Schonstedt is an ideal addition to the sonde-equipped pipe inspection camera systems.
The 512Hz Sonde Locator from Schonstedt is an ideal addition to the sonde-equipped pipe inspection camera systems.
Features:
- Operates on 512 Hz Frequency mode
- Passive detection of 50Hz or 60Hz, and sonde
- One-button depth measurement
- Digital readout display of signal strength (peak)
- Audio & Visual Output
- Battery & Sensitivity Indicators

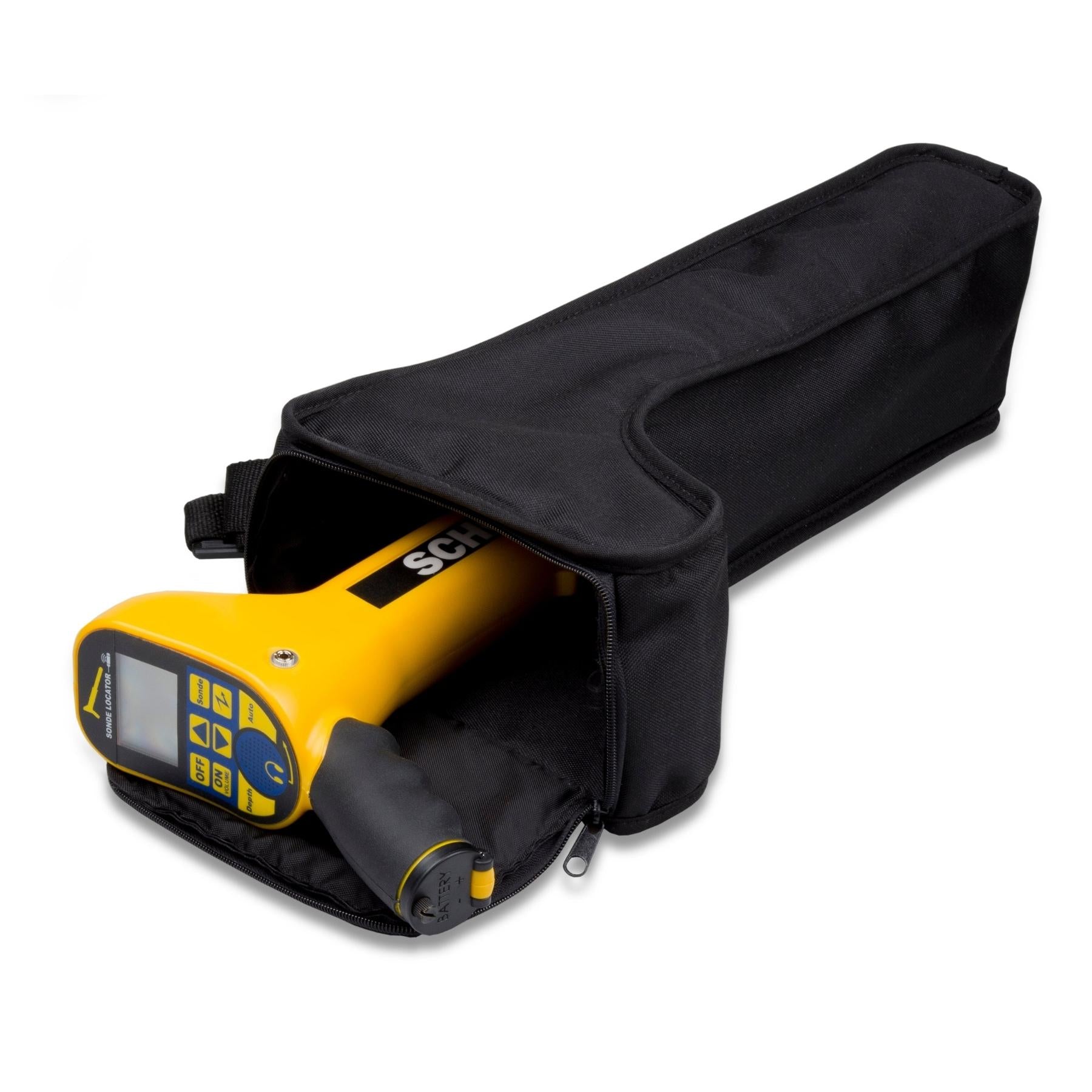

- Extends and retracts for easy carrying & storage
- Weight under 2.5lbs
- Battery life 18 Hours (intermittent use)
- IP54 rated
Learn more about how to use a sonde locator: Using a Sonde Locator
Which Sonde Locator is Right for Me?
★★★★★
★★★★★
512Hz
512Hz/640Hz/815Hz/33kHz
Audio and visual
Audio and visual
Locating the camera head to find out the location of the pipe joint or damage
Locating the camera head to find out the location of the pipe joint or damage
2.5lbs
3lbs
Yes
Yes
10 hrs (intermittent use)
82 hrs (intermittent use)
Which Accessory is Right For Me?
★★★★★
★★★★★
★★★★★
4" to 6"
4" to 6"
6" to 14"
1" to 1.5"
1.3" to 1.56"
1.3" to 1.9"
General pipe and drain inspections
Specifically aiding in passing traps and bends in 4" to 6" pipes
Large diameter pipe inspections, both short and long range
4" minimum
4" minimum
8" minimum
