Drain Camera VIPER

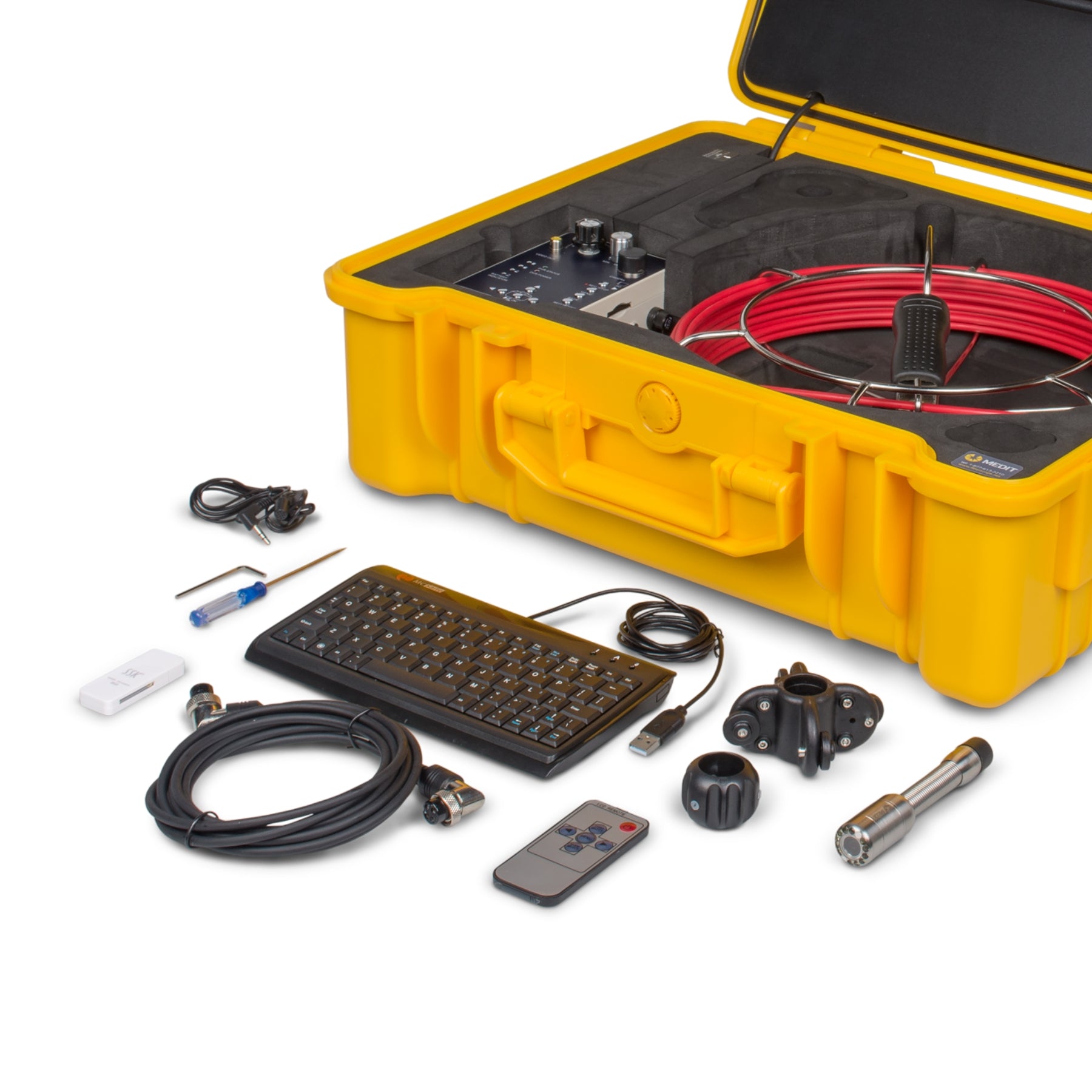

The VIPER Drain Camera is a cost-effective set designed to deliver inspections of sewers, building ducts/piping, wells, chimneys, and power plants. These sets feature small portable probes coiled on a steel reel, with all of the accessories stored in one durable hard plastic carrying case, which takes up very little space and can easily travel to different job sites.

The VIPER Drain Inspection Cameras have three main parts; the camera head, the push cable on the reel, and the monitor set up in the carrying case. The camera head houses a high-resolution CCD camera chip with a wide-angle field of view, designed to capture bright, crisp, color images and video of your inspections. There are also adjustable LED lights to illuminate the inspection area, a flexible spring to navigate corners, and a scratch-resistant sapphire lens. The PVC-coated fiberglass push cable is waterproof and available in different lengths.

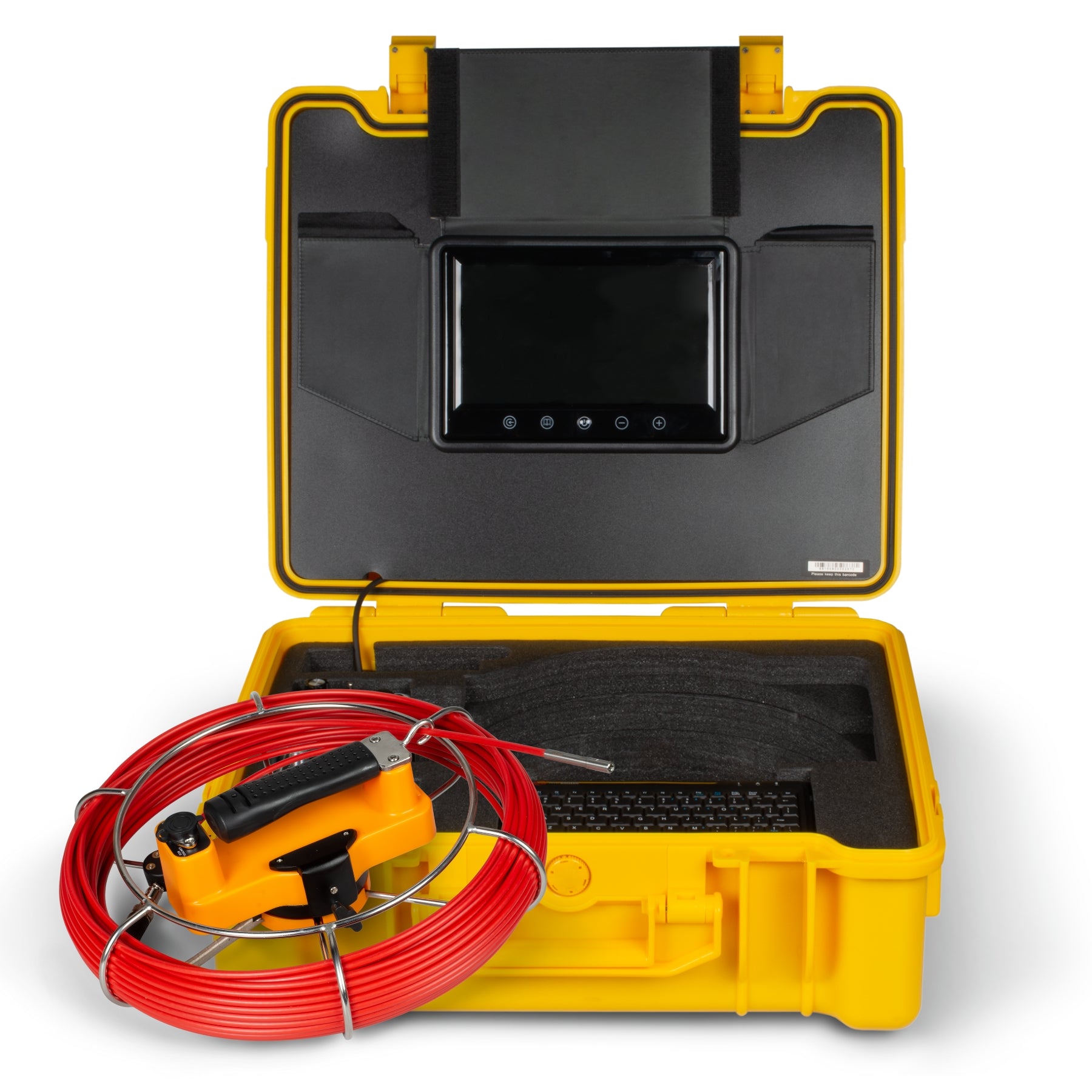

The waterproof and lightweight plastic carrying case houses a 9’ TFT color LCD screen and additional controls, including the DVR box, to capture images and uncompressed video directly to an SD memory card or an external USB storage, a USB keyboard for text generation, a rechargeable battery for portable use, a microphone, and a couple of skids for the camera head.

There are four additional interchangeable camera heads available for this push camera for different applications and setups. The smallest camera head (0.27") is permanently attached to a push cable and has no sonde and spring section.

Some camera heads are available with a built-in 512Hz frequency sonde. This allows the operator to locate the camera head underground or behind walls and to determine its exact depth up to 5 to 8 feet (1.5 - 2.5 meters) depending on the strength of the signal, and the pipe material. This is done using the XT512 Locator, or any locator that picks up a 512Hz signal.

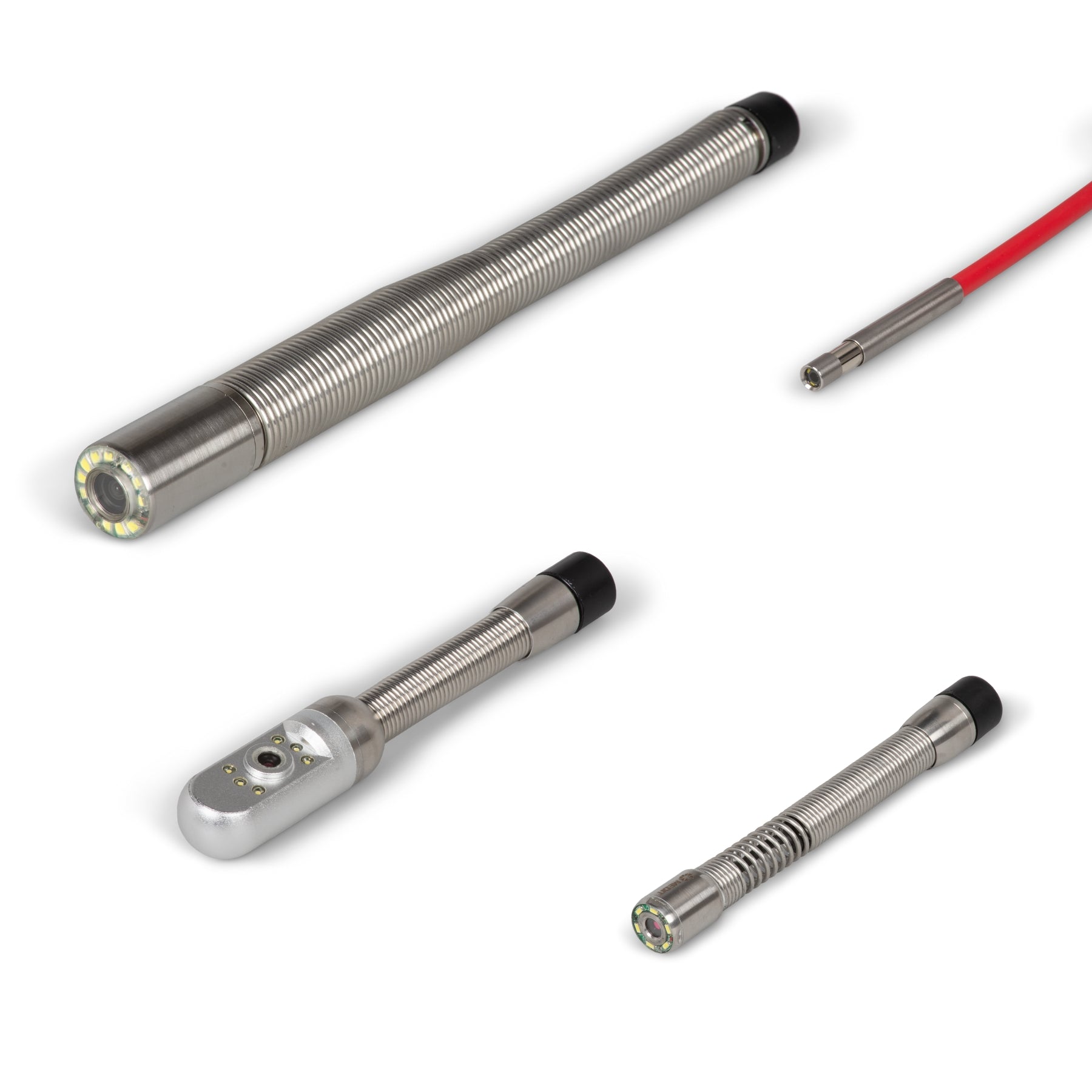

Camera Heads:

0.27"(7mm) Camera Head

• Straight Runs: 0.5" to 1"
• Not Interchangeable
• No sonde, No spring neck
• Straight view
• 4 built-in LED lights
• Waterproof IP67 (submersible to 3ft)

0.67"(17mm) Camera Head

• Straight Runs: 0.75 to 4" Pipes
• Bends: 1.5" to 4" Pipes
• No sonde
• 6 built-in LED lights
• Waterproof IP67
• Best fitting with a Mini Reel

1" Straight-View Camera Head

• Straight Runs: 1.25" to 6" Pipes
• Bends: 2" to 6" Pipes
• 12 built-in LED lights
• Waterproof IP68
• Optional: 512Hz and Self-Leveling
• Models Available: Shorter version for Mini Reel and a Longer for Mid Reel

1" Side-View Camera Head

• From 4" to 6" Pipes
• 6 Built-in LED Lights
• Waterproof IP67
• Compatible with Mini Reel and Mid Reel

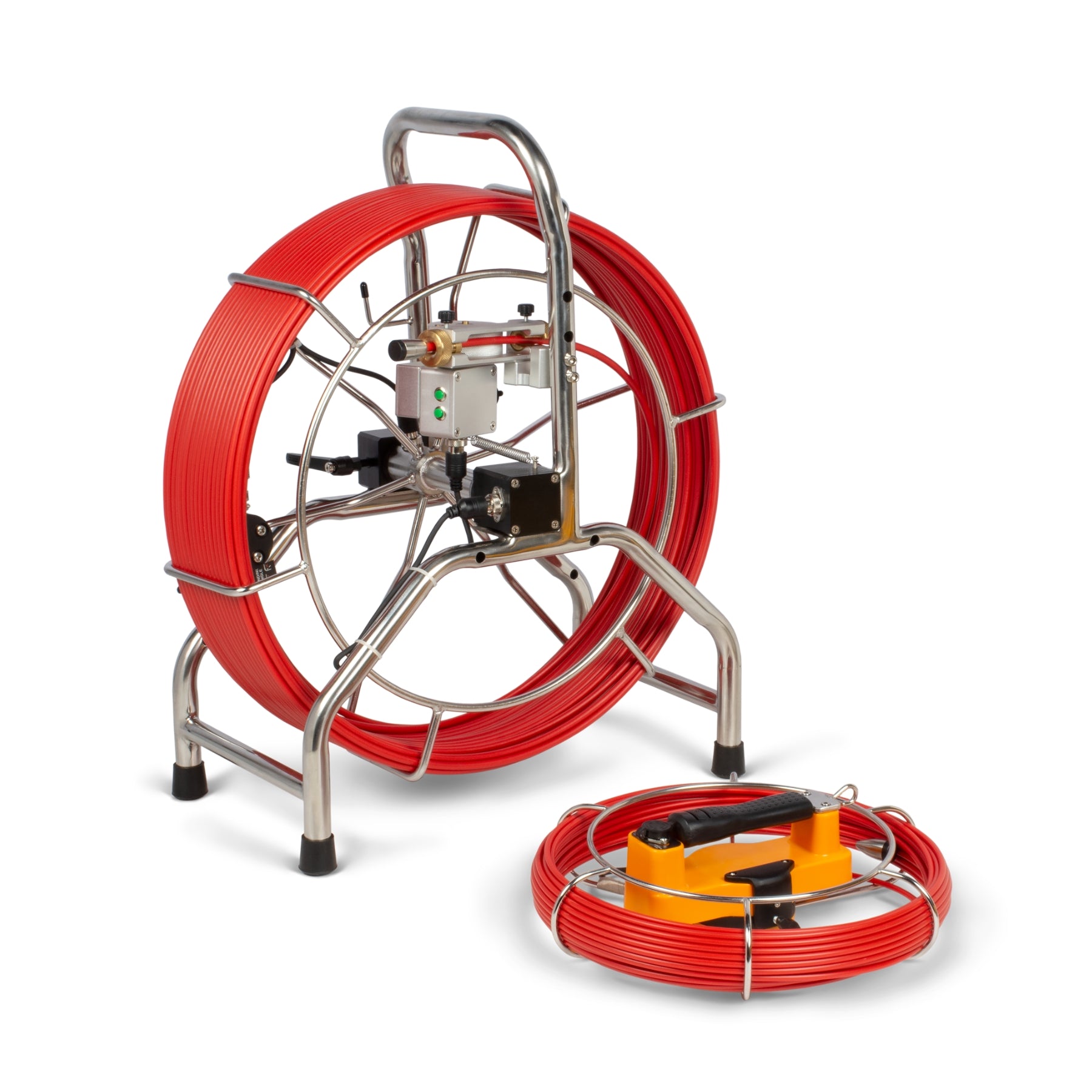

Push Reels:

Micro Cam Reel

• Working length up to 164.0 ft(50M)
• Built-in 0.27" (7mm) camera with LEDs
• No sonde, No spring section
• Fiberglass push cable, Ø 5.5mm
• Waterproof, IP68

Handheld Mini Reel

• Working length up to 131.2 ft(40M)
• Compatible with all VIPER's camera heads
• Fiberglass push cable, Ø 5.5mm
• Optional built-in footage counter
• Waterproof IP67
• Handheld Reel

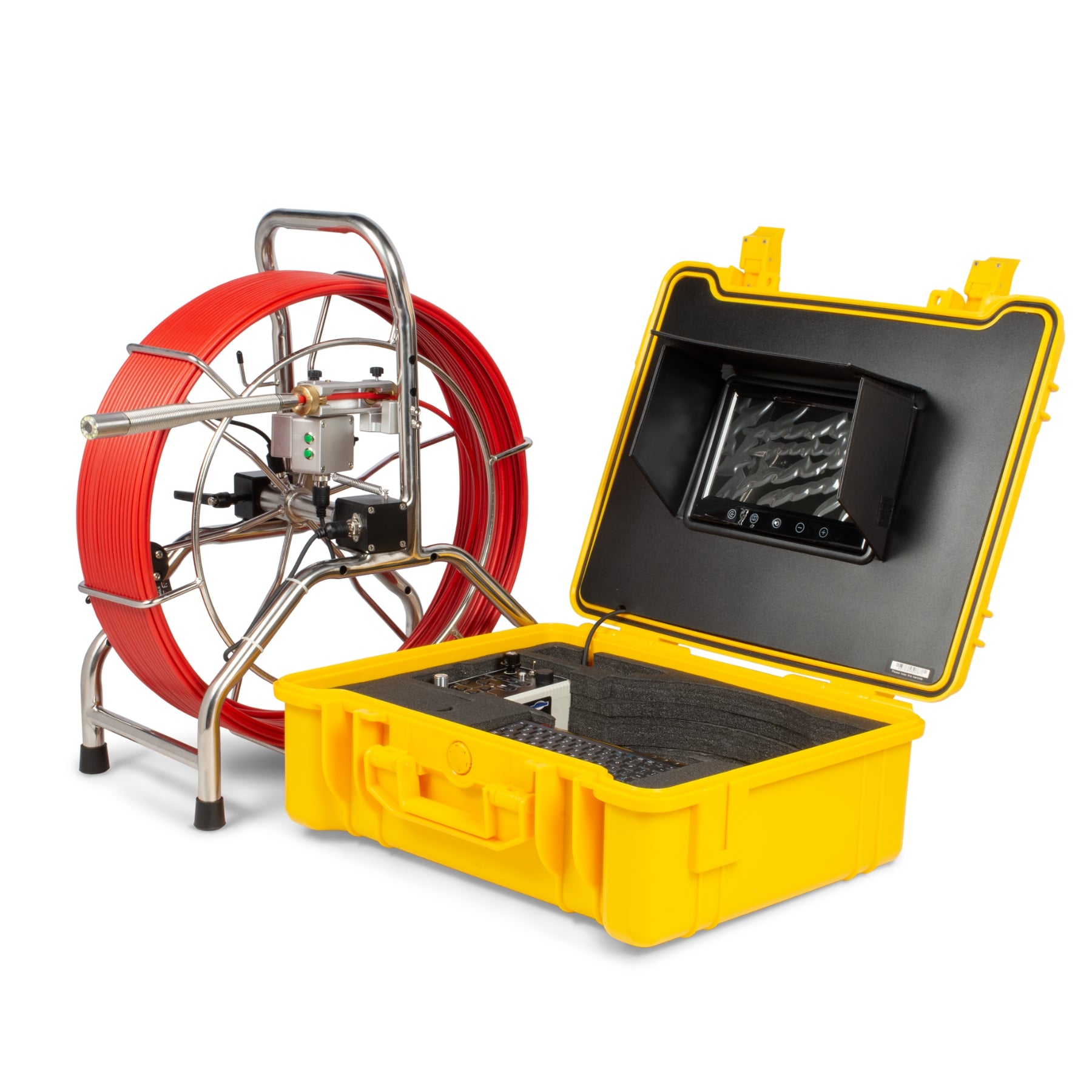

Mid Reel

• Working length up to 196.8 ft(60M)
• Compatible with all VIPER's camera heads
• Built-in footage counter
• Fiberglass push cable, Ø 6.5mm
• Waterproof, IP68
• Stand-up Reel

Control Base:

• 9" Color LCD monitor with Video output, file playback
• Monitor Picture Resolution: 800x480 pixels
• SD memory card slot
• USB memory stick slot
• Recording format - AVI / JPEG (720x576 pixels)
• Power adaptor: 110~240VAC, 12VDC/1800mA
• Rechargeable battery for portable use up to 3.5 hours
• Li-ion battery box (4400mAh)

A complete system includes a camera head, push cable reel and a control box.

For more information about this inspection system, check the product page at our online catalog.
