Can a 512 Hz Sonde Locator Find Lines Under Pavement?

Yes. A 512 Hz sonde inside a sewer camera head can be found from above asphalt or concrete with a receiver set to 512 Hz. The receiver finds the sonde's position, not the entire line; move the camera and repeat the locate to trace the route. Rebar and other nearby metal can distort the field, so a single surface mark or displayed depth is a starting point rather than a dig instruction. Fiberscope sells the equipment discussed and services it in-house.

What the receiver finds under pavement

A 512 Hz transmitter in the camera head, a push cable to position it and a separate 512 Hz receiver form the locating chain. The transmitter must actually be in the head you deploy. For example, MiniFlex 2 19mm has a 512 Hz sonde; Drain Camera VIPER has a 512 Hz option only with its 1-inch self-levelling head. A receiver alone cannot inspect a lateral or generate a signal inside it.

Site condition	Reading to use	Field check
Asphalt over a lateral	Sonde peak from above ground	Cross the line from both directions
Plain concrete above a drain	Peak and position as the sonde is moved	Mark successive points, not a guessed continuous route
Reinforced slab or nearby metal	Comparing peak and null patterns	Repeat from another angle; investigate inconsistent marks
Deeper run	Weaker signal at the receiver	Use the sonde and receiver's working range and keep the receiver at grade

The field pattern is affected by metal, transmitter orientation and other signals, rather than by a camera's ability to see through the pavement. Rycom's SnapTRACK operating manual describes moving the receiver side to side for the peak over a sonde and using manual triangulation to check depth in congested locations. The manual's locating method is more useful than promising exact depth beneath rebar.

A pavement locating sequence

Set the receiver to 512 Hz before pushing the camera, then locate at a known position near the entry and again at the suspected defect. That first test proves the head is transmitting and the receiver is in the correct mode. Record the access point, direction of travel and footage counter reading separately from the surface marks.

1. Open the cleanout and insert a camera with a 512 Hz sonde. Watch the screen until the head reaches a recognizable junction or defect.
2. Search from above with the receiver in sonde mode. Sweep across the expected path and rotate the receiver as directed by its operating guide to distinguish peak and null positions.
3. Mark the strongest consistent location. Shift the camera head along the line and repeat to build a series of points; the sonde marks the head, not every inch of pipe between marks.
4. If rebar, an iron cover or another utility is nearby, compare the signal from several approaches. Treat a depth figure that changes sharply between passes as uncertain.
5. Record the mark, access, pushed cable length and the corresponding camera image in the job file. Follow the applicable utility-marking and excavation procedure before cutting pavement.

A 512 Hz sonde reports the transmitter location while the camera reports the visible defect. For cameras selected primarily by locating hardware, see the sewer-camera locating comparison. For a larger pipe where bend passage and footage capture dominate, see the general sewer camera guide.

Which receiver to carry

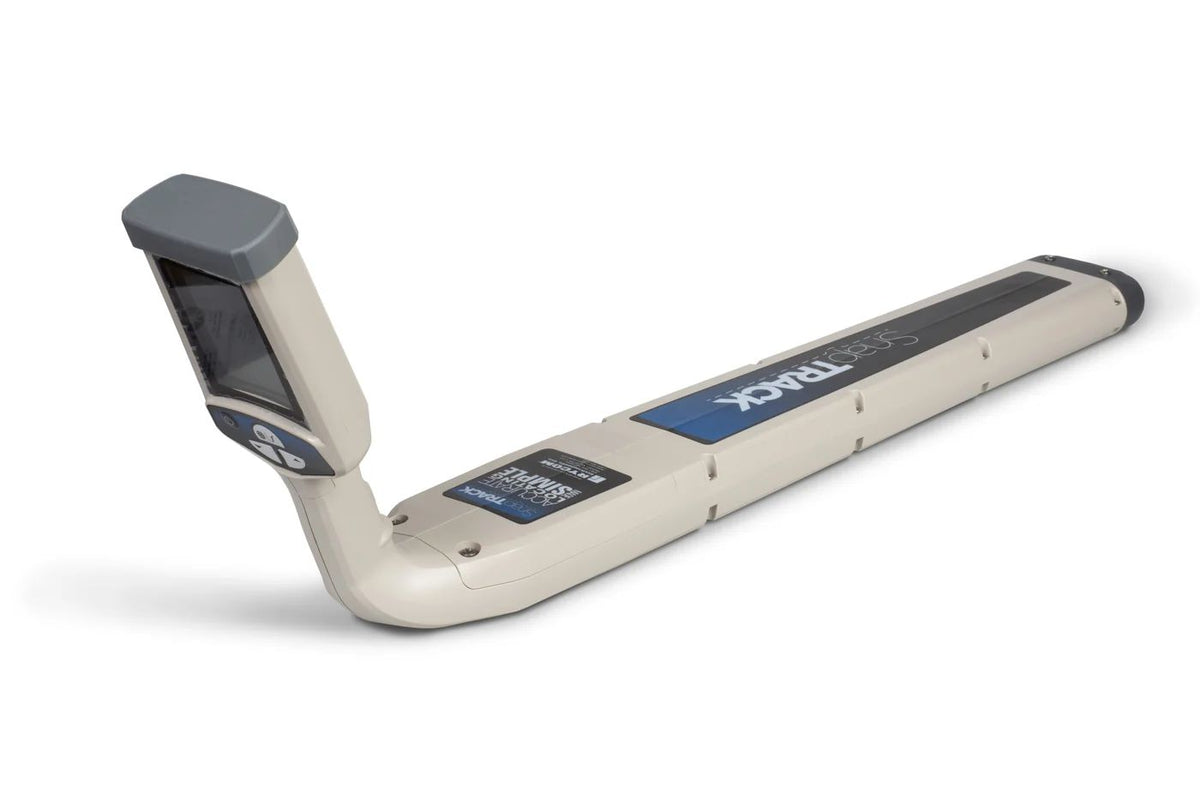

SnapTrack Sewer Camera Sonde Locator receives 512 or 640 Hz sondes and has optional 815 Hz and 33 kHz modes; it weighs 3 lb (1.4 kg). It runs on six C batteries and the product page rates it for 40 hours of continuous use. Its active and passive modes extend the tool beyond finding a camera head, but an active trace needs a separate compatible line transmitter. SnapTrack starts at $1,390; prices checked September 26.

Schonstedt 512Hz Sonde Locator (XT512) receives a 512 Hz sonde and also has passive 50/60 Hz modes. Its depth button displays a reading when positioned above the sonde; the product describes typical readings around 5–8 ft (1.5–2.4 m), depending on signal strength. It weighs 2.5 lb (1.1 kg) and starts at $1,693. Choose it when a dedicated 512 Hz receiver and passive power-line mode suit the crew. Choose SnapTrack when 640 Hz or optional modes are relevant. These receivers are locating accessories, never cameras.

A short crew job might use a camera already on the truck rather than buy a second reel. If the existing head lacks a 512 Hz sonde, selecting a receiver does not add one. The drain-camera fit guide for plumbers covers selecting the head and push cable for the pipe first.

What you'll also need

A sonde-equipped camera and a compatible receiver are separate pieces of the kit. Bring the camera's battery, the receiver's batteries, marking supplies and a way to pair footage-counter notes with photos. Rebar, buried iron and surface vehicles can alter a reading; Subsite's discussion of field interference explains why a frequency that works in one part of a site can become harder to interpret elsewhere. If the route is under a driveway, record successive marks before deciding where to excavate.

FAQ
