An advanced Image PRO USB 3.0 arrives to replace the older ImagePRO Camera.

What's included in the set

• ImagePRO USB 3.0 Camera
• Focal Coupler of Choice

Offered Benefits of Image PRO USB 3.0

• Transforms Your Optical Borescope into a Video Borescope
• Enables Picture and Video Capture
• Facilitates Multi Team Consultations
• Quality Images
• One Button Auto-White Balance

The Image PRO USB 3.0 Camera is completely portable and ready to use, with only one USB cable to connect it to a computer. These units feature a 1080p HD resolution chip and a 1.9 M(6.2ft) flexible cable.

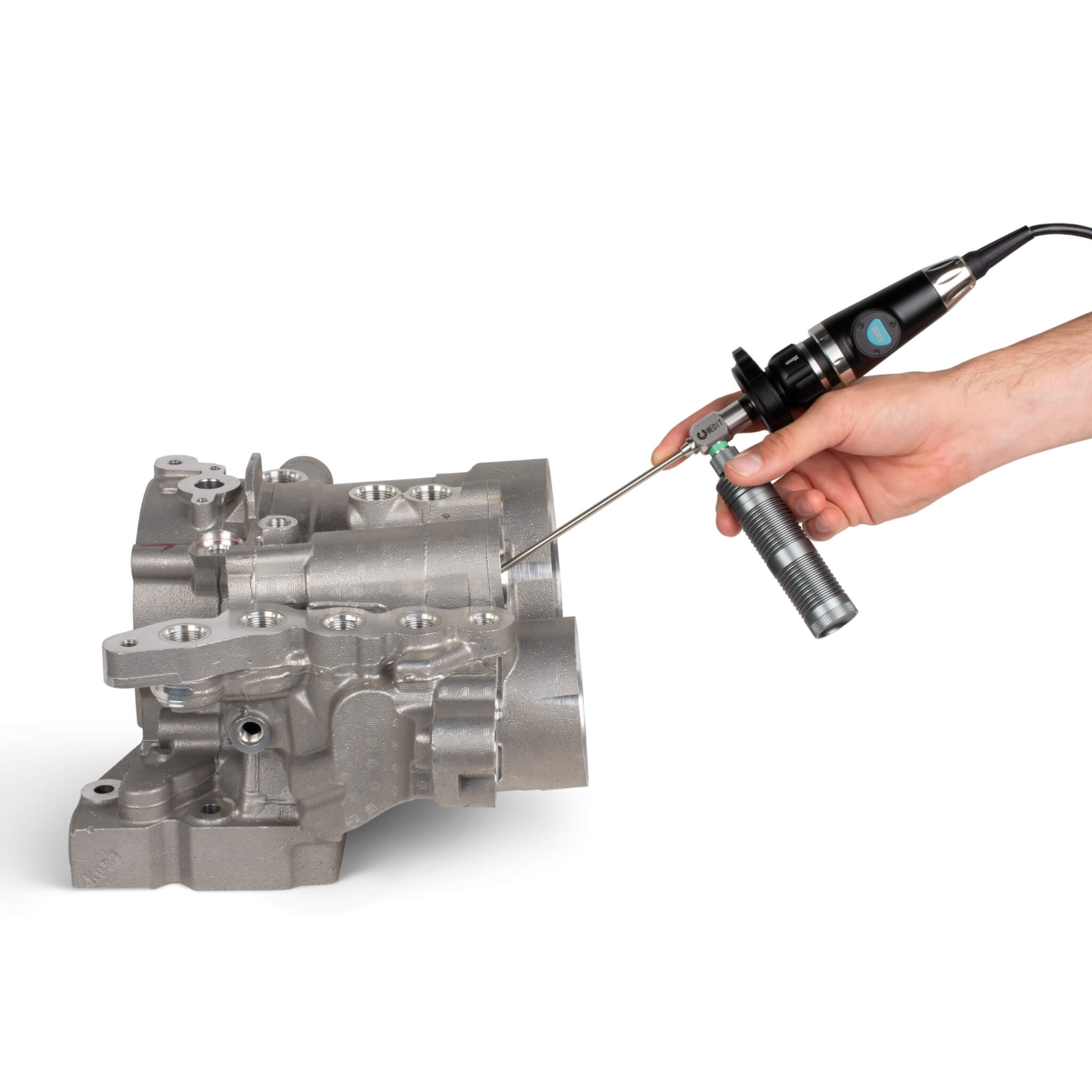

This compact addition to the borescope of choice allows you to visualize the image on the monitor for right-on-spot assessment or capture. Instead of you looking down into the eyepiece of the borescope, the Image PRO USB 3.0 clips directly onto it and transfers the image right onto the screen.

ImagePRO USB 3.0 facilitates a multi-team consultation during inspections and is a great addition for engineers and inspection stations. During use, the white balance can be changed using the auto-white balancing function on the camera body. While the camera is HD chip quality, the output quality of the picture relies on the diameter and type of the scope used. Check out the captures above to see the final output resolution.

Image PRO USB 3.0 camera connects to the scope with an optical coupler that is used to focus in or out during the inspections. When ordering, choose the correct size of the coupler for the diameter of the borescope. If you are unsure which one to choose, get in touch with us or see the footage captured and see the explanation below.

Benefits of Image PRO USB 3.0

• Enables Picture and Video Capture
• Facilitates Multi Team Consultations
• Quality Images
• One Button Auto-White Balance

Requirements for Image PRO USB 3.0

• Fiberscope/Borescope diameter larger than 1mm
• USB 3 Computer Port
• CPU: at least i7 Level
• RAM: at least 8GB
• GPU: no special requirements
• Operating System: Windows 10 and above
• Viewing Software: Optional, runs on camera app
• 32mm Circular Borescope Eyepeice

While the camera is HD chip quality, the final picture's output quality relies on the diameter and type of the scope used. Check out the captures above to see the final output resolution, or contact us to get a capture made for you.

Available Couplers:

The Universal Clip-on Coupler connects to any 32mm borescope or fiberscope eyepiece. Focal ranges available: 14mm, 18mm, 28mm, and 35mm. The large the focal length the more distortion is on the sides of the image.

Recommended Coupler Sizes to Diameters for ImagePRO USB Camera

4mm diameter - 18mm coupler

2.7mm diameter - 28mm coupler

1.9mm diameter - 28mm/35mm coupler

The Olympus Coupler connects to the Olumpys screw-on style fiberscope eyepiece. Focal ranges available: 22mm.

If you are not sure what type and kind of coupler is needed for your application, feel free to get in touch for assistance.

What's included in the set? borescope camera of choice and an optical coupler(no light sources or optical borescopes)
