Gear up your inspection station with a high-speed ImagePRO HDMI Camera that turns your optical borescope or fiberscope into a video camera in a matter of seconds and displays the footage in high resolution on a large TV screen.

What's included in the set

• ImagePRO HDMI Camera
• Focal Coupler of Choice

Benefits of Image PRO HDMI Camera

• Transforms Your Optical Borescope into a Video Borescope
• Real-Time High-Speed Footage
• High Definition Resolution

• HDMI Connection to TV Monitor

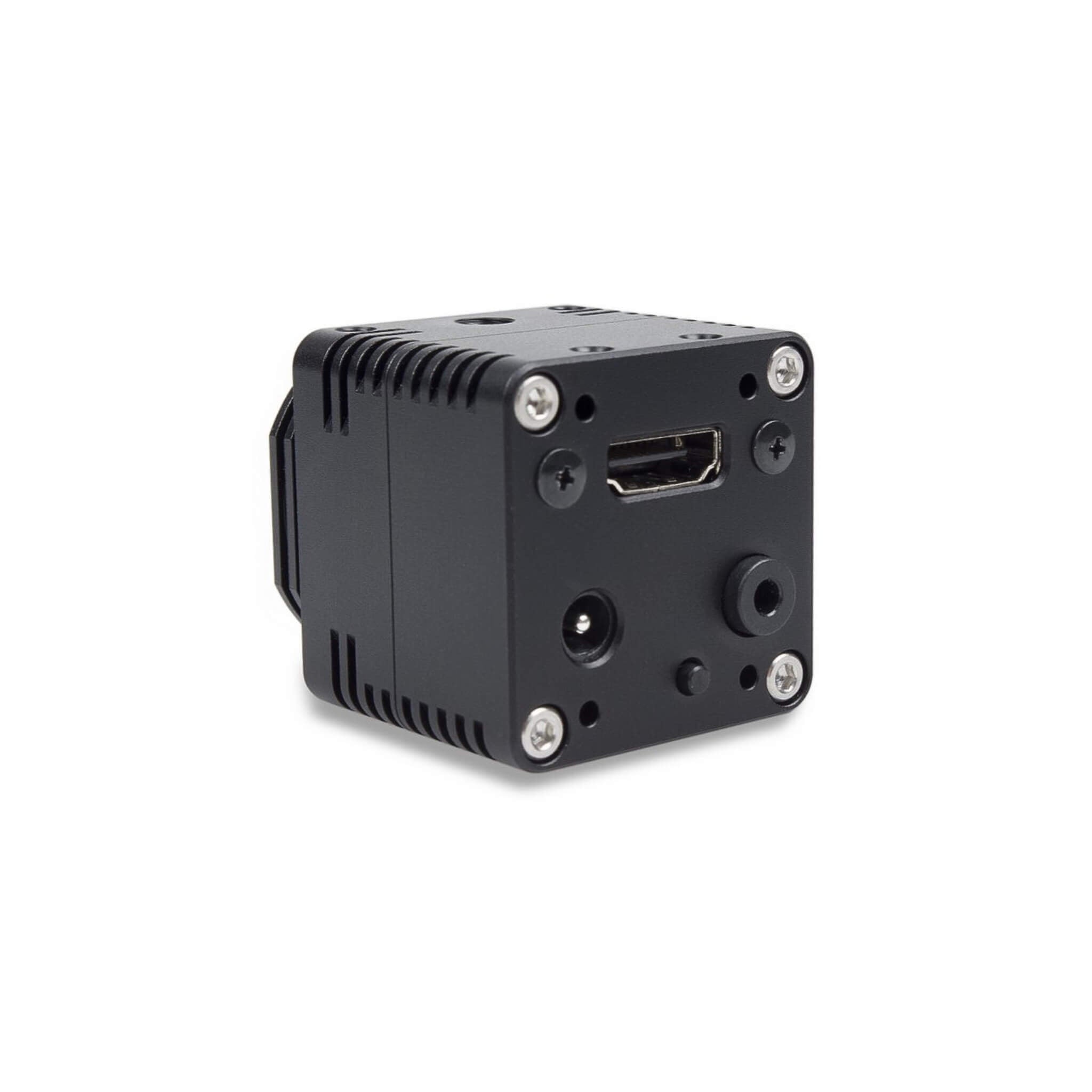

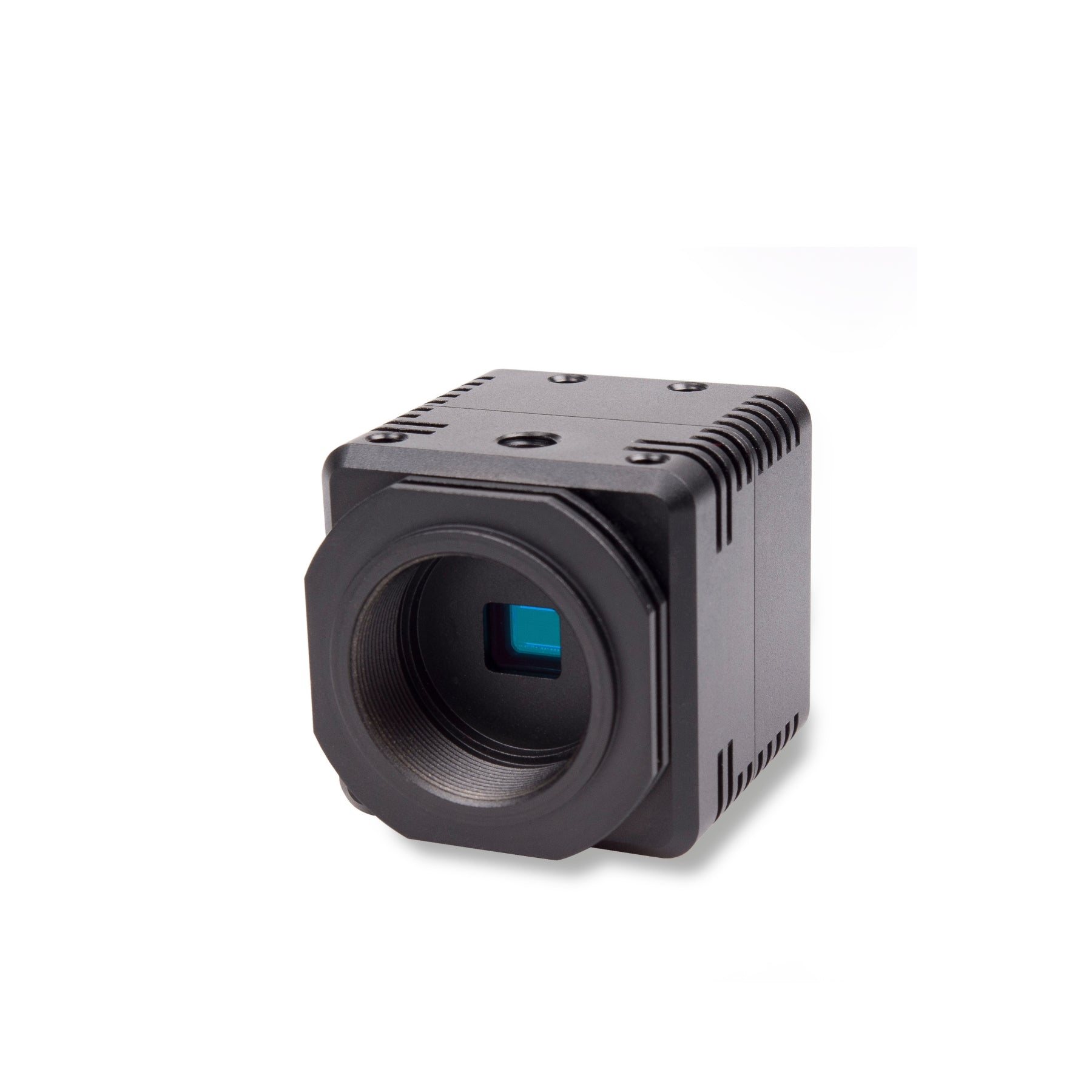

The ImagePRO HDMI Camera offers a quick way to deliver inspection footage from the borescope or fiberscope to a large TV screen through the HDMI connection. The ImagePRO HDMI Borescope Camera does not allow picture capture but offers high-resolution quality at a high-speed frame rate that allows the fine detection of defects in realtime.

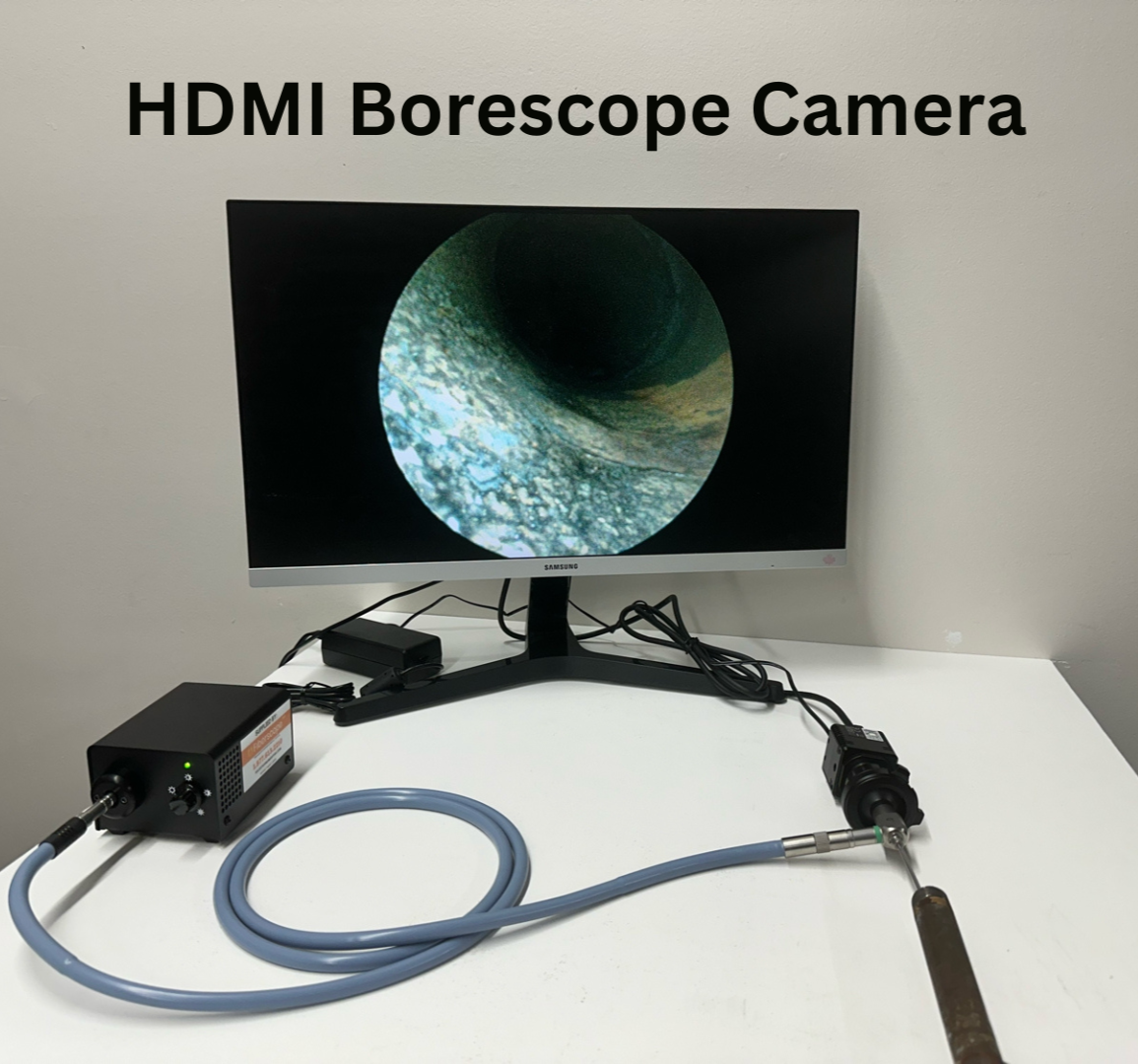

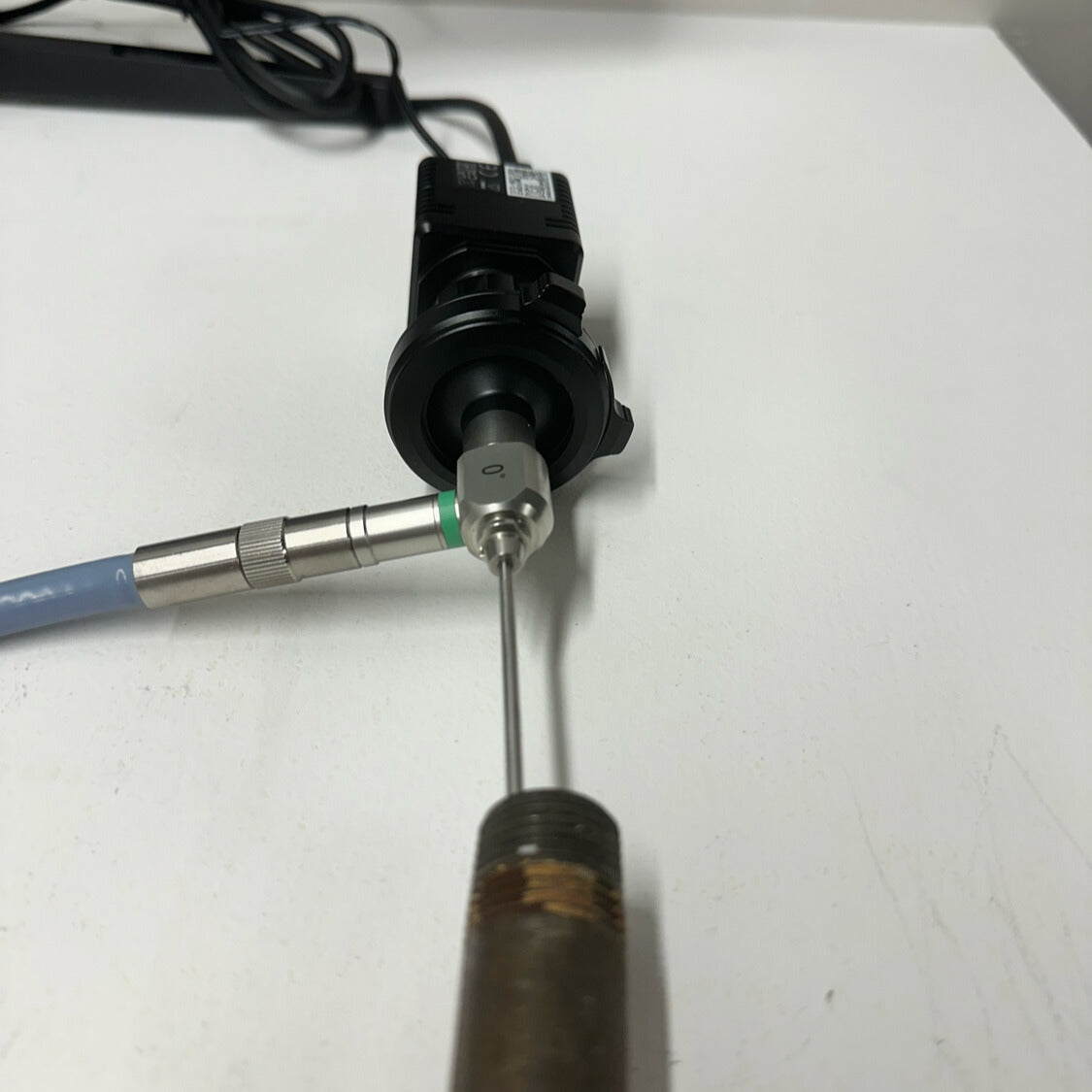

The camera connects to an optical coupler of choice, which is connected to a borescope or fiberscope eyepiece of 32mm circular diameter. Via the HDMI, the footage is fed on a TV screen where it can be seen and examined. For a camera that allows picture capture, please see the ImagePRO USB Camera.

While the chip is HD the end footage resolution is dependent on the diameter of the borescope or fiberscope so please refer to the pictures above or contact us to get some captures made with a HDMI Camera.

Learn more at our catalog page.

Available Couplers:

The Universal Clip-on Coupler connects to any 32mm borescope or fiberscope eyepiece. Focal ranges available: 14mm, 18mm, 28mm, and 35mm.

The Olympus Coupler connects to the Olumpys screw-on style fiberscope eyepiece. Focal ranges available: 22mm.

If you are not sure what type and kind of coupler is needed for your application, feel free to get in touch for assistance.

What's included in the set? borescope camera of choice and an optical coupler(no light sources, HDMI cable or optical borescopes)
