Upgrade your vet office with our ImagePRO USB 3.0 Endoscopy Camera: Transform your optical endoscope into a video endoscope that gives you the benefit of real-time visualization on a large screen for image assessment and capture. The recorded footage can be used for later review and can help convert difficult clients into satisfied ones by providing clear, on-site evidence of your work with their pets.

Benefits of Endoscopy Camera Image PRO USB 3.0

• Enables Picture and Video Capture
• Facilitates Multi Team Consultations
• Quality Images
• One Button Auto-White Balance

What's included

• Endoscopy Camera ImagePRO
• Focal Coupler

The endoscopy camera ImagePRO is here to offer its high-definition image capture, universal endoscope connection, and straight forward system. This camera system comes as a ready-to-use set consisting of the camera head and the 1.9M(6.2ft) straight cable with a USB connection.

This camera system gives you the comfort of seeing the images on a large screen instead of looking down into the eyepiece of the endoscope. During the examination, the pictures and videos of the assessment site can be captured right onto the computer for late assessment or sending to a customer. For complex situations, this camera comes in handy for facilitating multi-team consultation on a large computer screen.

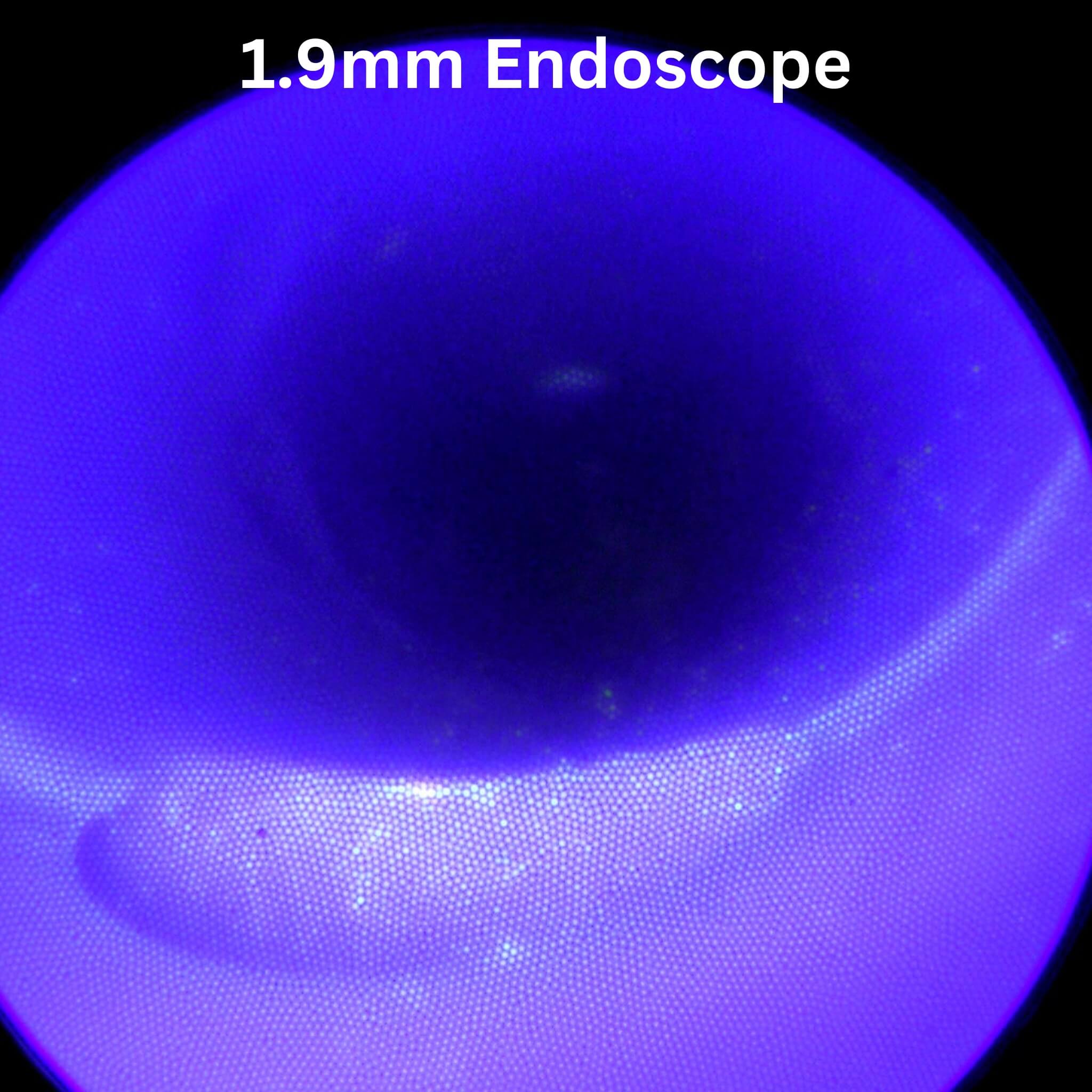

The ImagePRO USB 3.0 Endoscopy Camera is equipped with an auto-white balance setting button right on top of the handle and can be used if necessary. While the chip resolution is HD quality, the end resolution would depend on the size of the endoscope. Please see the image quality shown in the captures above.

To operate the Endoscope Camera ImagePRO USB 3.0, you would need a computer with a USB port and an endoscope camera with a 32mm circular eyepiece. No special software or drivers are needed to operate, only the regular camera app.

Operation Requirements

• Fiberscope/Endoscope diameter larger than 1mm
• USB 3 Computer Port
• CPU: at least i7 Level
• RAM: at least 8GB
• GPU: no special requirements
• Viewing Software: Optional, runs on camera app
• Operating System: Windows 10 and above
• 32mm Circular Endoscope Eyepiece

Available Couplers:

The Universal Clip-on Coupler connects to any 32mm circular endoscope eyepiece. Focal ranges available: 14mm, 18mm, 28mm, and 35mm. The larger the focal length, the more distortion on the sides of the image.

Recommended Coupler Sizes to Diameters

4mm diameter - 18mm/22mm coupler

2.7mm diameter - 22mm/28mm coupler

1.9mm diameter - 28mm/35mm coupler

The Olympus coupler is available for screw-on Olympus fiberscope connections. Size: 22mm

Feel free to reach out to us if you are not sure about the size of coupler required for you.
