Universal Borescope Video Coupler
Description

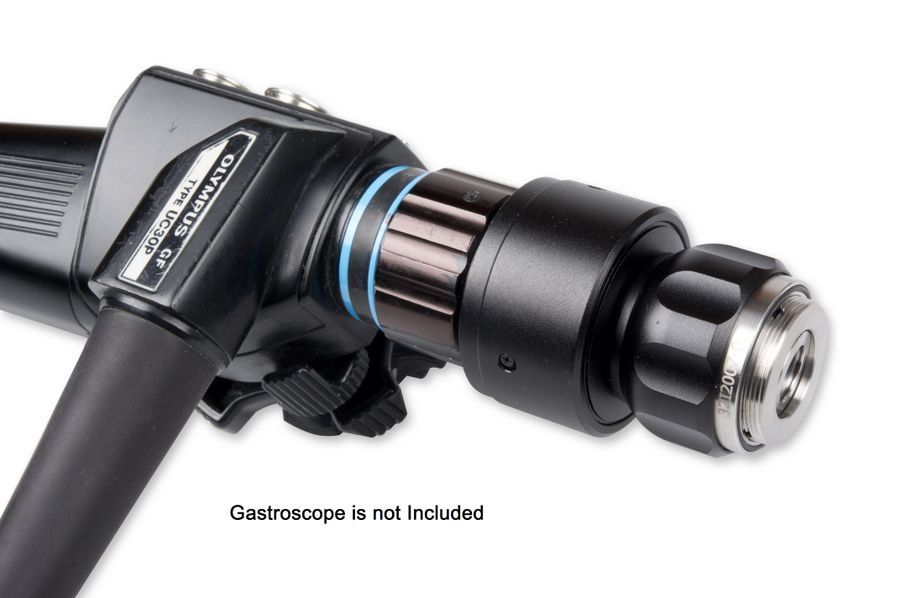

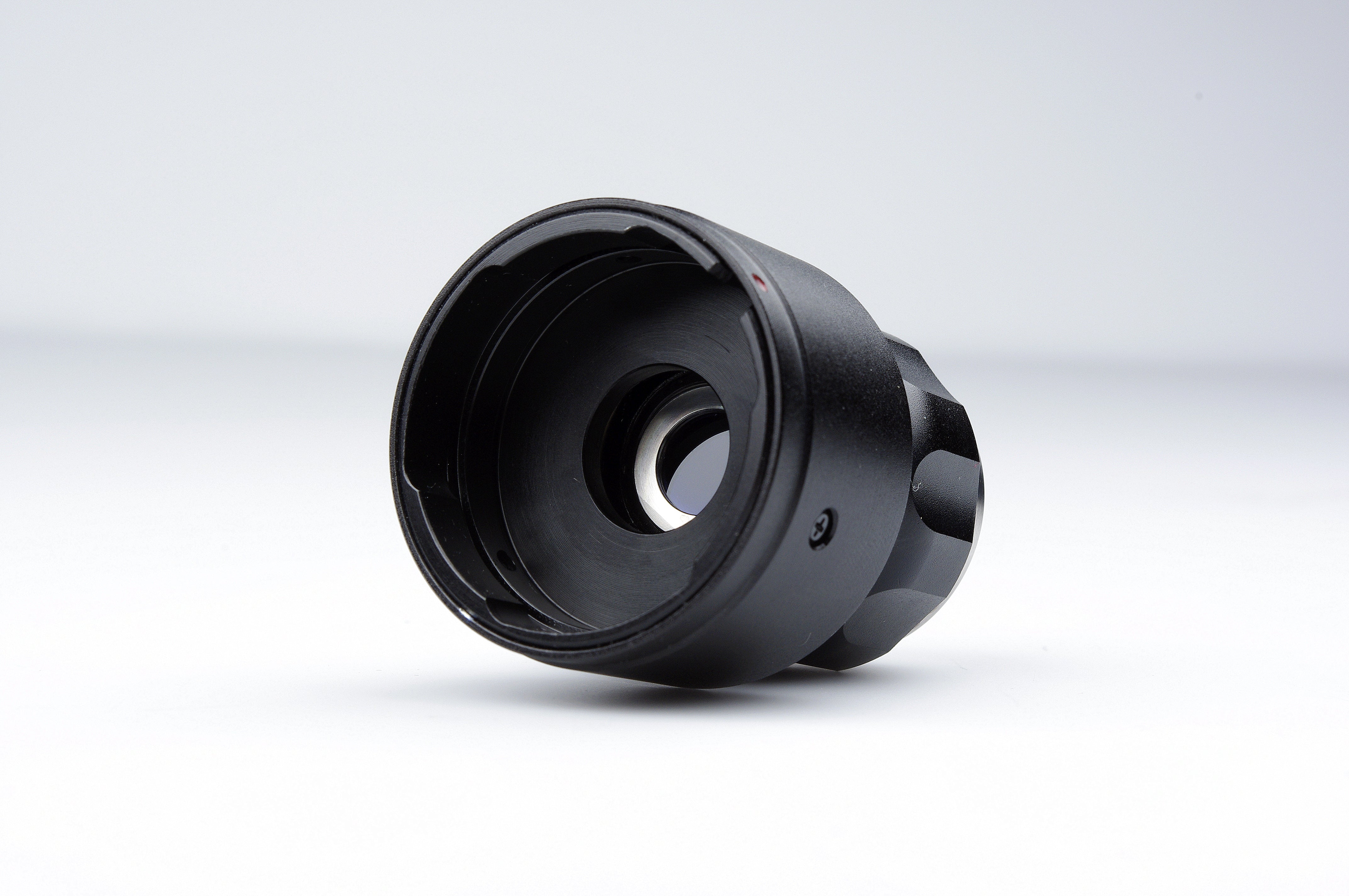

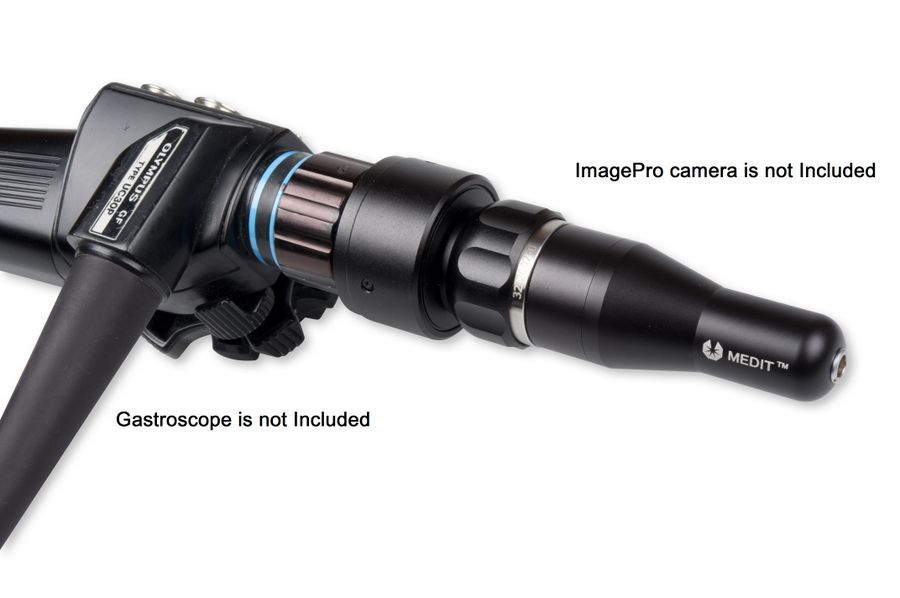

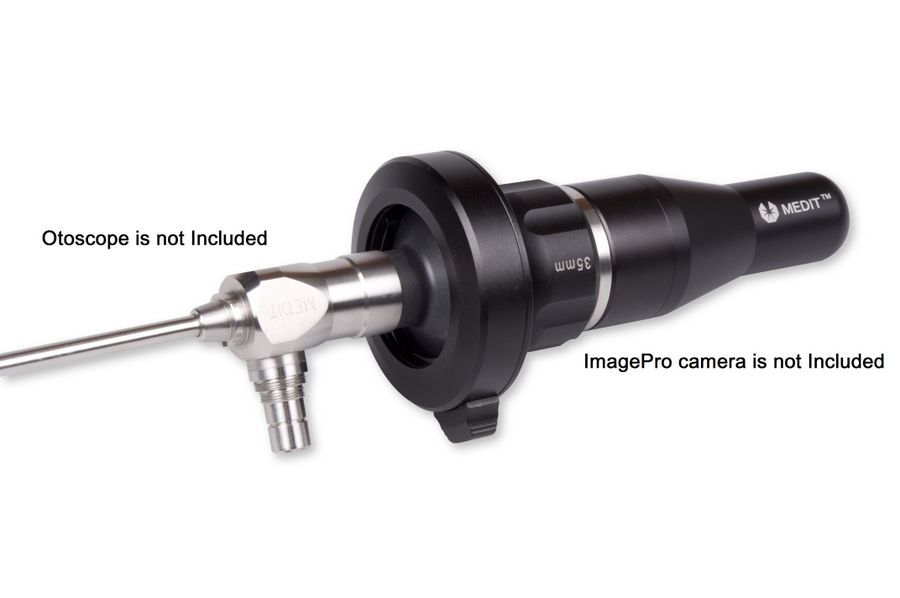

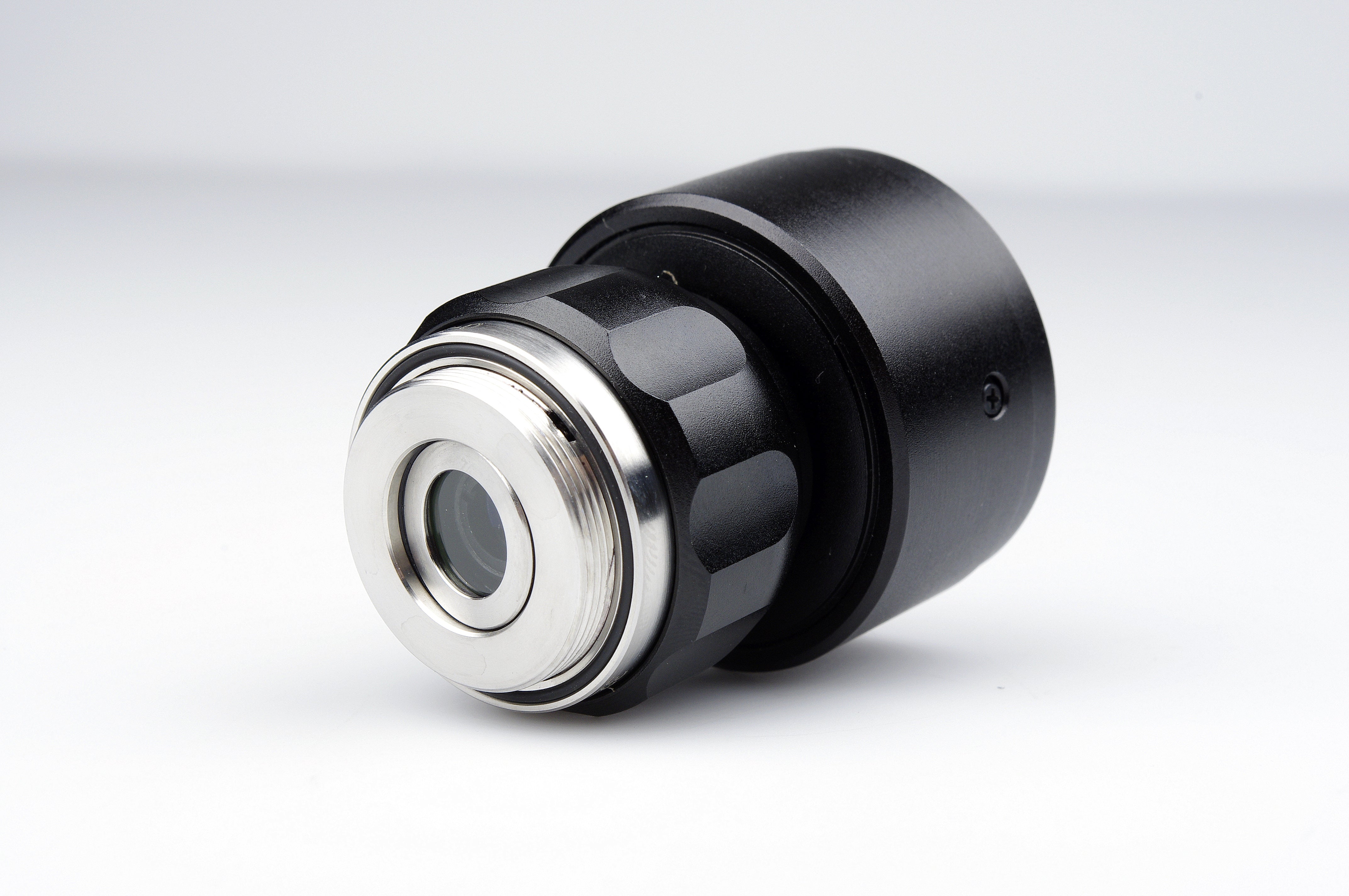

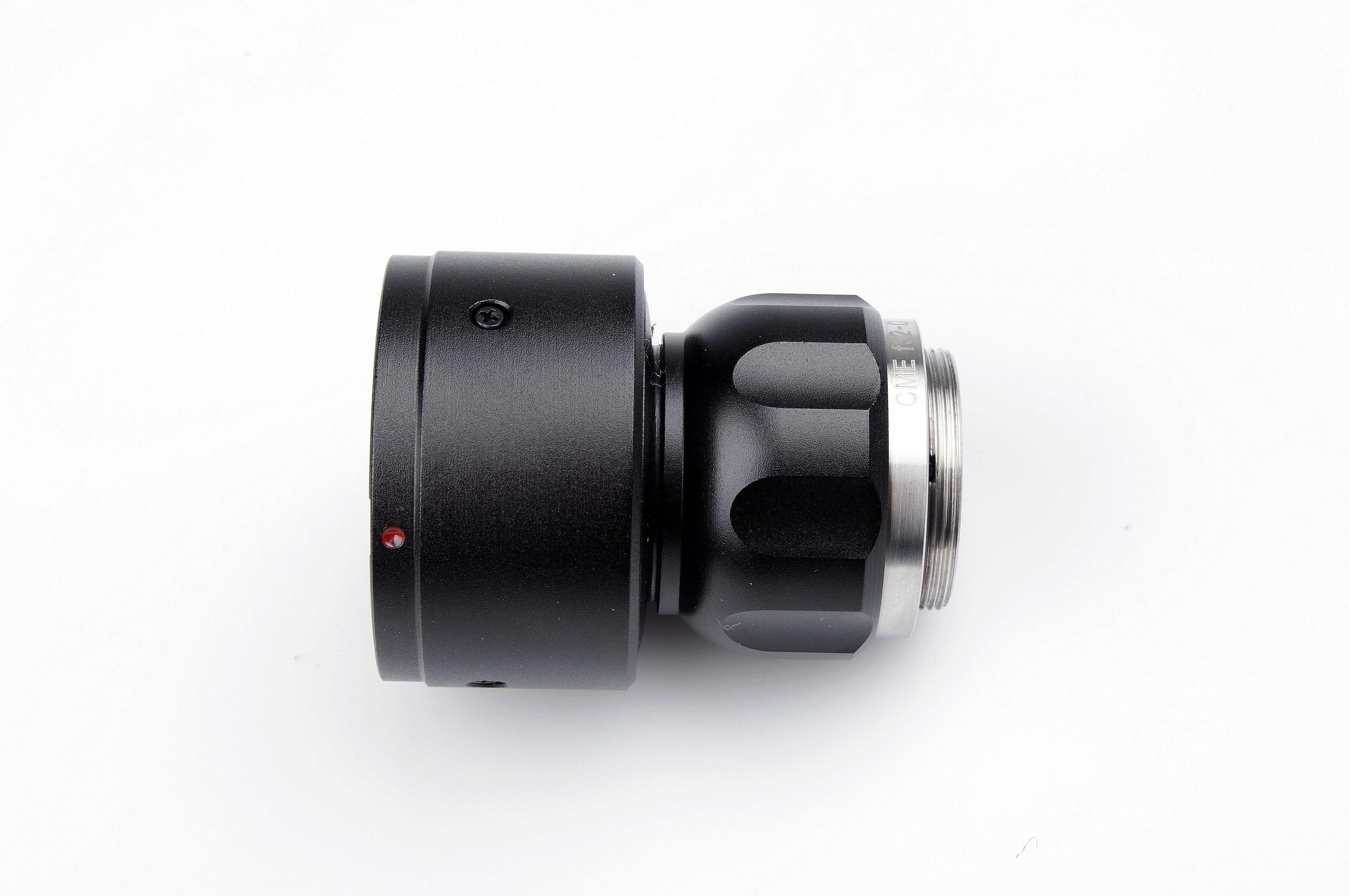

Universal Borescope C-Mount Coupler acts as a connection between the borescope eyepiece and the camera body. Two types of C-mount Couplers are available: the Olympus Coupler that connects to a screw-on Olympus eyepiece and the regular clip-on Universal Coupler that snaps onto any of the 32mm borescope eyepieces. Both couplers have a C-mount thread on one end and an eyepiece attachment on the other. These optical adaptors feature integrated focusable rings that allow the operator to focus on a specific area and have a clear and crisp image. Different focus ranges are available: 22mm and 27mm for the Olympus Coupler and 14mm, 18mm, 28mm, and 35mm for the Universal Coupler. The main difference between them is that the 35mm coupler significantly expands the image on the screen, making the center of the image bigger but distorting the edges. The 14mm coupler makes the image significantly smaller and eliminates the distortion. For most applications, we recommend a 28mm coupler, which balances the distortion and the size of the image. If you have any concerns, feel free to get in touch with us, and we will be glad to assist you.
Specifications
- Connects to Most of the Rigid Borescopes and Fiberscopes
- Male C-mount Threaded End
- Female Olympus and Snap-on Universal
- Integrated Focus on the Coupler
- 14mm, 18mm, 28mm, and 35mm focus ranges
- Multi-Lens Coated Optics
Which Camera Accessory is Right for Me?
Use in pair with a computer for viewing the inspection
Use in pair with a mobile device for viewing the inspection
Self-contained unit with display, light source and camera head
Displays the image on a display via USB 3.0 connection
Displays the image on a display via Wifi connection
Displays the image on the display via cord connection
For 32 mm round eyepieces
For 32 mm round eyepieces
For 32 mm round eyepieces
Full HD
800 Horizontal TVL
Full HD
High quality image, compact unit, connects directly to the computer
High quality image, portable battery-powered configuration
High quality image, self-contained unit with light source and display monitor
Use with borescopes, endoscopes, and fiberscopes from 0.37mm diameter
Use with borescopes, endoscopes, fiberscopes from 1mm diameter
ACMI, STORZ, WOLF
ACMI
Adjustable
Adjustable
AC power
Battery powered
Connects via a flexible light guiding cable
Direct screw-one connection
