Use our inspection solution for inspecting boreholes as deep as 1,640ft in length with our Borehole Inspection Camera STRAHL HDL.

Key Points:

• Cable length up to 500M (1,640ft)
• Dual-view camera head
• Motorized winch system
• Display box with recording and text overlay

Our borehole inspection camera, STRAHL HDL, offers you the ability to conduct visual assessments of bores, vertical shafts, wells, and other structures that are vertically positioned. The reinforced cable is spooled onto a motorized winch of the unit and has a length of 300M (984ft) or 500M (1,640ft). Using a waterproof screw-on connection, the dual-view camera head is connected to the end of the probe and is remotely operated and controlled using the integrated controls on the display monitor. The display monitor features a 13" screen, text keyboard, audio, video and photo recording, and winch control.

Specifications

Cable and Winch

• Reinforced cable of 300m/500m length
• Winch type: motorized
• Power supply: AC110V-AC230
• Meter counter: Yes

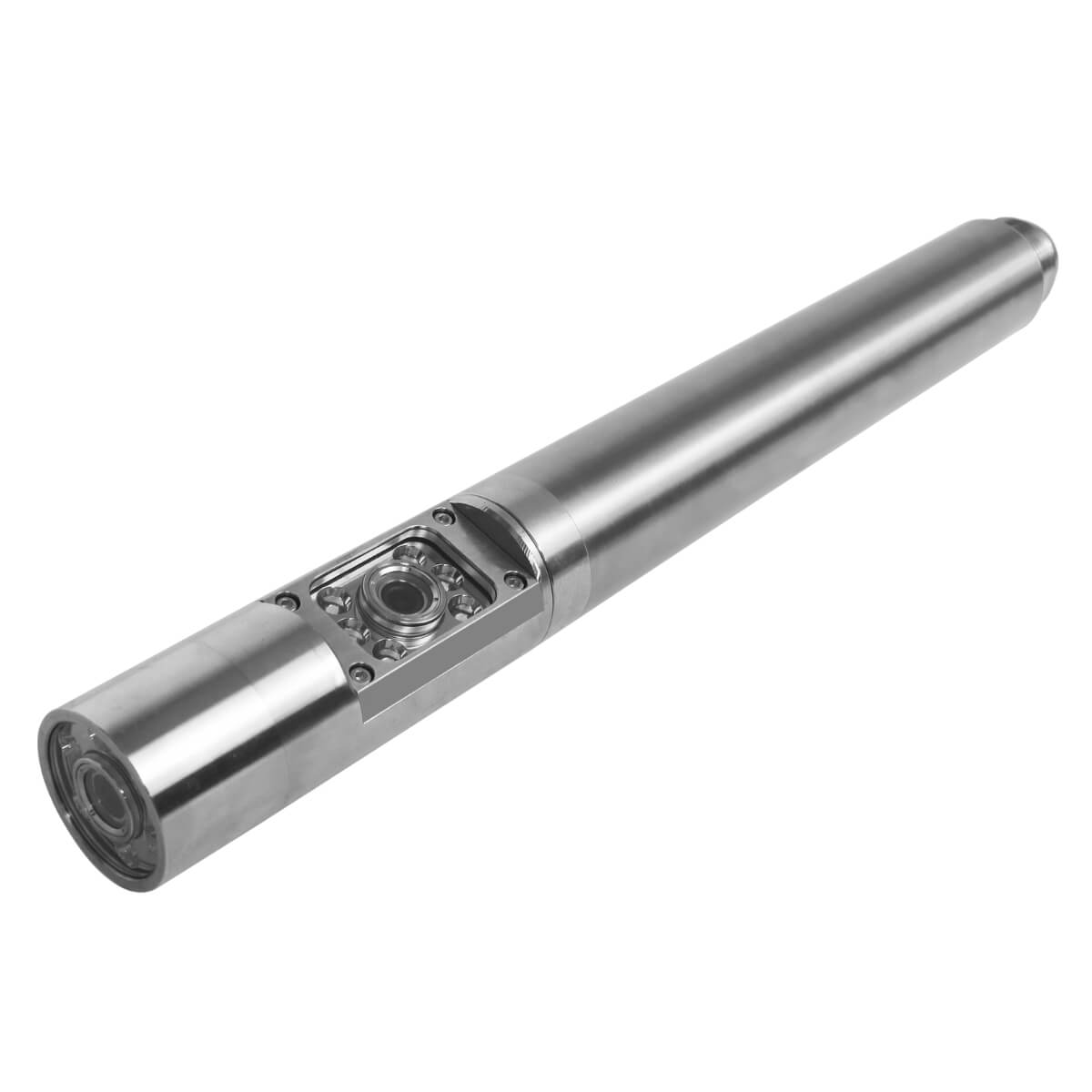

Camera Head

• 1.77" camera head
• Cameras: 1) straight-view 2) side view with rotation ability
• Waterproof level: IP68, 50 bars
• View angle: 120 degrees
• 12pcs white LED illumination chips

• Temperature sensor
• Manual focus for side view camera

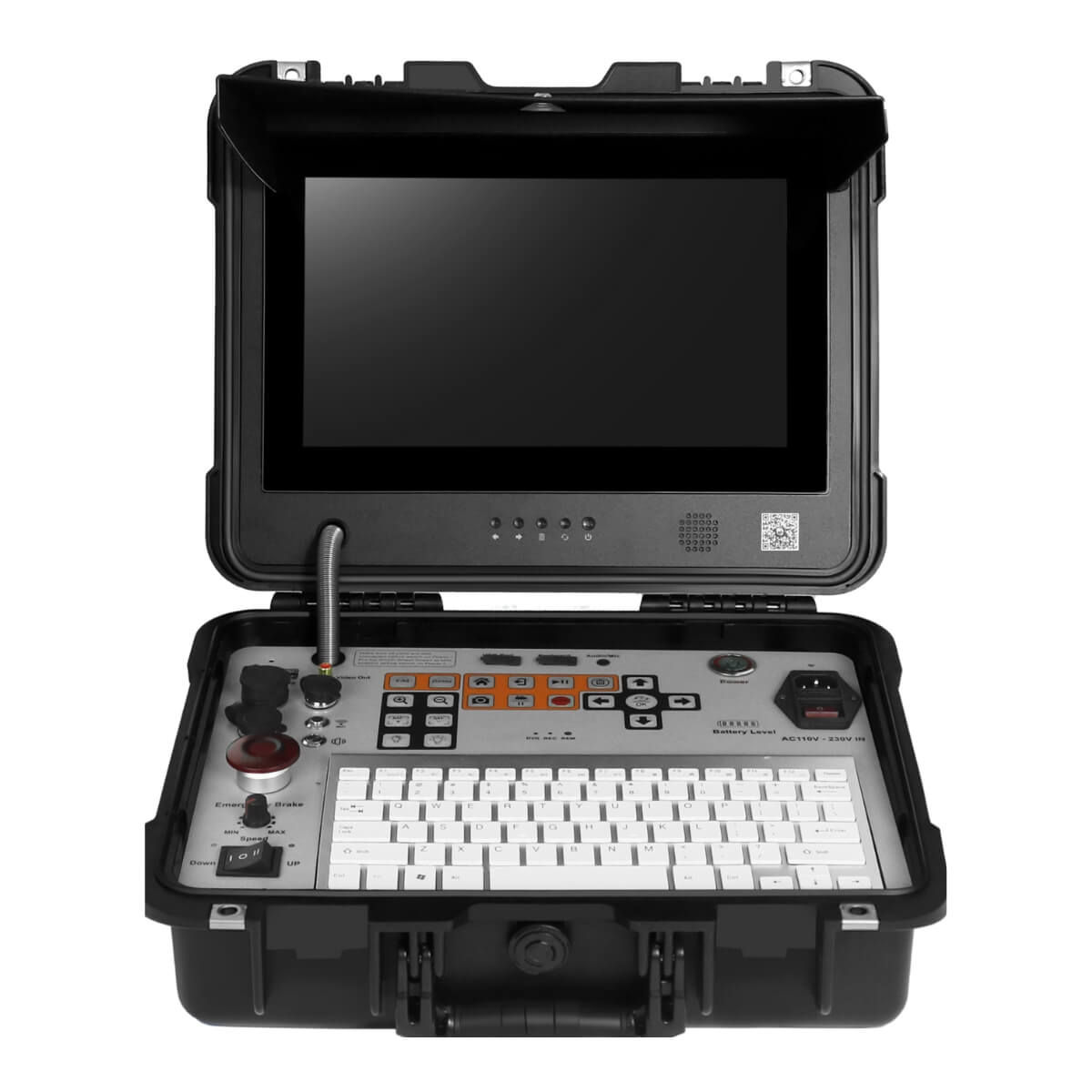

Monitor Display

• 13" display screen
• Audio/video/photo recording
• Integrated memory: 128GB
• Camera control functions

• Camera temperature reading
• Camera direction reading
• Camera depth reading

What's Included

Camera base with winch, camera head, display monitor, accessories

Find out more about the camera system in our catalog.

Please get in touch with our team before ordering - we will assist you during the process of ordering.
