Our ANACONDA Chimney Inspection Camera is a portable drop inspection system for assessing dry boreholes, shafts, and chimneys for major defects, cracks, and blockages, as well as inspecting dry vertical shafts for cleanliness. Learn more at our catalog website.

Key Features of the ANACONDA Chimney Camera

• High Image Quality
• Pan and Tilt Camera Head
• 360ft of Flexible Cable

• Inspect diameters from 2" to 30"

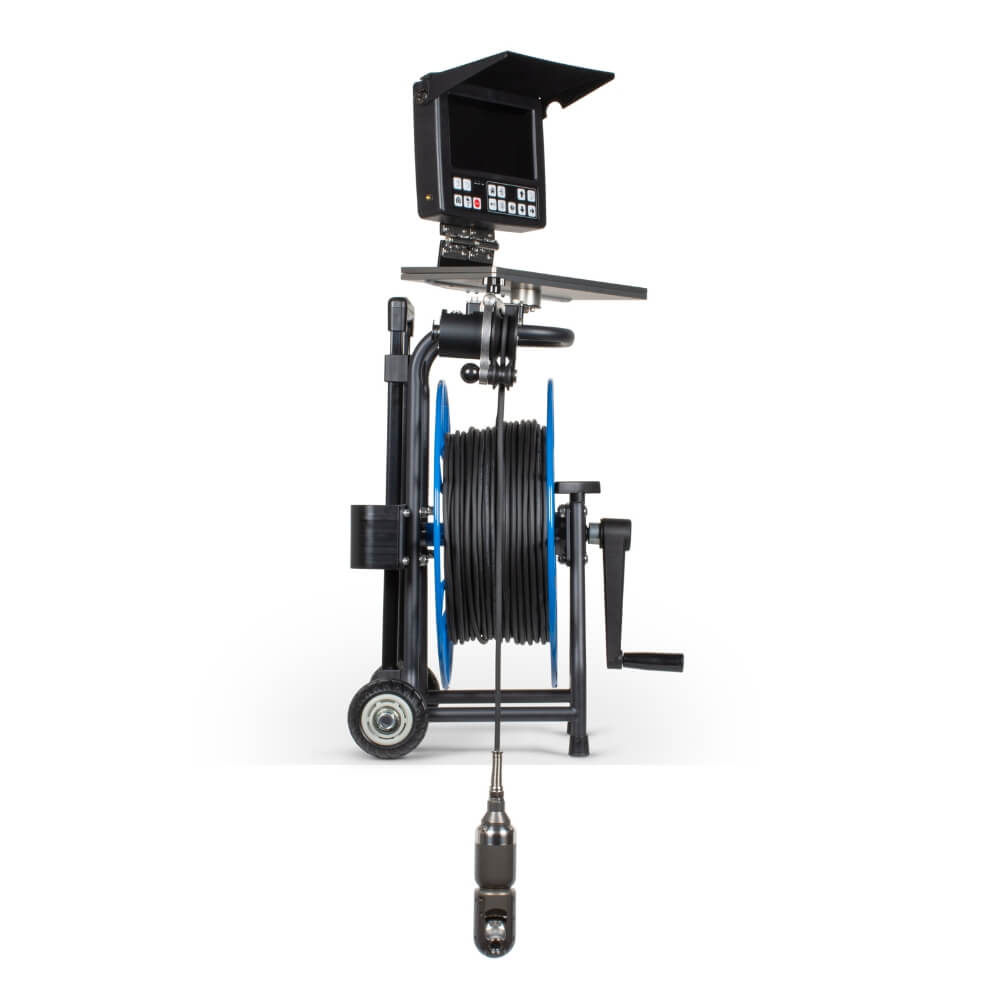

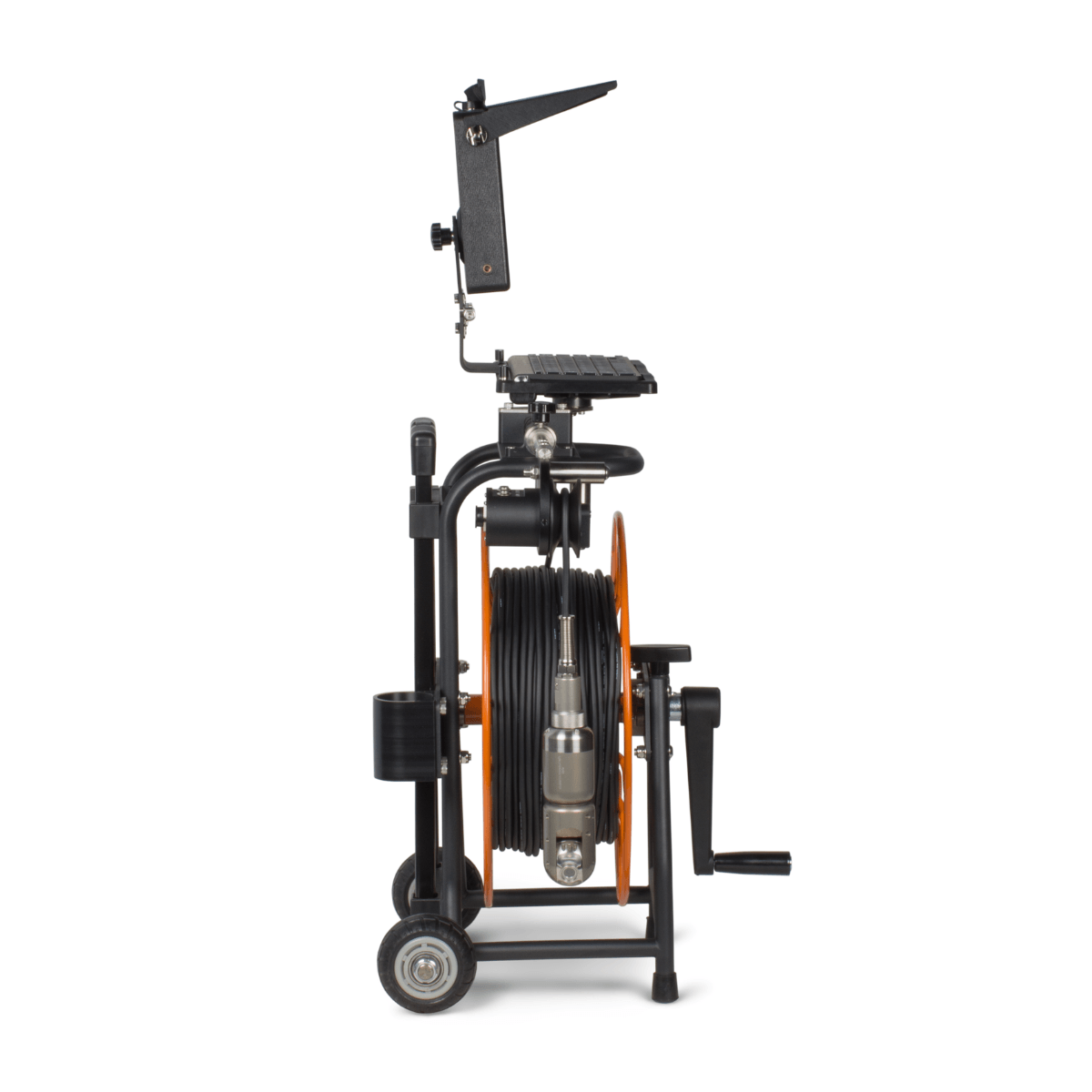

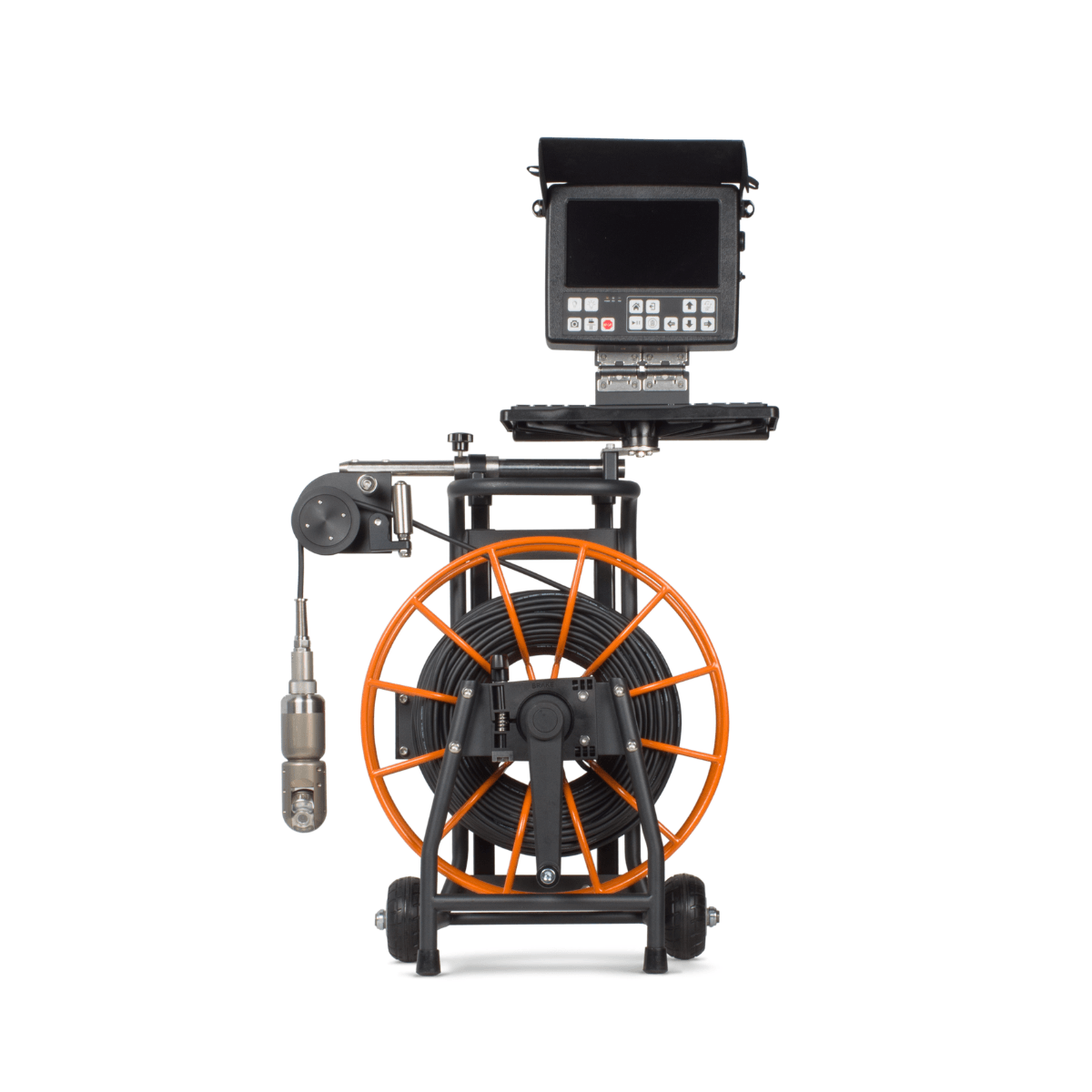

The ANACONDA Chimney Camera consists of a pan and tilt camera head, cable reel with flexible cable, and monitor with a battery pack.

The Pan and Tilt Camera head offers an integrated camera chip with 1024x768 resolution and a rotating ability, which allows the operator to turn to a desired object during the inspection and see it in high quality. The cable reel is powder-coated and houses a flexible cable length of 360ft(110M).

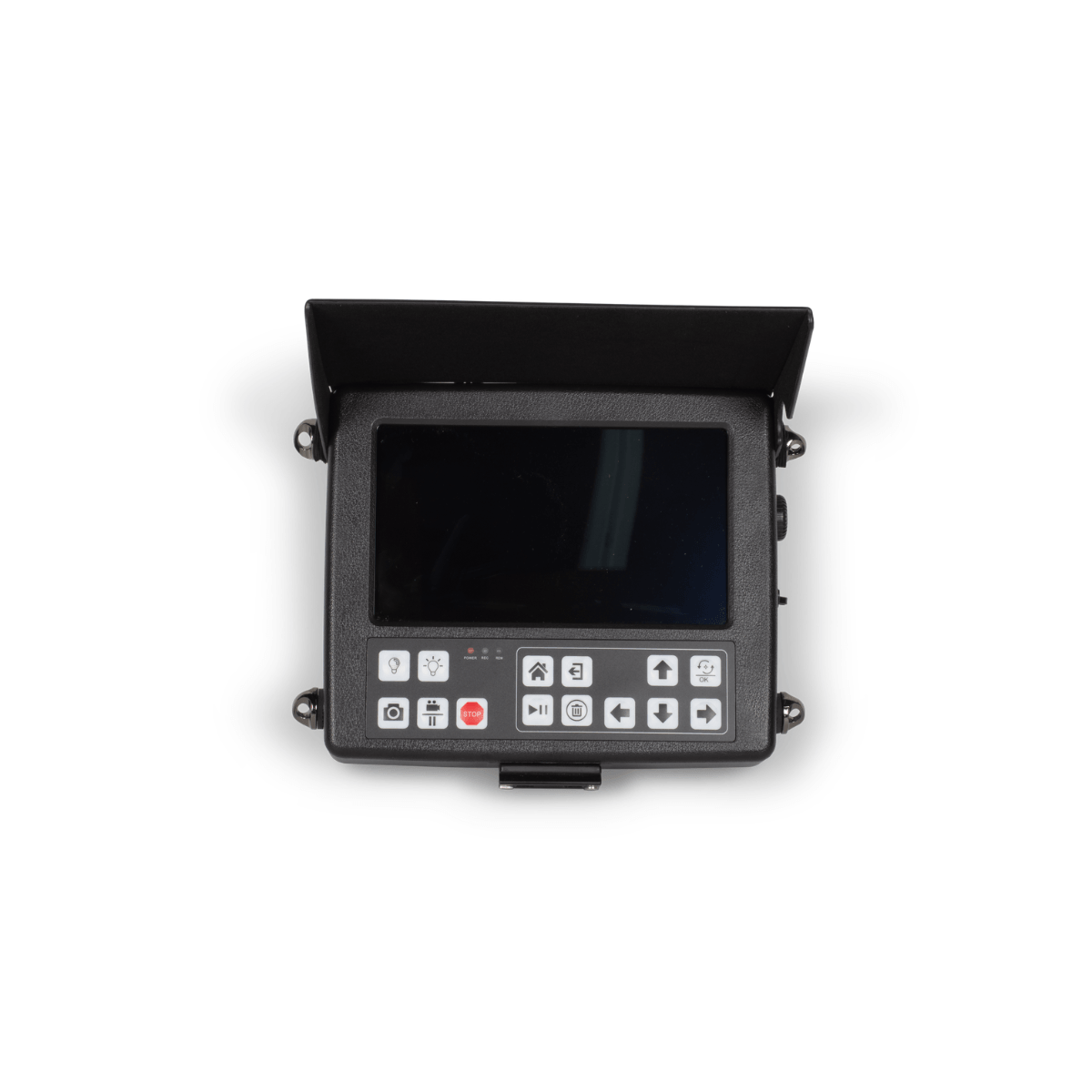

The ANACONDA Chimney Camera is powered by a battery-operated monitor module that integrates the controls, screen and functions into one pack. With the help of a wireless keyboard and audio input, the footage can be recorded with a text overlay and audio track, which will increase the value of the inspection footage and provide valuable information during replay.

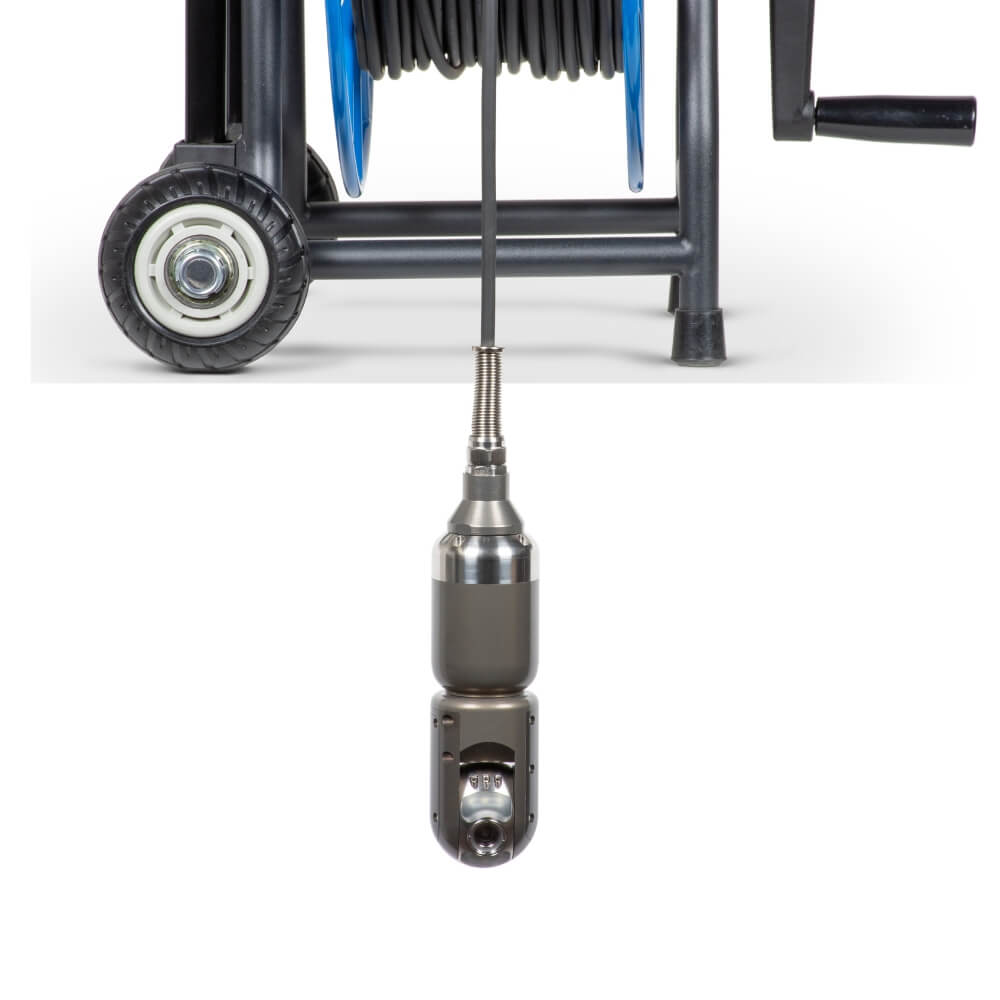

Pan and Tilt Camera Head:

• Camera Head Diameter: 50mm (2")
• Camera Head Length: 154mm (6")
• Rotation: Pan: 360°, Tilt: 160°
• Image sensor: 1/3" CMOS HD, 1.3Mp
• Camera head Housing: Stainless steel
• Illumination: White LEDs
• Brightness of the LEDs: Adjustable
• 512Hz Built-in sonde

• For Pipe from 3" to 24"
• Waterproof: No, to be used in dry bores only

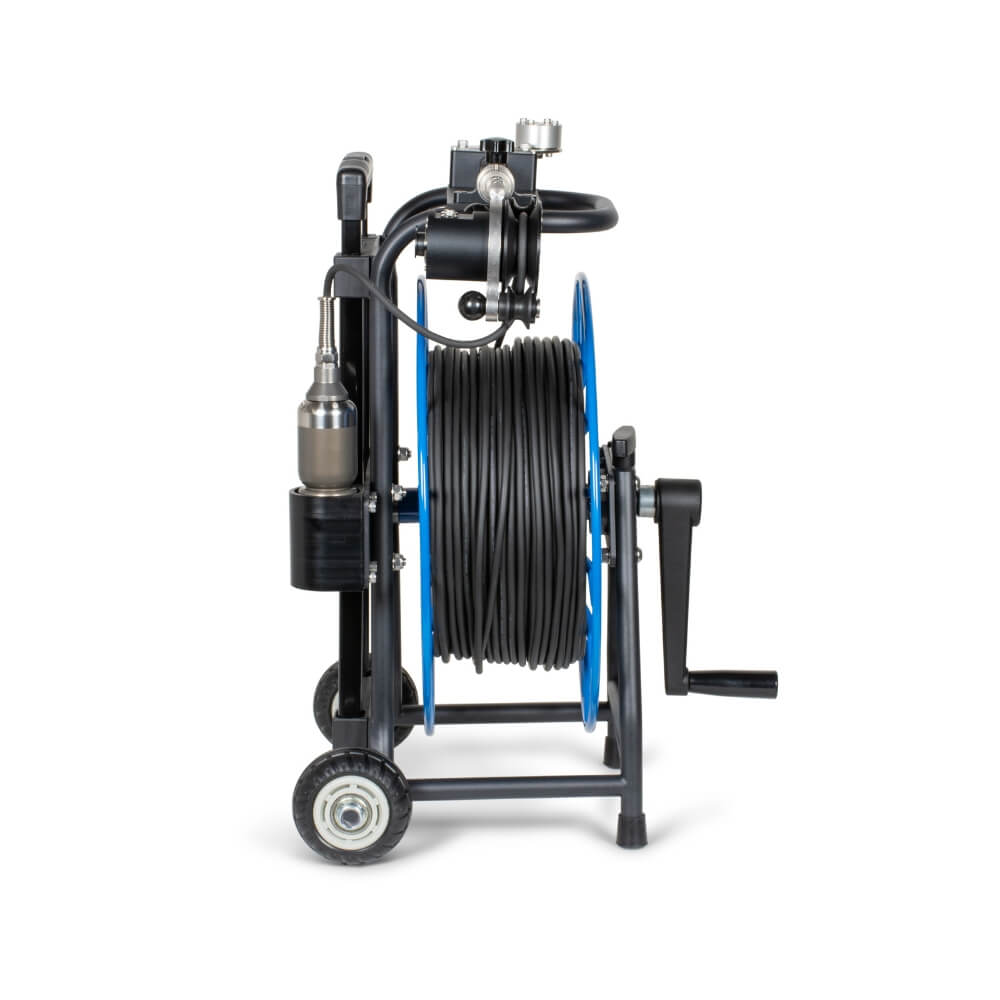

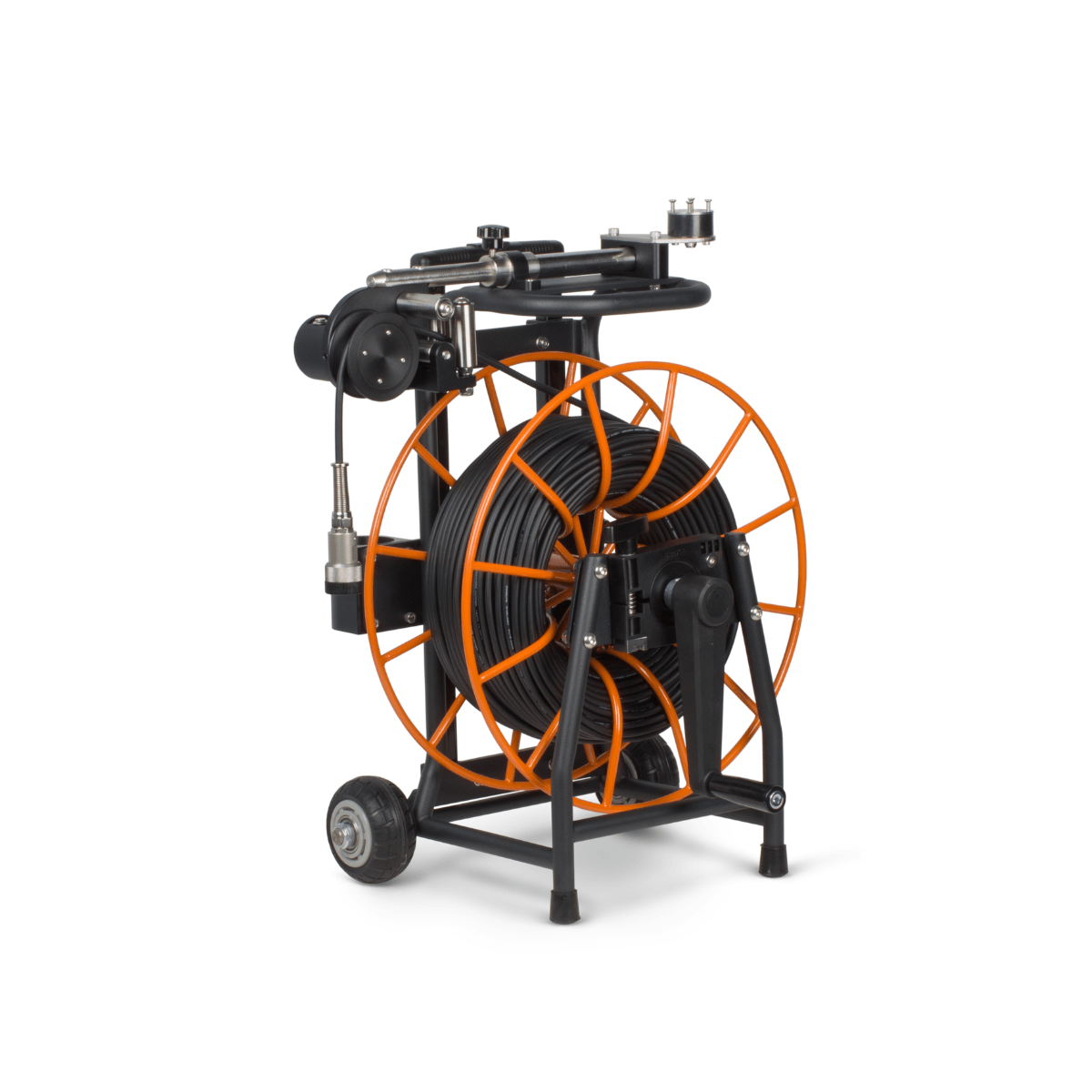

Downhole Reel:

• Working Length up to 360 ft.

• Compatible with Both ANACONDA Cameras
• Built-in Footage Counter
• Reinforced Flexible Cable, Ø 6.5mm
