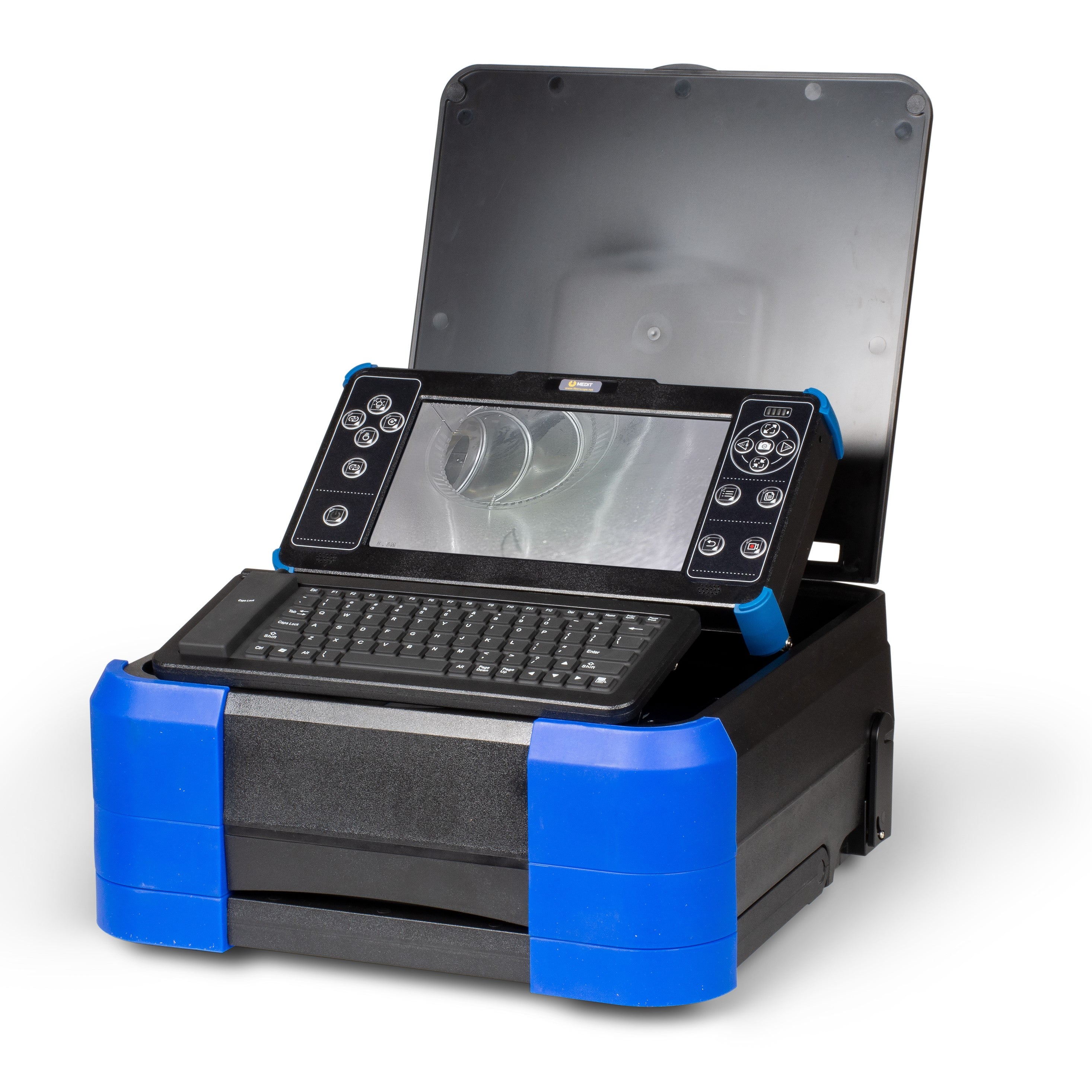

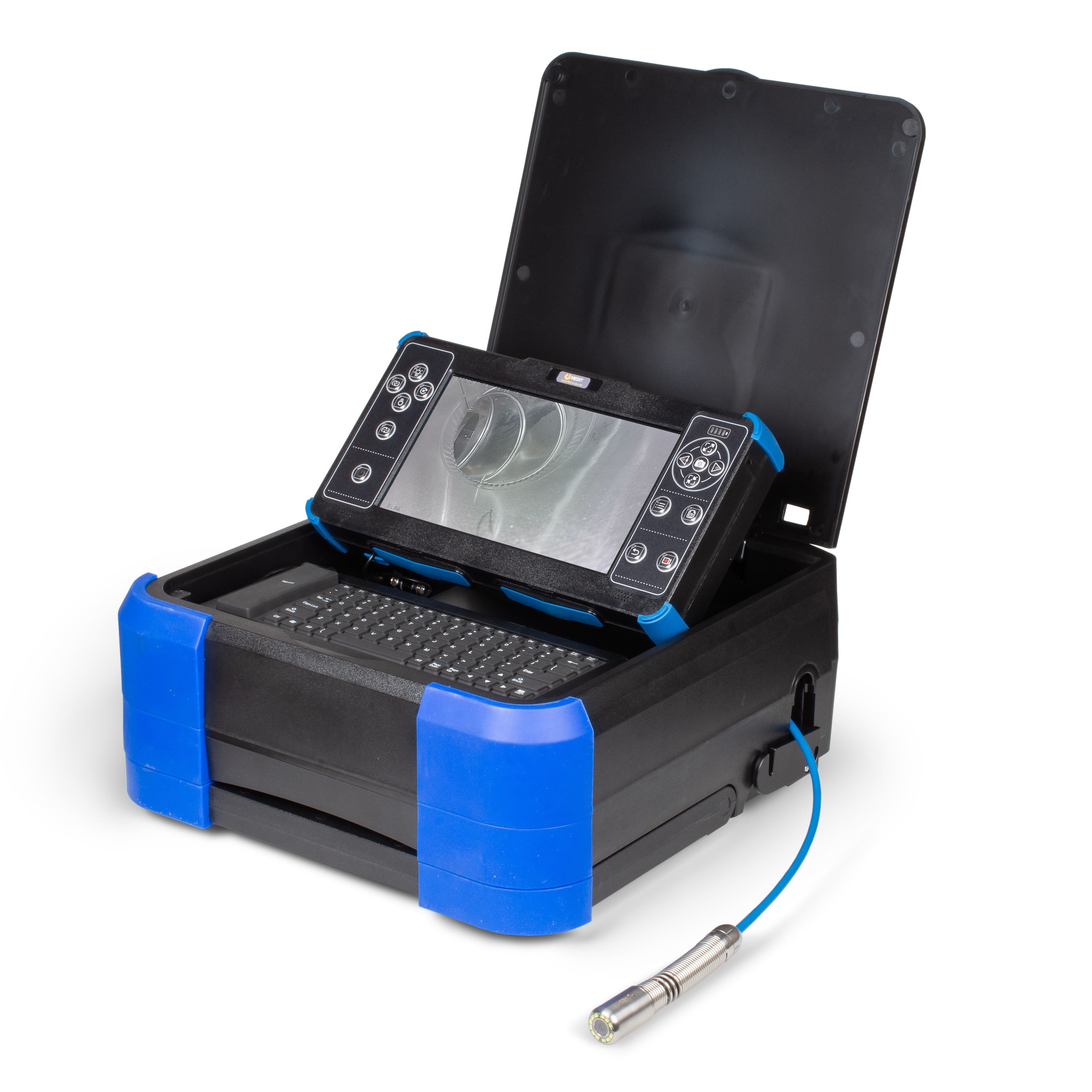

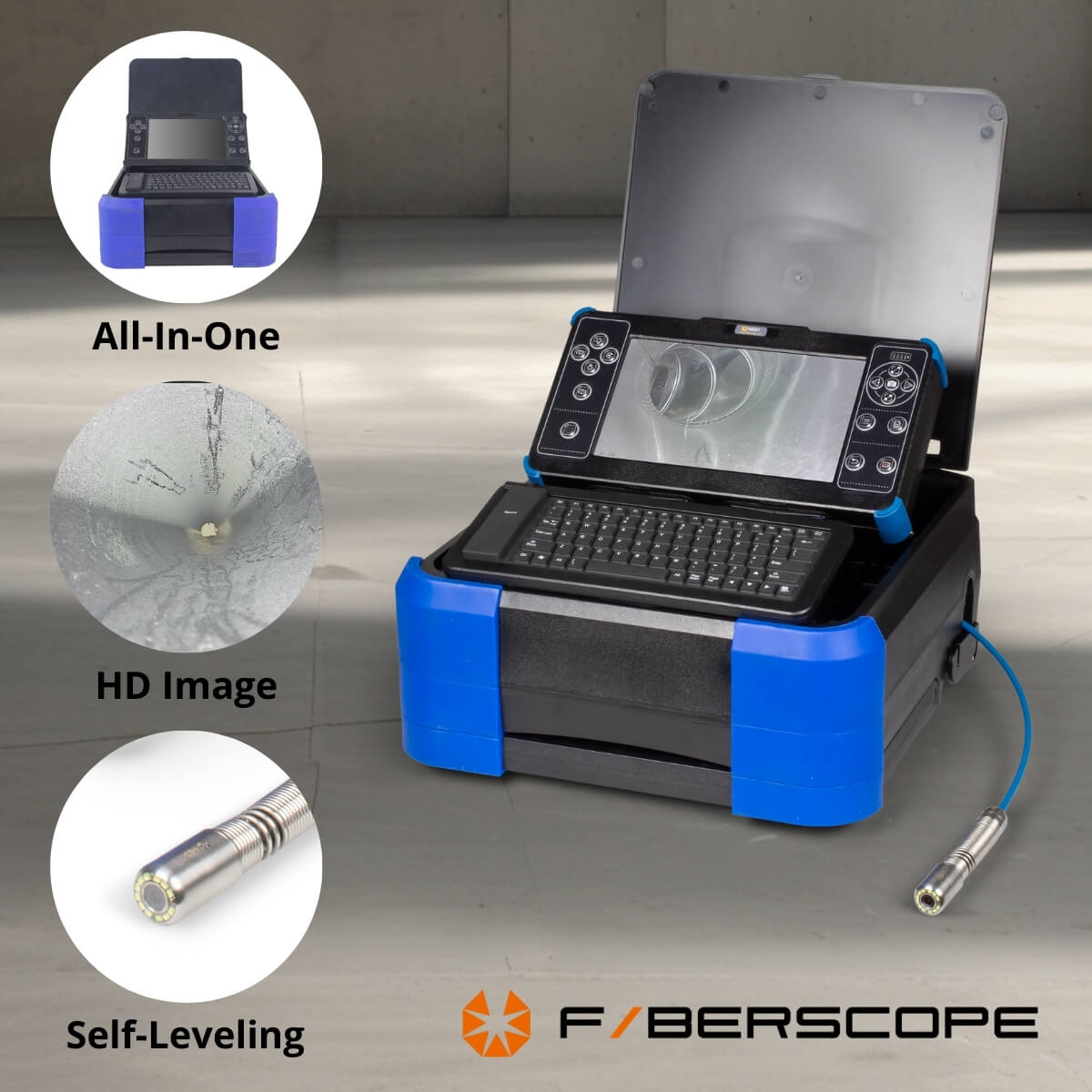

The ColorEye drain camera is a portable inspection device with a straight-view camera head: 25mm(0.9") self-leveling camera head. This system is equipped with a 30M(98ft) fiberglass push cable and a plastic case that holds all the components and accessories into one portable compact system.
One of the key features of the ColorEye is the 10" monitor that records in crisp resolution of 1920x1080p. No grainy or blurry footage. The unit is enclosed in a plastic carrying case making it compact and very portable. All the needed accessories are included in the set so it can be used right out of the box.
The straight-view camera head covers pipe inspections from 1.5" to 4" and will be able to pass a 90-degree bend in a 3" pipe. The wide angle of the camera head allows it to be useful for the majority of the inspections in pipes, drains, and sewer lines.
If you need to pass many bends in smaller pipes, check out our Curving King, the MiniFlex Plumbing Camera.
Specifications:
25mm(0.9") Self-Leveling, Straight View Camera System
Feel free to get in touch with us if you are not sure which camera will fit your application best or learn more at our catalog page.
1" to 4"
1.5" to 4"
0.4" to 6"
Up to 131ft
Up to 100ft
Up to 196ft
Pool, spa and drain pipe inspections, leak detection, pipework with many tight bends
General residential pipe and sewer line inspections, weeping tile inspections
Residential sewer line inspections, weeping tile inspections, micro pipelines in manufacturing, etc
Straight-view
Straight-view
Straight-view and/or Self-leveling
720x570 Pixels
480x320 Pixels
720x480 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
9" integrated monitor
Passes 1.25" P-trap and many tight bends
Ultra light, passes 1.5" bend, durable construction
Economical choice, one control base compatible with multiple reels
9.8kgs (21.6lbs)
7.2kgs (16lbs)
From 10.4kgs (23lbs)
Yes, normal/high power
Yes
Yes, depends on configuration
2" to 8"
2" to 6"
3" to 12"
Up to 114ft
200ft
200ft
Sewer and drain inspections, weeping tiles, foundation drains
General residential pipe and sewer line inspections, weeping tile inspections
Large sewer line inspections, storm drain inspections,
Self-leveling with pipe slope measurement
Self-leveling
Self-leveling
720x570 Pixels
480x320 Pixels
480x320 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
Wifi stream to mobile device (free app)
Pipe inclination measurement, compact portable design
Passes 2" bend, durable construction
Passes 3" bend, durable construction
11kgs (24.2lbs)
15kgs (33lbs)
19kgs (42lbs)
Yes
Yes
Yes
From 2"
From 2"
3" to 20"
98ft
98ft
Up to 393ft
Residential pipe and weeping tile inspections, joint/sidewall inspection
Residential pipe and weeping tile inspections, joint/sidewall inspection
Large sewer line inspections, storm drain inspections
Pan and tilt with manual focus
Pan and tilt
Pan and tilt
1920x1080 Pixels
1280x720 Pixels
1280x720 Pixels
8" monitor
10.1" monitor
8" monitor
All round inspections in Full HD, passes 3" bend
Joint and sidewall inspection in HD
All round inspections, joint/side wall inspection
11.7kgs (26lbs)
N/A
N/A
Yes
Yes
Yes
