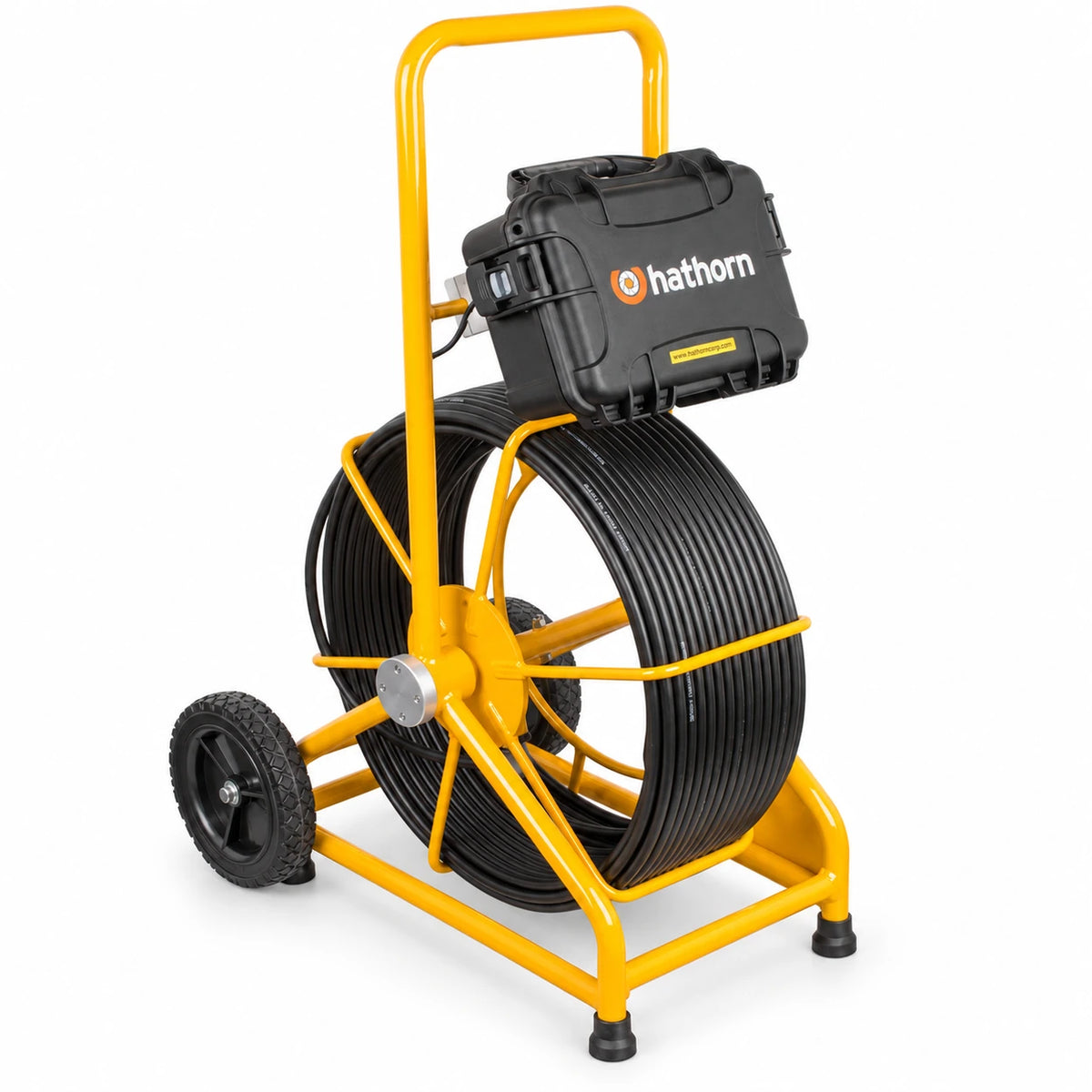

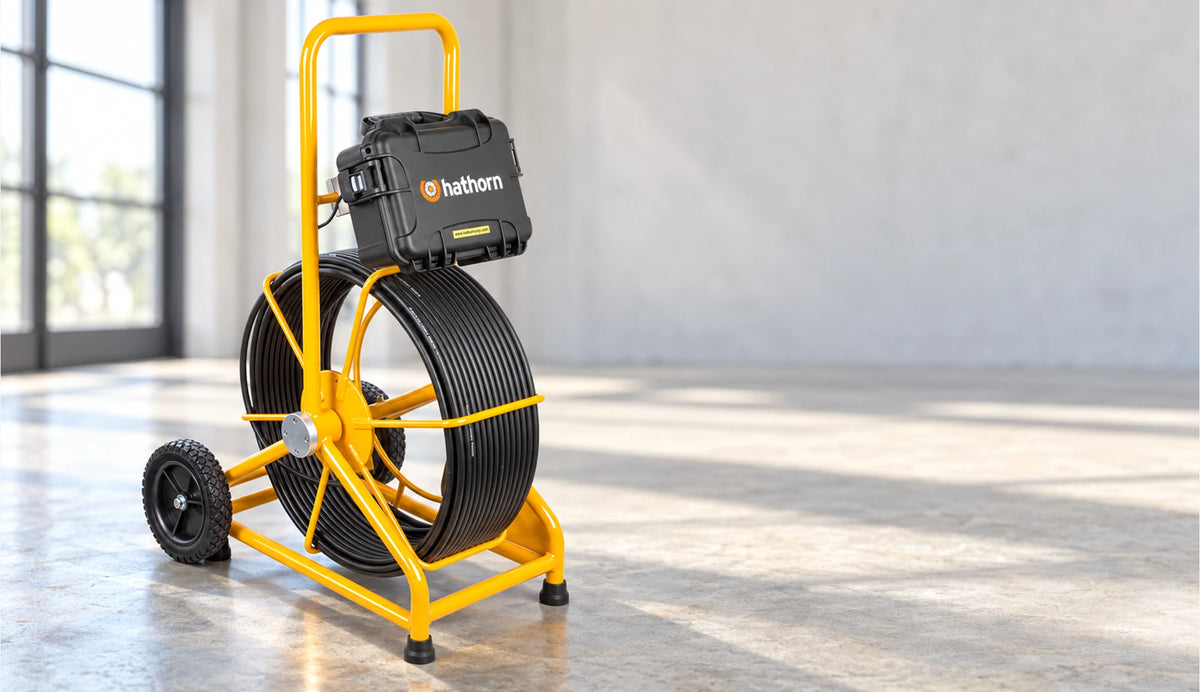

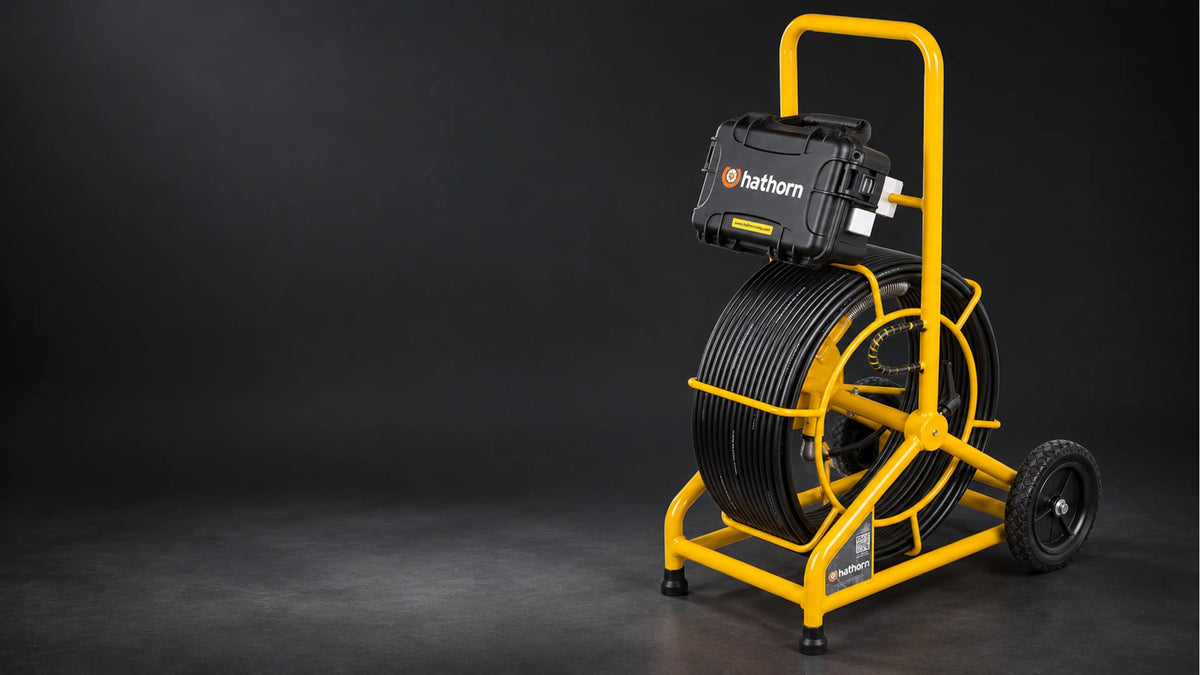

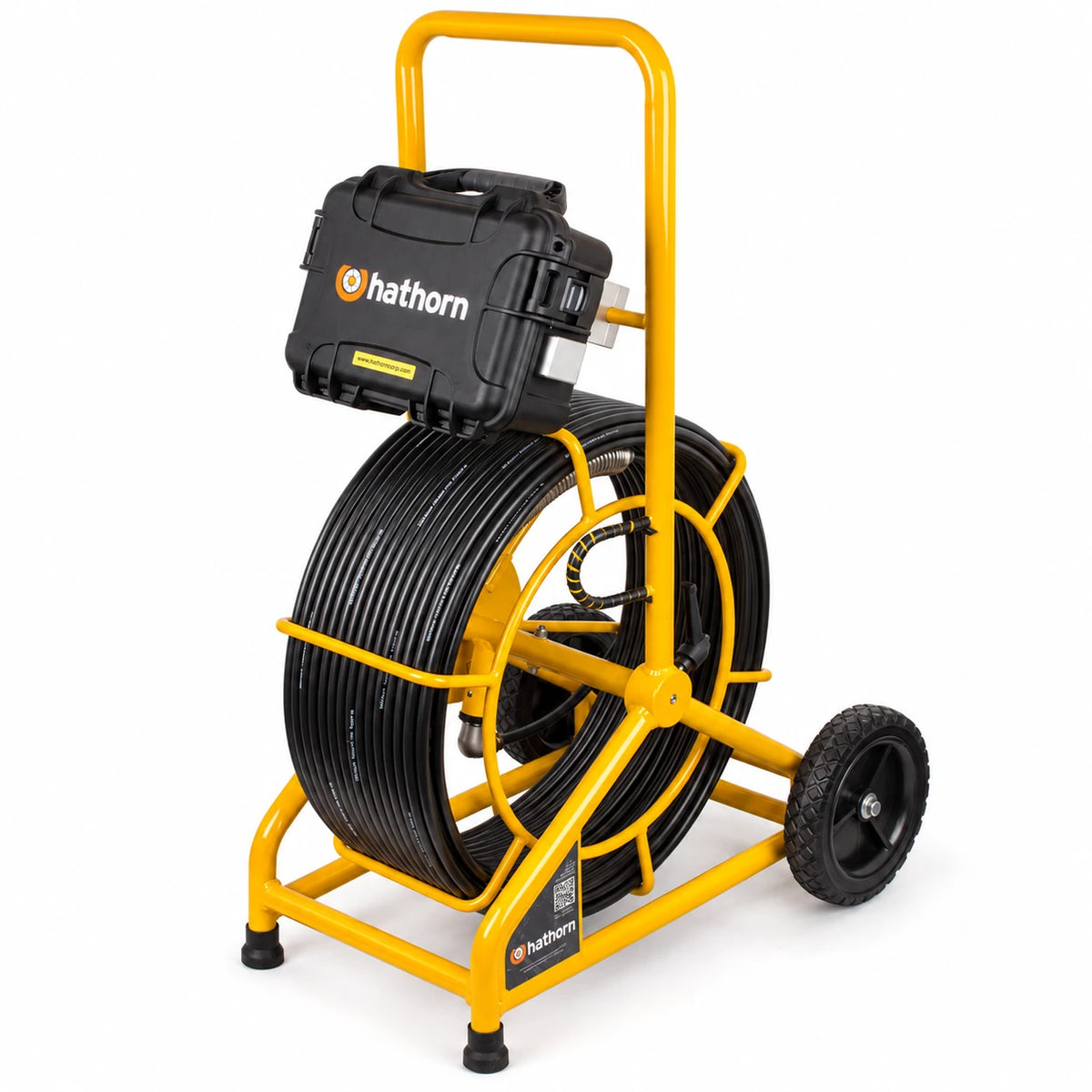

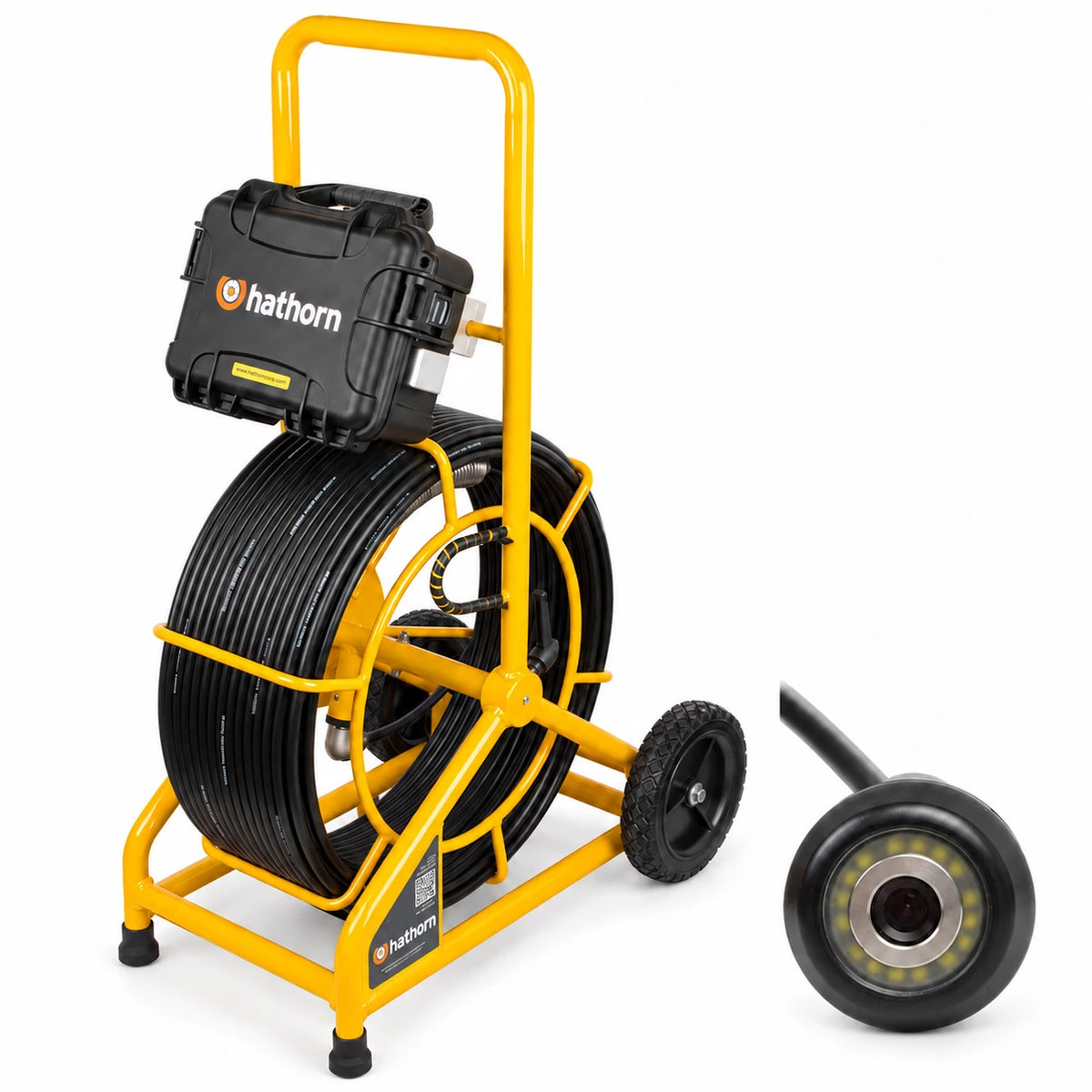

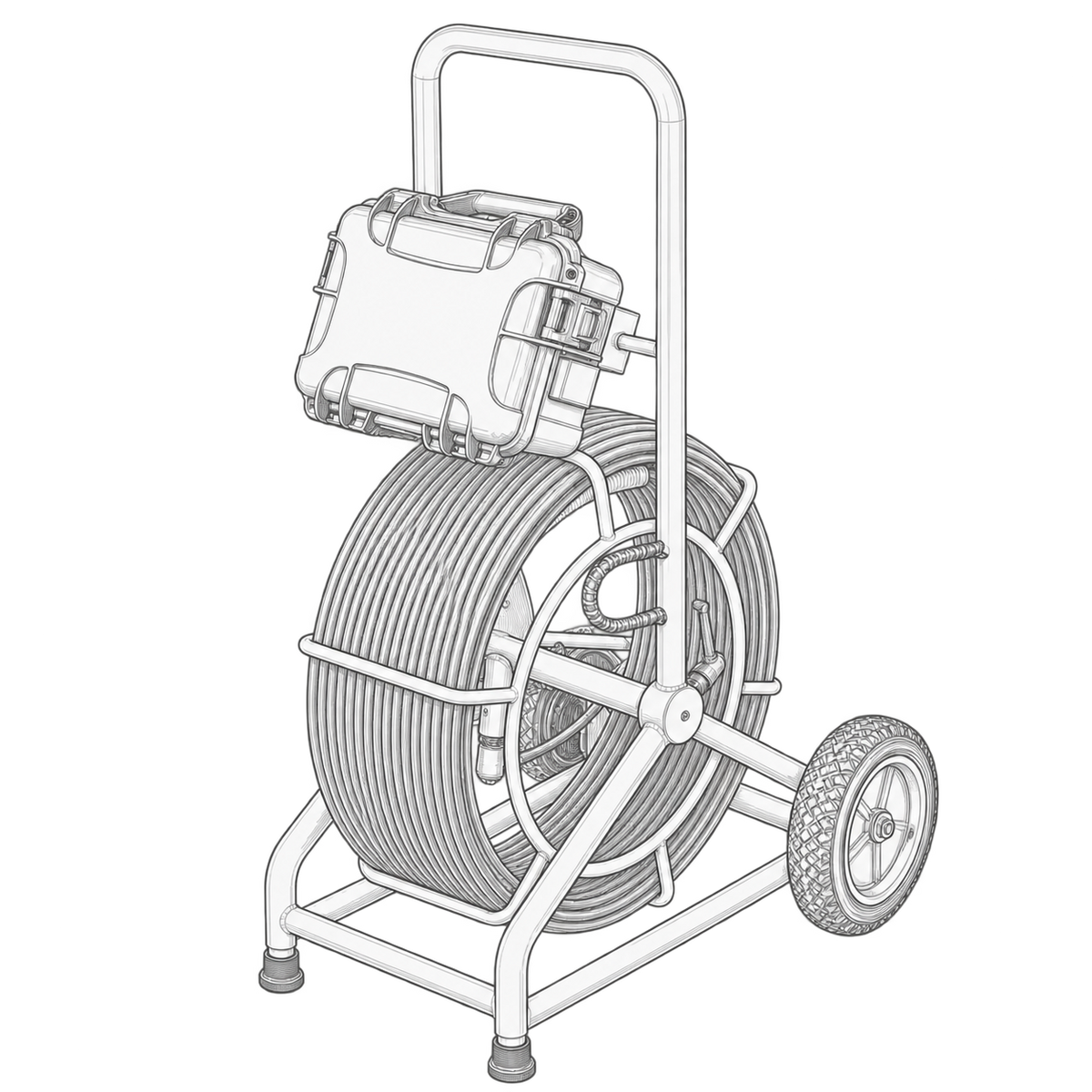

Consider the HATHORN H7 when you want a complete sewer camera in one unit — reel, 7″ screen, recorder and sonde built into a single frame, with no separate controller to carry or connect. With 200ft of premium push cable and a self-leveling camera head, this all-in-one system is built for plumbers, drain contractors and home inspectors working laterals and drain lines from 2 to 10 inches.
Key Features
* All-in-One System - No Separate Controller
* 7" Daylight-Readable LCD Screen
* 200ft of Premium Push Cable
* Self-Leveling Camera Head - 1.23" or 1.43"
* Records to 64GB Internal Drive and USB
* Wi-Fi Stream to Your Mobile Device
* Built-in 512Hz Sonde and Line Trace
* Battery Operated - 18V Milwaukee
The H7 is a portable inspection system for conducting visual inspections in drain lines, sewer laterals and building drains from 2 inches to 10 inches in diameter. This inspection system can be used for blockage assessment, root and crack detection, locating problem areas before digging, and confirmation of pipe repairs.

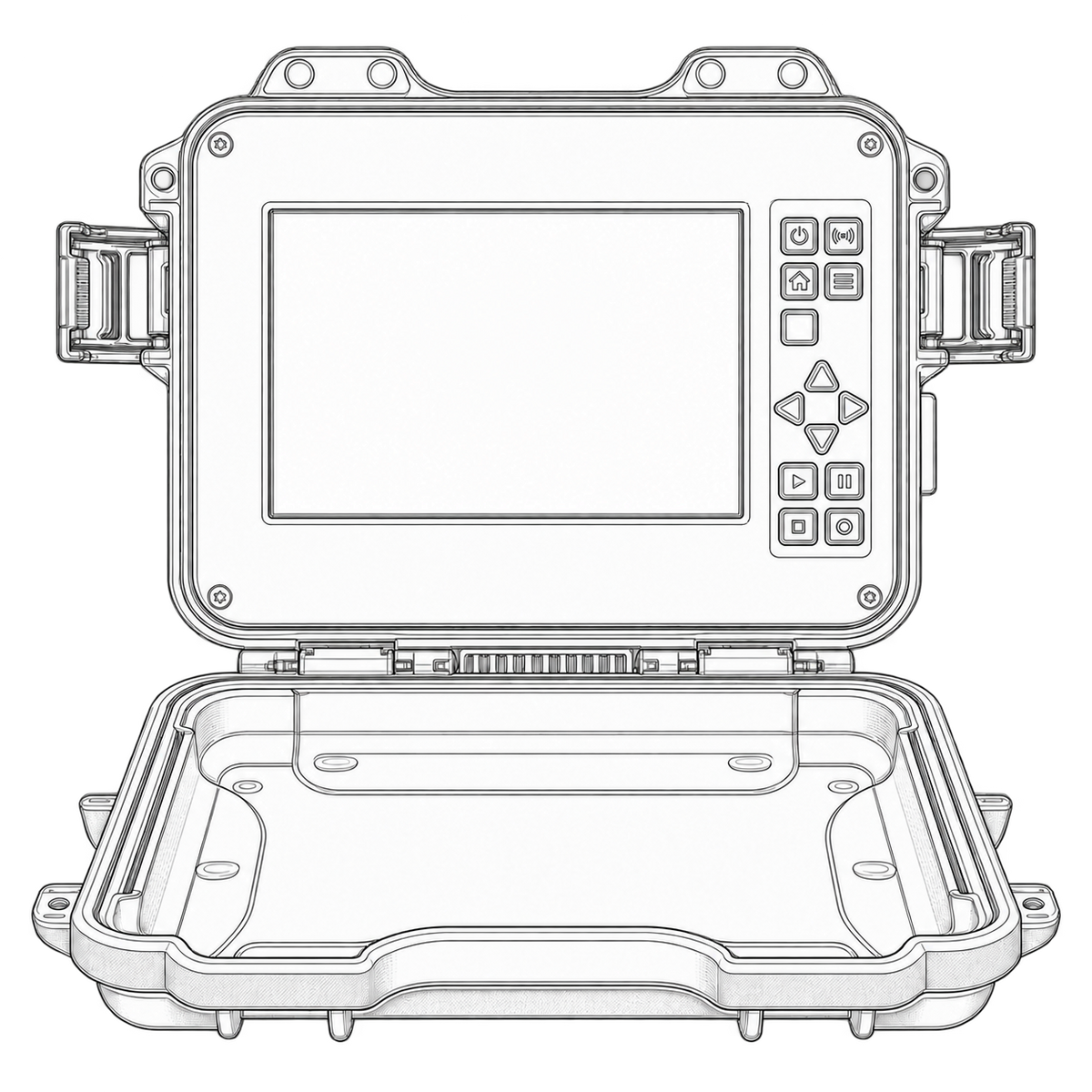

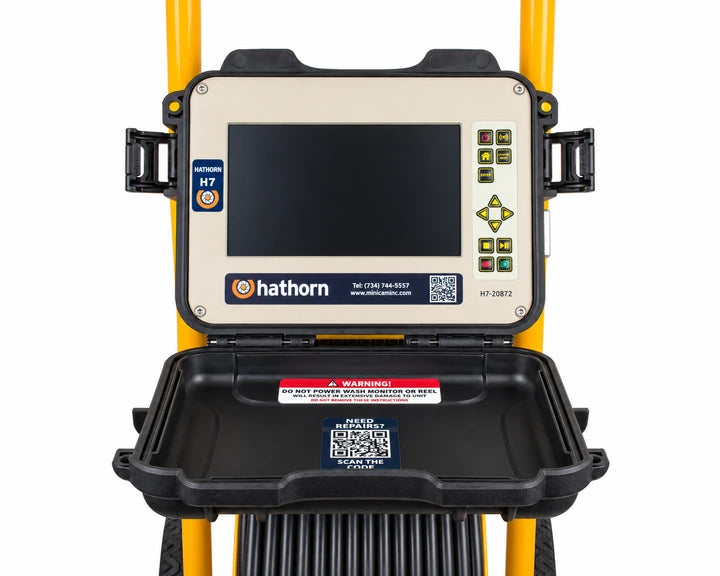

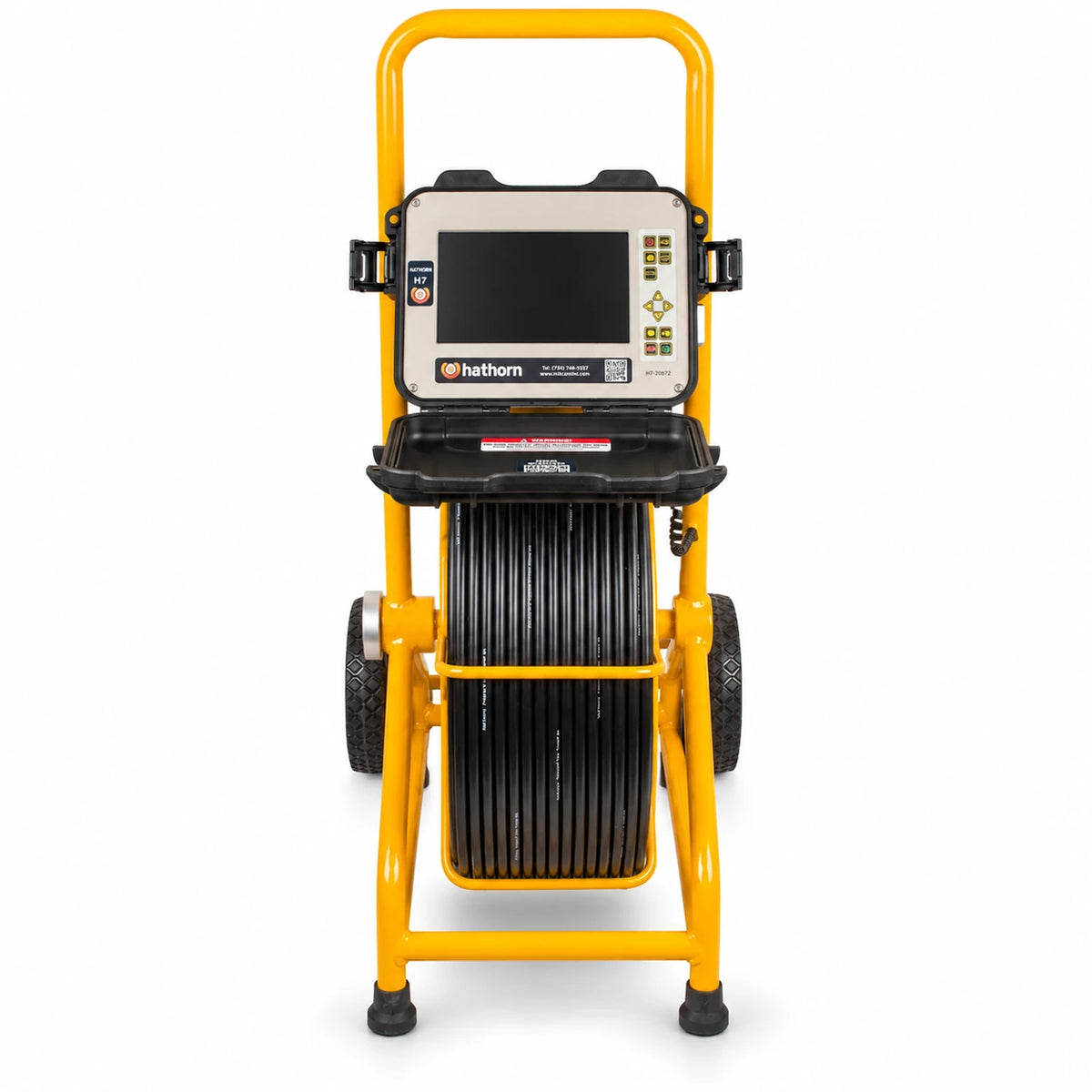

The monitor is built into the reel: a 7" impact-resistant LCD that is daylight-readable at 1,000 cd/m², with physical control buttons. Video (MPEG4, H.264 at 30 fps) and JPEG screenshots record to the 64GB internal drive, to a USB stick, or both, with pause, playback, fast-forward and rewind on the unit. If the battery runs low, the H7 saves the recording automatically before it powers down. Wi-Fi is standard, so the live image can also be streamed to a phone or tablet for a client or second technician.

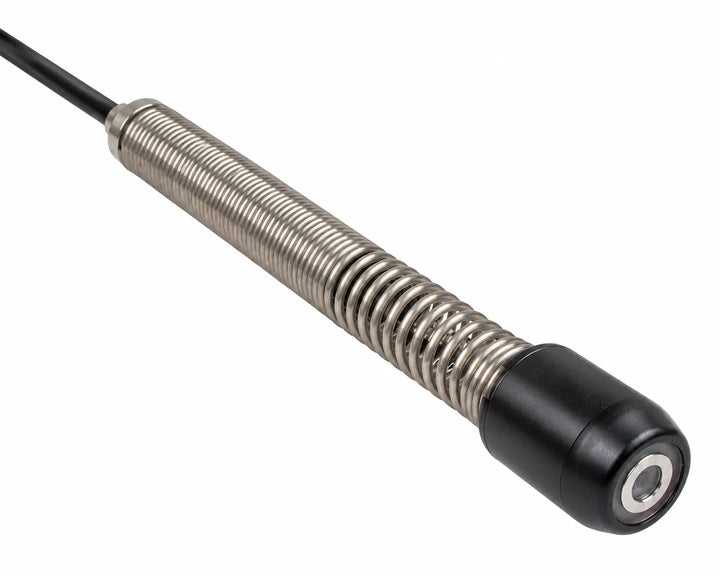

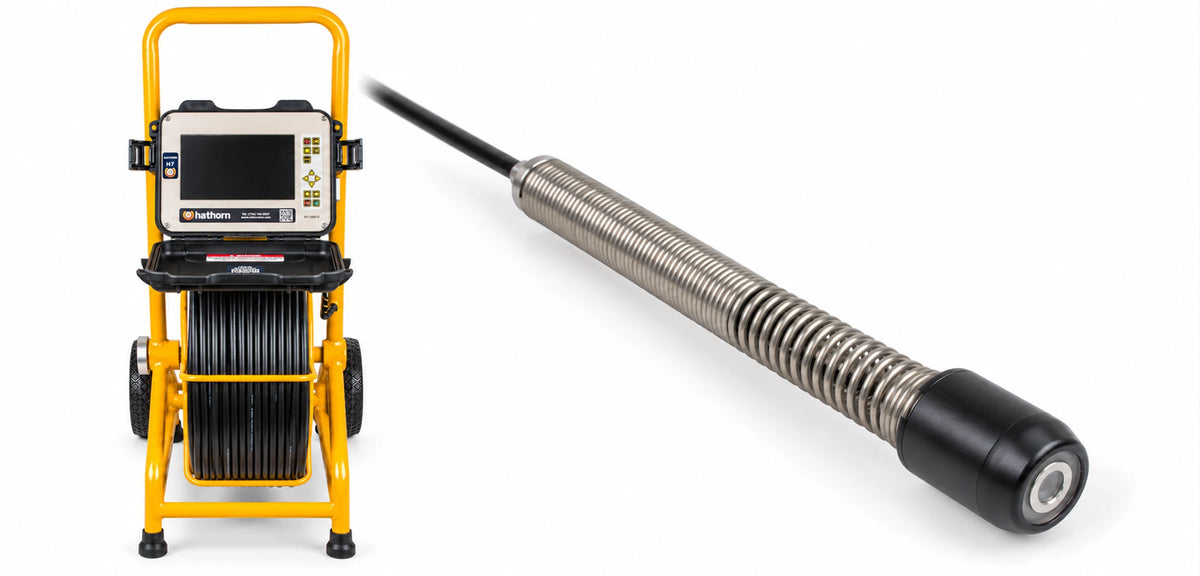

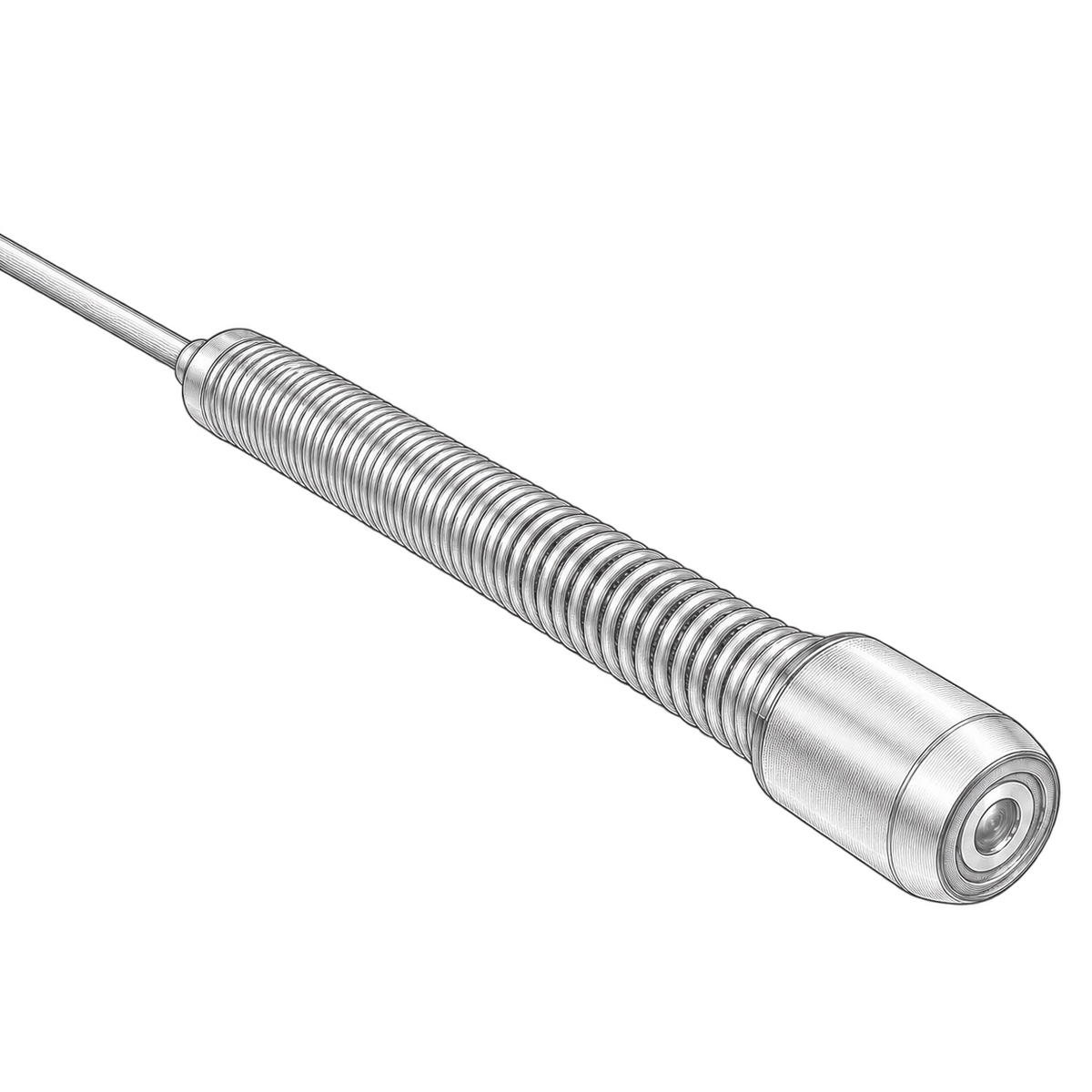

The H7 is offered with two self-leveling camera heads. The 1.23" head runs on a 0.400" push rod and passes 90° elbows from 2", for lines up to 6". The 1.43" head runs on a 1/2" push rod for lines from 3" to 10". Both camera heads have a built-in 512Hz sonde for locating the head from above ground, and Line Trace is standard for tracing the push rod's path. The reel has a footage counter in feet or meters with reset, and the system is powered by 18V Milwaukee batteries or equivalent, or by the included 12V AC/DC adapter.
Specifications
* Camera head: 1.23" or 1.43" self-leveling
* Cable: 200ft of HDPE push rod with coax core (0.400" with 1.23" head, 1/2" with 1.43" head)
* Inspection diameter: 2in - 6in (1.23" head) / 3in - 10in (1.43" head)
* Display: 7" daylight-readable LCD, 1024x600, 1,000 cd/m², physical controls
* Recording: MPEG4 video and JPEG screenshots to 64GB internal drive and/or USB
* Wi-Fi: Standard
* Sonde: Built-in 512Hz
* Line Trace: Standard
* Footage Counter: Feet or meters, resettable
* Menu Languages: English, Spanish, French
* Power: 18V Milwaukee battery (not included) or 12V AC/DC adapter (included)
* Battery Life: ~5hrs with 3.0Ah battery
* Water Resistance: IP65
* Operating Temperature: 14°F to 122°F (-10°C to 50°C)
* Weight: ~45 lbs without battery
For more information about this inspection system, check the product's page at our online catalog.
Any questions? Please get in touch with us with any inquiries.
What's in the Set?

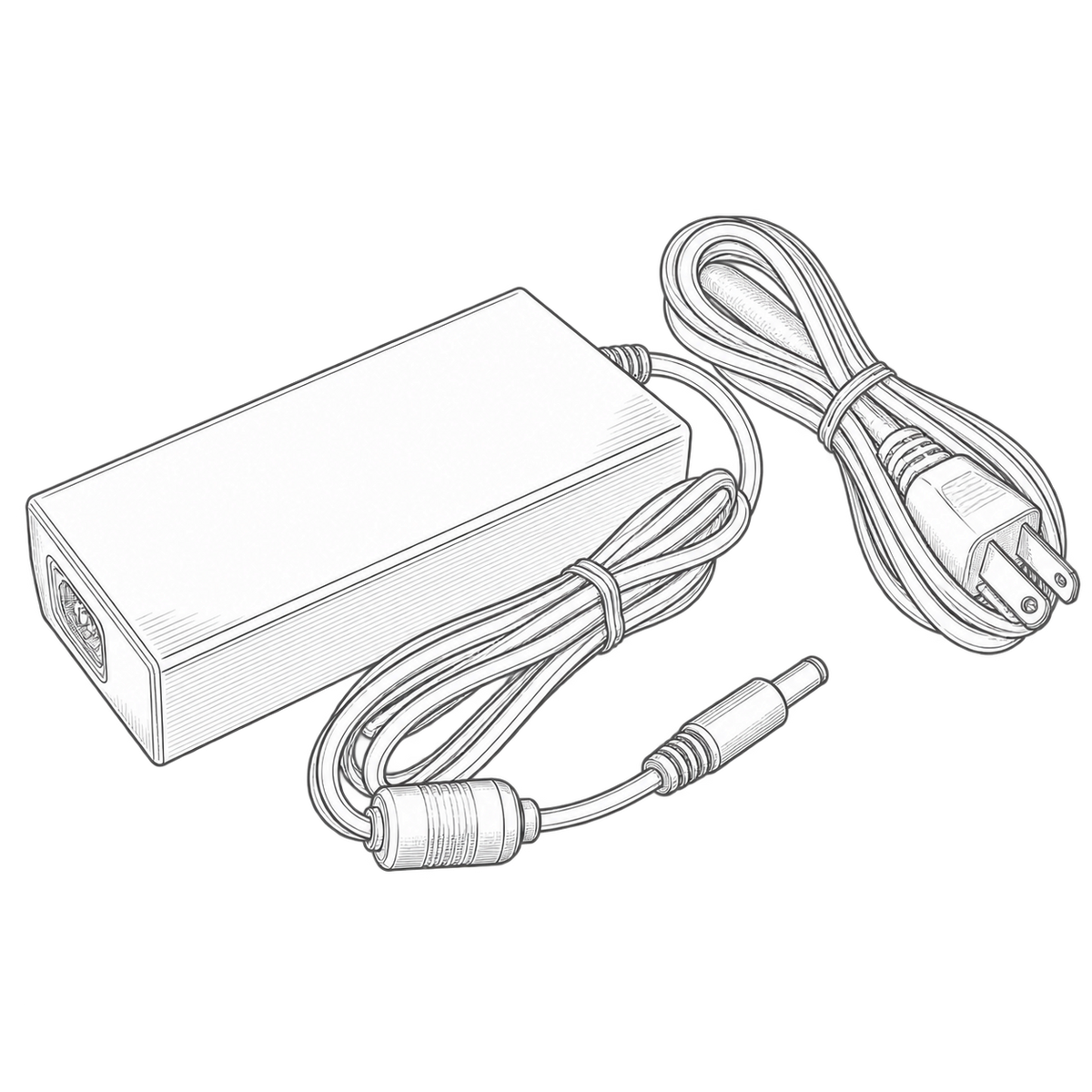

H7 camera system with built-in monitor, self-leveling camera head and 12V AC/DC adapter (battery and mobile device are not included)
Note: HATHORN H7 is a specially ordered unit. Call for details.
