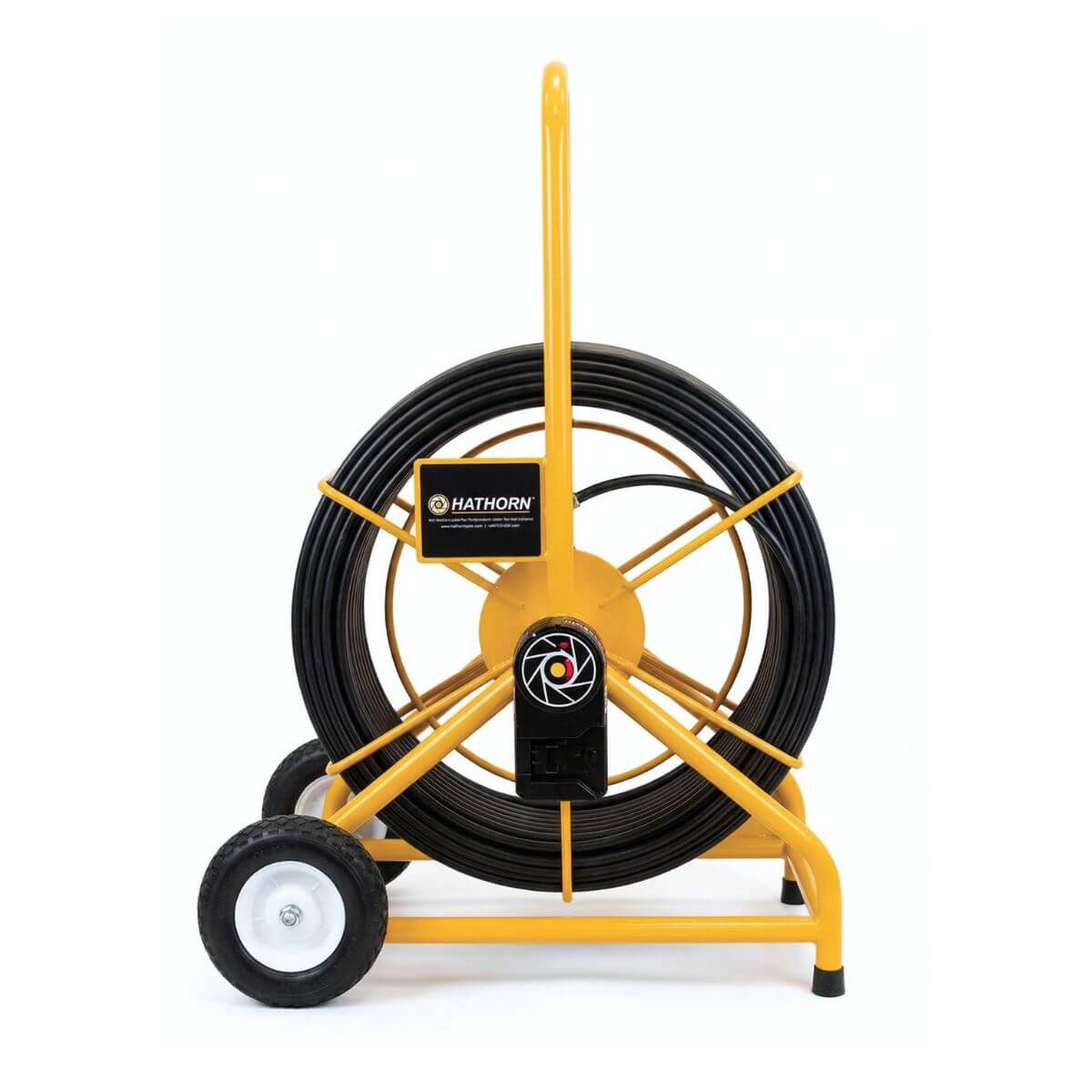

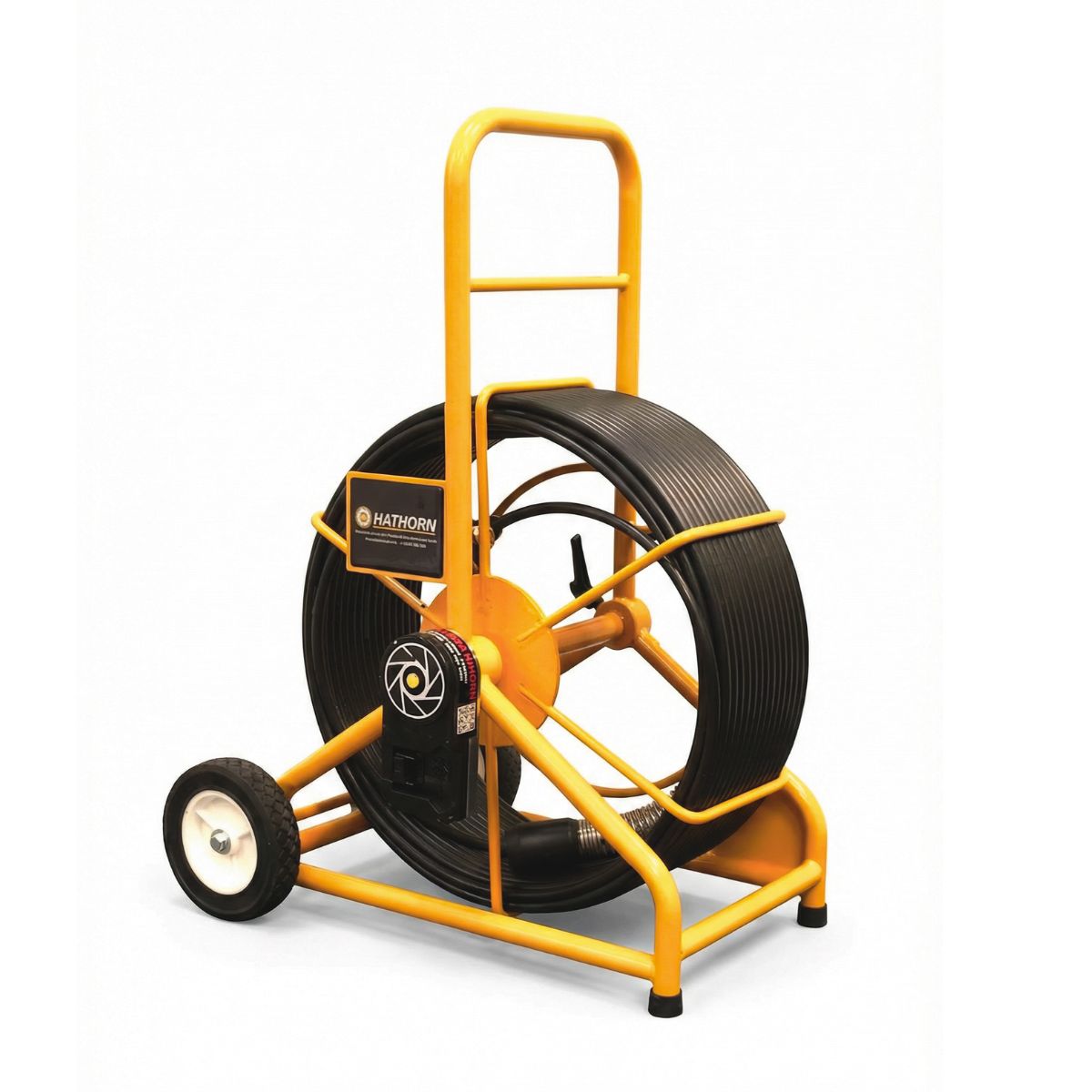

HATHORN MID Sewer Camera

Choose Hathorn MID Sewer Camera for inspecting sewer pipes from 3 inches and up to 12 inches. Built tough and rugged, this inspection unit is suitable for municipality and city infrastructure crews who need a workhorse.

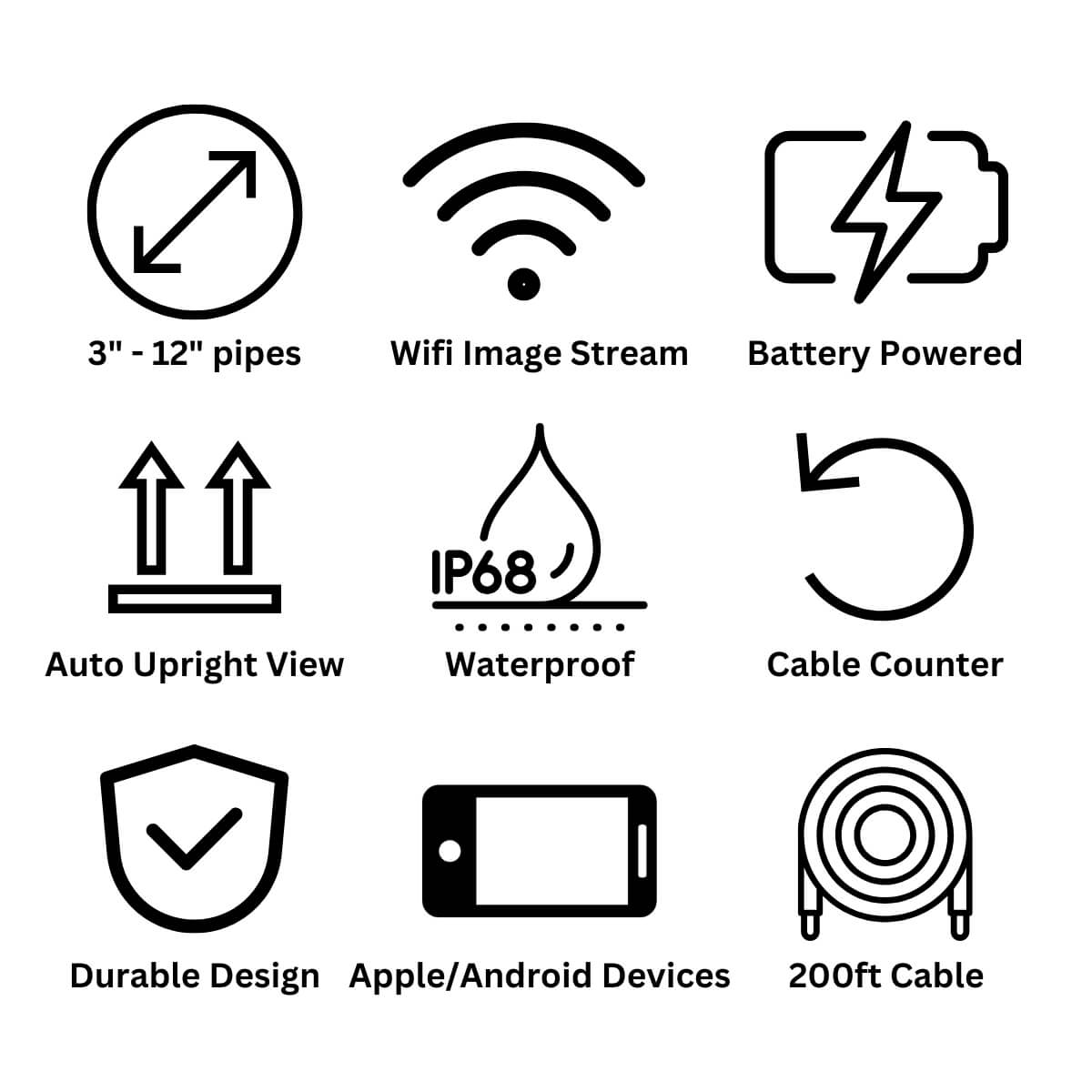

Key Features

• Rugged and Durable Construction
• 18V Battery Operated
• 200ft of Premium Push Cable
• Wifi Stream to Mobile Device
• From 3 inch to 12 inch sewer lines*
• Tracking the Unspooled Cable Length

The Hathorn MID Sewer Camera consists out of three main parts, the camera head, the push cable with the reel and the wifi module. The integrated camera head comes with a self-leveling function that keeps the picture upright even if the camera head is upside down. This camera head is water tight and has a IP68 rating with a ability to withstand up to 60 psi of pressure. Fused into the camera head are LED lights that provide a fixed ray of light and a 512Hz sonde beacon that allows the camera head to be located and detected in the pipe.

The reel is constructed out of butt-welded steel tubing, has a integrated meter counter, and houses 200ft of premium push cable that acts as a push rod and a conveyor of electric signals to the camera head and image signals back. Attached to the reel is the composite module that combines the nest for the 18V battery and the WiFi emitting part. Powered by the 18V Milwaukee or equivalent rechargeable battery the Hathorn MID Sewer Camera can operate efficiently in remote areas without any outlet.

For viewing the inspection, the MID reel has a WiFi emitting module that connects the camera to a Android/Apple device and displays the image on the free Hathorn App that allows photo/video/audio recording along with playback.

Specifications

• Cable: 200ft of 1/2" premium push cable
• Camera: 1.68 with self-leveling
• Water Resistance: IP68, pressure sealed up to 60psi
• Image Viewing: Hathorn App, connects via Wifi
• Wifi Function: Generates its own wifi signal
• Power: Rechargeable battery 18V Milwaukee or equivalent
• Meter Counter: Yes

What's Included?

MID Hathorn Sewer Camera, accessories (battery or mobile device are not included)

*for 12" sewer lines you would need a universal roller skid to keep the camera head centered in the pipe (see the pipe accessories category).

**Inspecting 12" pipes with this camera may not bring the wanted results and may not reach out as far as needed since the cable will slick side to side in the pipe due to large diameter. For best performance choose a pipe crawler for inspecting 12" pipelines(see pipe crawler category on our main website)

For more information about this inspection system, check the product's page at our online catalog.

Note: Sewer Camera Hathorn is a specially ordered product. Conditions apply. Call for details.
