MICRON Mini Drain Camera
Description
Consider adding a portable MICRON Mini Drain Camera to your toolbox or work truck as a quick solution for inspecting drain lines up to 100ft. Weighting only ~16lbs, this mini inspection system is portable and fully battery operated that can be universally used in various environments.

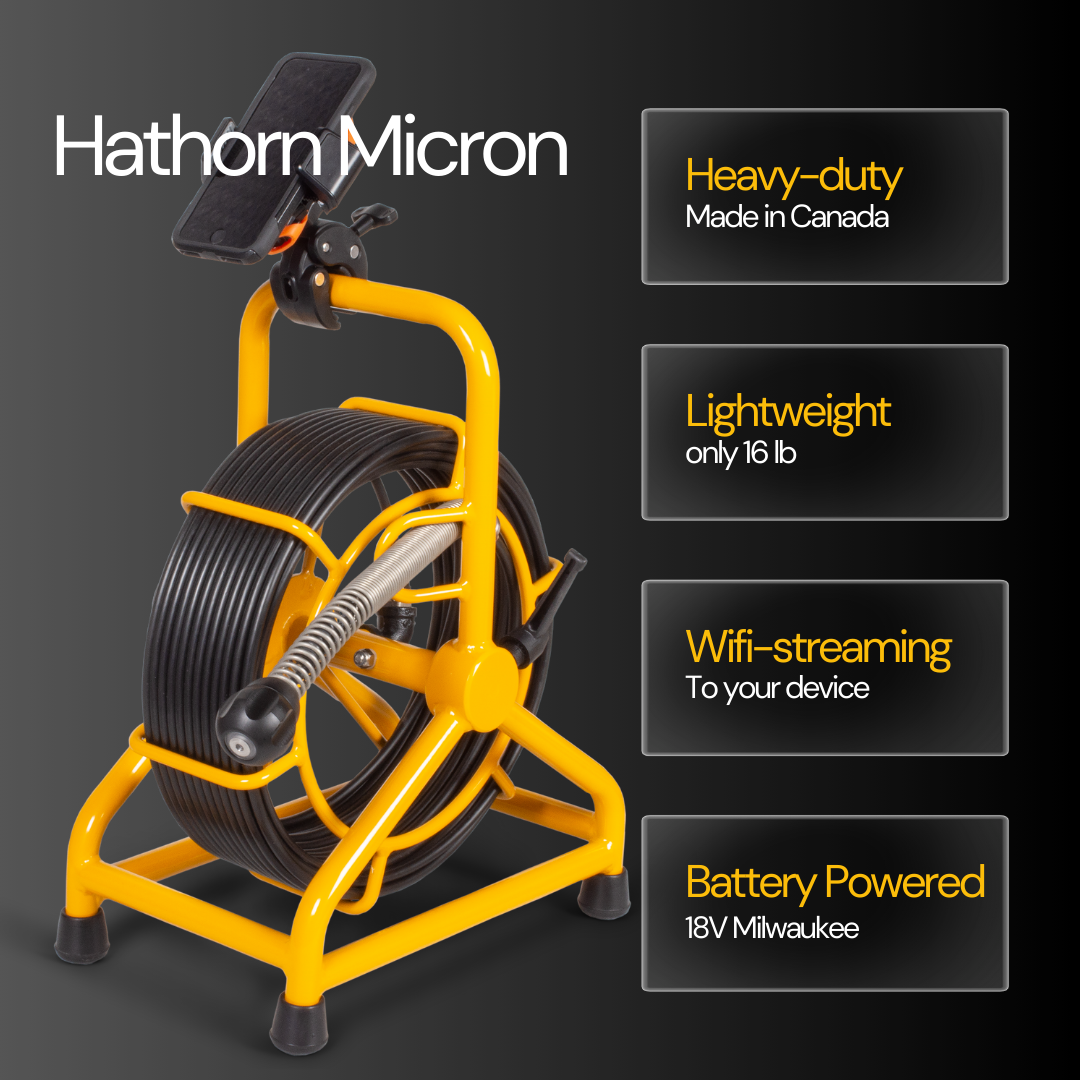

Key Features
- Small and Portable ~ 16lbs
- Battery Operated - 18V Milwaukee
- 100ft of Premium Push Cable
- Wifi Stream to Your Mobile Device
- Inspect Drains from 1.5 inches to 4 inches
- Pass a Bend as Small as 1.5 inches
- Track the Unspooled Cable Length
The Micron Drain Camera is a portable inspection system for conducting visual inspections in drain lines and small sewer pipes from 1.5 inches to 4 inches in diameter. This inspection system can be used for blockage assessment, drain line location, leak detection and confirmation of pipe repairs.

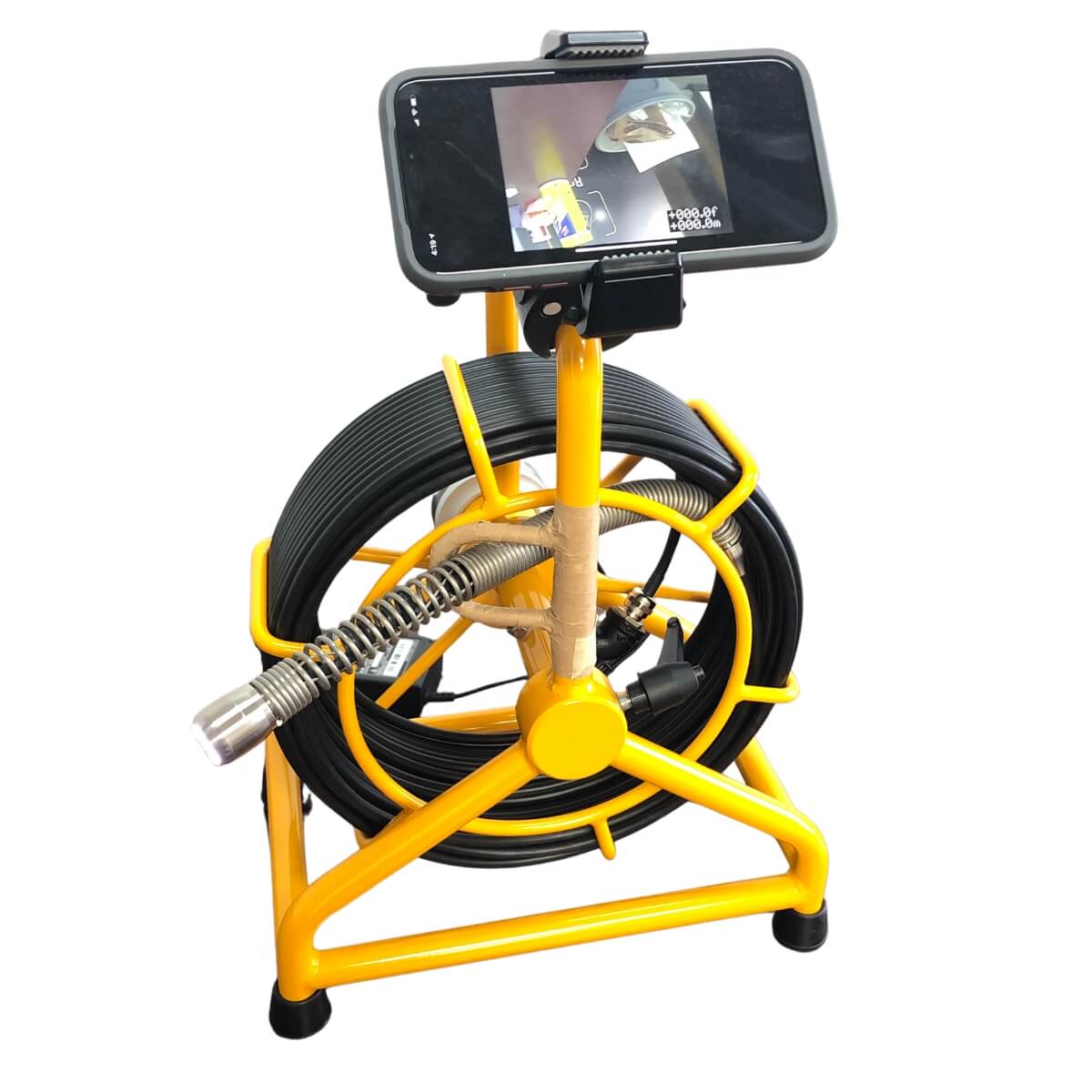

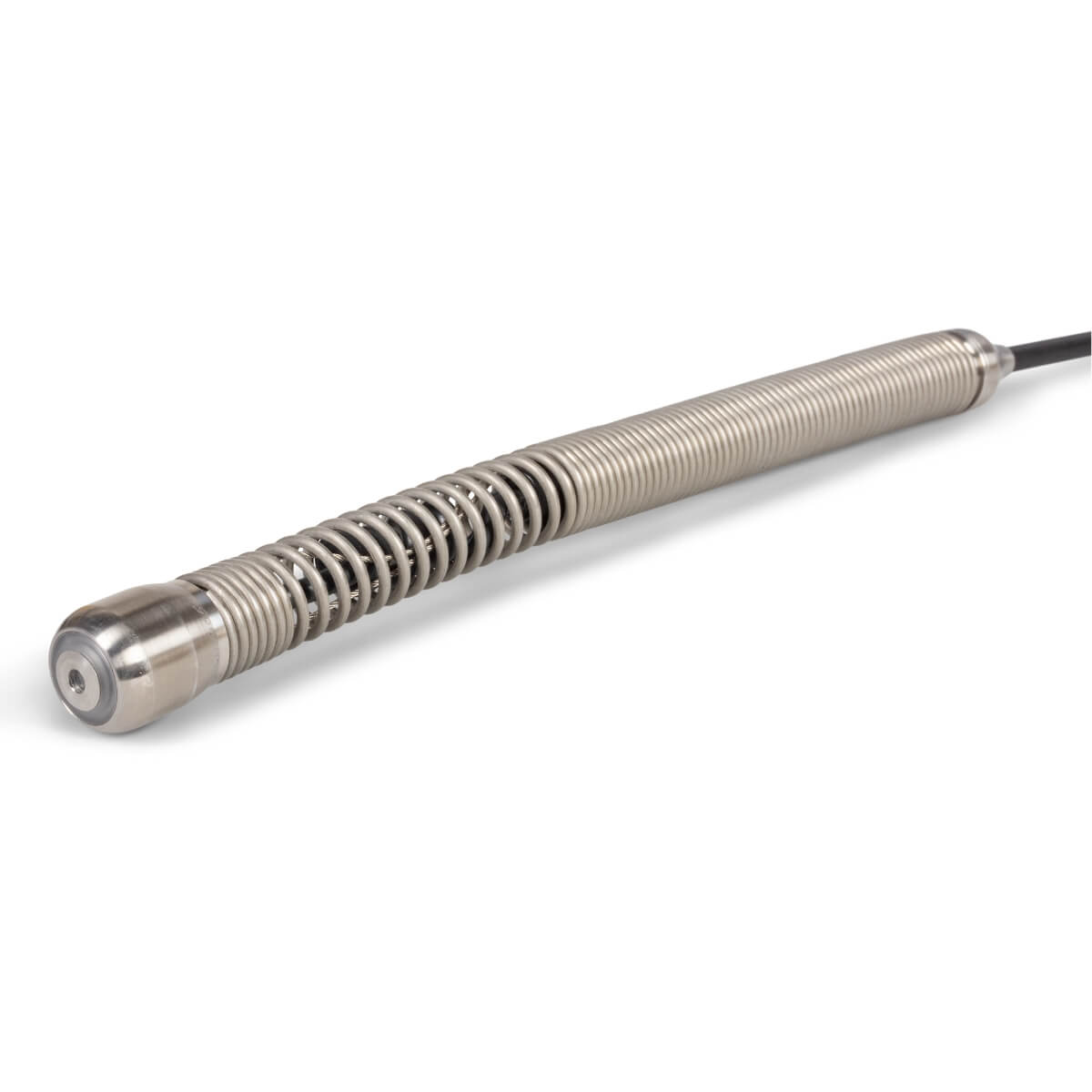

Three main parts make up the Micron Drain Camera: camera head, reel and cable, and a WIFI module. The camera head has a diameter of 1" and features a 512Hz integrated sonde beacon that allows the detection of the camera head once it is in the drain. Eight LED non-dimmable lights are fused under the protection of the glass and provide a continuous illumination during the inspection. The camera head is IP68 and water sealed to 60psi of pressure.
The reel of this system is made out of butt-welded steel frame, has a meter counter for tracking unspooled cable and houses 100ft of the HDPE premium push rod of 3/8". Micron Drain Camera has a WiFi module integrated into the system that emits its own WiFi signal that is then picked up by Android/Apple device and seen through a free app. The app allows video and photo recording as well as footage storage and replay. The Micron system is conveniently powered by 18V Milwaukee batteries or equivalent.
Specifications
- Camera head: 1 inch, 60psi protection
- Reel: Butt-welded steel construction
- Cable: 100ft of 3/8 premium HDPE cable
- Inspection diameter: 1.5in - 4in
- Meter Counter: Yes
- Display: Wifi connection to your device
- App: Free to download on Android 12/Apple iOs 15 and above
- Weight: ~ 16lbs
For more information about this inspection system, check the product's page at our online catalog.
Any questions? Please get in touch with us with any inquires.
What's in the Set?
Micron Drain Camera with whole setup and accessories (battery and mobile device are not included)
Note: Micron Mini Drain Camera is a specially ordered unit. Call for details.
Which Pipe Inspection Camera is Right for Me?
★★★★★
★★★★★
★★★★
1" to 4"
1.5" to 4"
0.4" to 6"
Up to 131ft
100ft
Up to 196ft
Pool, spa and drain pipe inspections, leak detection, pipework with many tight bends
General residential pipe and sewer line inspections, weeping tile inspections
Residential sewer line inspections, weeping tile inspections, micro pipelines in manufacturing, etc
Straight-view
Straight-view
Straight-view and/or Self-leveling
720x570 Pixels
480x320 Pixels
720x480 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
9" integrated monitor
Passes 1.25" P-trap and many tight bends
Ultra light, passes 1.5" bend, durable construction
Economical choice, one control base compatible with multiple reels
9.8kgs (21.6lbs)
7.2kgs (16lbs)
From 10.4kgs (23lbs)
Yes, normal/high power
Yes
Yes, depends on configuration
★★★★★
★★★★★
★★★★★
2" to 8"
2" to 6"
3" to 12"
Up to 114ft
200ft
200ft
Sewer and drain inspections, weeping tiles, foundation drains
General residential pipe and sewer line inspections, weeping tile inspections
Large sewer line inspections, storm drain inspections,
Self-leveling with pipe slope measurement
Self-leveling
Self-leveling
720x570 Pixels
480x320 Pixels
480x320 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
Wifi stream to mobile device (free app)
Pipe inclination measurement, compact portable design
Passes 2" bend, durable construction
Passes 3" bend, durable construction
11kgs (24.2lbs)
15kgs (33lbs)
19kgs (42lbs)
Yes
Yes
Yes
★★★
★★★
★★★
From 2"
From 2"
3" to 20"
98ft
98ft
Up to 393ft
Residential pipe and weeping tile inspections, joint/sidewall inspection
Residential pipe and weeping tile inspections, joint/sidewall inspection
Large sewer line inspections, storm drain inspections
Pan and tilt with manual focus
Pan and tilt
Pan and tilt
1920x1080 Pixels
1280x720 Pixels
1280x720 Pixels
8" monitor
10.1" monitor
8" monitor
All round inspections in Full HD, passes 3" bend
Joint and sidewall inspection in HD
All round inspections, joint/side wall inspection
11.7kgs (26lbs)
N/A
N/A
Yes
Yes
Yes
