Durable. Rugged. Inspection Workhorse.
That's the description for our Hathorn Mini WiFi Sewer Camera that gives you the benefits of the rugged and sturdy construction, wireless Wifi live-image stream to mobile device and the ability to inspect pipes from 2 inches up to 6 inches in diameter.

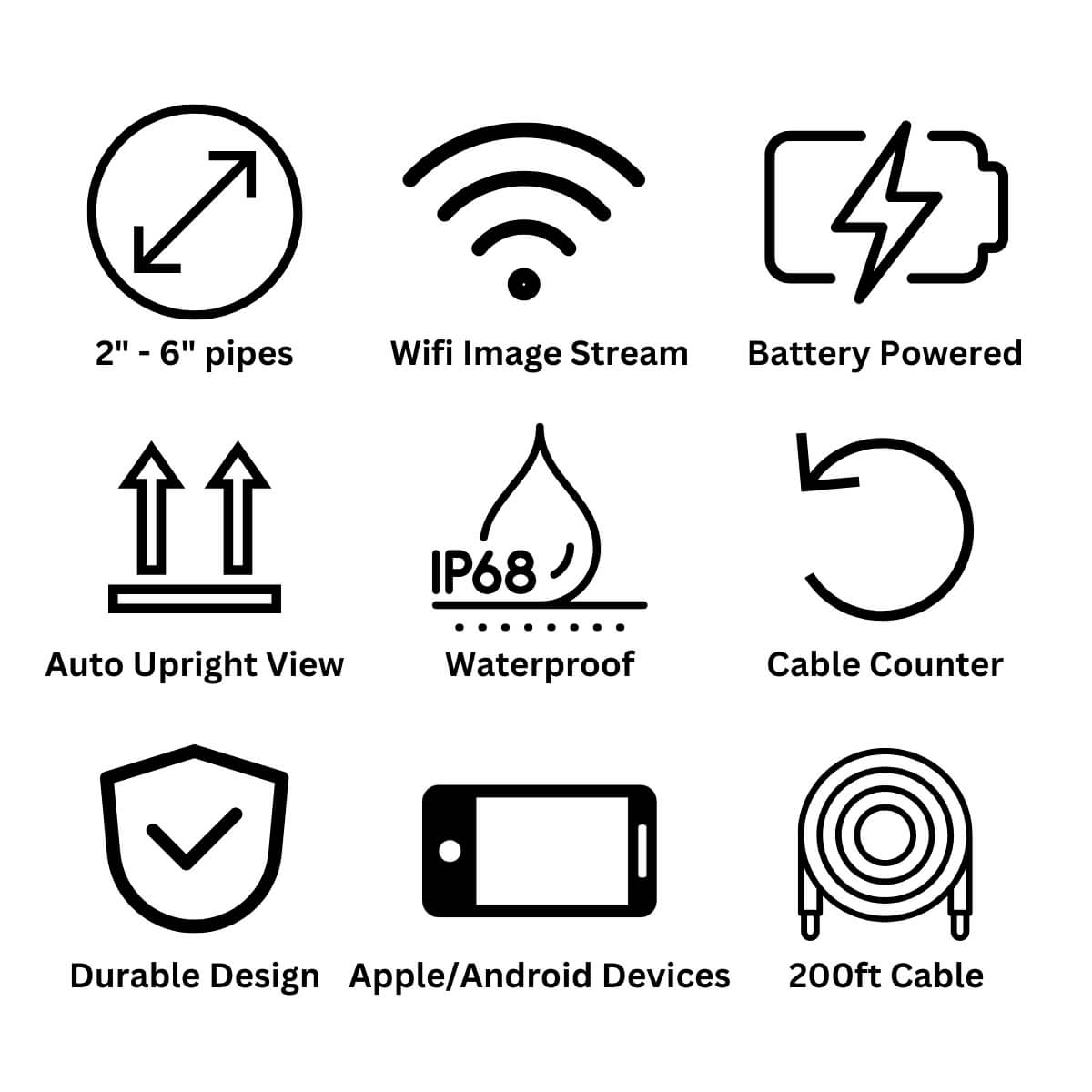

Key Features

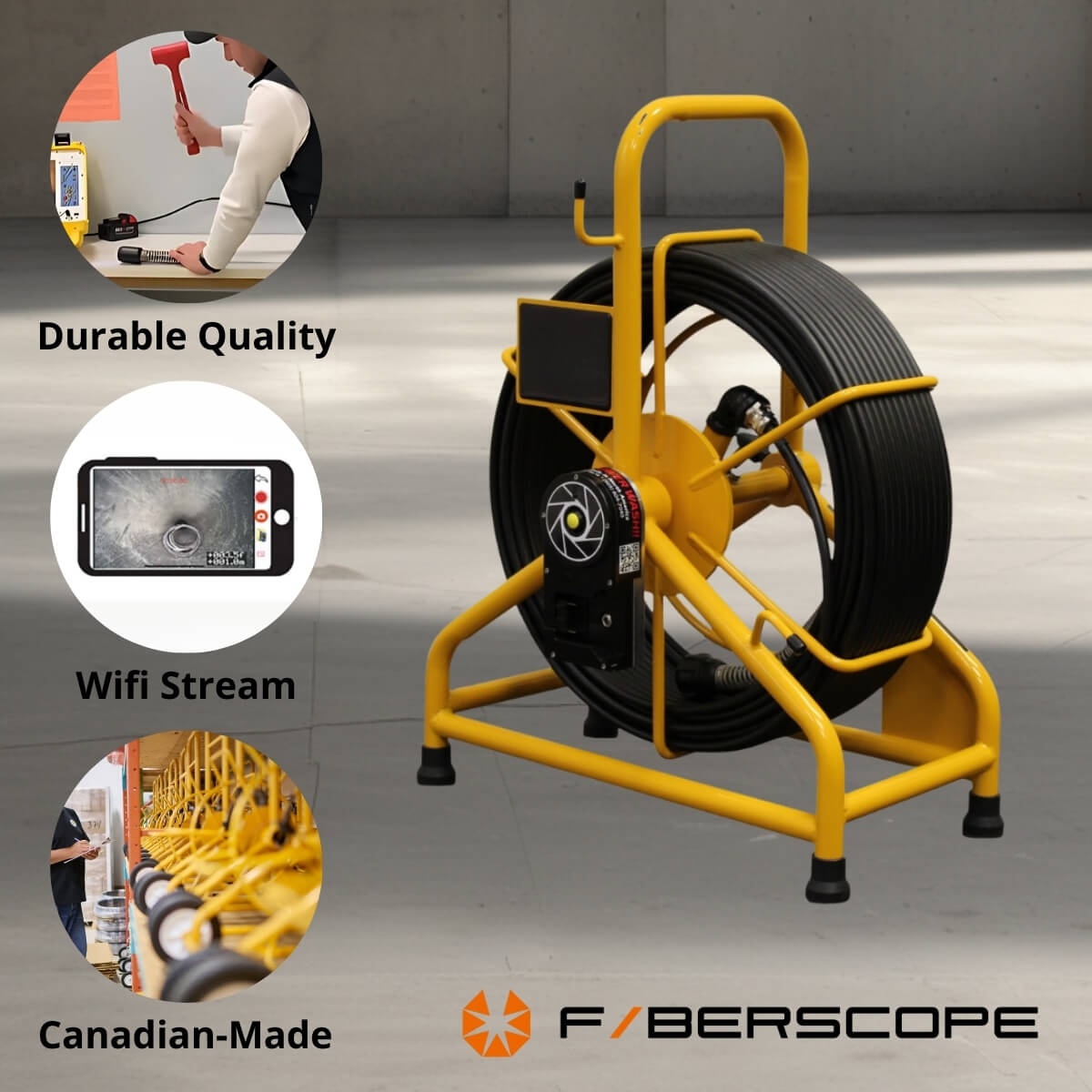

The Sewer Camera consists of three main parts, the camera head, the reel, and the wifi connection module.
The camera head comes connected to the push rod and features a auto upright image and a waterproof rating of IP68 and water pressure resistance of up to 60psi. Integrated into the camera head are LED lights that feature a continuous illumination of the examination area and a 512hz sonde beacon that permits the location for the camera head once its in a pipe or a sewer line.
The reel frame is constructed out of rugged steel with butt welded joints and protected by powder coating. It houses a premium push cable with a 200ft length and has a integrated meter counted that tracks the unspooled cable.
Connected to the reel is the composite part that houses the battery hub and the Wifi module that generates its own signal allowing it to be used anywhere. The system is powered with 18V Milwaukee batteries or the equivalent to them thus allowing effective operation in remote areas. The live image is transferred with the Wifi signal and can be seen on any Apple/Android mobile device through a free app that allows image/video/audio recording as well as playback.
Specifications
What's Included?
Plumbing Camera HATHORN Mini accessories (battery or mobile device not included)
For more information about this inspection system, check the product's page at our online catalog.
Note: Plumbing Camera HATHORN Mini is a specially ordered product. Conditions apply. Call for details.
1" to 4"
1.5" to 4"
0.4" to 6"
Up to 131ft
Up to 100ft
Up to 196ft
Pool, spa and drain pipe inspections, leak detection, pipework with many tight bends
General residential pipe and sewer line inspections, weeping tile inspections
Residential sewer line inspections, weeping tile inspections, micro pipelines in manufacturing, etc
Straight-view
Straight-view
Straight-view and/or Self-leveling
720x570 Pixels
480x320 Pixels
720x480 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
9" integrated monitor
Passes 1.25" P-trap and many tight bends
Ultra light, passes 1.5" bend, durable construction
Economical choice, one control base compatible with multiple reels
9.8kgs (21.6lbs)
7.2kgs (16lbs)
From 10.4kgs (23lbs)
Yes, normal/high power
Yes
Yes, depends on configuration
2" to 8"
2" to 6"
3" to 12"
Up to 114ft
200ft
200ft
Sewer and drain inspections, weeping tiles, foundation drains
General residential pipe and sewer line inspections, weeping tile inspections
Large sewer line inspections, storm drain inspections,
Self-leveling with pipe slope measurement
Self-leveling
Self-leveling
720x570 Pixels
480x320 Pixels
480x320 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
Wifi stream to mobile device (free app)
Pipe inclination measurement, compact portable design
Passes 2" bend, durable construction
Passes 3" bend, durable construction
11kgs (24.2lbs)
15kgs (33lbs)
19kgs (42lbs)
Yes
Yes
Yes
From 2"
From 2"
3" to 20"
98ft
98ft
Up to 393ft
Residential pipe and weeping tile inspections, joint/sidewall inspection
Residential pipe and weeping tile inspections, joint/sidewall inspection
Large sewer line inspections, storm drain inspections
Pan and tilt with manual focus
Pan and tilt
Pan and tilt
1920x1080 Pixels
1280x720 Pixels
1280x720 Pixels
8" monitor
10.1" monitor
8" monitor
All round inspections in Full HD, passes 3" bend
Joint and sidewall inspection in HD
All round inspections, joint/side wall inspection
11.7kgs (26lbs)
N/A
N/A
Yes
Yes
Yes
If you have any questions please refer to the section below or get in touch with our support.
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
It depends on where you are and if the product is in stock or a preorder. Products in stock will take 3-7 business days to arrive. Overseas or pre order deliveries can take anywhere from 14-28 days.
Yes! We can offer a demo of products which are in our rental fleet such as our MiniFlex, Hathorn, Voyager Cameras. Contact for more details.
Yes! We offer rental units ranging from light handles and fiberscopes to push cameras and pipe crawlers. Please get in touch with us for more information.
Yes, we offer product financing through our third-party company called Kwipped Approve. To get a product financed start the application on the product page or get in touch with us. Currently available only for USA.
