The Endoscopic set for sheep LAI includes a 0-degree angle of view, a 7mm (0.28") or 5mm (0.19") diameter, and a 330mm (13") / 300mm (11.8") working length endoscope and trocars. The larger diameter (7mm) scope creates more light transmission to illuminate the inspection area compared to smaller 5mm endoscopes.

The trocars and cannulas sets are stainless steel and come with two sharp trocars and a cannula with a port for CO2 gas or fluid irrigation. We also include extra rubber caps. You need to get 2 of these sets, one for the scope to penetrate the abdominal wall and the other for the catheter or pipette with the semen. You can also use the second cannula for rigid forceps to perform standard Laparoscopic procedures.

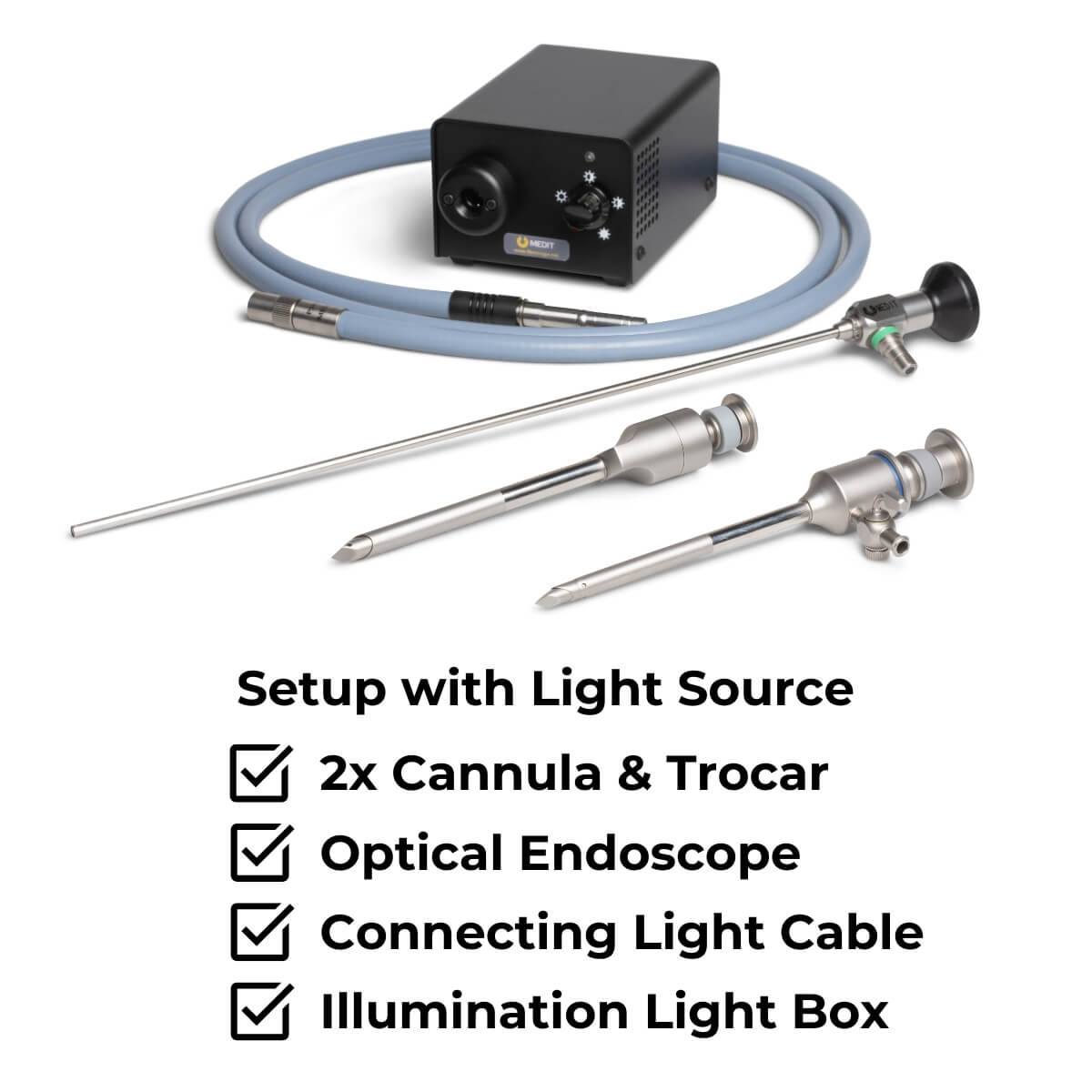

For the light source, we offer an MS-LED lightbox with a connection cable that transfers the light from the box to the endoscope to illuminate the examination set and view the insemination process. For detailed information about the MS-LED see here. Optionally you can purchase a smaller light handle separately, but it will provide much less light than the MS-LED and might be less effective.

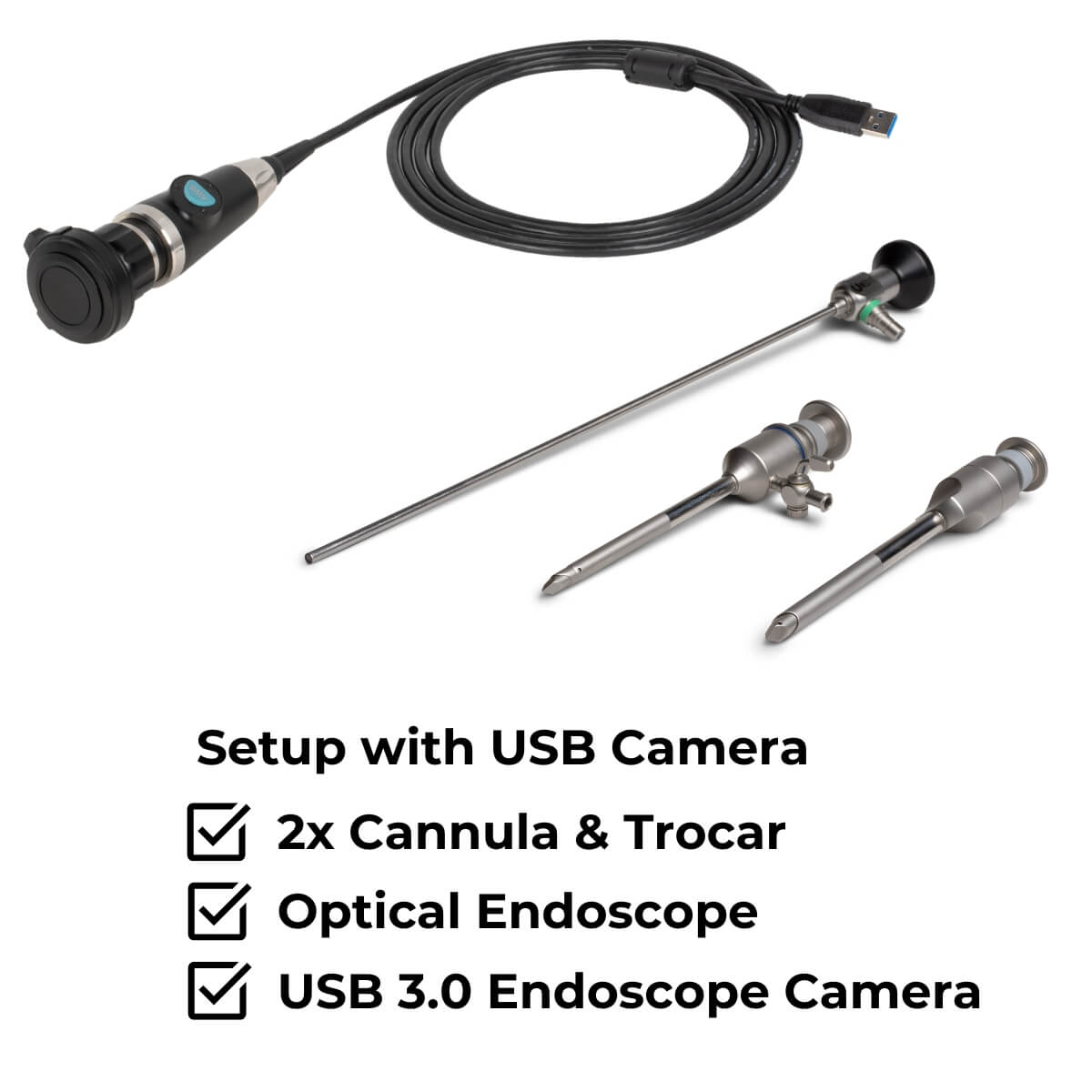

A plug-and-play HD USB endoscope camera with a focusable coupler is also available that allows you to see the insemination process on a computer screen and document it if needed. The USB endoscope camera connects to a USB 3.0 port and has the following requirements for the computer. For more detail about the camera see here.

Requirements for HD USB Camera

• USB 3 Computer Port
• CPU: at least i7 Level
• RAM: at least 8GB
• GPU: no special requirements
• Operating System: Windows 10 and above
• Viewing Software: Optional, runs on camera app

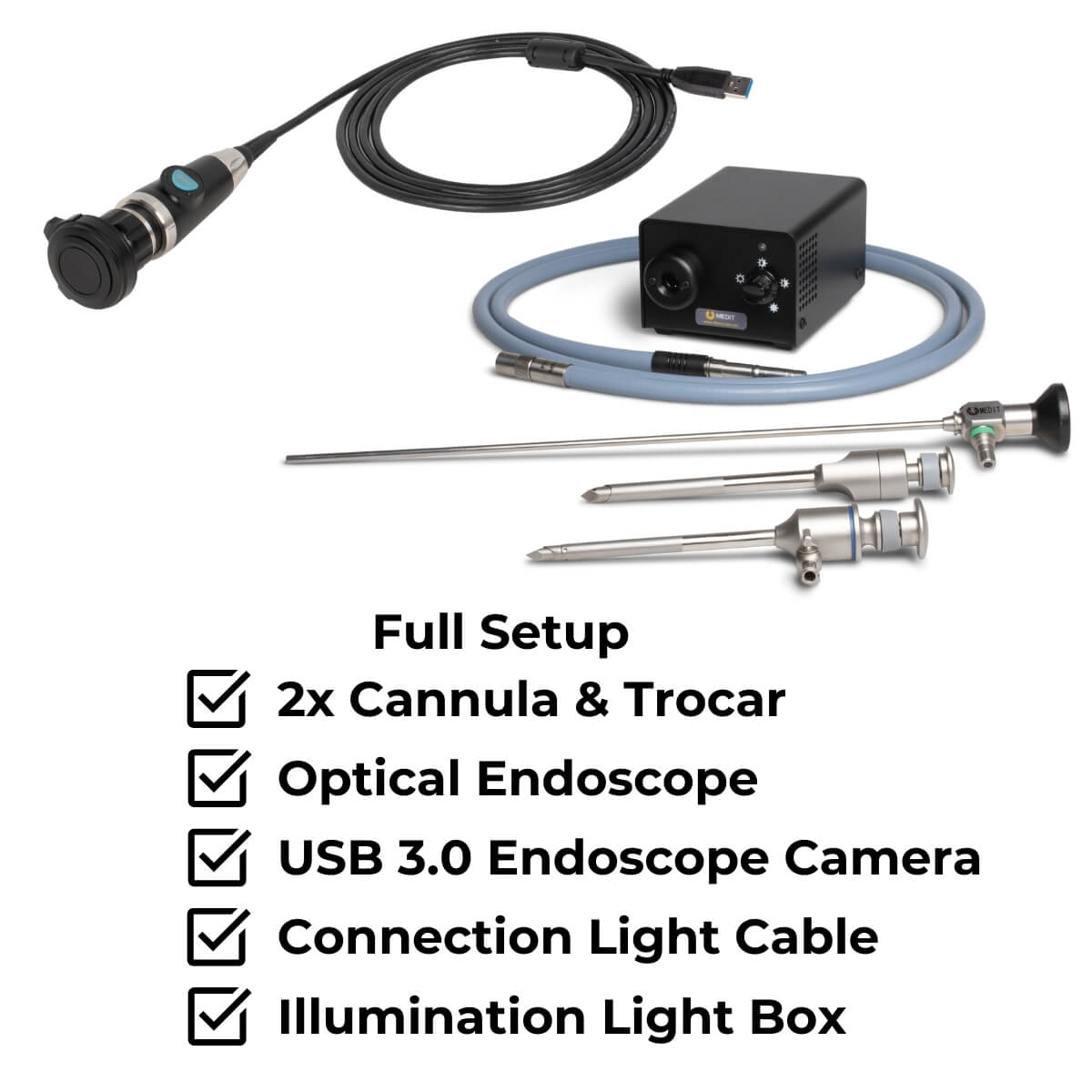

What's Included in the set?

The parts contained in the set are depended on the selected set.
