Multi-Purpose Set for Small Animal Veterinary Endoscopy
Description
The Multi-purpose endoscopic Vet-Set (or Veterinary set) features an Oto-Endoscope that is excellent for a wide range of diagnostic inspections and procedures, including Otoscopy, Rhinoscopy, Arthroscopy, etc. Laparoscopy, and some Cystoscopy, in small animals and exotics.

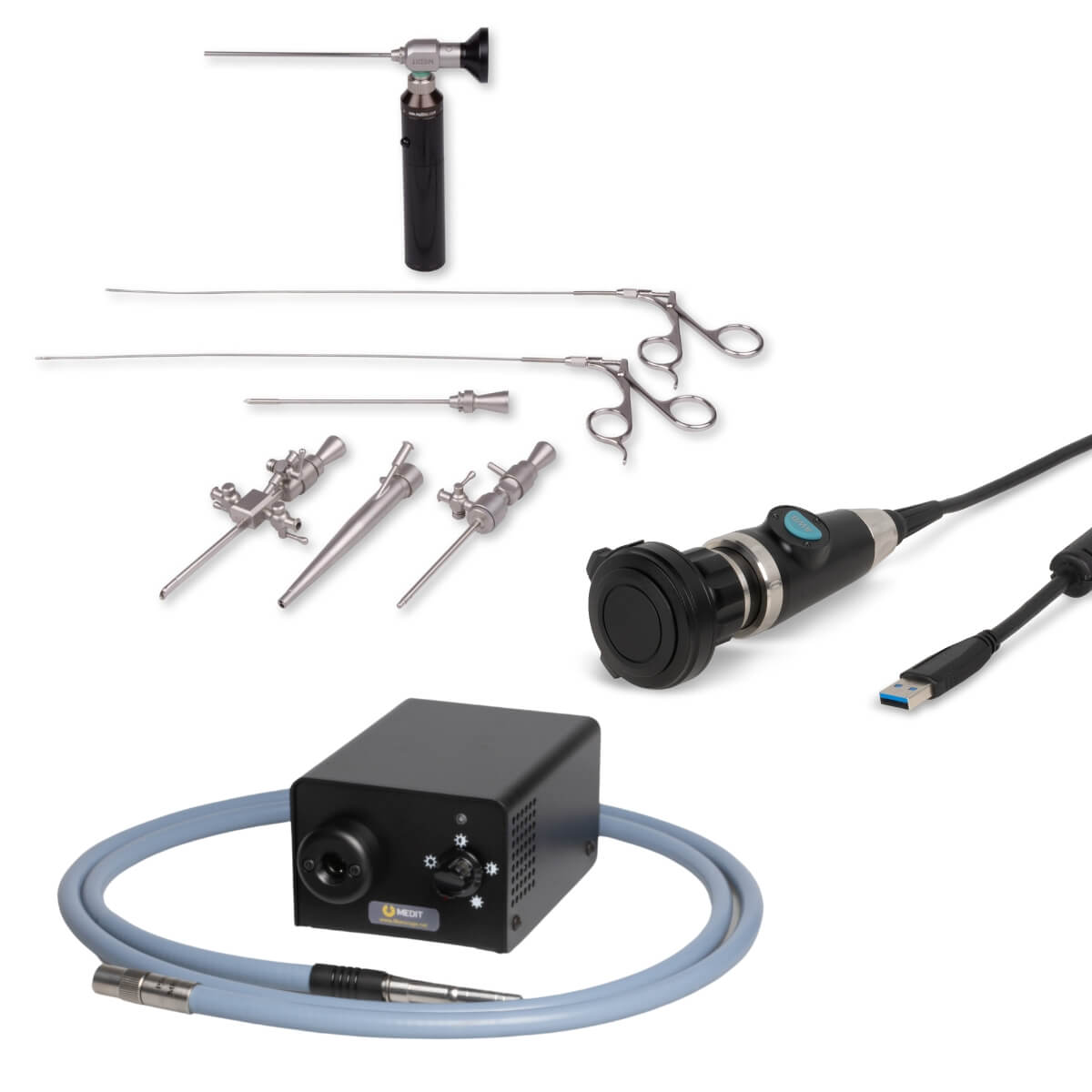

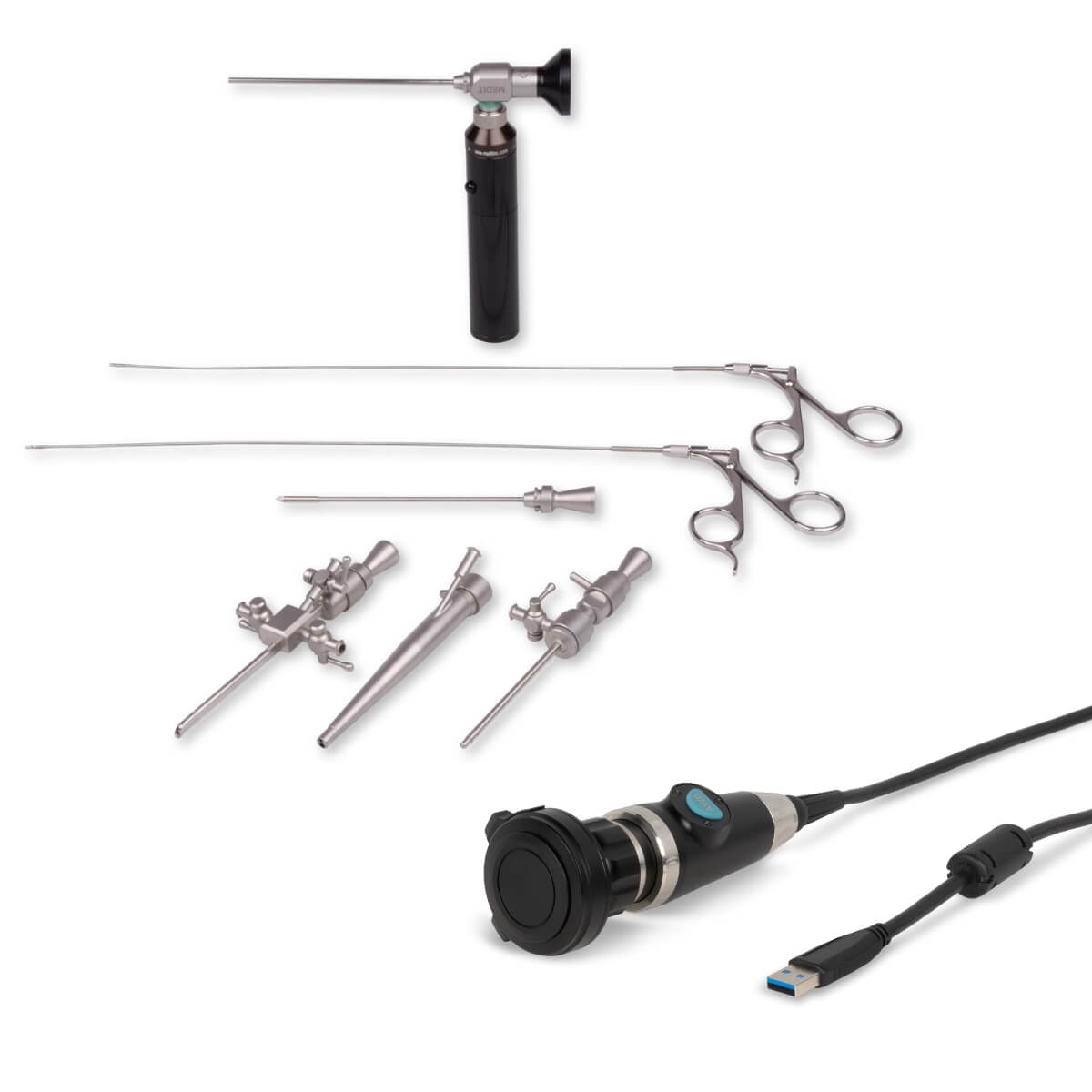

The set contains a medical-grade rigid endoscope with a 2.7mm diameter, a 105mm working length, and a 0-degree direction of view endoscope. Three specially designed interchangeable sheaths for various diagnostic and operational applications.

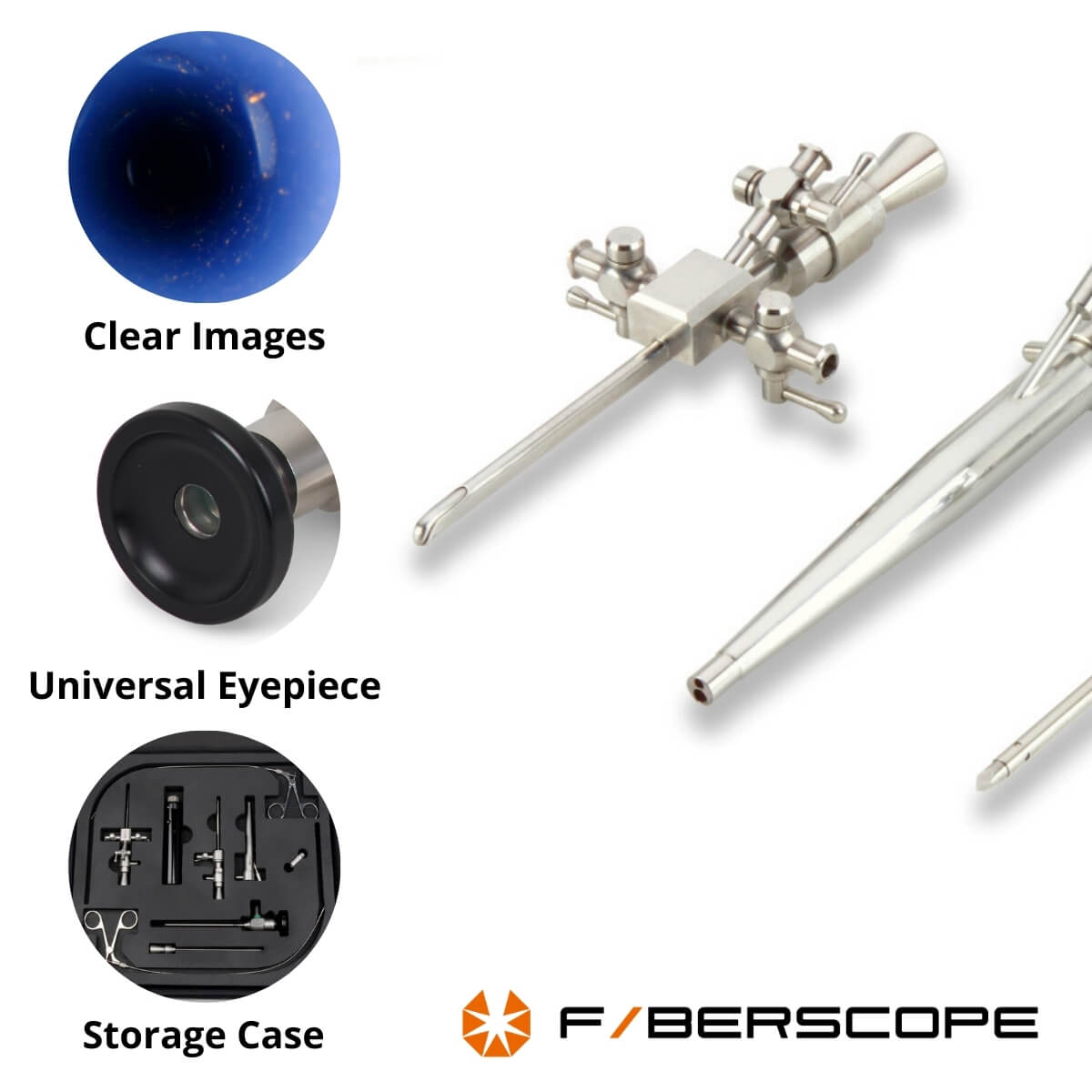

The three interchangeable sheaths consist of:
OTOSCOPIC/VAGINAL SHEATH has a conical body, a 5.5mm tip diameter, a 2mm working channel for flexible forceps, or a catheter for insemination or irrigation and suctioning of the ear canal.
DIAGNOSTIC SHEATH has a 3.5mm tip diameter and one rotatable stopcock to irrigate or aspirate the inspection area or the scope's tip. This sheath is specially designed for Rhinoscopy and Arthroscopy in small animals.
OPERATIONAL SHEATH is designed for more invasive procedures with a 14Fr insertion tube, a 2mm working channel for Flexible Forceps or a Catheter, and two stopcocks for simultaneous suction and irrigation. Applications include Otosurgeries, Transcervical Insemination, Cystoscopy, Rhinoscopy, and Anoscopy.

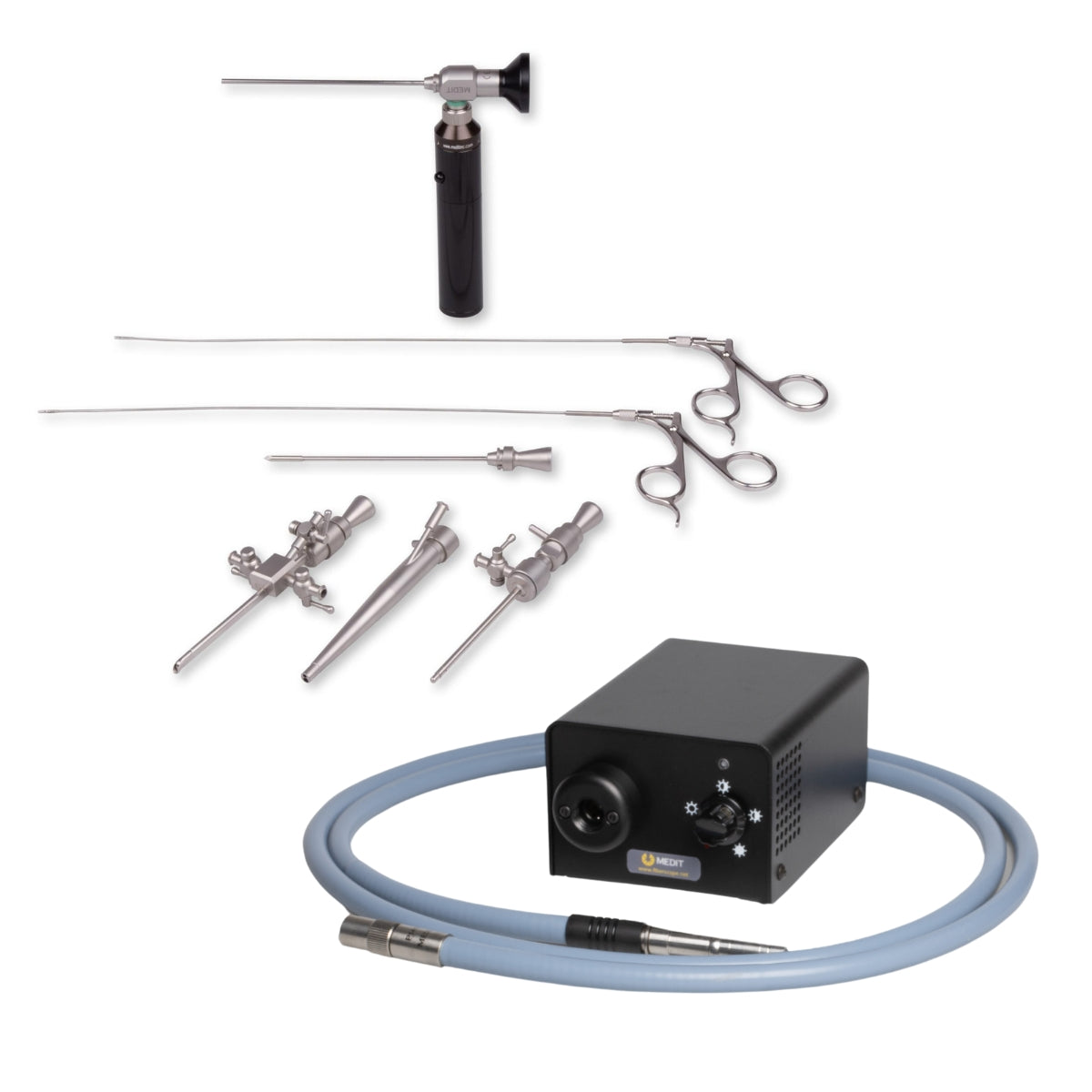

Optionally, the Vet Set can be ordered with an MS-LED light source or an ImagePRO USB 3.0 Camera. The MS-LED Light source is a lightbox with adjustable illumination and a connection cable that attaches the lightbox to the endoscope. The light transfers via the cable and illuminates the examination area, facilitating live view and manipulation. For details about the light source, see here.
The ImagePRO USB 3.0 camera offers real-time viewing of the examination on a bigger computer screen and the ability to capture and record the inspection if needed. The camera offers high-definition images and a auto-balance button for white balance correction. For detailed information see here.
Computer Requirements for ImagePRO USB 3.0 Camera
- USB 3 Computer Port
- CPU: at least i7 Level
- RAM: at least 8GB
- GPU: no special requirements
- Viewing Software: Optional, runs on camera app
- Operating System: Windows 10 and above
What's in the Box?
The parts in the set are depended on the composition selected on checkout. Feel free to get in touch if you have any questions.
Which Endoscope Set is Right for Me?
For a wide range of diagnostic inspections and procedures, including Otoscopy, Rhinoscopy, Arthroscopy, etc. Laparoscopy, and some Cystoscopy

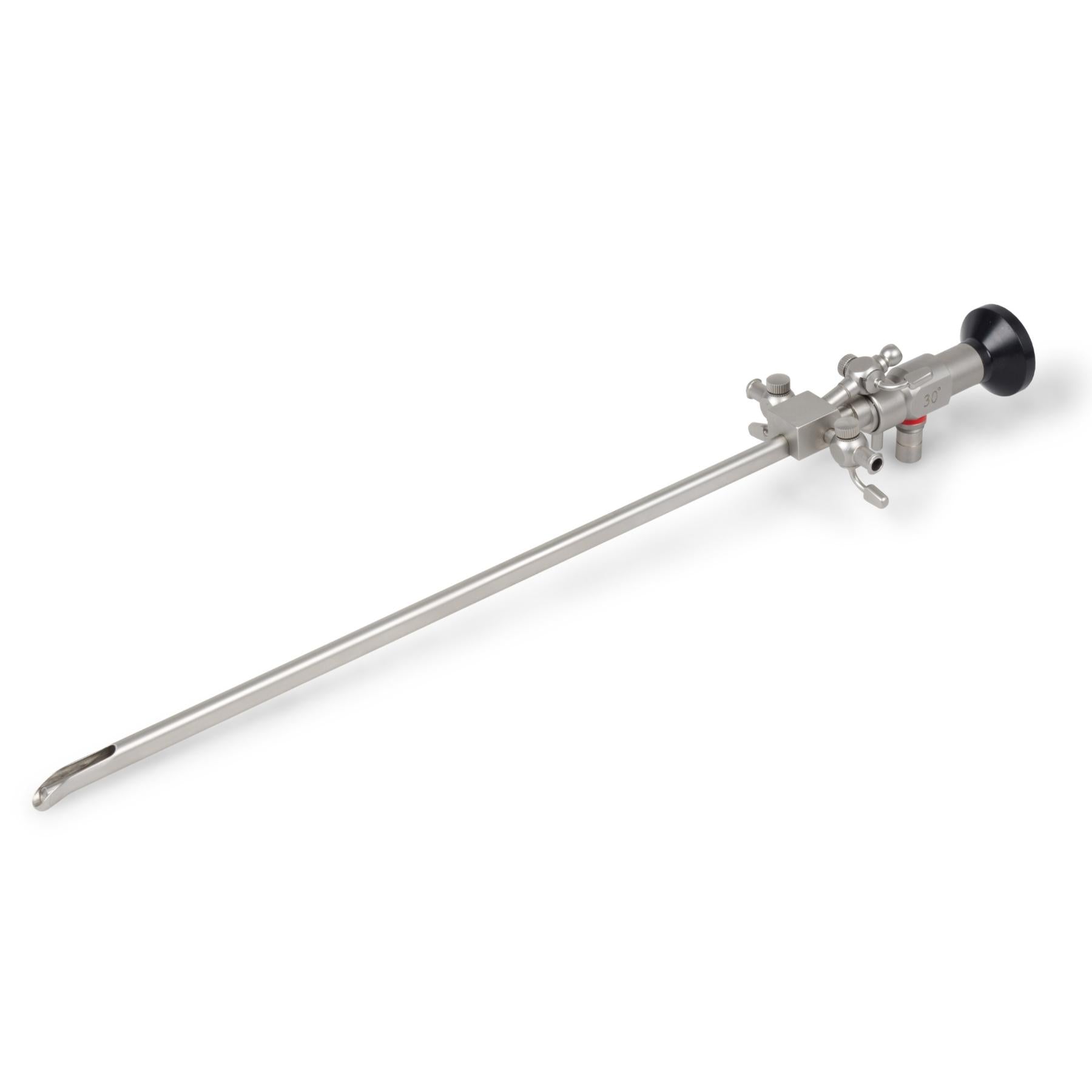

For conducting laparoscopic insemination procedures that by pass the cervix and deposit semen directly into the uterine horns
For performing artificial insemination by depositing semen directly into the uterus through the cervix.
Small animals and exotics
Mostly sheep, goats, rarely cows and dogs
Dogs
Viewing and manipulation
Viewing and manipulation
Viewing and manipulation
Which Endoscope is Right for Me?
For a viewing and assisting in a wide range of diagnostic inspections, examinations and surgical procedures
For conducting ear cleaning, foreign body removal, and manipulations.
For viewing and assisting artificial insemination procedures, abdominal examinations, and in surgical interventions
Small animals, cattle, horses, exotic animals
Small animals, cattle, horses, exotic animals
Small animals, cattle, horses, exotic animals
32mm viewing eyepiece
32mm viewing eyepiece
32mm viewing eyepiece
No
Yes
No
Which Camera Accessory is Right for Me?
Use in pair with a computer for viewing the inspection
Use in pair with a mobile device for viewing the inspection
Self-contained unit with display, light source and camera head
Displays the image on a display via USB 3.0 connection
Displays the image on a display via Wifi connection
Displays the image on the display via cord connection
For 32 mm round eyepieces
For 32 mm round eyepieces
For 32 mm round eyepieces
Full HD
800 Horizontal TVL
Full HD
High quality image, compact unit, connects directly to the computer
High quality image, portable battery-powered configuration
High quality image, self-contained unit with light source and display monitor
