High Temperature Borescope Camera VOYAGER
Gear up with a High-Temperature Resistant Borescope Camera VOYAGER and allow yourself to inspect areas where simple borescopes fail and don't deliver.
Benefits
- Inspect areas with temperatures up to 200°C
- Articulate in tight areas with tip movement
- Ergonomic borescope handle design
The high-temperature borescope camera VOYAGER offers the ability to conduct visual inspections in areas that are heated up to 200°C for 5-8 minutes thanks to the integrated cooling tube inside the insertion probe.
The insertion probes are fused into the borescope host and have a diameter of 6.6mm and are available in lengths up to 8m (26.2') with 4-way tip articulation for probes from 1m - 5m and 2-way articulation for 6m - 8m lengths. The benefit of the tip movement over the non-articulating probes is the ability to aid in maneuvering tight spots and help captureing the needed footage in difficult-to-reach areas.

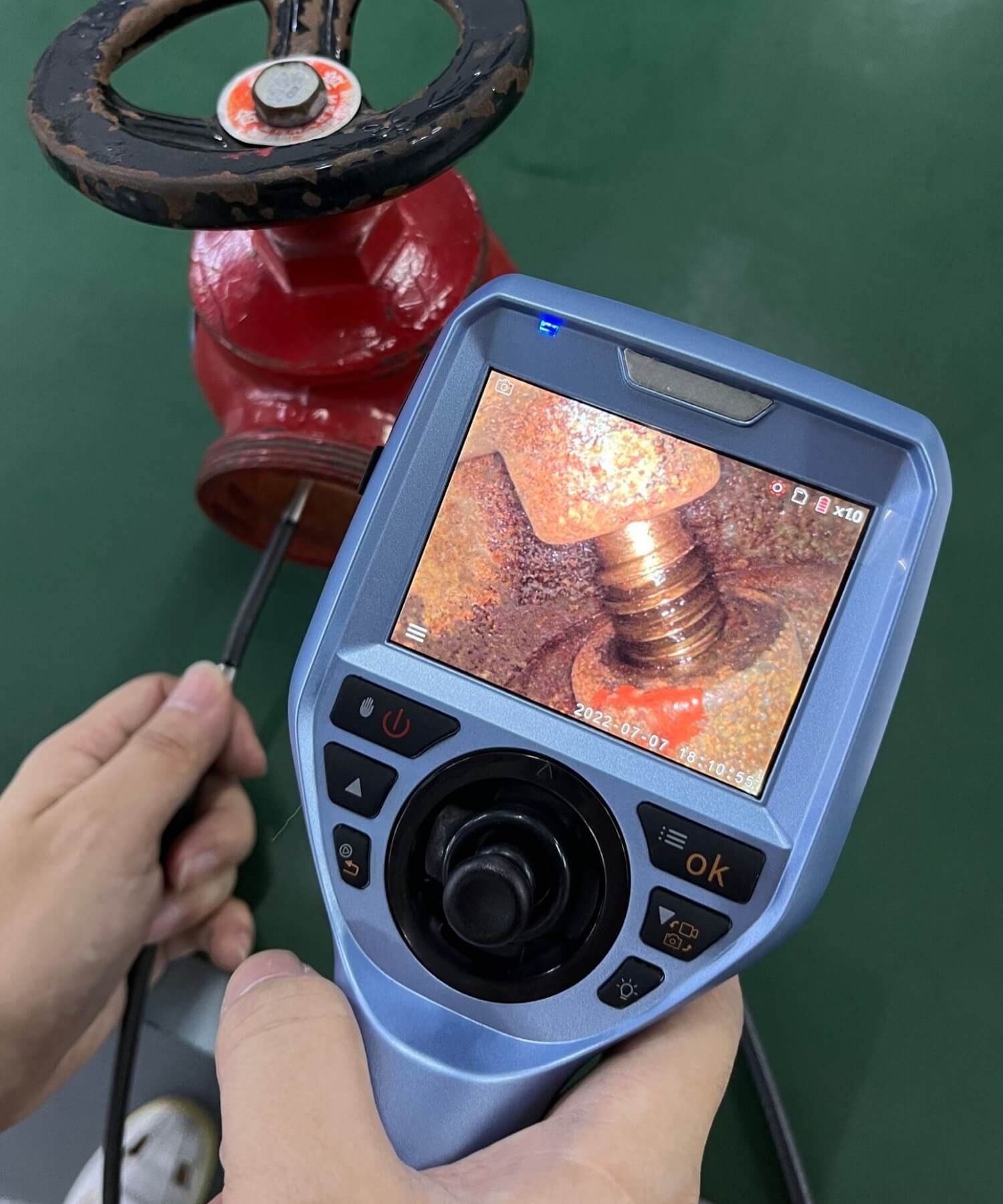

The VOYAGER High Temp Borescope Camera offers a host with the needed controls and buttons to effectively capture images and videos during the inspection and export them for later assessment or filing. For storage and transportation, the borescope fits into a pelican-type box.
For more information about this inspection system check the product's page at our online catalog.
Specs
- Probe diameter: 6.6mm
- Length: 1m-8m
- Articulation: 4-way(1-5m) and 2-way(6-8m)
- Cooling: Integrated tube (requires a compressor)
- Heat resistance: Up to 200°C
If you have any questions about the high-temp borescope camera VOYAGER, don't hesitate to reach out to us.
What's Included?
Borescope host with a desired probe length and diameter, protective case, and accessories.
High-temp Borescope Camera VOYAGER is a custom order - please contact us with any questions.
Which Video Borescope is Right for Me?
★★★★★
★★★★★
★★★
1.2mm to 6mm
6mm
4mm to 16mm
Up to 10m (33ft)
1m (3.2ft)
Up to 10m (33ft)
Various inspections in different industries: automotive and the like
Quick inspections of areas that require articulation and high quality picture
Simple borescope inspections, tight spaces and bores
Color Camera
Color Camera
CMOS Color Camera
Up to 1280x720 Pixels
960x720 Pixels
N/A
3.5" monitor
3.5" monitor
Passes 1.25" P-trap and many tight bends
Lightweight, quality image, joystick tip articulation
Simple, economical choice, one control base compatible with multiple probes
