Pan and Tilt Drain Camera ColorEye
The ColorEye Pan and Tilt drain camera extends the limits of all-around inspections to inspecting pipes as small as 2 inches.

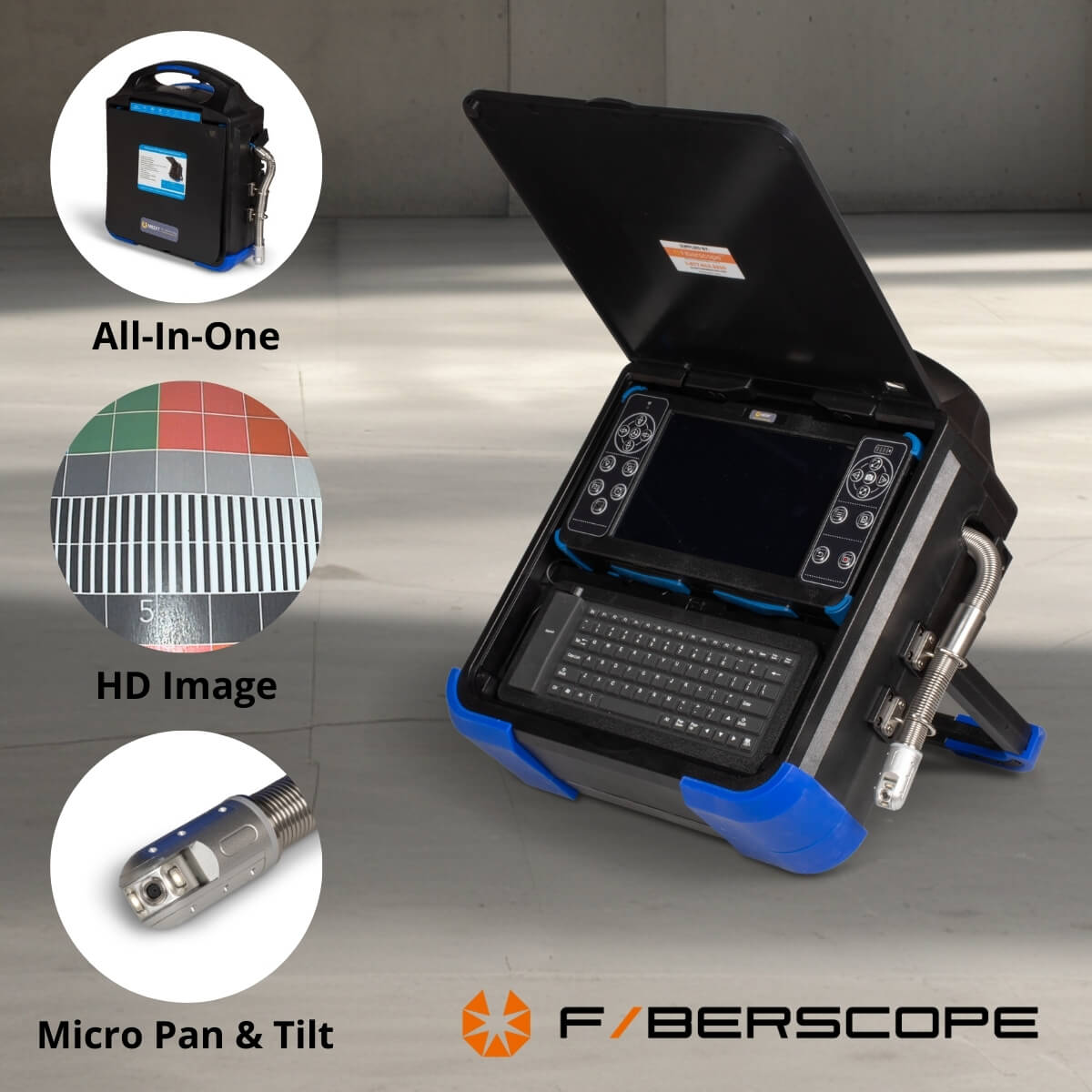

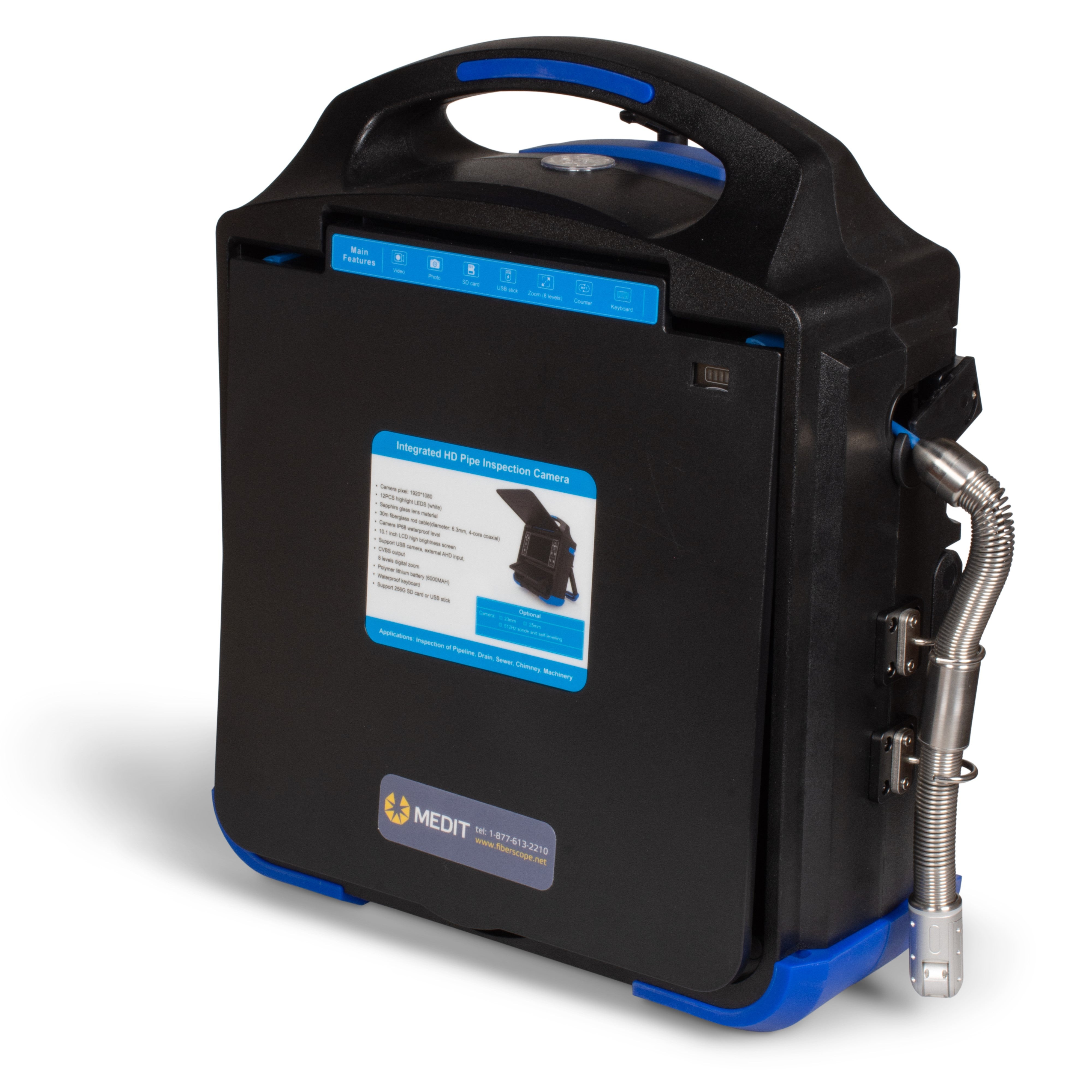

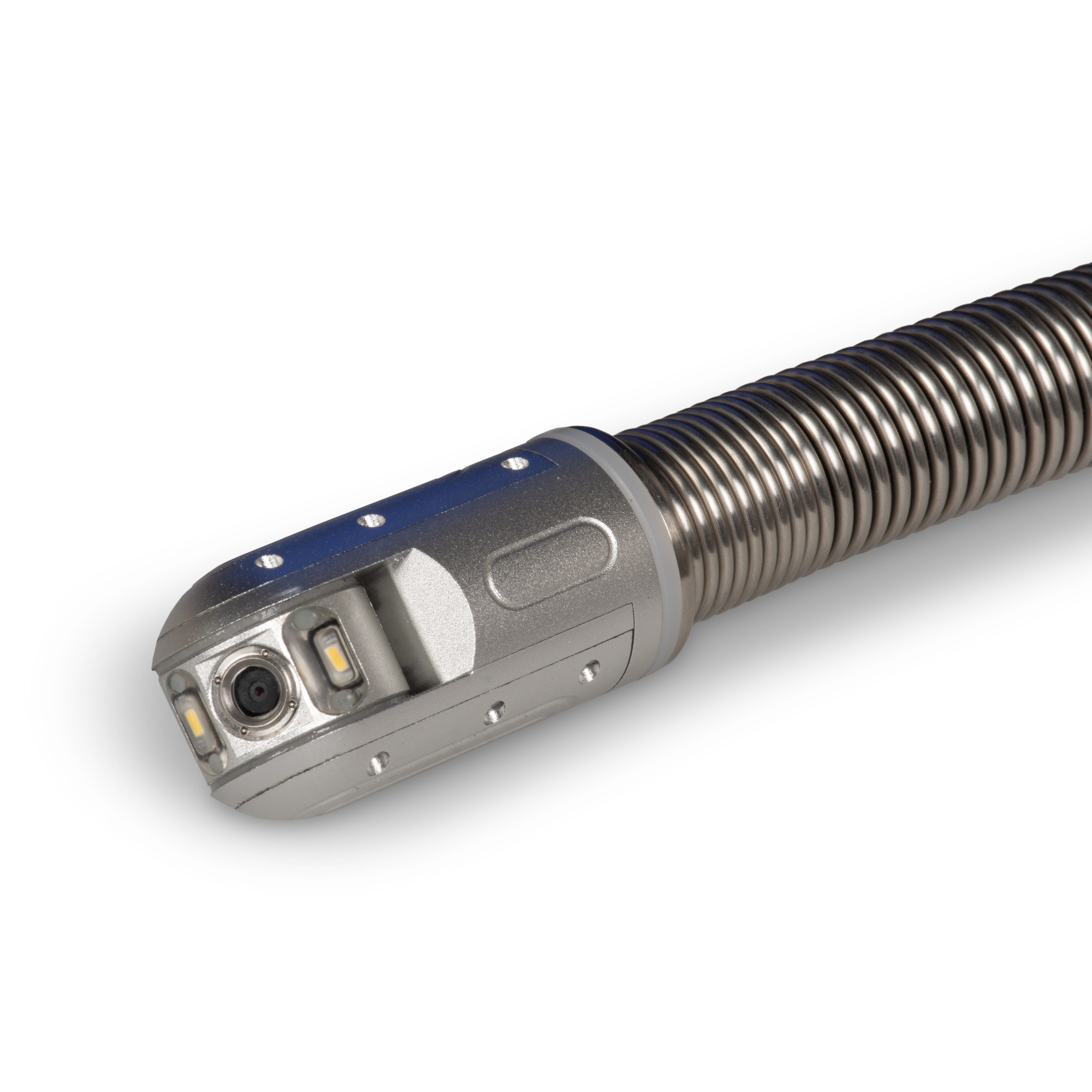

The whole unit is encased into a plastic protective case, including the reel, monitor, keyboard, cable, and accessories. The reel has 30m (90ft) of flexible cable that connects to the small pan and tilt camera head. The camera head offers a full view of the pipe thanks to the panning and the tilting function. This feature gives a better feel in the pipe and allows it to detect defects easier and inspect the sidewalls directly.

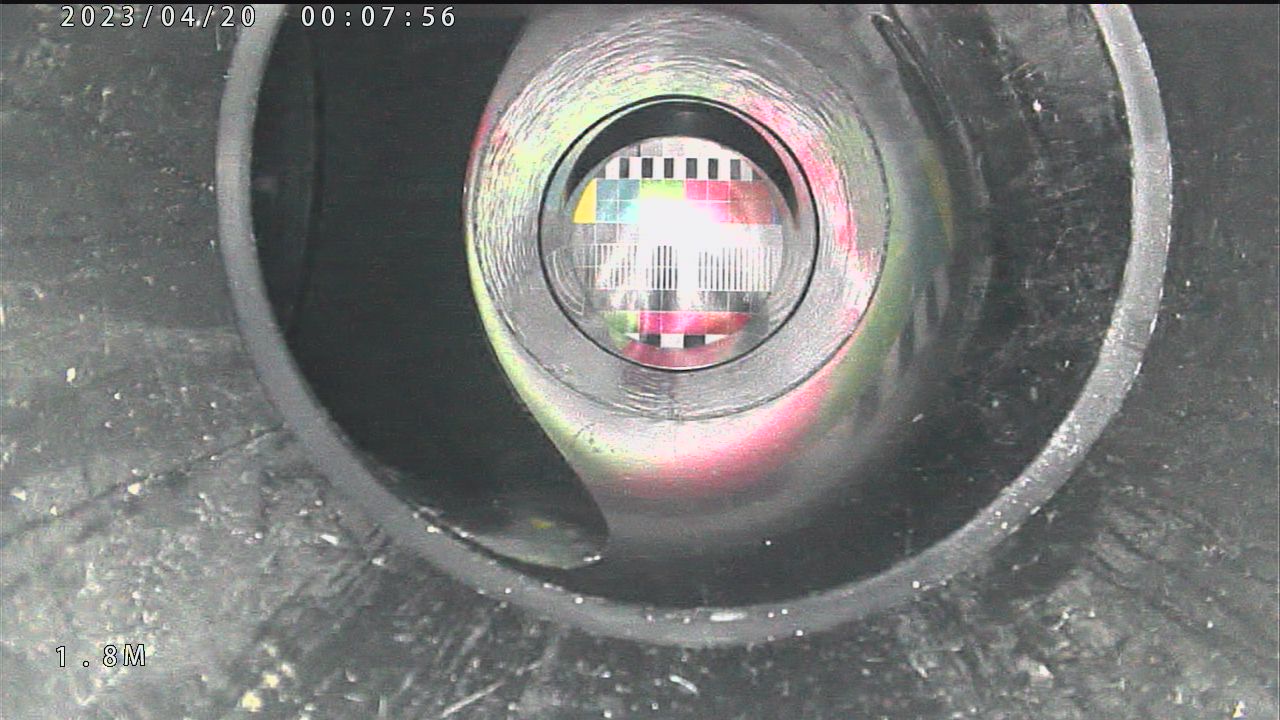

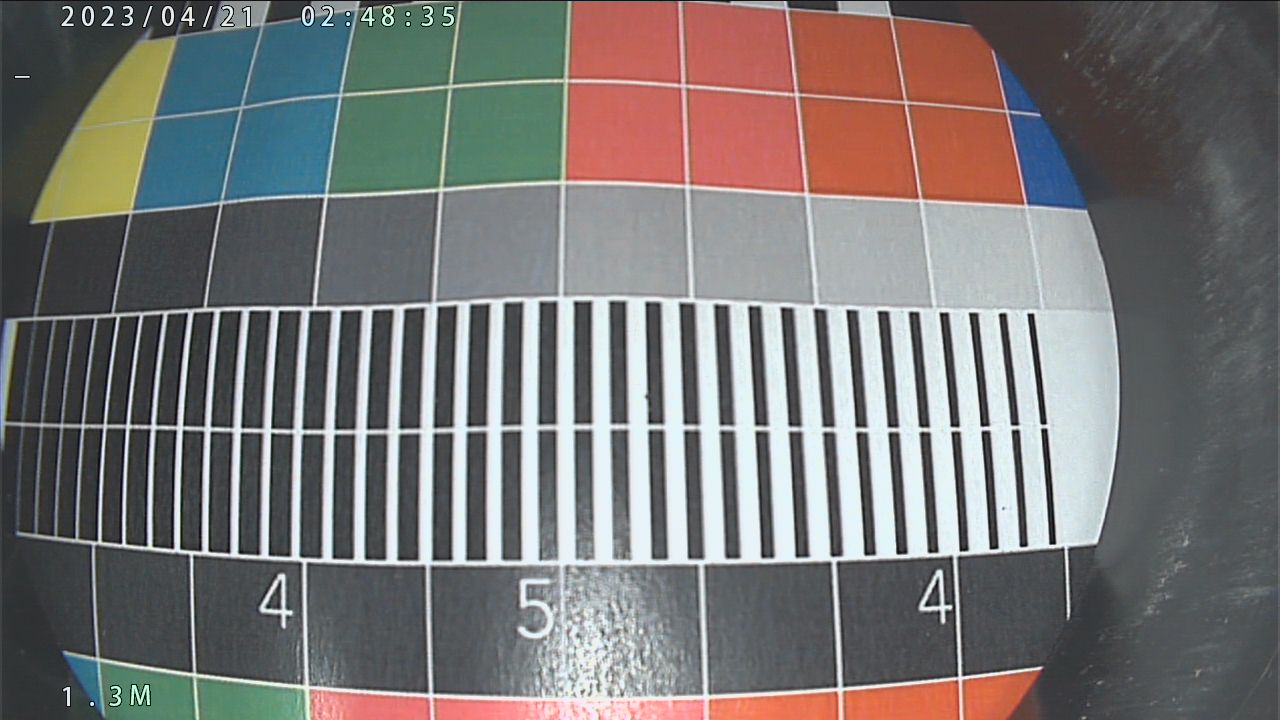

The 10-inch monitor displays the live inspection in high image quality (1280x720p). The unit's controls allow the movement of the pan and tilt camera head as well as the recording of the inspection and the playback of the footage.
The whole unit offers a quick, simple method of inspecting pipes from 2" and up. It is specifically designed for straight runs rather than curves or bends since the pan and tilt camera has a longer, stiffer spring section.
For detailed information, visit the catalog page.
Specifications:
- 1.1" Pan and Tilt Camera Head
- Waterproof: IP68
- 30M(98ft) Cable Length
- Field of View: 90°
- Illumination: Adjustable
- 10.1" Display Monitor
- Keyboard for Text Generation
- Remote Transmitter (512 Hz Sonde)
- Accessories Included
Feel free to get in touch with us if you are not sure which camera will fit your application best or learn more at our catalog page.
Which Pipe Inspection Camera is Right for Me?
★★★★★
★★★★★
★★★★
1" to 4"
1.5" to 4"
0.4" to 6"
Up to 131ft
100ft
Up to 196ft
Pool, spa and drain pipe inspections, leak detection, pipework with many tight bends
General residential pipe and sewer line inspections, weeping tile inspections
Residential sewer line inspections, weeping tile inspections, micro pipelines in manufacturing, etc
Straight-view
Straight-view
Straight-view and/or Self-leveling
720x570 Pixels
480x320 Pixels
720x480 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
9" integrated monitor
Passes 1.25" P-trap and many tight bends
Ultra light, passes 1.5" bend, durable construction
Economical choice, one control base compatible with multiple reels
9.8kgs (21.6lbs)
7.2kgs (16lbs)
From 10.4kgs (23lbs)
Yes, normal/high power
Yes
Yes, depends on configuration
★★★★★
★★★★★
★★★★★
2" to 8"
2" to 6"
3" to 12"
Up to 114ft
200ft
200ft
Sewer and drain inspections, weeping tiles, foundation drains
General residential pipe and sewer line inspections, weeping tile inspections
Large sewer line inspections, storm drain inspections,
Self-leveling with pipe slope measurement
Self-leveling
Self-leveling
720x570 Pixels
480x320 Pixels
480x320 Pixels
8" touchscreen monitor
Wifi stream to mobile device (free app)
Wifi stream to mobile device (free app)
Pipe inclination measurement, compact portable design
Passes 2" bend, durable construction
Passes 3" bend, durable construction
11kgs (24.2lbs)
15kgs (33lbs)
19kgs (42lbs)
Yes
Yes
Yes
★★★
★★★
★★★
From 2"
From 2"
3" to 20"
98ft
98ft
Up to 393ft
Residential pipe and weeping tile inspections, joint/sidewall inspection
Residential pipe and weeping tile inspections, joint/sidewall inspection
Large sewer line inspections, storm drain inspections
Pan and tilt with manual focus
Pan and tilt
Pan and tilt
1920x1080 Pixels
1280x720 Pixels
1280x720 Pixels
8" monitor
10.1" monitor
8" monitor
All round inspections in Full HD, passes 3" bend
Joint and sidewall inspection in HD
All round inspections, joint/side wall inspection
11.7kgs (26lbs)
N/A
N/A
Yes
Yes
Yes
Q&A
If you have any questions please refer to the section below or get in touch with our support.
Do you ship overseas?
Yes, we ship all over the world. Shipping costs will apply, and will be added at checkout.
How long will it take to get my orders?
It depends on where you are and if the product is in stock or a preorder. Products in stock will take 3-7 business days to arrive. Overseas or pre order deliveries can take anywhere from 14-28 days.
Can I get a demo product before ordering?
Yes! We can offer a demo of products which are in our rental fleet such as our MiniFlex, Hathorn, Voyager Cameras. Contact for more details.
Can I rent a camera?
Yes! We offer rental units ranging from light handles and fiberscopes to push cameras and pipe crawlers. Please get in touch with us for more information.
Do you offer product financing?
Yes, we offer product financing through our third-party company called Kwipped Approve. To get a product financed start the application on the product page or get in touch with us. Currently available only for USA.
